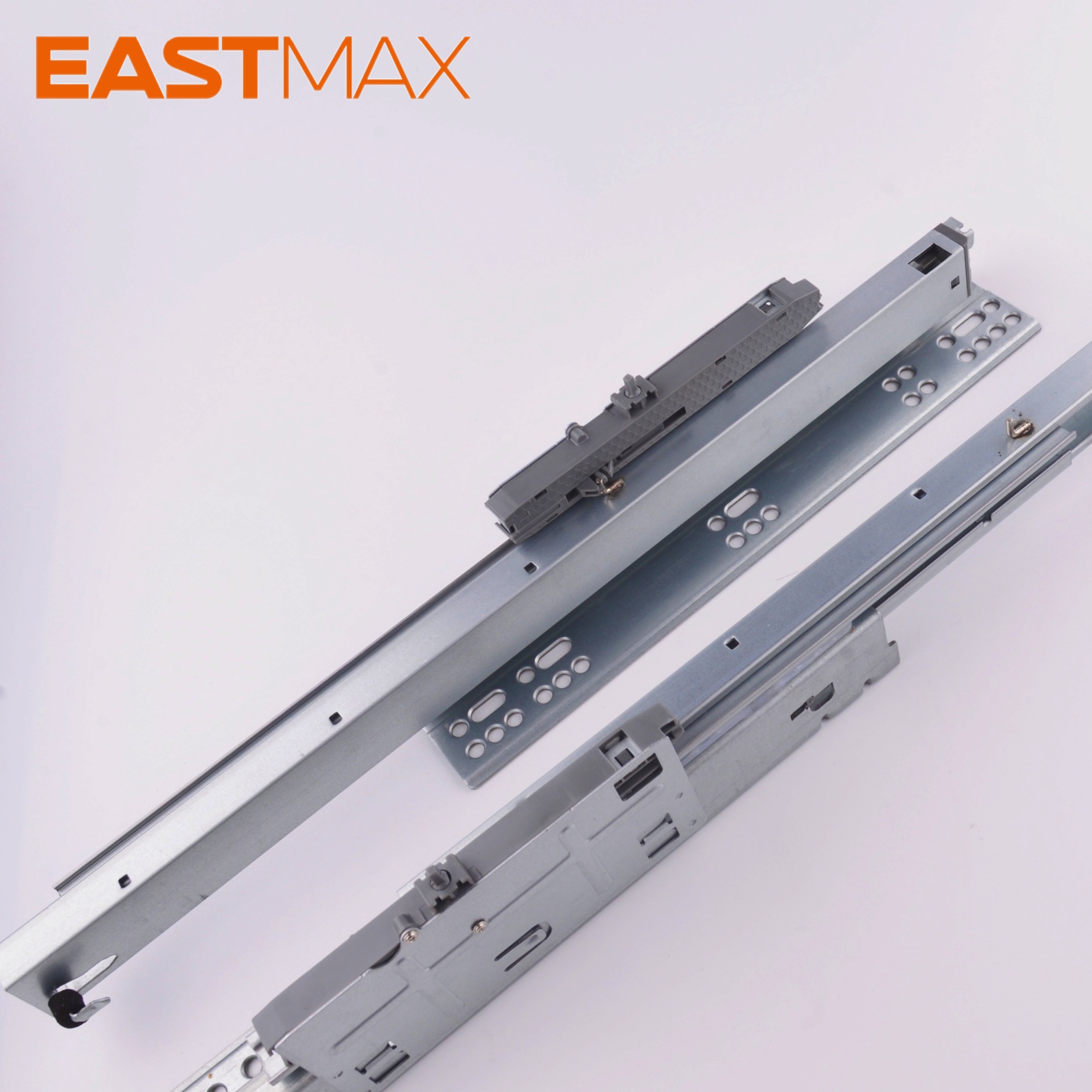

Full extension push-open with synchronize rail with clip for 16/19mm board

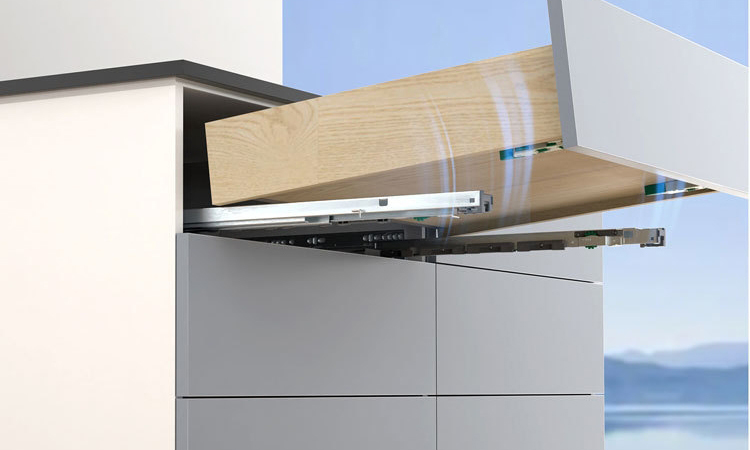

	The TY301SF series delivers push-to-open functionality combined with synchronized rail movement for handleless drawer systems. A spring-loaded push-open mechanism releases the drawer from the closed position when the front panel is pressed, eliminating the need for external handles or pulls. This design supports handleless cabinet aesthetics in modern kitchen and furniture applications.

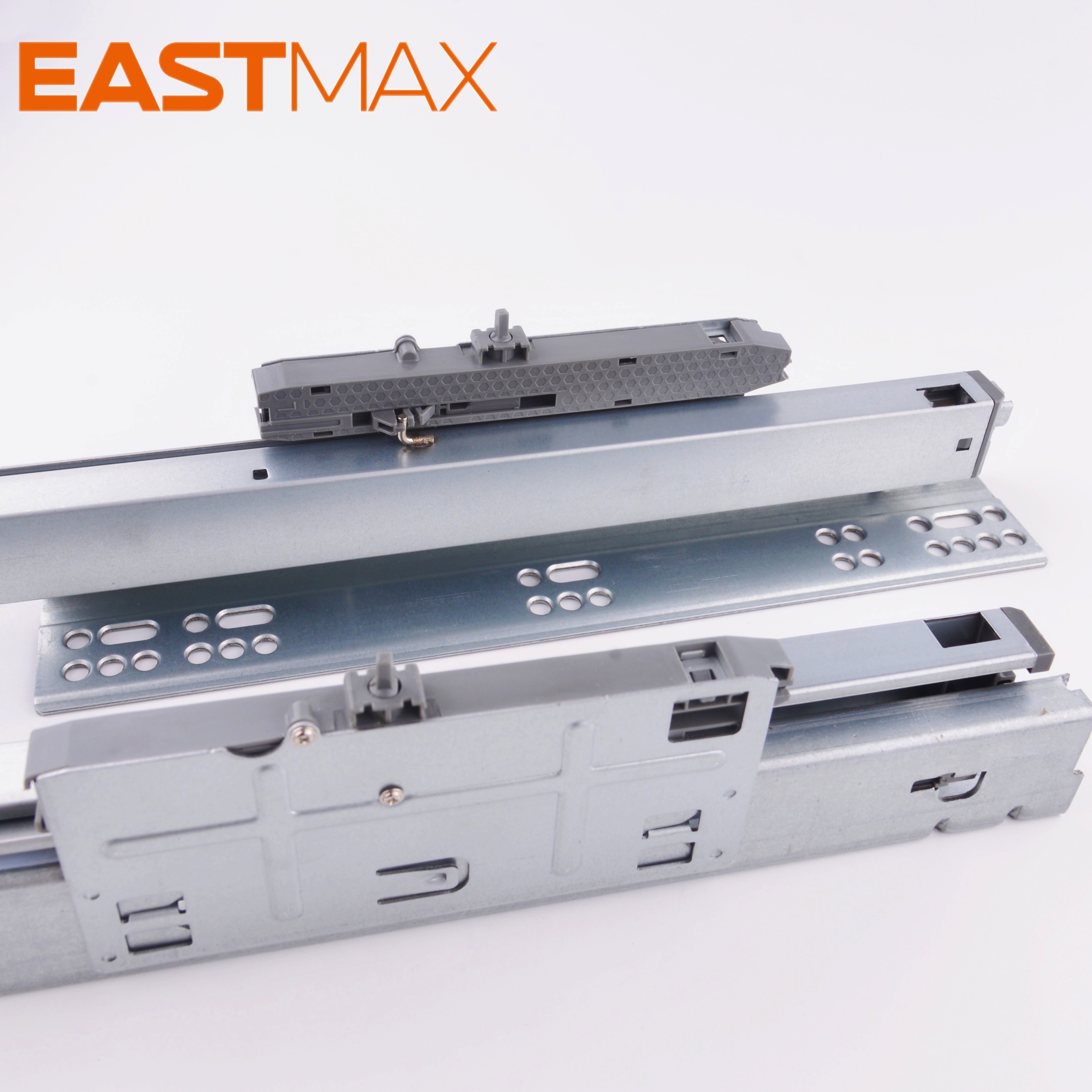

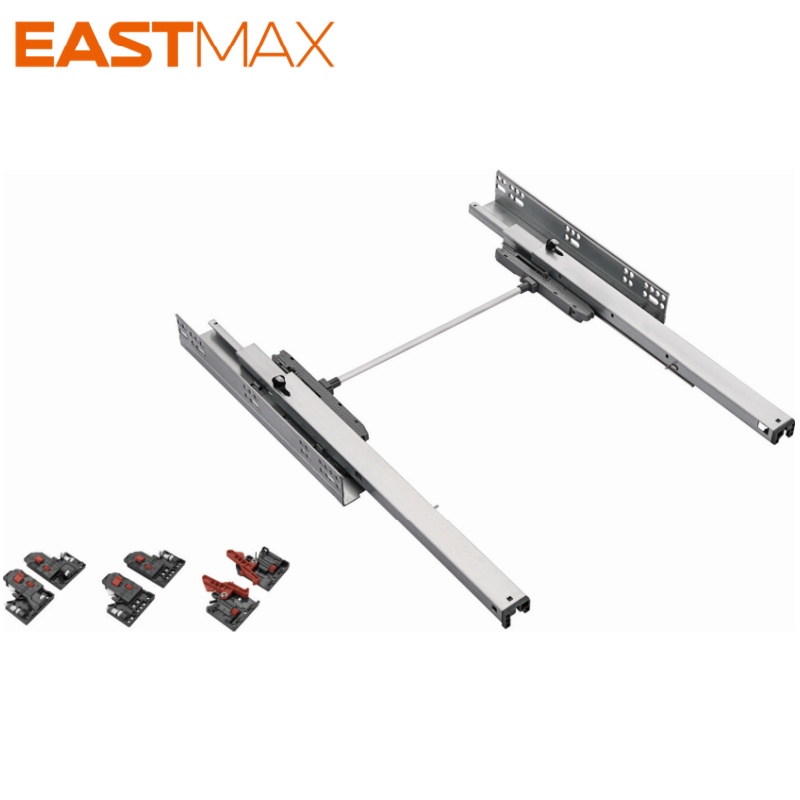

A synchronization bar links the left and right slides, ensuring both rails advance and retract at the same rate. This parallel motion reduces side loading and prevents the drawer from jamming during operation, particularly on wider drawer fronts. Constructed from galvanized steel, the slides mount beneath the drawer body for a fully concealed appearance.

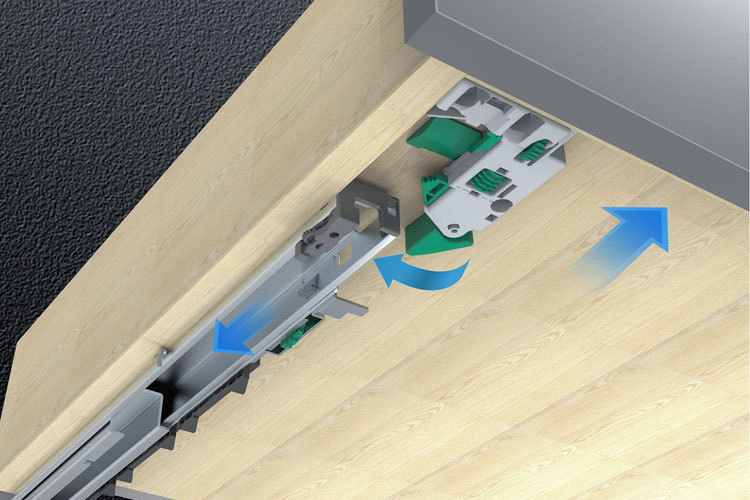

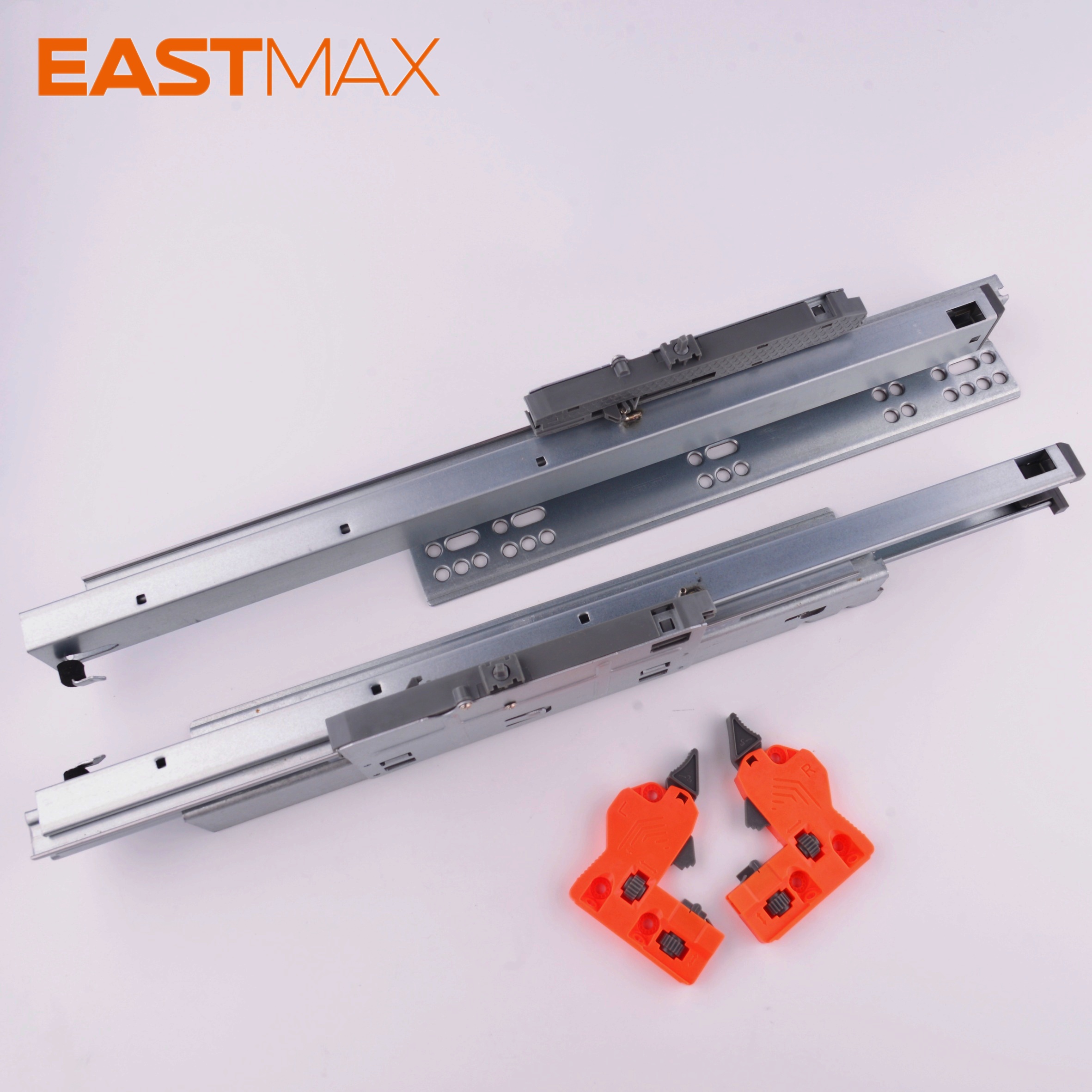

	The clip-on attachment system enables tool-free drawer installation and removal. Installers seat the drawer onto the slide clips and secure the fit without additional fasteners on the drawer side. Three-dimensional adjustment allows fine-tuning of ±2.5mm vertically, ±2mm horizontally, and ±2mm in depth, supporting consistent gap alignment across cabinet runs. Each pair supports a maximum load of 35kg and fits drawer side panels of 16mm and 19mm thickness.

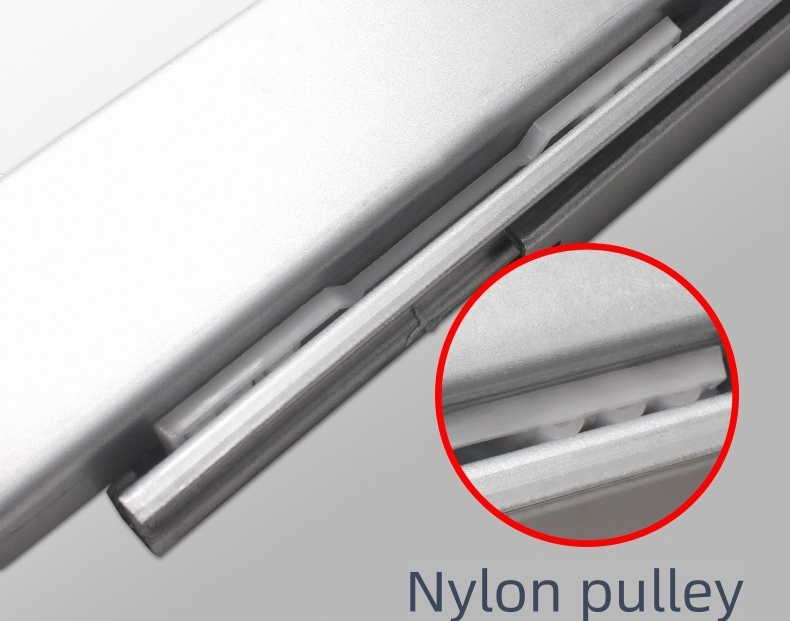

Main material: galvanized steel Max loading capacity: 35kgs Length range: 250-550mm Thickness of board: 16/19mm Opening mechanism: push-to-open, spring activated Synchronization bar: included Mounting type: undermount / concealed Release mechanism: clip-on, tool-free Nylon rollers: integrated into carriage assembly

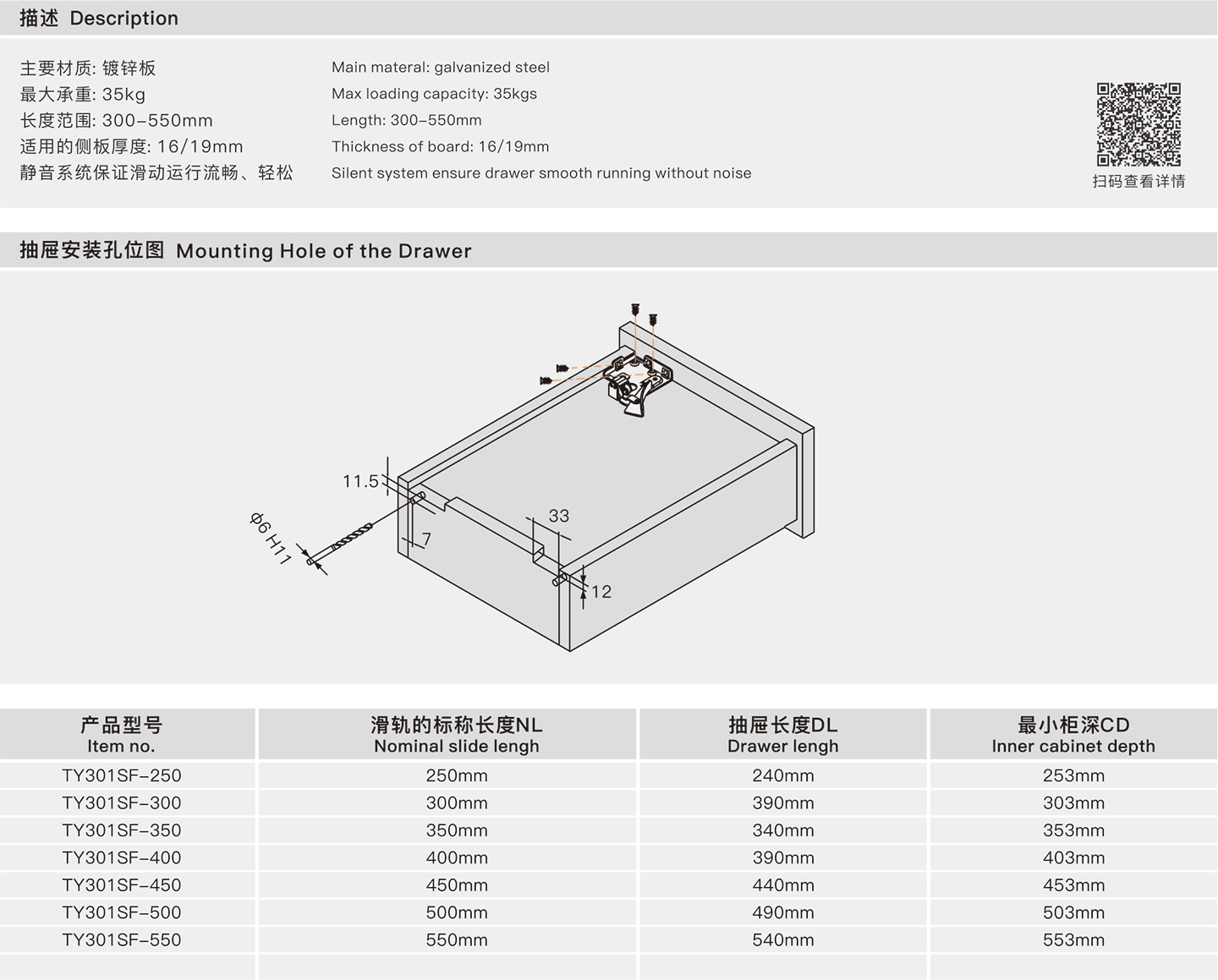

Technical Specifications for TY301SF Push-Open Undermount Slides

Size Reference Table

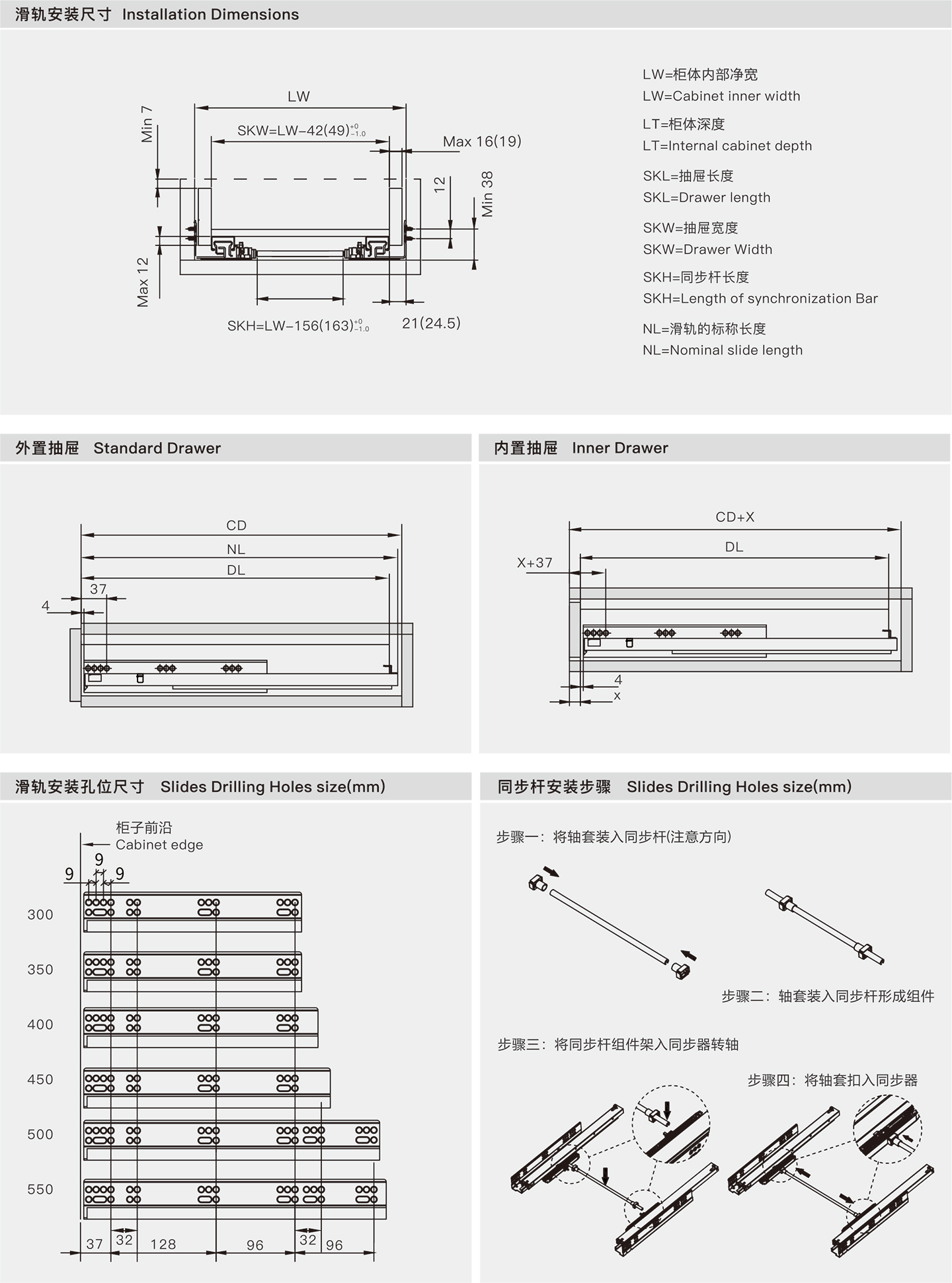

Installation Dimensions of 16-19mm Push-Open Concealed Slides

Side clearance requirements match standard undermount slide dimensions. For 16mm drawer boards, the required clearance from drawer side to inner cabinet wall measures 42mm. For 19mm boards, the clearance is 49mm. Minimum inner cabinet depth for each slide length is listed in the specification table to ensure proper fit.

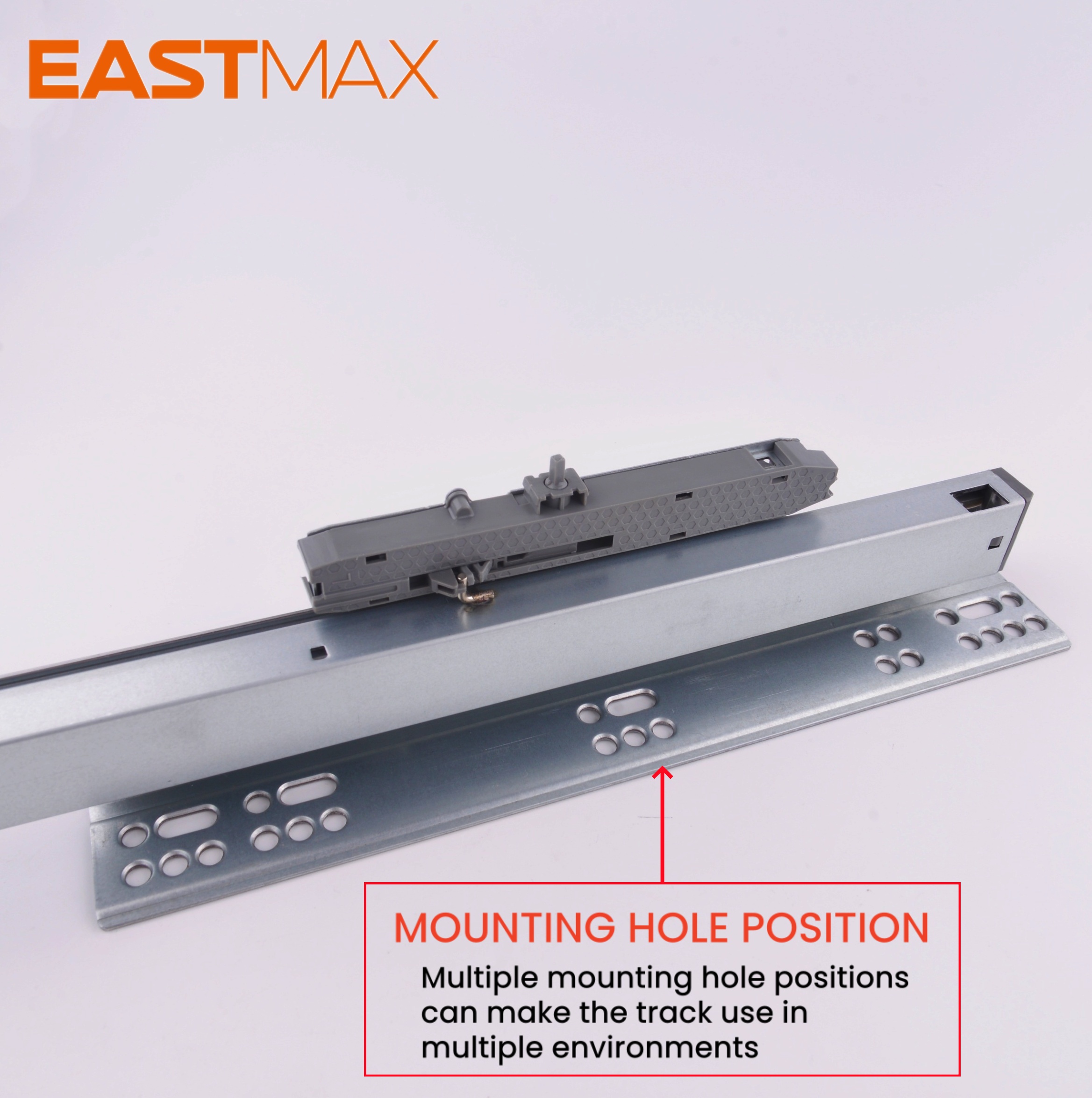

Multiple mounting hole positions along the slide body accommodate varying cabinet construction standards. Installers can select hole positions that align with their existing drilling jigs. The push-open mechanism requires a small rebound gap at the front of the drawer to allow the push-release cycle to function correctly. Drawer front overhang should be planned accordingly during cabinet design.

Applications for Push-Open Synchronized Drawer Runners

These slides address commercial procurement requirements for handleless furniture systems. Kitchen cabinet manufacturers use them for handleless base units and wall bank drawers, where continuous panel surfaces are a design requirement. Bathroom furniture producers specify push-open slides for vanity drawers and storage towers in residential and hotel projects.

Office furniture builders integrate them into modern desk pedestals and storage cabinets where minimalist design is specified. Wardrobe and walk-in closet system suppliers use the concealed, handleless configuration for drawer banks within closet interiors. Additional uses include retail display fixtures, healthcare casework, and high-volume residential furniture production lines.

FAQ About TY301SF Push-Open Slides

How does the push-open mechanism work?

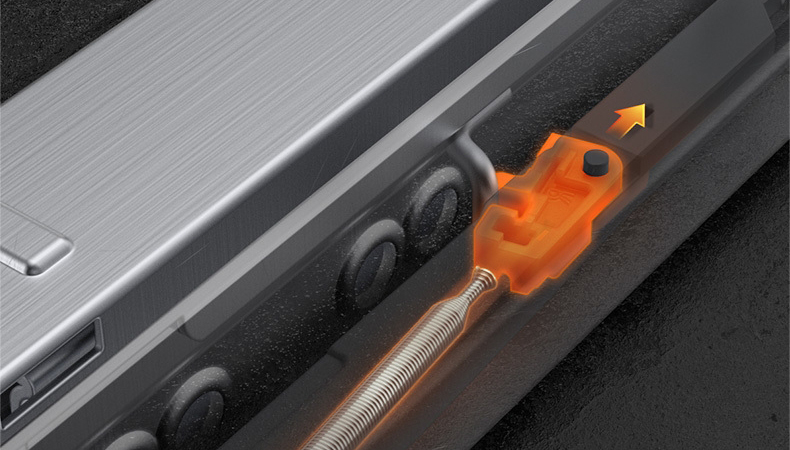

Pressing the drawer front inward activates a spring-loaded catch that releases the drawer and pushes it forward to an open position. The drawer is closed by pushing it back until the catch engages.

Can these slides be used with handleless drawer fronts?

Yes. Push-open slides are designed specifically for handleless and handle-free drawer systems, where no external pull is installed on the drawer front.

What board thicknesses are compatible?

The TY301SF clip assembly fits 16mm and 19mm drawer side panels. Side clearance differs between the two thicknesses: 42mm for 16mm boards and 49mm for 19mm boards.

What is the load rating per pair?

Each set of slides has a rated load capacity of 35kg under evenly distributed loading conditions, when installed per the manufacturer specifications.

Do push-open slides include soft-close function?

No. The TY301SF series uses push-to-open opening action and does not include a soft-close damper. For projects requiring both soft-close and push-open functionality, verify product specifications before ordering.

Are the slides handed left and right?

Yes. Each pair consists of one left slide and one right slide. The synchronization bar connects the two sides and is not reversible.
