Have you ever stopped to think about the unsung hero of your cabinets and doors? That's right, we're talking about the humble hinge! While it might seem simple, this little piece of hardware plays a crucial role in how your furniture functions. Let's dive into the anatomy and different types of hinges you might encounter.

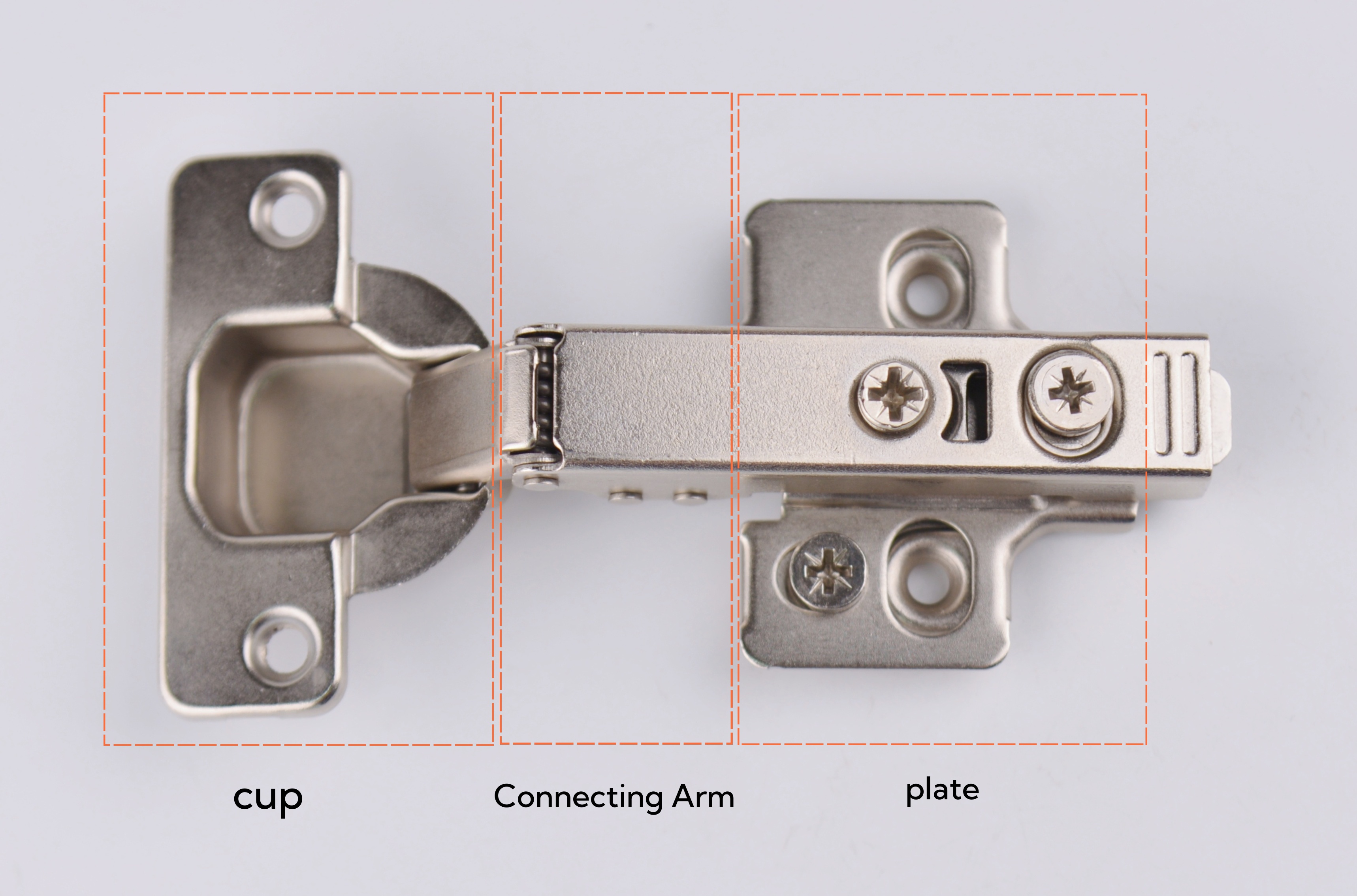

At its core, a standard cabinet hinge consists of three main parts:
Cup : This part is typically recessed into the door panel.
Connecting Arm : This is the central part that allows the hinge to pivot.
Mounting Plate : This part is fixed to the cabinet frame or adjacent panel.
The way your door panel overlays the cabinet frame dictates the type of hinge arm needed. The three common door mounting styles are:
Full Overlay : The door completely covers the cabinet frame. This requires a straight arm hinge .
Half Overlay : The door covers half of the adjacent cabinet frame, allowing another door to be mounted next to it. This requires a half-bent arm hinge .
Inset : The door sits inside the cabinet frame, flush with the front edges. This requires a full-bent arm hinge .
Think of it this way: the greater the difference in level between the hinge cup and the side panel when the door is open and parallel, the more the connecting arm needs to be bent.
The length of the connecting arm also matters!
Short Arm Hinges : These are ideal for narrower side panels, false doors, and shallow cabinets where space might be limited.
Long Arm Hinges : These are the more standard type for general applications.
Hinge angles refer to the degree of movement the hinge allows. We can categorize these in two ways:
Closing Angle : This is the angle formed between the door panel and the inner side panel (the reference plane) when the door is closed. A negative angle indicates the door leans inward, while a positive angle means it leans outward. These angled hinges are used for specialized installations. If an angle is mentioned in the hinge name without a positive or negative sign, it usually refers to the opening angle.
Opening Angle : This is the maximum angle to which the door can open. Standard hinges typically offer a 90° opening angle. However, some specialized hinges, like 165° hinges, allow for a much wider opening.

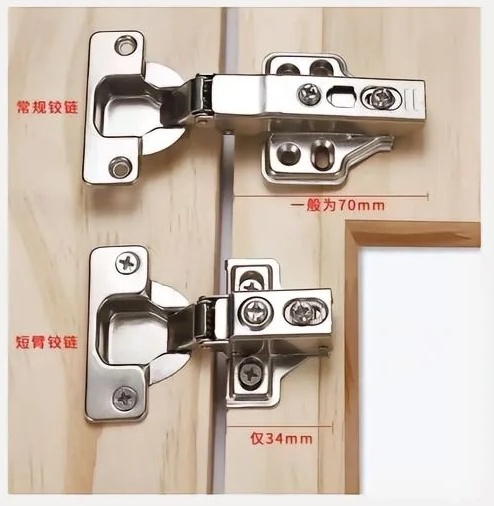

short arm hinge & long arm hinge

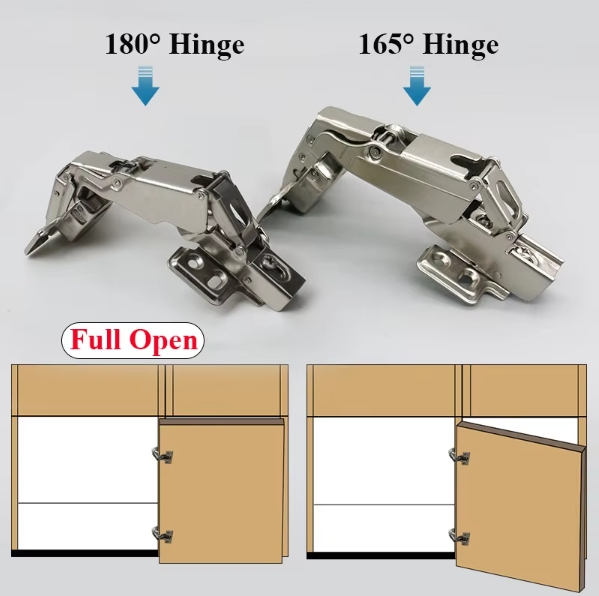

165 degree angle hinge
Hinges can also be categorized by their damping (or soft-close) mechanism:
Non-Damping : These are basic hinges without any soft-closing feature.
One -way Damping : These hinges can hold the door at a specific open angle, but outside of that, it will either be fully open or closed.
Two-way Damping : These offer a wider range of smooth stopping angles, often between 45° and 110°.
Three-way Damping / Full Damping : These advanced hinges provide soft-closing even from very small opening angles (e.g., 10 degrees or less), ensuring a gentle and quiet closure.

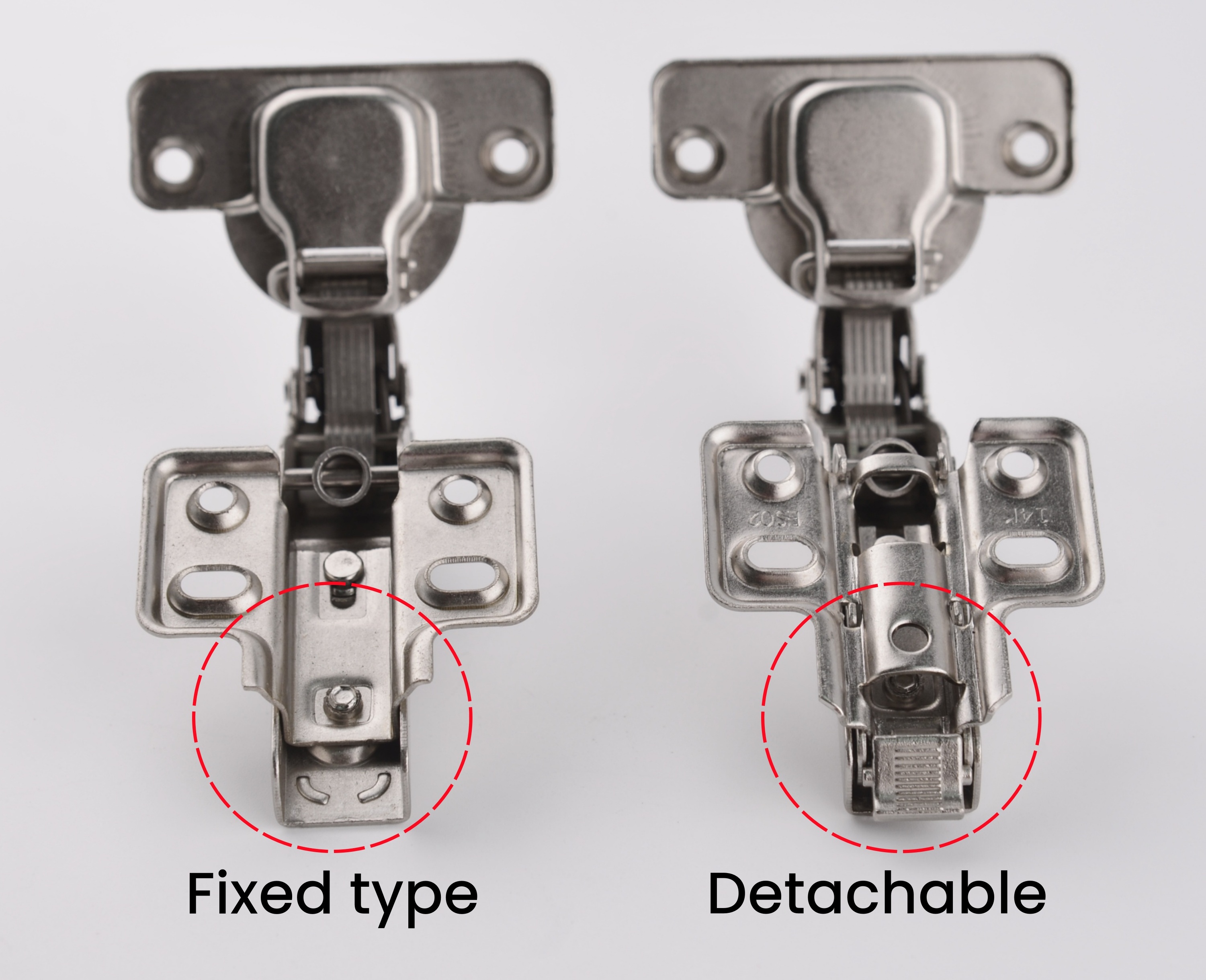

Finally, hinges come with different installation methods:
Fixed Mounting : The mounting plate is permanently attached to the hinge.
Clip-on Mounting : The mounting plate can be detached from the hinge, making installation and removal easier.
Understanding the different types and features of hinges empowers you to choose the right hardware for your specific needs, ensuring smooth operation and longevity for your cabinets and doors.
