The Silent Choice for Modern Homes: A Guide To Easily Removing And Installing Undermount Drawer Slides

The Silent Choice for Modern Homes: A Guide to Easily Removing and Installing Undermount Drawer Slides

In modern home design, which emphasizes both simplicity and functionality, undermount drawer slides have become a preferred choice for enhancing the quality of home furnishings due to their concealed installation and excellent load-bearing capacity. Whether it's kitchenware in the kitchen, toiletries in the bathroom, or clothing storage in the bedroom, undermount slides provide a stable, smooth, and quiet drawer operation experience.

However, whether it's for routine cleaning, repairing the inside of a drawer, or reassembling or upgrading furniture, understanding the correct method for removing undermount drawer slides is crucial. This article will detail the removal steps for undermount drawers and provide a straightforward installation guide.

I. Understanding the Structure of Undermount Drawer Slides

Undermount drawer slides typically consist of two precision components: the slide body fixed to the underside edges of the drawer and the runners mounted inside the furniture on either side or at the bottom. These two parts interlock through a clever mechanical structure, ensuring the drawer remains stable and moves smoothly during pushing and pulling.

II. How to Easily Remove Undermount Drawers?

Removing undermount drawers usually doesn't require complex tools; you just need to understand the key release mechanisms.

1. Preparation:

Before starting the removal, make sure to complete the following preparations to ensure a safe and efficient process:

• Empty the Drawer: Completely remove all items from the drawer to reduce weight and prevent damage or dropping of items during removal.

• Prepare Tools : Although most undermount slides can be removed without tools, having a screwdriver handy can be wise for unforeseen situations.

• Protect the Floor: If the drawer is large or heavy, it's advisable to place padding in the work area to prevent damage to the floor and the drawer in case of accidental drops.

2. Removal Steps:

• Step 1: Fully Extend the Drawer Gently pull the drawer out of the cabinet as far as it will go. When the drawer is fully extended, you will feel the limit mechanism inside the slides prevent it from being pulled out further.

• Step 2: Locate and Activate the Release MechanismUndermount drawer slides are typically equipped with convenient quick-release devices. These release mechanisms are usually located on the sides of the slides attached to the underside of the drawer. They may be in the form of small buttons, plug, or clip. Carefully inspect both sides of the drawer slides to locate the exact position of these release mechanisms.

  Once you have located the release mechanisms, take the corresponding action based on their type:

• If it's a plug: Simultaneously press or pull out it on both sides.

• If it's clip: Simultaneously push up or down the levers or squeeze the handles on both sides.

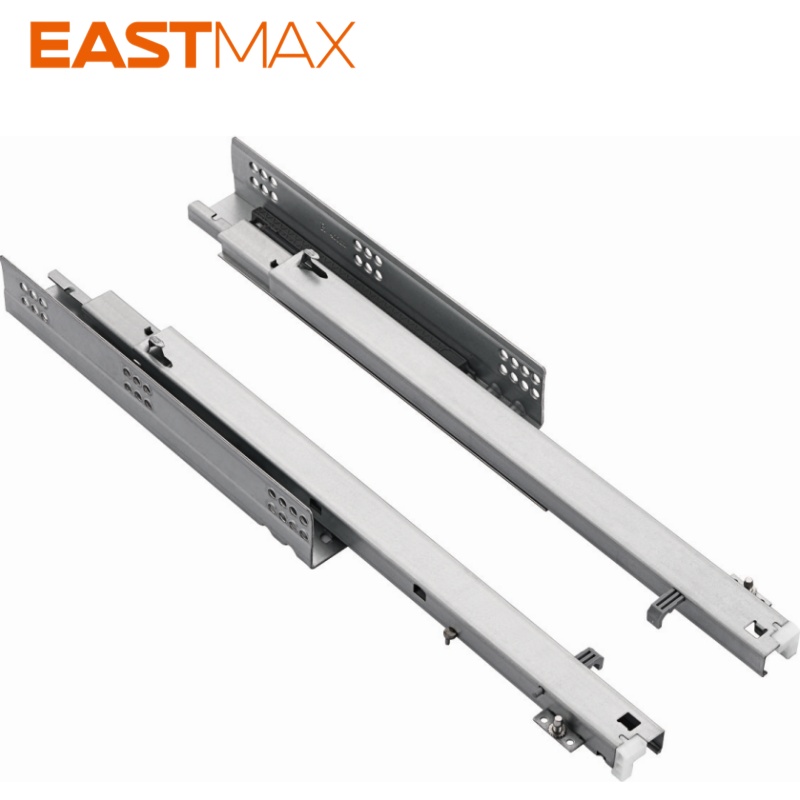

  undermount slide with plug

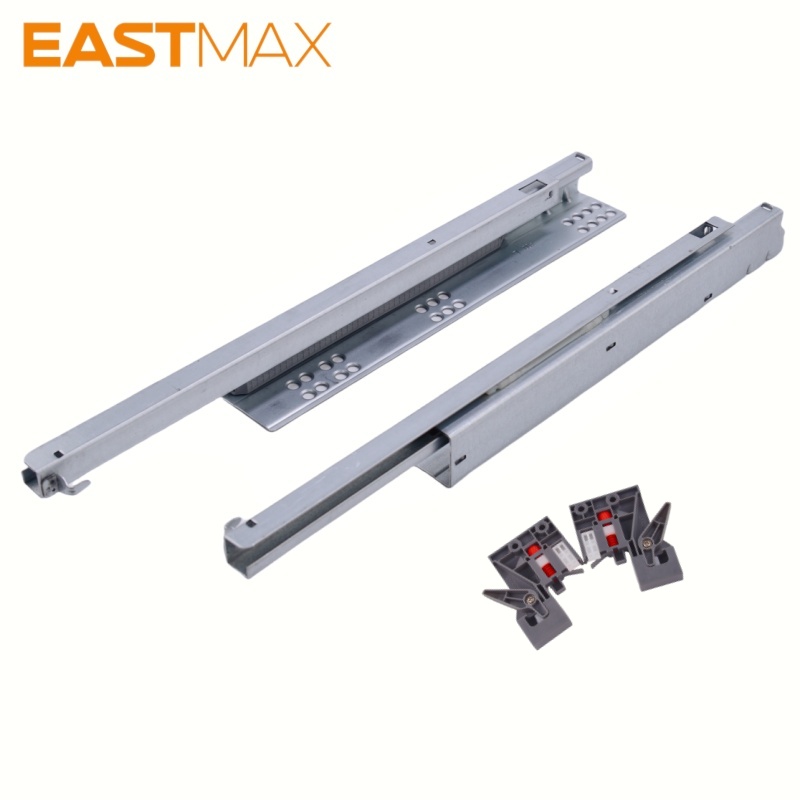

  undermount slide with clip

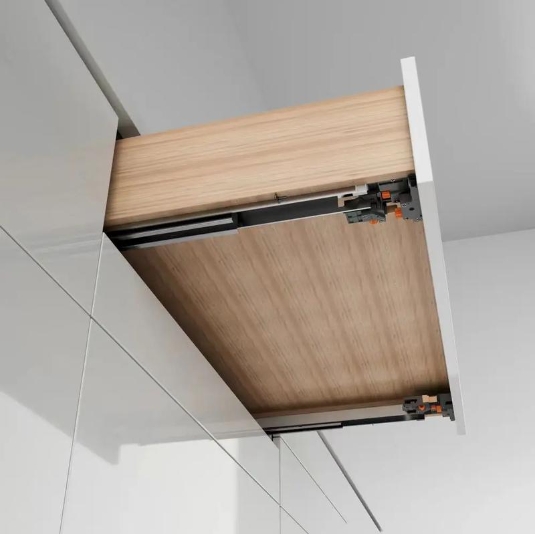

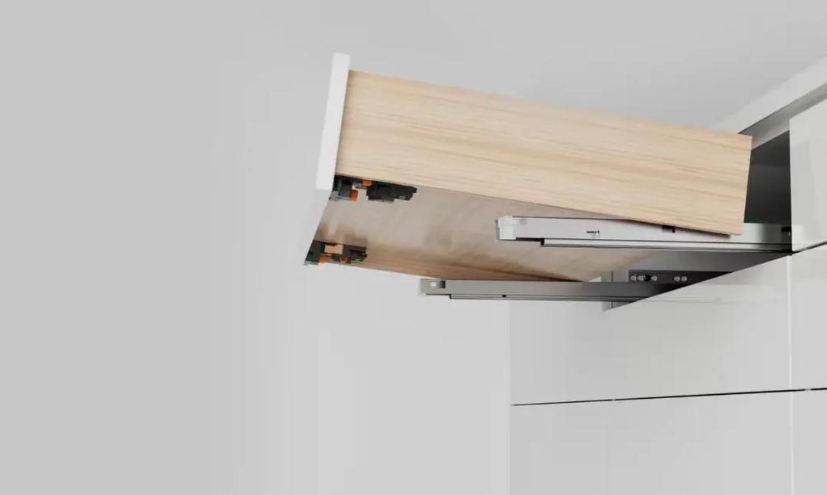

• Step 3: Smoothly Remove the Drawer While keeping both release mechanisms activated, gently and steadily pull the drawer towards you. At this point, the slides on the underside of the drawer should disengage smoothly from the runners inside the furniture, allowing you to remove the entire drawer.

3. Reinstalling the Drawer:

After cleaning, repairing, or adjusting, the process of reinstalling the drawer is essentially the reverse of the removal steps:

• Align the slides on the underside of the drawer with the runners inside the furniture.

• Ensure that the undermount part of the drawer slides correctly engages with the runners.

• Gently push the drawer inward until you hear a "click" sound from the release mechanisms locking, indicating that the drawer is securely installed.




III. How to Correctly Install Undermount Drawer Slides?

Proper installation of undermount drawer slides is crucial for ensuring smooth drawer operation. Here are the detailed installation steps:

1. Tools and Materials Needed:

• Undermount drawer slides

• Matching mounting screws

• Screwdriver or power drill

• Pencil or marker

• Measuring tape

• Level

• Drill bits (may be needed depending on the cabinet material)

2. Installation Steps:

• Measure and Mark: First, determine the desired position for the drawer installation. Use the measuring tape to accurately measure and mark the slide mounting positions inside the cabinet and on the underside edges of the drawer. Ensure the marks on both sides are at the same height, as this will directly affect the levelness of the installed drawer.

• Install Drawer Slides: Attach the slide parts of the undermount drawer slides to the underside edges of the drawer. Typically, undermount slides will use specific clamping or screw-fixing methods. Carefully read the product installation instructions to ensure the slides are parallel and aligned with the bottom edges of the drawer.

• Position Runner Brackets: Mount the runner brackets of the undermount drawer slides inside the cabinet at the pre-marked positions. Use a level to ensure the runner brackets are installed on the same horizontal plane and mark the screw hole locations on the brackets.

• Pre-Drill Holes (If Necessary): If your cabinet material is hard, it is recommended to pre-drill pilot holes at the marked screw locations using a drill and the appropriate size drill bit. This will help with screw insertion and prevent the wood from splitting.

• Secure Runner Brackets: Use screws to firmly attach the runner brackets to the inside of the cabinet. Double-check the level to ensure the brackets are securely mounted and horizontal.

• Install the Drawer: Align the drawer with the installed runners and gently push the drawer inward. Ensure that the slides on the underside of the drawer correctly engage with the runners until the drawer is fully inserted and locked.

• Adjust (If Necessary): Some undermount drawer slide systems may have adjustment features for fine-tuning the gaps and smoothness of the drawer operation after installation. Refer to the product instructions for any necessary adjustments.

• Test: Once installed, repeatedly pull and push the drawer to check if its movement is smooth, stable, and if it can be fully closed.




3. Installation Precautions:

• Always carefully read the installation instructions for the undermount drawer slides before starting the installation.

• Using a level is a crucial step to ensure smooth drawer operation; make sure all mounted components are level.

• If the drawer experiences any stiffness or looseness during use, promptly check all fixing screws to ensure they are not loose and make adjustments as needed.

Conclusion

While undermount drawer slides feature an ingenious design that enhances both the functionality and aesthetics of modern furniture, their removal and installation processes are not complicated to master. By understanding the correct methods and techniques outlined in this guide, even those new to home repairs can complete the task with ease.
