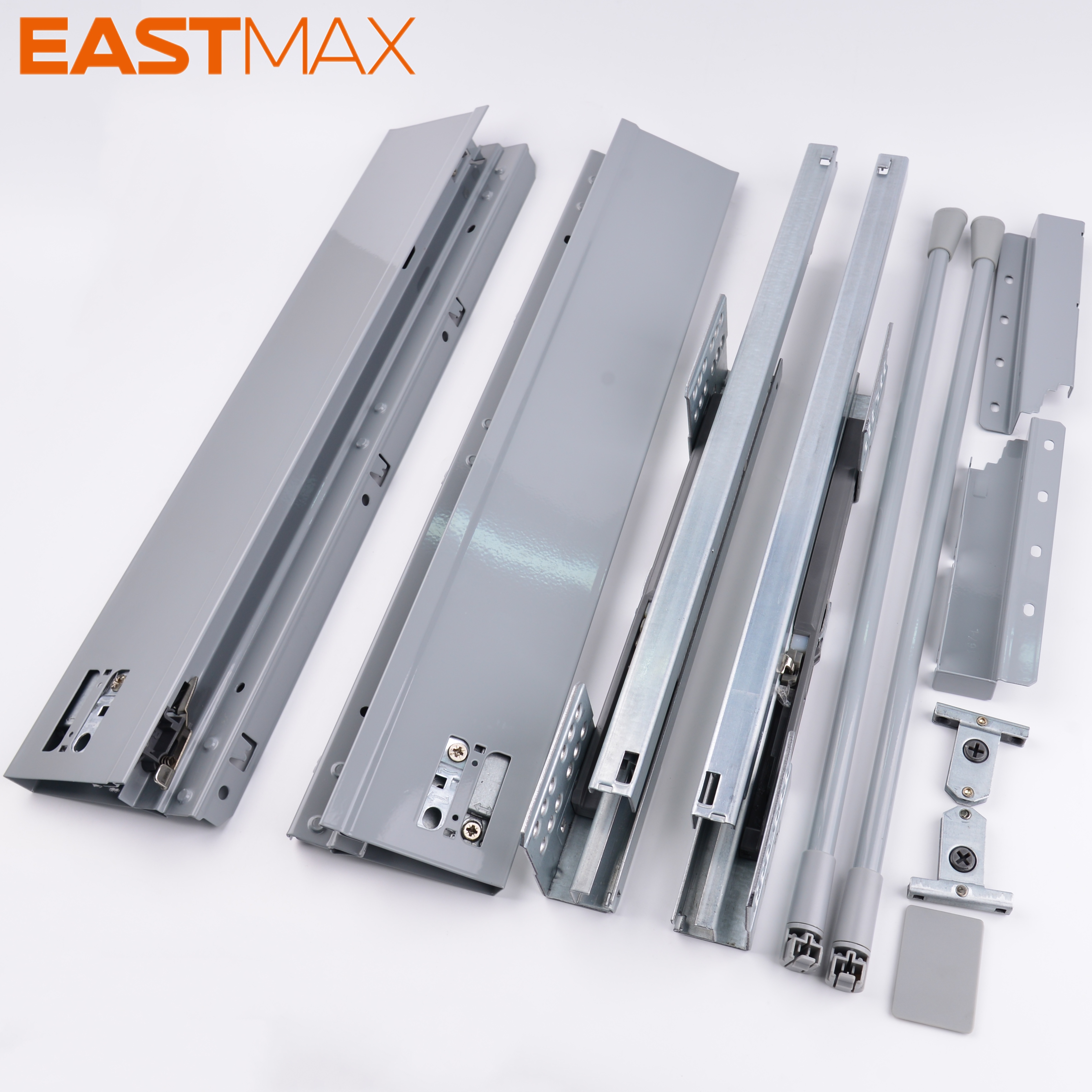

The DL18 soft closing metal drawer system is an undermount tandem box solution designed for kitchen cabinets, wardrobes, and commercial furniture applications. Built with cold rolled steel construction and integrated hydraulic damping mechanisms, this system delivers full-extension travel with controlled closing motion. The concealed bottom-mount design preserves clean drawer aesthetics while providing stable load distribution. Suitable for both residential cabinetry and commercial procurement projects, the DL18 system supports standard drawer widths from 300 mm to 900 mm and accommodates various side panel thicknesses. Each set includes left and right slides, mounting brackets, and adjustment hardware for complete installation.
Parameter | Specification |
Model | DL18 |
Brand | Eastmax |
Material | Cold rolled steel |

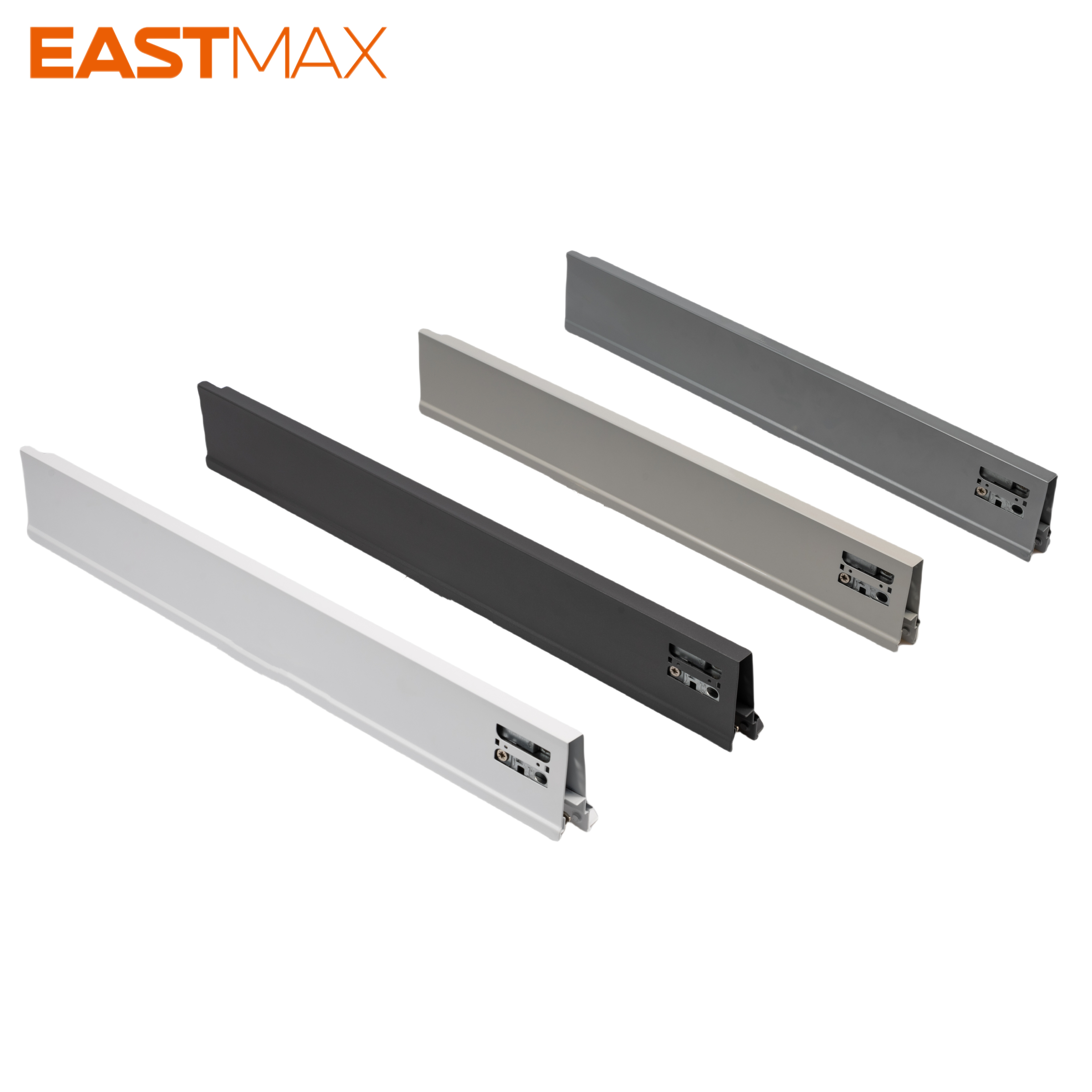

Color / Finish | Silver / White / Dark Gray / Light Gray |
Load capacity | 30 kg per pair |
Slide length range | 250 mm - 600 mm |
Extension type | Full extension (3-section) |
Closing mechanism | Hydraulic soft close |
Mounting position | Undermount (bottom installation) |
Surface treatment | Galvanized base + powder coating |
Cycle test rating | 50,000 opening and closing cycles |
Compatible drawer height | 85 mm - 220 mm |

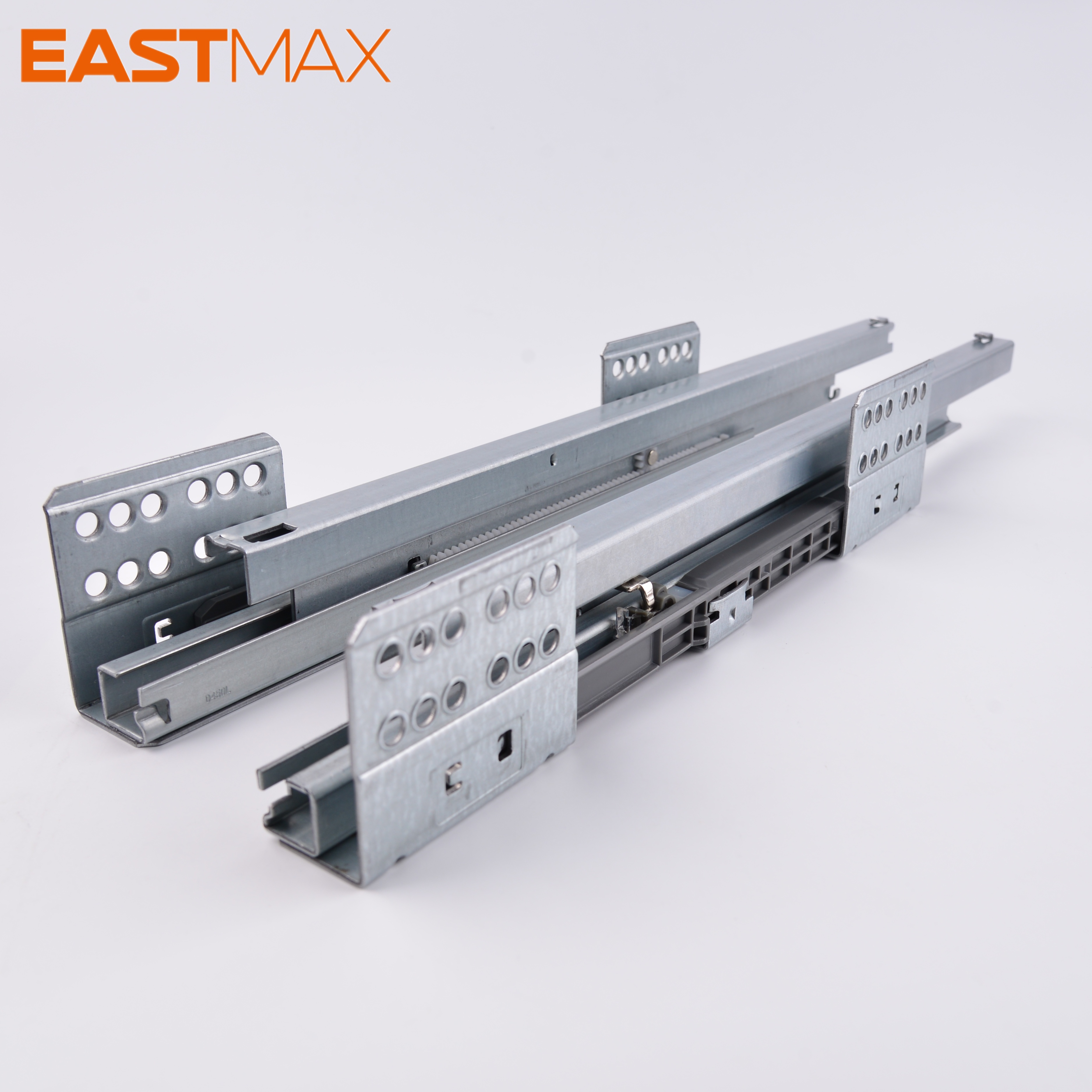

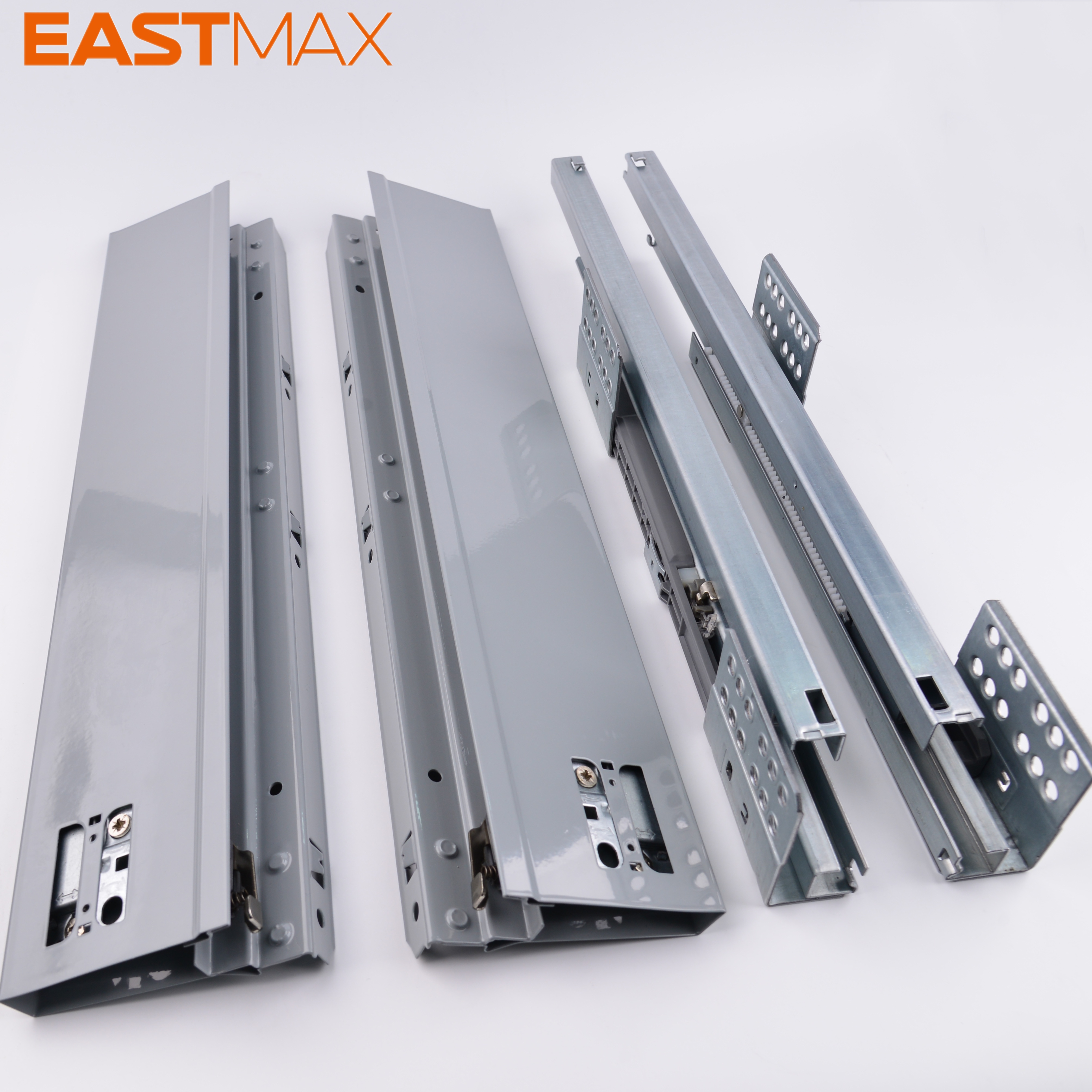

The DL18 system uses a three-section rail configuration composed of inner, middle, and outer steel members. Ball bearing assemblies between each section enable smooth linear travel and complete drawer extension. Full extension design provides full access to the drawer interior, which supports efficient storage organization in kitchen and office furniture settings. The rail profile is engineered to maintain lateral stability across the entire travel length.
Each slide incorporates a hydraulic damper unit that activates during the final segment of closing travel. The damper gradually reduces closing speed and brings the drawer to a controlled stop without impact. This mechanism reduces noise during daily operation and prevents drawer contents from shifting when closed. The damping force is calibrated for consistent performance across the rated load range.

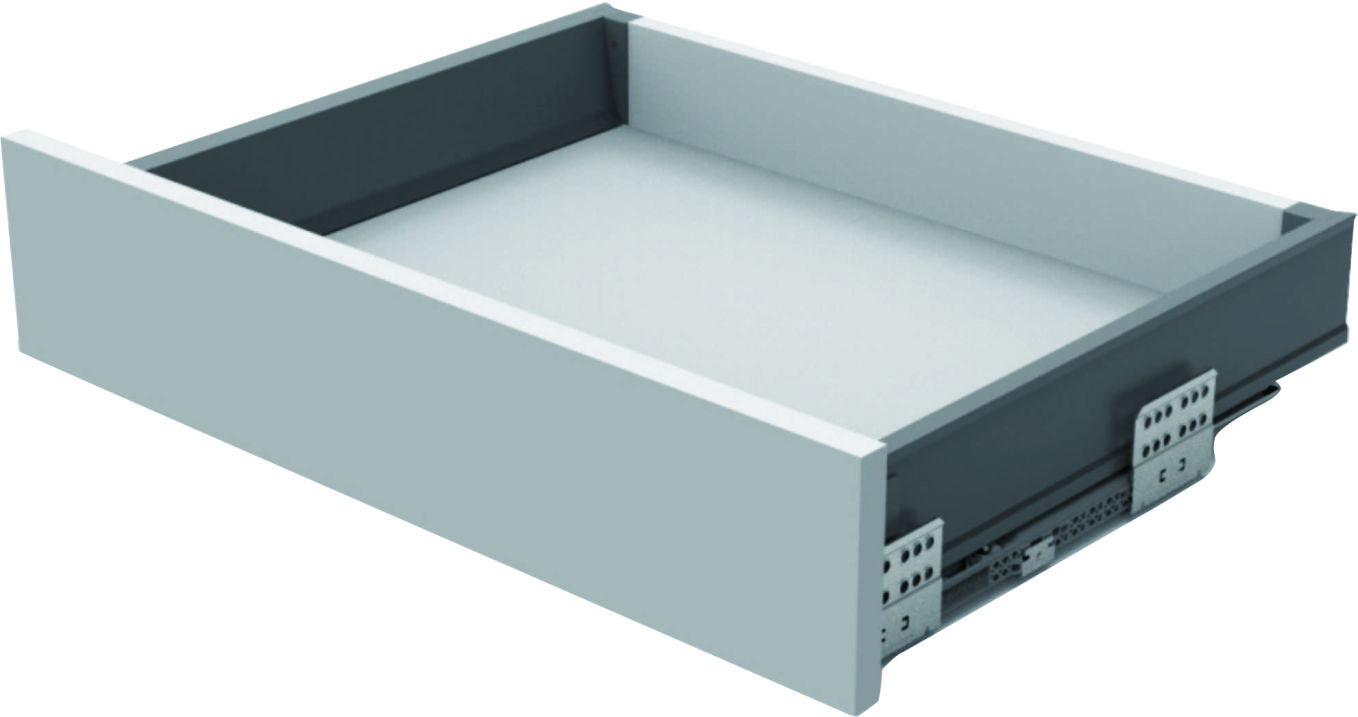

Installed beneath the drawer box rather than on the side panels, the undermount design remains hidden when the drawer is closed. This configuration supports thin-edge drawer fronts and modern handleless cabinet designs. The bottom mounting position also distributes weight more evenly across the cabinet floor structure compared to side-mount alternatives.
The DL18 drawer system is manufactured from cold rolled steel sheet with uniform material thickness. The base steel receives a galvanized coating for corrosion resistance, followed by an electrostatic powder coat finish in selectable colors. The powder coating provides a smooth, uniform surface with resistance to scratches and household chemicals commonly found in kitchen environments. Metal side panels of the drawer box are formed with reinforced edges for structural rigidity.

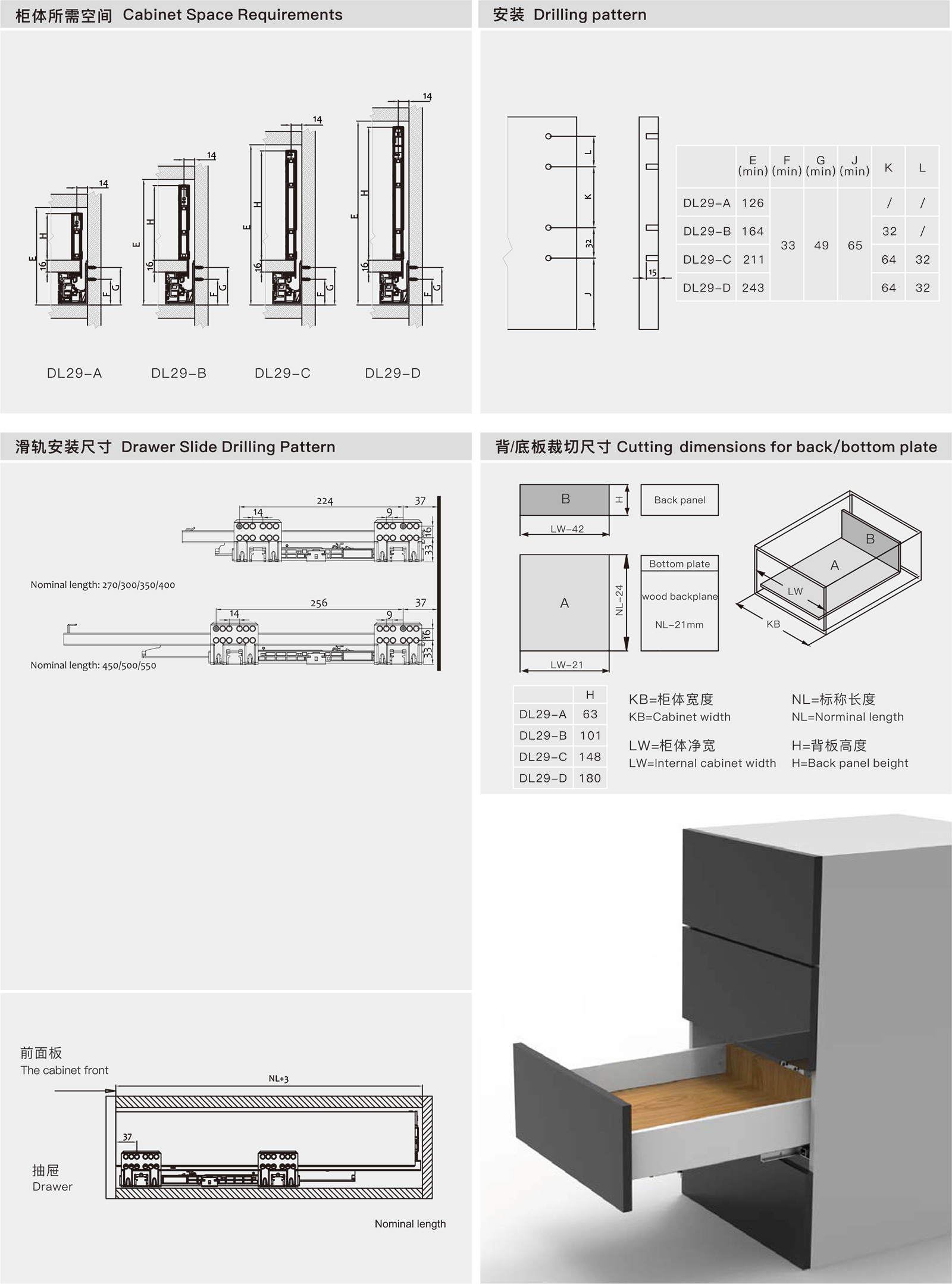

Installation requires standard woodworking tools and follows a bottom-mount procedure. Mounting brackets attach to the cabinet interior floor, and the drawer assembly clips into position. The system supports three-dimensional adjustment after installation: front-to-back alignment within ±2 mm, side-to-side adjustment within ±1 mm, and vertical height adjustment within ±2 mm. This adjustment range compensates for minor variations in cabinet construction during assembly. The system is compatible with 16 mm and 18 mm standard cabinet side panels.

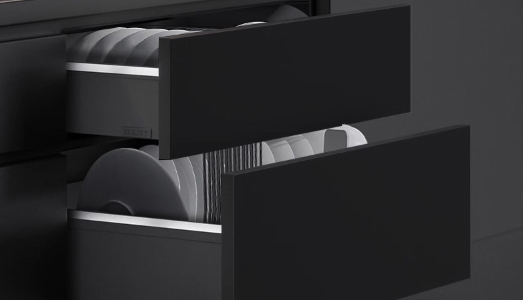

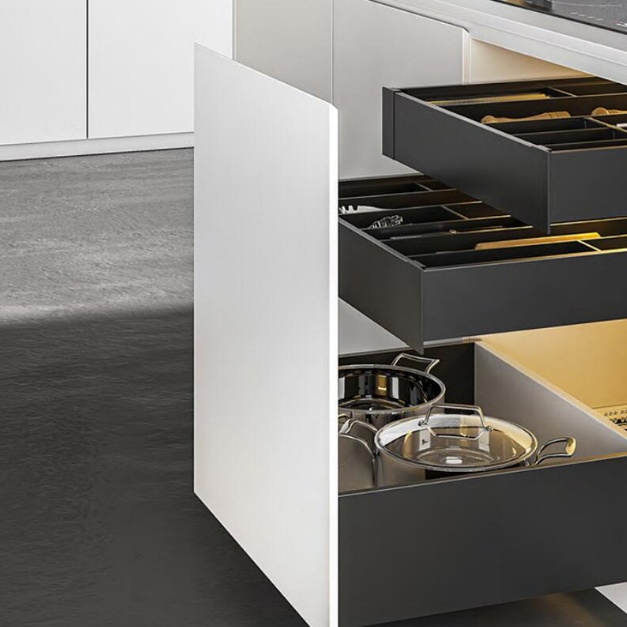

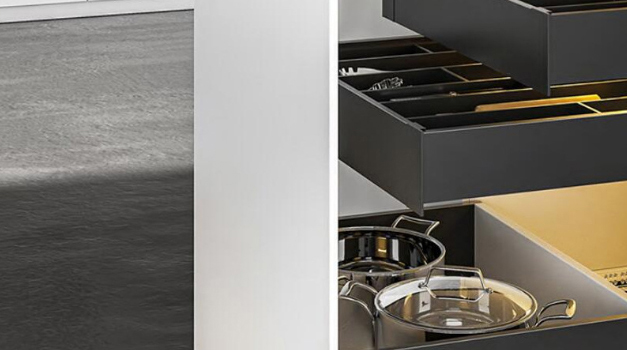

The DL18 system supports kitchen drawers holding cookware, tableware, and pantry items. The soft closing function reduces noise in residential and hospitality kitchen environments. Moisture-resistant surface finishes accommodate typical kitchen humidity and cleaning conditions.
For bedroom furniture and walk-in closet installations, the concealed design maintains visual consistency across drawer fronts. The controlled closing motion protects delicate clothing items and accessories from shifting impact.
Suitable for file drawers, supply cabinets, and desk pedestals used in office furniture and commercial fit-out projects. The 50,000-cycle rating supports frequent daily use in business operations settings.
Minimum order quantity starts at 100 sets for standard color options. Each set is individually packaged with mounting hardware and installation instructions. Custom color matching and private labeling services are available for volume orders. Standard lead time is 15-25 working days depending on order quantity and finish selection. The product is supplied directly from the manufacturing facility for commercial procurement and furniture production clients.
The DL18 system fits drawer widths from 300 mm to 900 mm and drawer heights from 85 mm to 220 mm. Slide lengths are available in 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, and 600 mm options to match corresponding cabinet depth dimensions.
Each pair of DL18 slides is rated for a 30 kg static load capacity when properly installed. This rating is verified through standard cycle testing under uniform load distribution across the drawer base.
For drawers storing heavier items such as pots, pans, or canned goods, ensure the total load remains within the 30 kg rating. Distribute weight evenly across the drawer floor for optimal performance and slide longevity.
Standard production lead time is 15 to 25 working days for bulk orders. Expedited production may be available for selected specifications; contact the sales team for specific project timelines and MOQ requirements for industrial applications.
