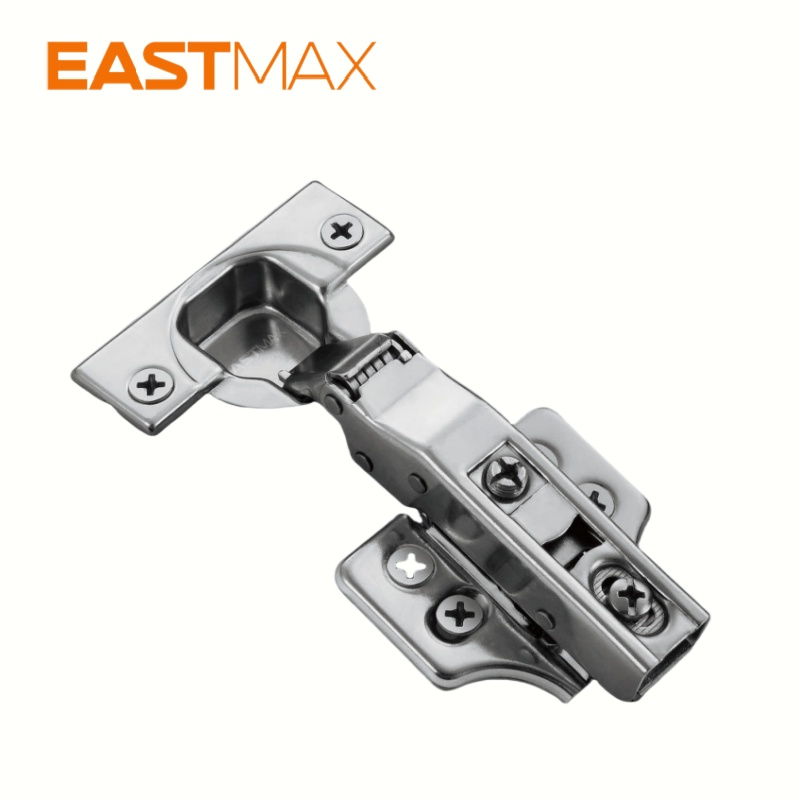

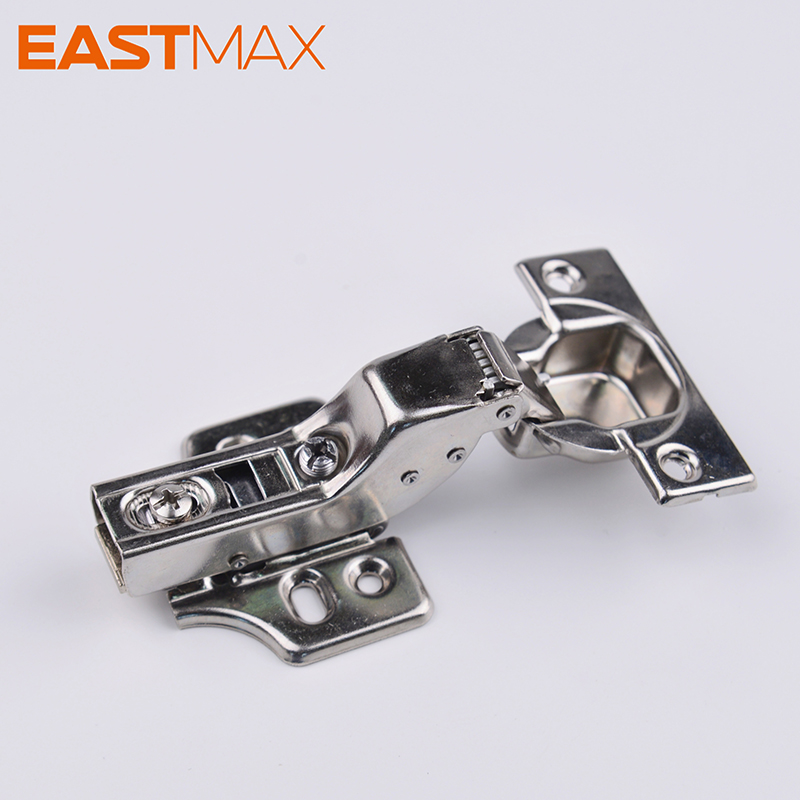

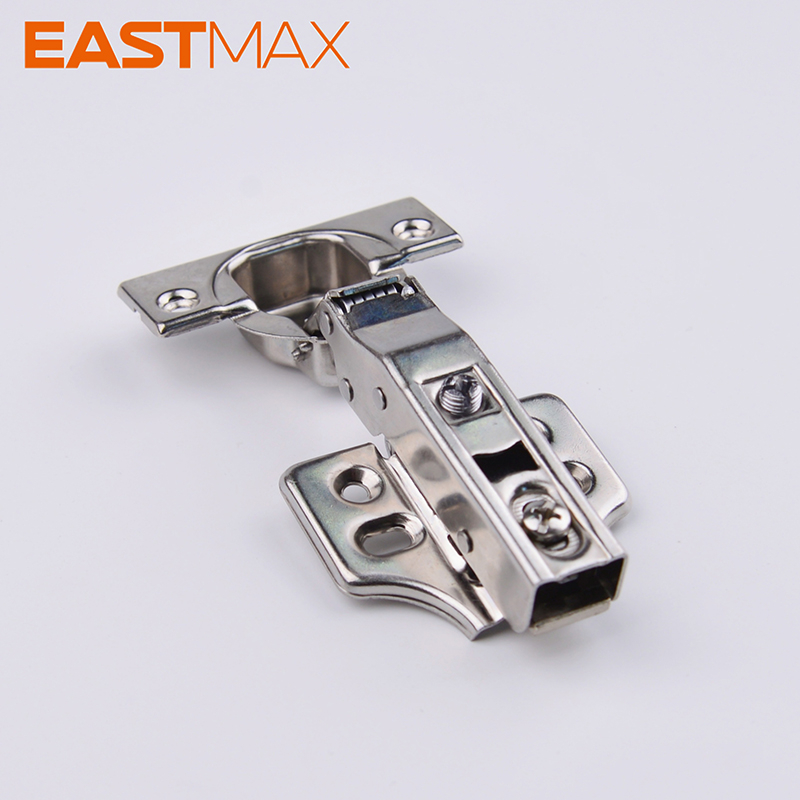

The KS02 clip-on soft-closing two-way hinge is manufactured from 201 stainless steel and offered at factory-direct pricing for volume procurement. This hinge features a hydraulic soft-close system combined with a clip-on mounting base and two-way operation, meaning the hinge arm can be installed in either direction on the mounting plate. The product is engineered for interior cabinet applications where cost efficiency and consistent performance are primary considerations.
201 stainless steel provides moderate corrosion resistance for dry indoor environments, and the clip-on assembly design reduces installation time on cabinet production lines. The 35mm hinge cup follows standard European boring dimensions, ensuring compatibility with commonly used cabinet door drilling templates. This model supports three base plate options — 2-hole base, 4-hole base, and 3D base — allowing buyers to match the mounting plate to specific cabinet construction requirements.
Parameter | Value | Parameter | Value |
Opening angle | 105° | Material | 201 Stainless steel |
Diameter of hinge cup | Φ35mm | Feature | Clip on |
Depth of hinge cup | 11.3mm | Packing | 200pcs/carton, 1pcs or 2pcs 1polybag |
Door(K) dimension | 3-7mm | Color | Silver |
Optional door thickness | 15-20mm | Plate | 2-hole base; 4-hole base; 3D base |

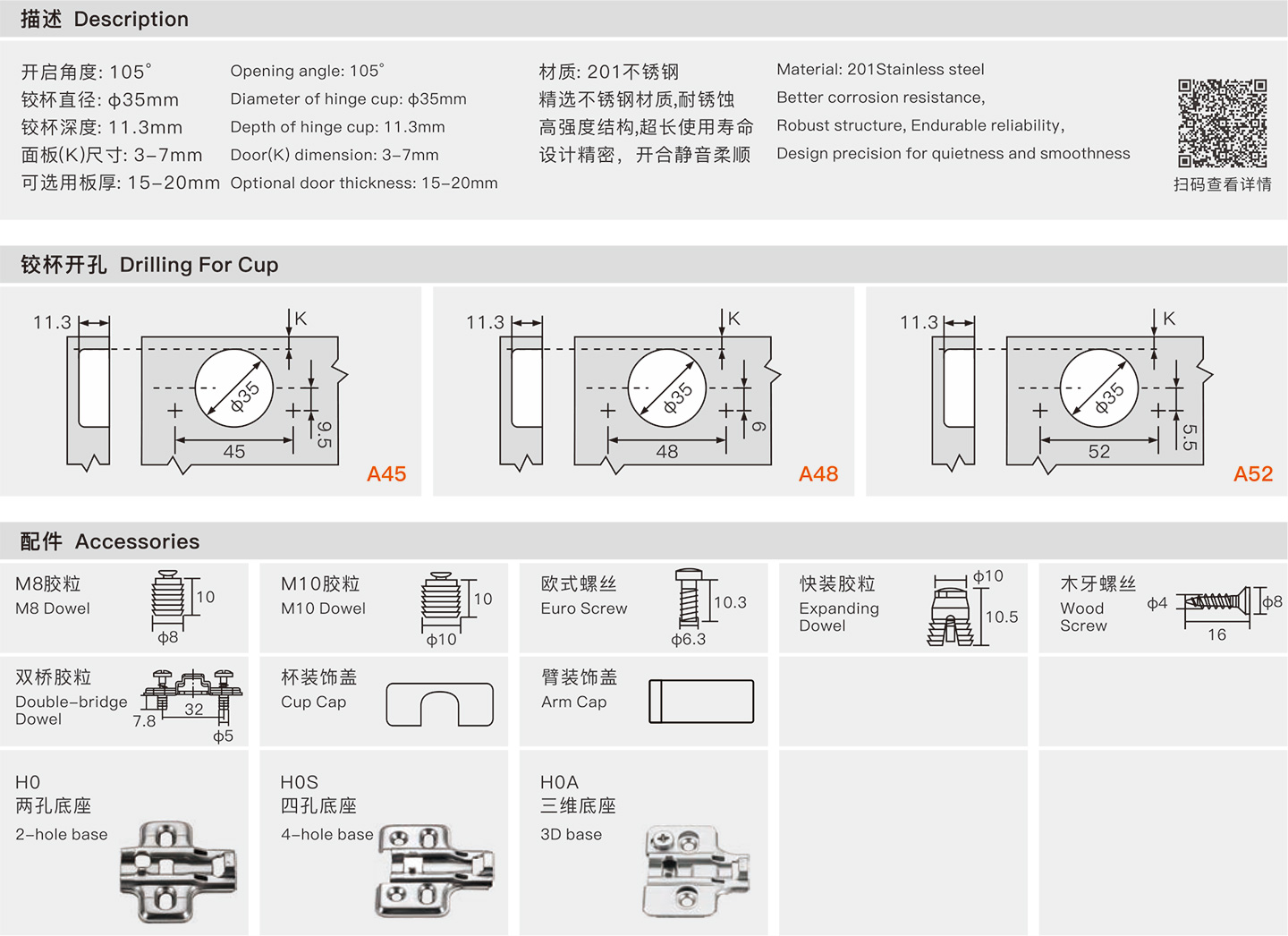

Boring Pattern | Cup Diameter | Cup Depth | Side Distance K | Distance from Edge |
A45 | Φ35mm | 11.3mm | 3-7mm | 45mm |
A48 | Φ35mm | 11.3mm | 3-7mm | 48mm |
A52 | Φ35mm | 11.3mm | 3-7mm | 52mm |
Mounting Type | Model Number |
Full overlay | KS0211 |
Half overlay | KS0212 |
Inset | KS0213 |
Adjustment Direction | Range |
Height adjustment (up and down) | ±2mm |
Overlay adjustment (side to side) | ±3mm |
Gap adjustment (depth) | ±3mm |
 | Two-Way Installation DesignThe two-way feature refers to the hinge arm being reversible on the mounting plate. Installers can attach the hinge from either direction, which adds flexibility during assembly and reduces the chance of misorientation errors on production lines. This design is particularly useful in high-volume cabinet manufacturing where assembly speed and error reduction directly affect production output. |

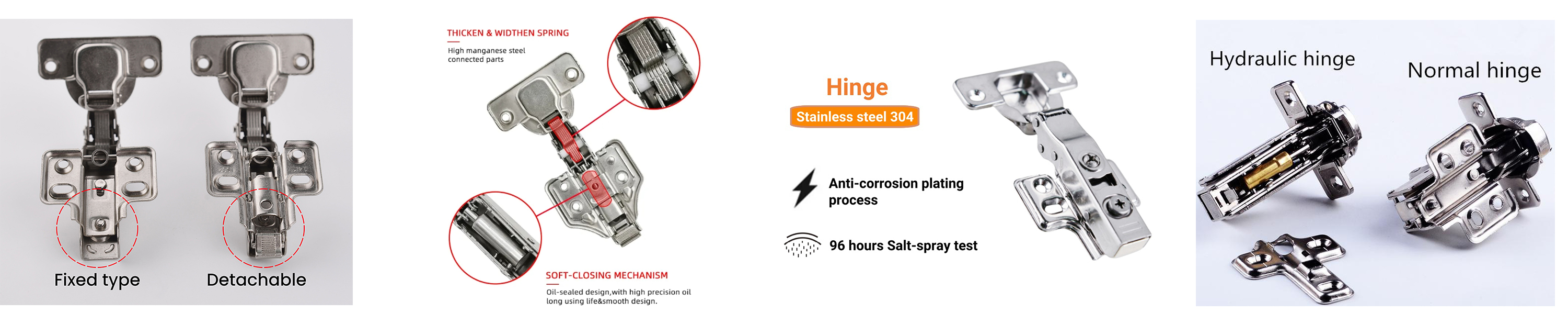

Hydraulic Soft-Closing SystemThe hinge is fitted with an integrated hydraulic cylinder that activates during the final section of the closing stroke. This cylinder slows the door progressively so that it reaches the fully closed position without impact. The soft-close function reduces slamming noise in occupied spaces and lowers mechanical stress on door panels and cabinet frames over repeated use. |  |

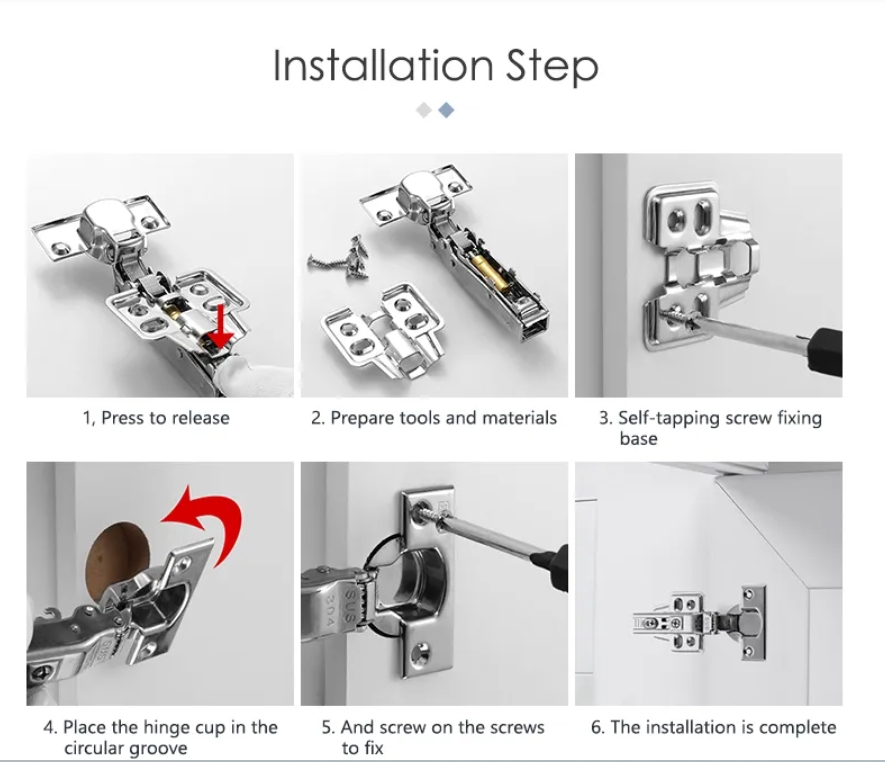

The clip-on mounting system allows the hinge body to be clipped onto and removed from the base plate by operating the release lever. No tools are required for detachment, which simplifies door removal for finishing processes, transport, or on-site servicing. For commercial procurement buyers managing large installation projects, this feature reduces on-site labor time.
The hinge is constructed from 201 stainless steel, a manganese-alloyed austenitic grade that offers structural strength and surface hardness at a lower material cost compared with 300-series stainless steel. It is suited for interior cabinet installations in dry environments such as residential kitchens, office furniture, and bedroom wardrobes. The silver surface finish provides a uniform appearance across production batches.
Samples from each production run undergo performance validation in the factory quality control process. The hinge completes 50,000 open-close cycles in life cycle testing, and selected samples pass a 96-hour salt spray test. These test values are documented as reference points for evaluating product durability under standard operating conditions.

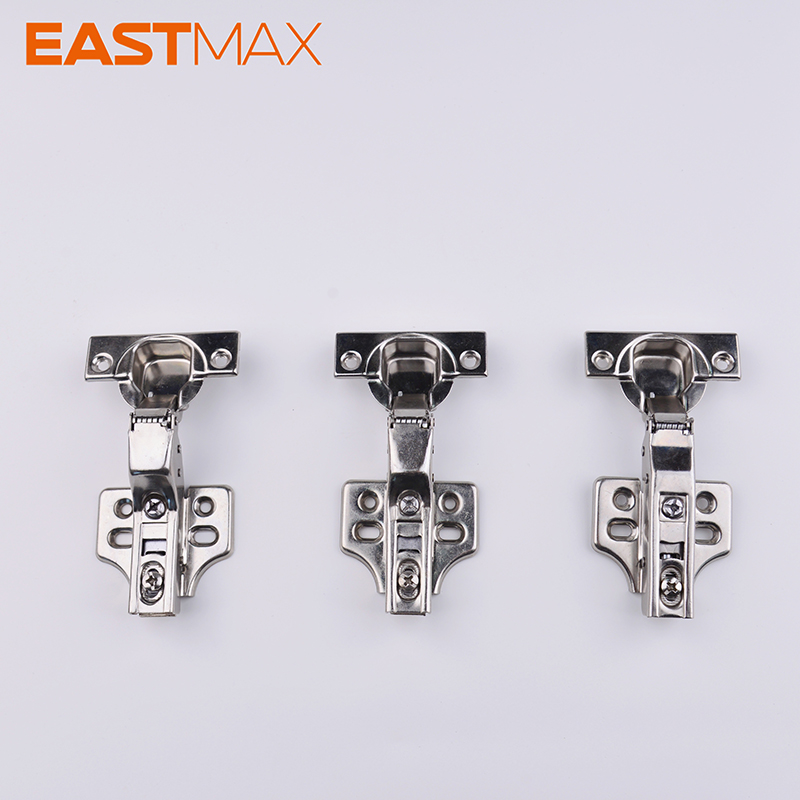

The KS02 hinge is compatible with three base plate configurations. The 2-hole base provides a compact mounting footprint for standard cabinet applications. The 4-hole base offers increased attachment stability for heavier doors or commercial use cases. The 3D base provides additional adjustment dimensions for precision alignment in complex cabinet runs. Buyers can specify the base plate type when placing volume orders.

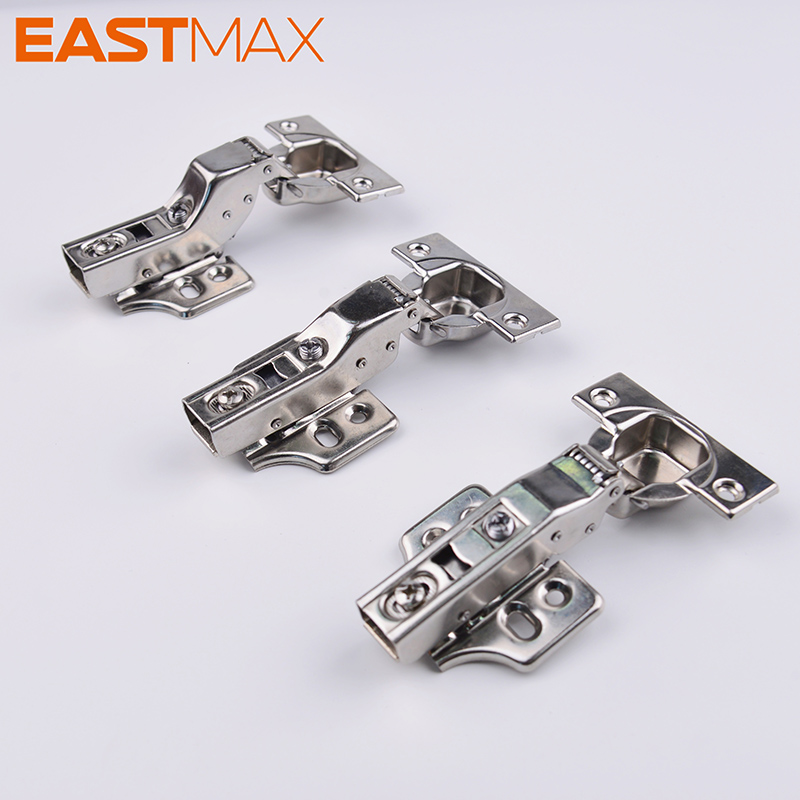

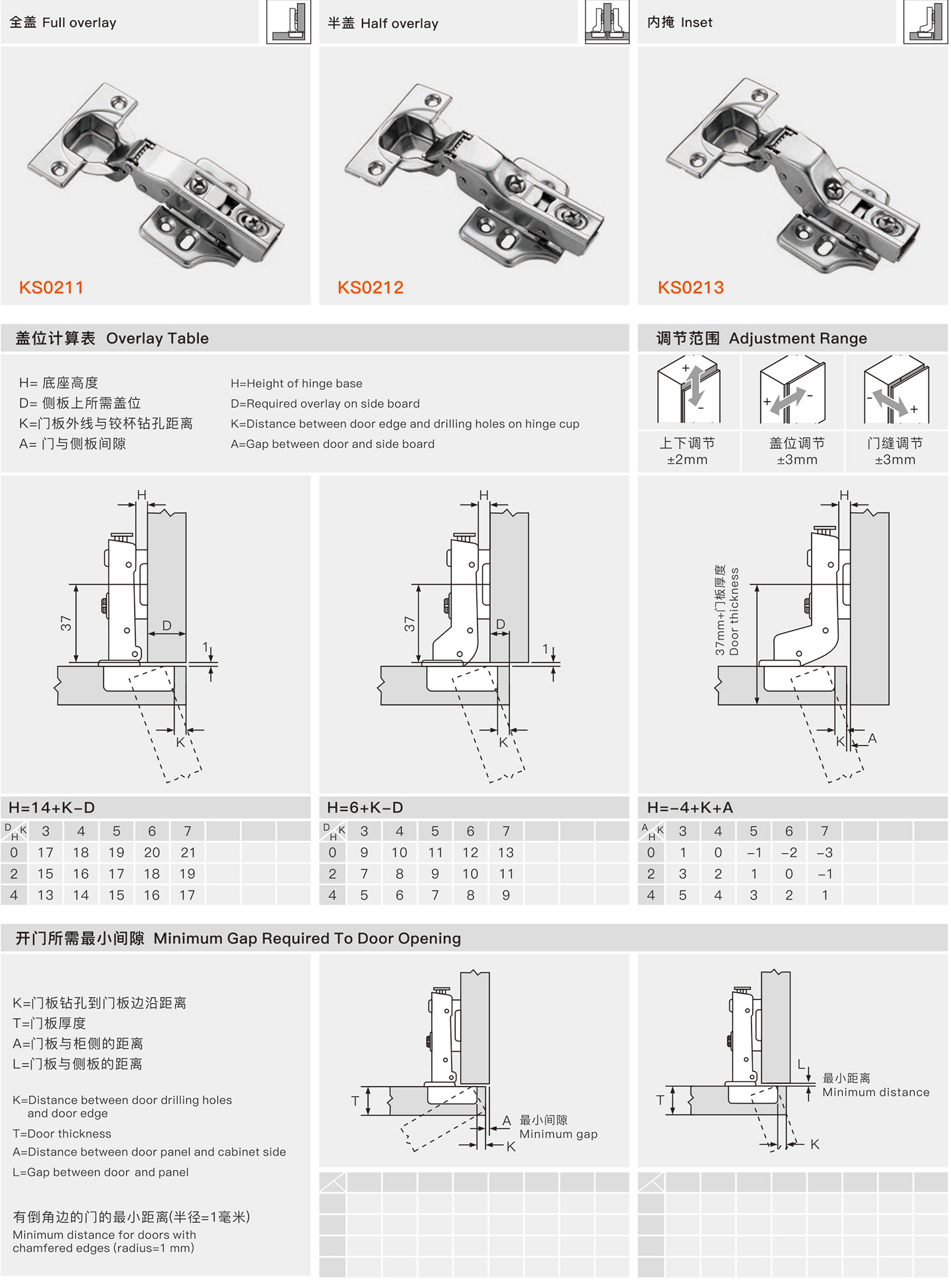

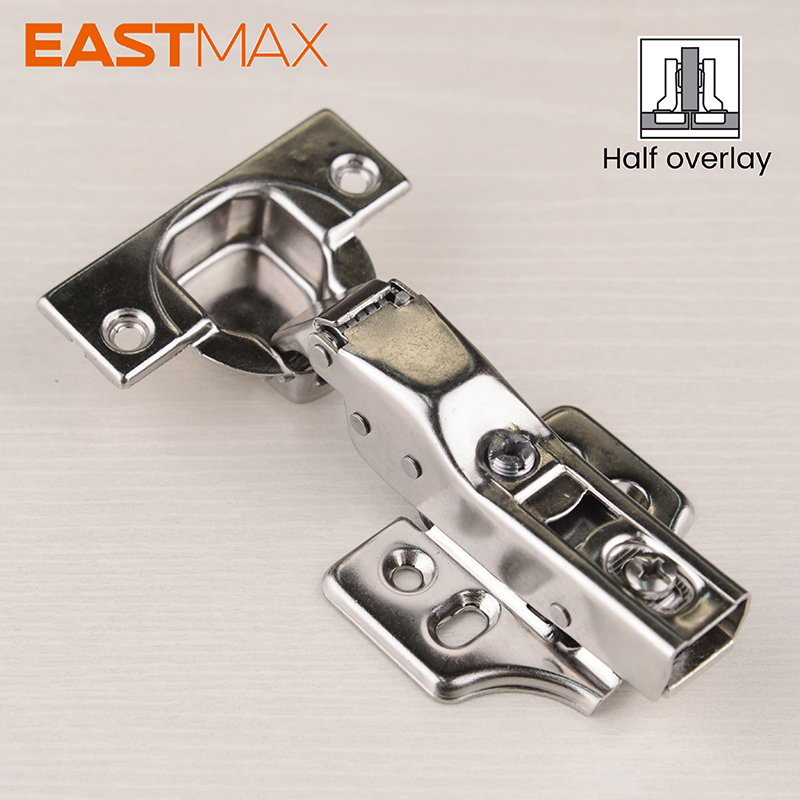

The KS02 series is produced in three mounting versions to match different cabinet door layouts. The full overlay model (KS0211) is used where the door fully covers the cabinet side. The half overlay model (KS0212) is designed for double-door cabinets sharing a single partition. The inset model (KS0213) is specified when the door sits flush inside the cabinet opening.
Once installed, the hinge allows alignment adjustment in three axes without re-drilling. Vertical adjustment covers ±2mm. Side-to-side overlay adjustment covers ±3mm. Depth adjustment for door gap covers ±3mm. These adjustments enable installers to achieve uniform door gaps and alignment across an entire cabinet installation.
This 201 stainless steel soft-close hinge is specified across a range of commercial and industrial furniture applications. It is used in kitchen cabinet production, wardrobe manufacturing, office furniture assembly, hotel furniture supply, and residential development fit-outs. Furniture factories, cabinetry workshops, hardware distributors, and contract furnishing companies source this product for projects where interior-grade corrosion resistance and cost-effective volume supply are required. OEM and ODM customization is available for bulk orders, including options for color, logo marking, packaging format, size adjustments, and alternative surface treatments.
The KS02 hinge is designed for door panels with a thickness ranging from 15mm to 20mm. The 11.3mm hinge cup depth is calibrated for this thickness range.
Three base plate options are offered: 2-hole base, 4-hole base, and 3D base. The 2-hole and 4-hole bases differ in mounting stability, while the 3D base provides expanded adjustment capability for precision installation. Buyers can select the appropriate base when ordering.
201 stainless steel is intended for dry indoor applications. For bathrooms, outdoor cabinets, or other moisture-exposed installations, a 304 stainless steel hinge is recommended instead. The product page for the SUS 304 version lists specifications for higher-corrosion environments.
Standard packaging is 200 pieces per carton, with each piece or pair of hinges packed in an individual polybag inside the carton. Custom packaging configurations can be arranged for volume commercial procurement orders upon request.
