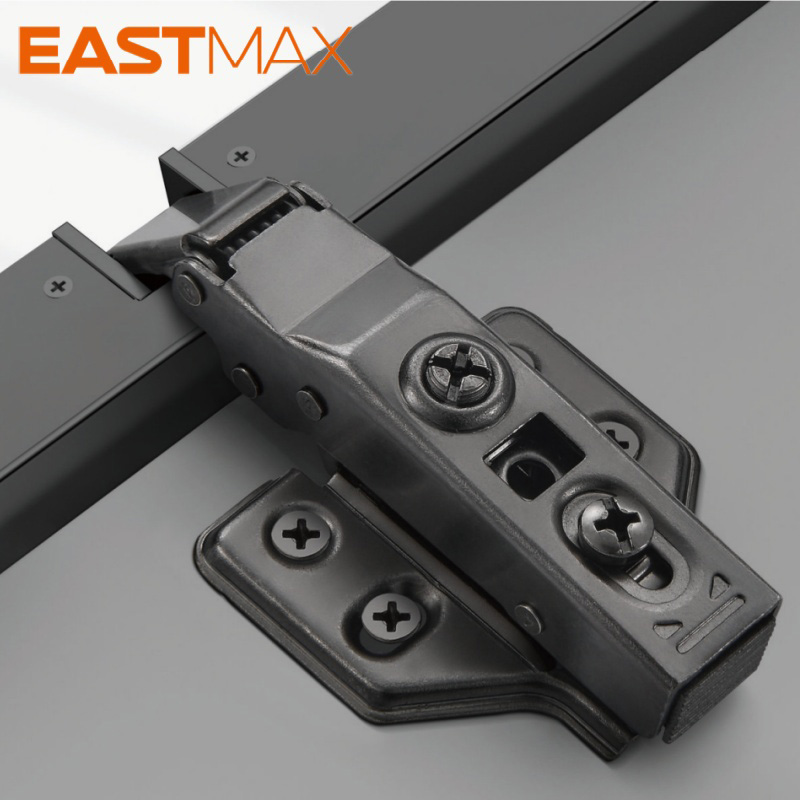

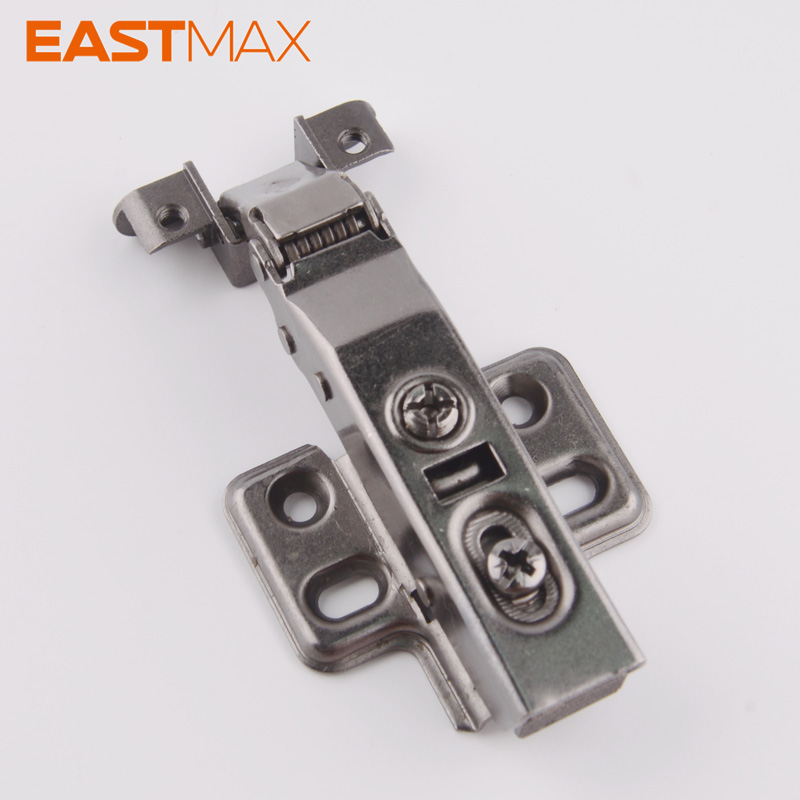

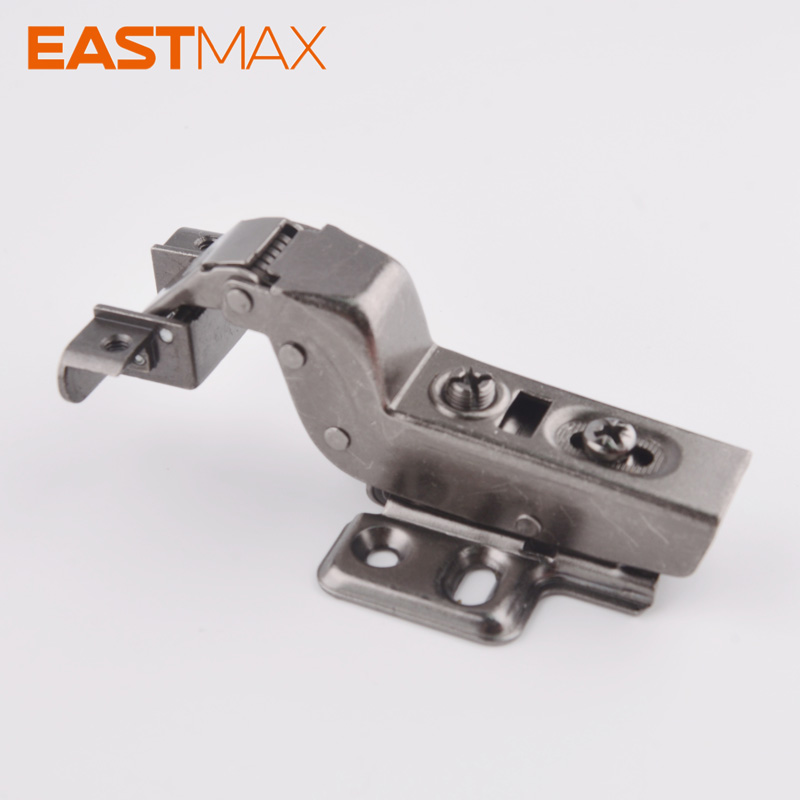

The KL01 series clip-on hinge is designed for aluminium frame cabinet doors with width ranging from 18mm to 27mm. Below are the complete technical specifications:
Parameter | Specification |
Model | KL01 |
Opening angle | 110° |
Drilling size on aluminium frame | φ28mm |
Aluminium profile width range | 18-27mm |
Material | Iron with nickel plating |
Finish | Titanium |
Closing mechanism | Hydraulic soft-closing |
Mounting method | Clip-on, two-way |
Structure type | Stamped steel construction |

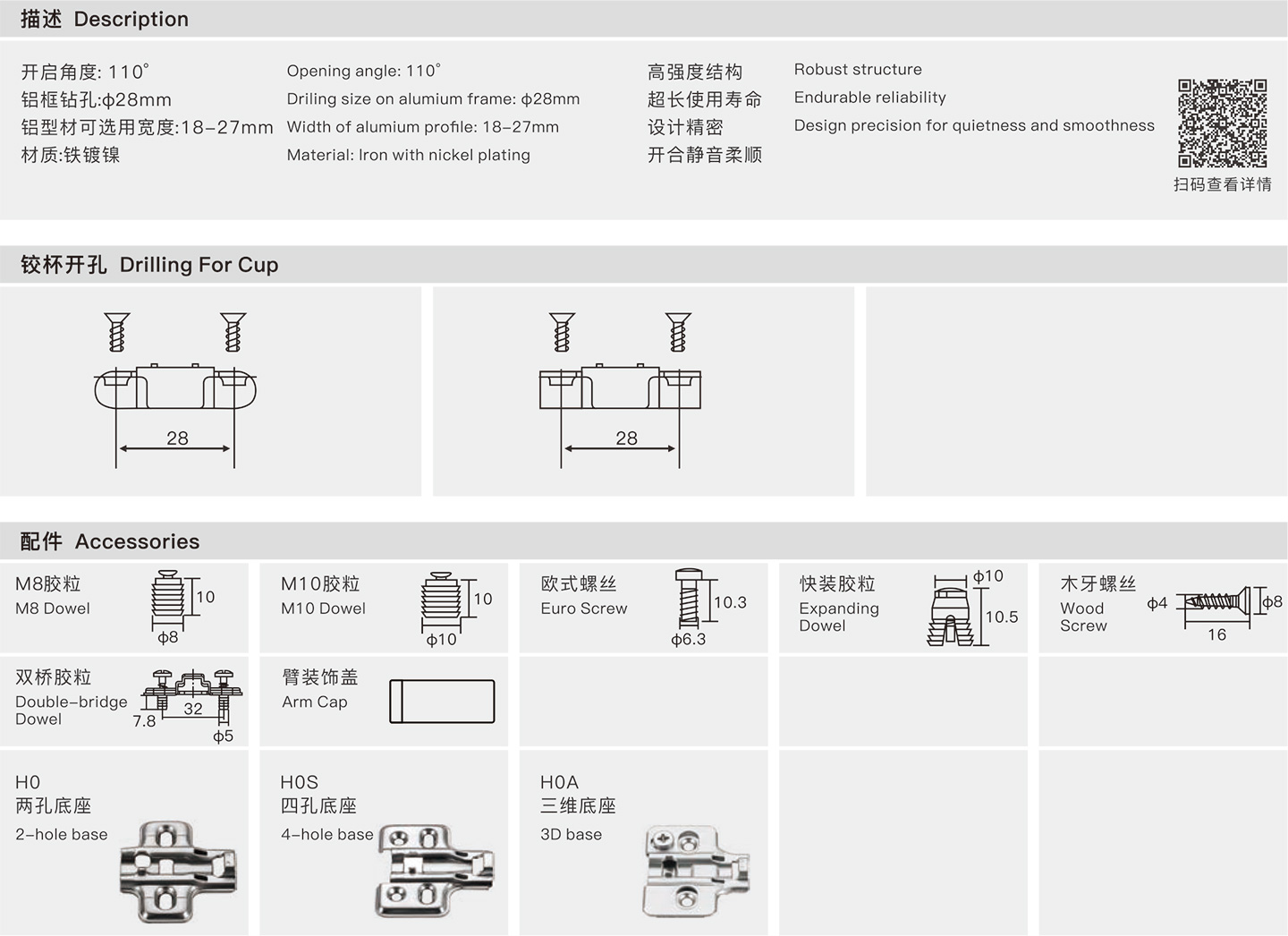

Standard drilling pattern for aluminium profile installation:
Hole spacing: 28mm
Three-dimensional adjustment supports precise door alignment:
Vertical adjustment: ±2mm
Side adjustment: ±3mm
Depth adjustment: ±2mm

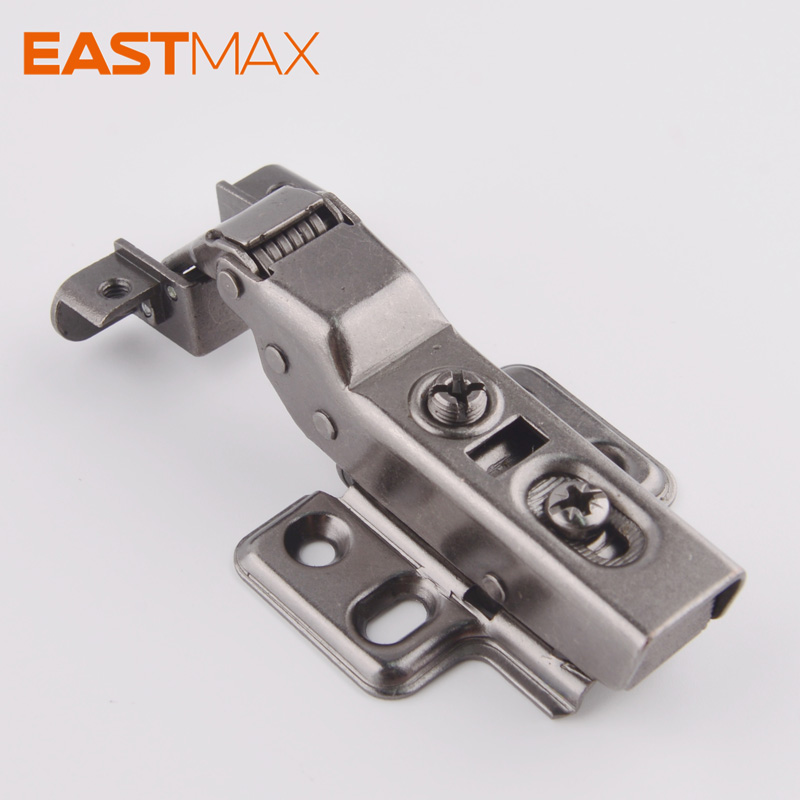

 | The KL01 hinge body is manufactured from cold-rolled iron with nickel plating and a titanium finish, providing a dark metallic appearance that matches modern aluminium frame cabinet designs. The stamped steel arm and base form a rigid assembly that supports regular opening and closing operations. |
A built-in hydraulic cylinder inside the hinge arm controls the closing speed during the final stroke. This soft-closing function reduces impact between the door and the cabinet frame, lowering noise levels in working and living environments. |  |

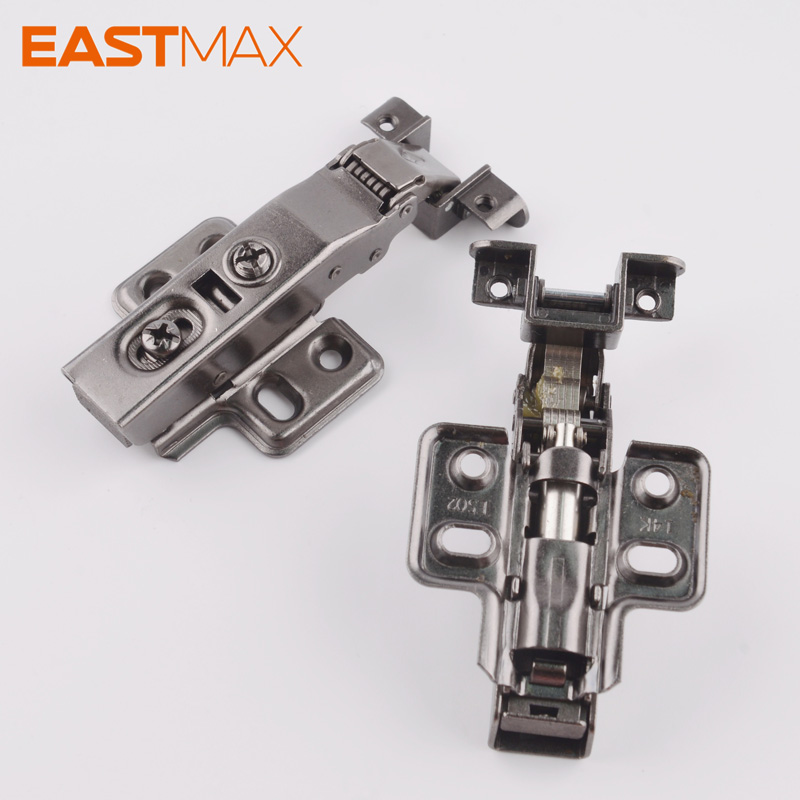

The two-way clip-on design enables tool-free attachment and removal of the hinge arm from the mounting plate. This feature speeds up installation workflows and simplifies maintenance or replacement procedures for commercial furniture operations.
The KL01 series is engineered specifically for aluminium profile cabinet doors with widths between 18mm and 27mm. This range covers most standard aluminium frame door configurations used in glass-front cabinets, wardrobe doors, display cabinets, and modern office furniture.
The 28mm drilling diameter on the aluminium side matches standard frame profiles, so fabricators can use existing drilling equipment when preparing door frames. The hinge attaches directly to the aluminium profile with appropriate screws, eliminating the need for additional mounting brackets or adapters.
Three adjustment axes allow installers to fine-tune door position after mounting. Vertical adjustment of ±2mm, side adjustment of ±3mm, and depth adjustment of ±2mm accommodate minor dimensional variations in aluminium frame fabrication and cabinet assembly.
Aluminium frame doors are commonly used in display cabinets, kitchen glass-door units, office storage furniture, and retail display fixtures. The KL01 hinge provides a concealed mounting solution that maintains the clean visual lines of aluminium frame construction.
For furniture manufacturers and joinery shops working on commercial fit-out projects, the clip-on mechanism reduces per-unit assembly time. The standardized mounting pattern means production lines can process bulk orders with consistent setup, which supports predictable scheduling for project-based deliveries.
The titanium finish offers a darker aesthetic that coordinates with black or gunmetal aluminium frame finishes, giving product designers more options for matching hardware to overall furniture styling.

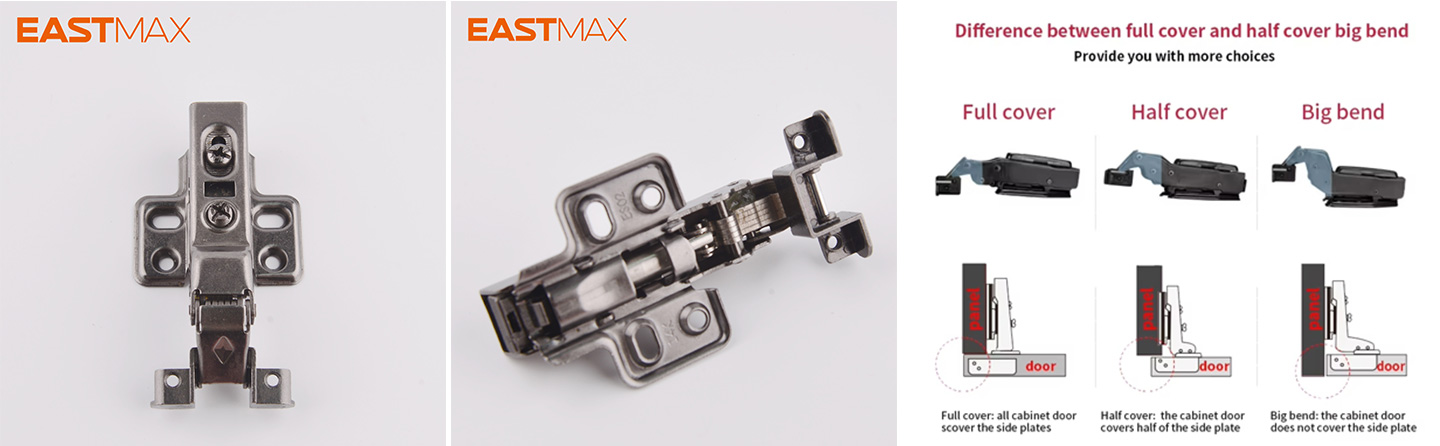

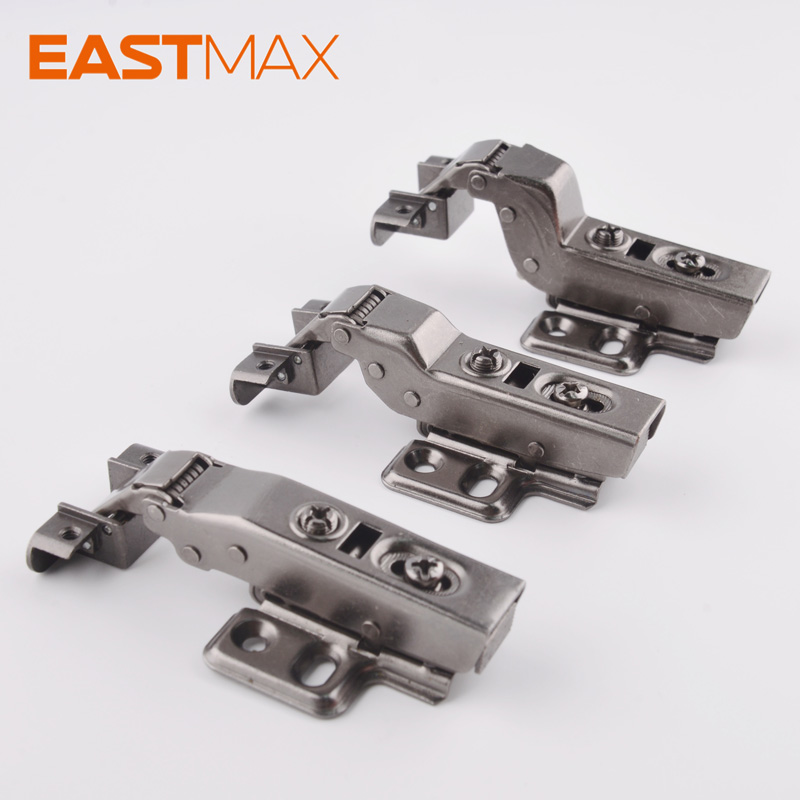

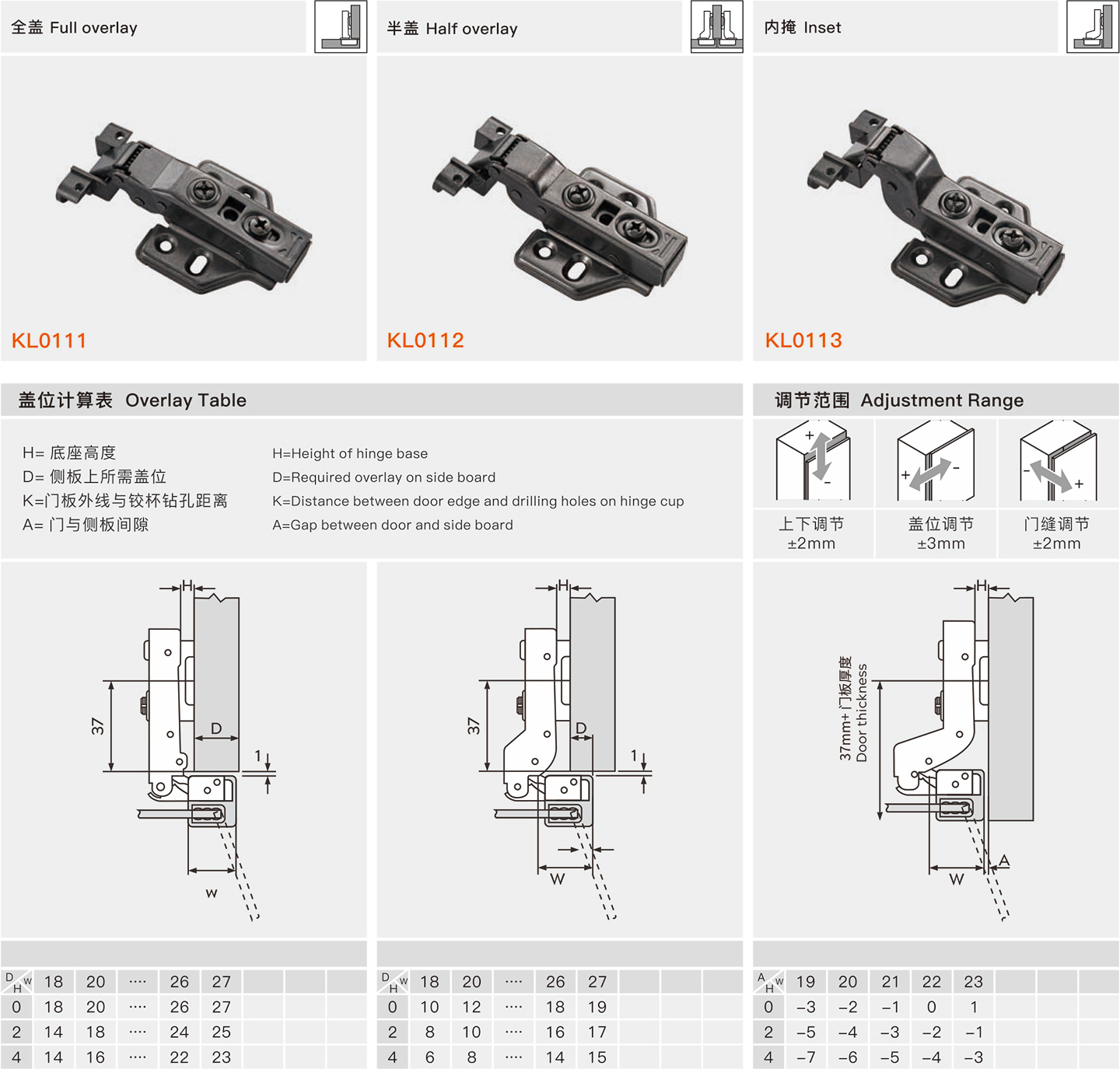

The KL01 series is available in three mounting configurations to suit different cabinet construction requirements:
Model | Mounting type |
KL0111 | Full overlay |
KL0112 | Half overlay |
KL0113 | Inset |
H0: 2-hole base
H0S: 4-hole base
H0A: 3D base
M8 dowel, M10 dowel
Euro screw (φ6.3 × 10.3mm)
Expanding dowel (φ10 × 10.5mm)
Wood screw (φ4 × 16mm)
Double-bridge dowel
Arm cap
The KL01 series is designed for aluminium frame doors with profile widths ranging from 18mm to 27mm. For profiles outside this range, contact the supplier to discuss alternative hinge options.
The hinge requires a 28mm drilling diameter on the aluminium profile side. Standard drilling equipment for aluminium fabrication can be used for this operation.
Yes, the hinge attaches to the aluminium frame itself, so it is compatible with glass panels held within the frame profile. The weight capacity depends on the number of hinges used per door.
The standard finish for the KL01 series is titanium. For volume orders, inquire about alternative finish availability and lead times.
Sample units for evaluation can be requested through direct inquiry. This allows procurement teams to verify fit and function with their specific aluminium profile stock before placing full production orders.
