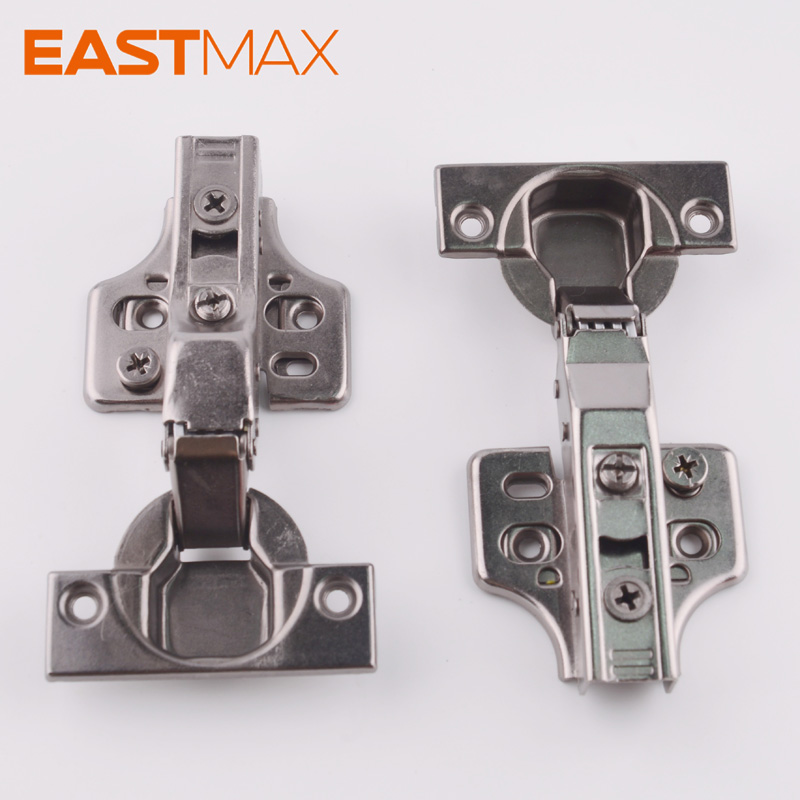

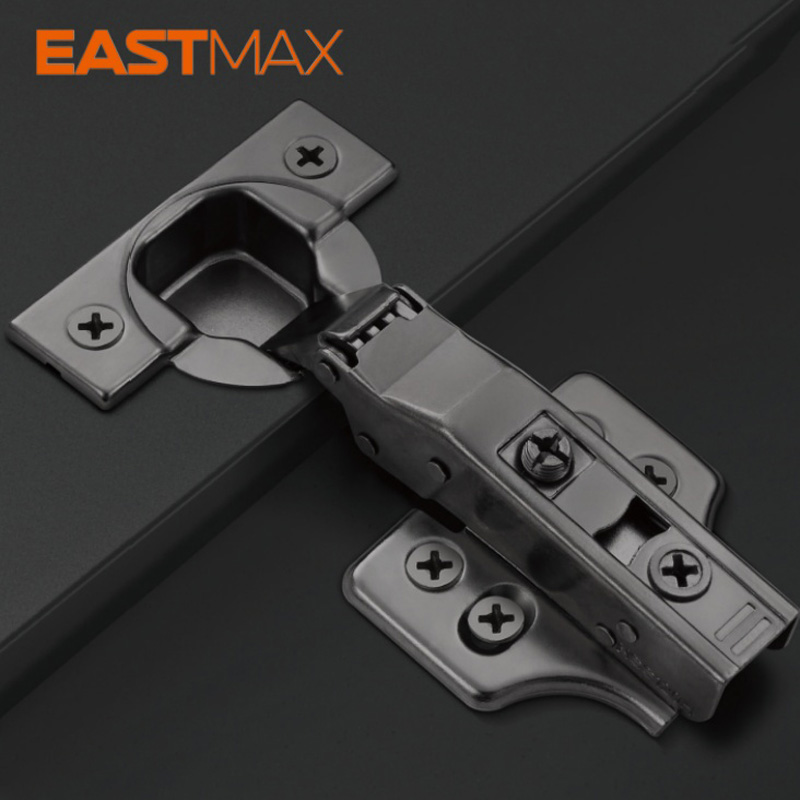

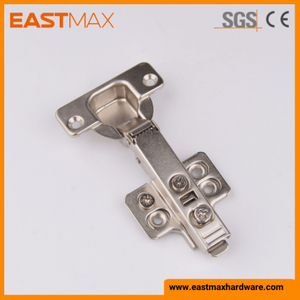

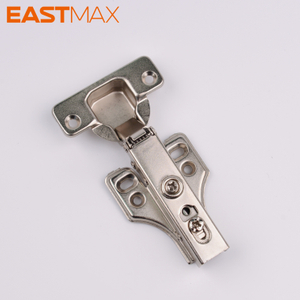

The G04 series fixed mount hinge integrates a turbo adjustment mechanism with hydraulic soft-closing and two-way opening functionality. Engineered for 18-22mm furniture doors with a standard 35mm hinge cup, this model provides enhanced adjustment range across overlay and side axes compared to standard hinges. The turbo adjustment system enables finer positional calibration through an optimized screw mechanism, benefiting commercial furniture manufacturers requiring precise door alignment in high-volume production. Nickel-plated iron construction delivers uniform surface quality suitable for indoor cabinetry, wardrobe systems, and office furniture installations.
 | Turbo Adjustment MechanismThe enhanced adjustment system delivers ±3mm overlay adjustment and ±3mm side gap adjustment, providing wider calibration range than standard hinge models. The turbo screw design allows incremental positional refinement, enabling installers to achieve uniform door gaps across entire cabinet runs in commercial furniture projects. |
Hydraulic Soft-Closing SystemAn integrated hydraulic damper engages during the final closing arc, decelerating door movement before full closure. This damping action reduces impact noise and minimizes wear on both the hinge and door frame, contributing to longer service intervals in high-usage environments such as office buildings and hospitality facilities. |  |
The two-way opening design permits door movement in both directions within the 105-degree opening range. This feature accommodates various cabinet layouts and installation constraints, giving furniture designers greater flexibility when planning cabinet configurations and door swing paths.
The fixed mounting plate attaches directly to cabinet side panels through slotted holes, providing secure and stable installation. This mounting method is well-suited for high-volume furniture production lines where consistent positioning and assembly speed are priority considerations.

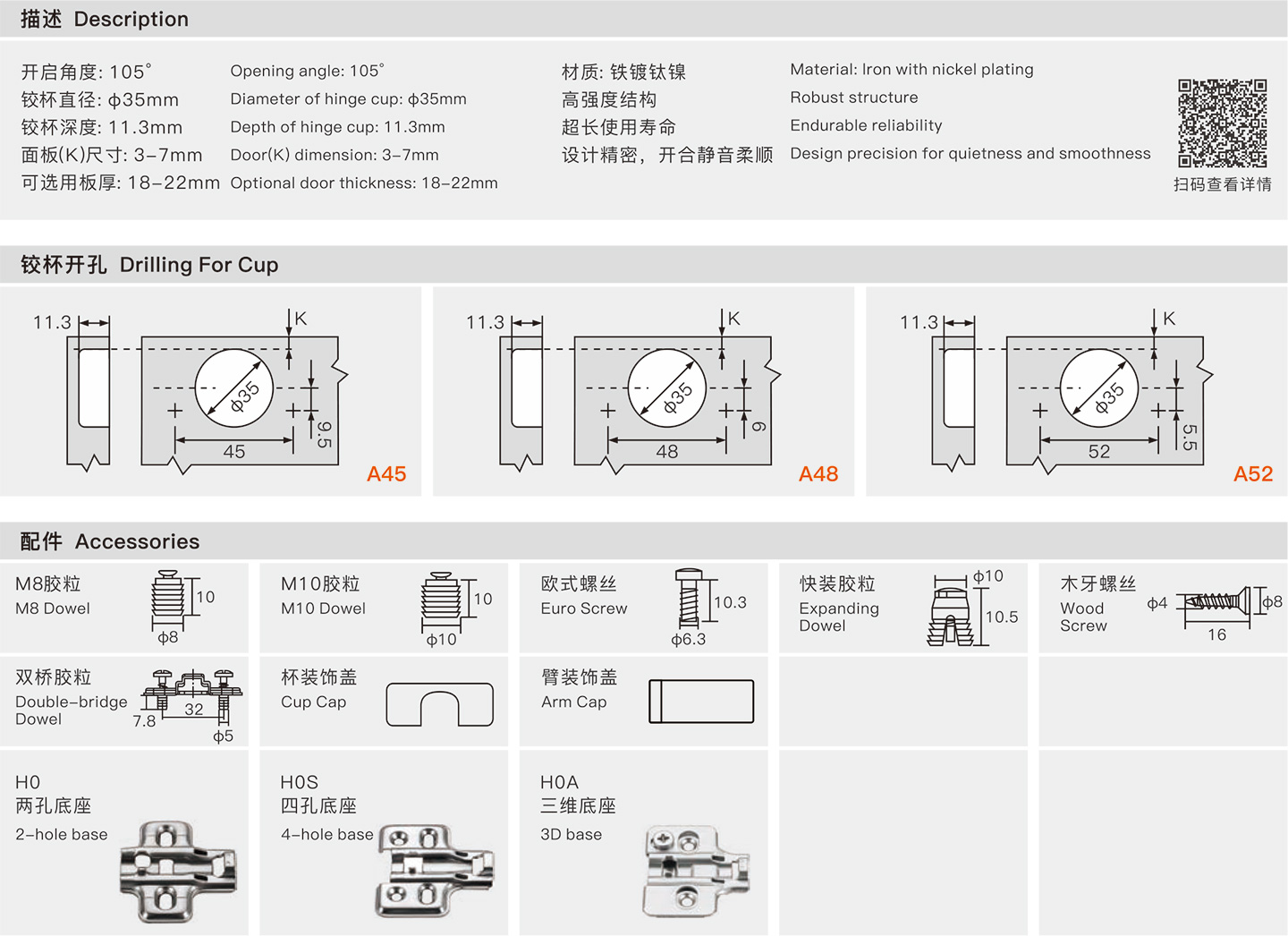

Parameter | Value |
Model | G04 |
Opening angle | 105° |
Diameter of hinge cup | φ35mm |
Depth of hinge cup | 11.3mm |
Door(K) dimension | 3-7mm |
Optional door thickness | 18-22mm |
Material | Iron with nickel plating |
Structure | Robust structure |
Performance | Design precision for quietness and smoothness |
Bore Pattern | Cup Diameter | Edge Distance | Horizontal Spacing |
A45 | φ35mm | 11.3mm | 45mm |
A48 | φ35mm | 11.3mm | 48mm |
A52 | φ35mm | 11.3mm | 52mm |

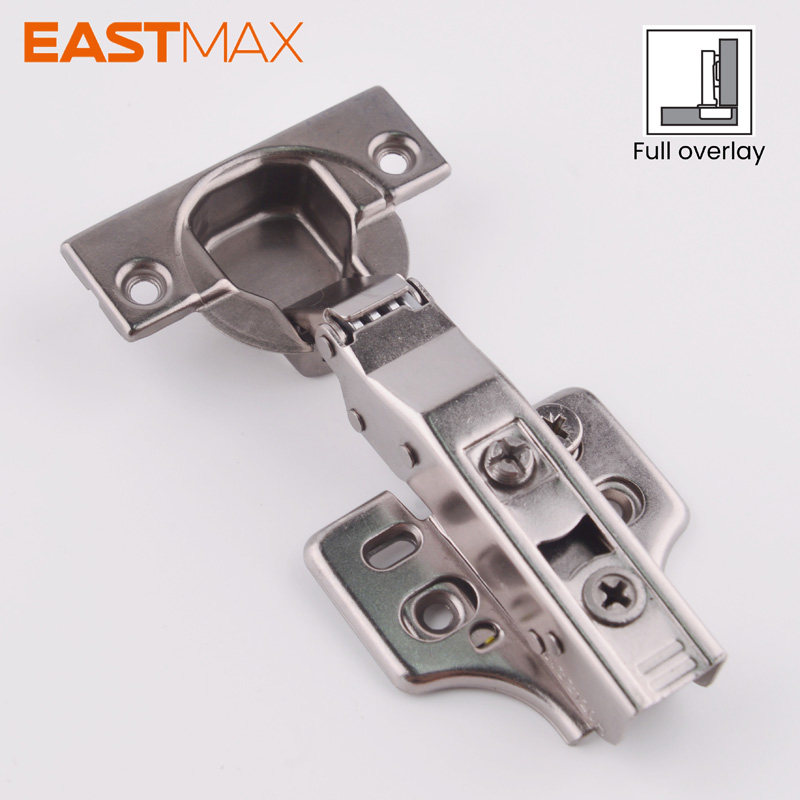

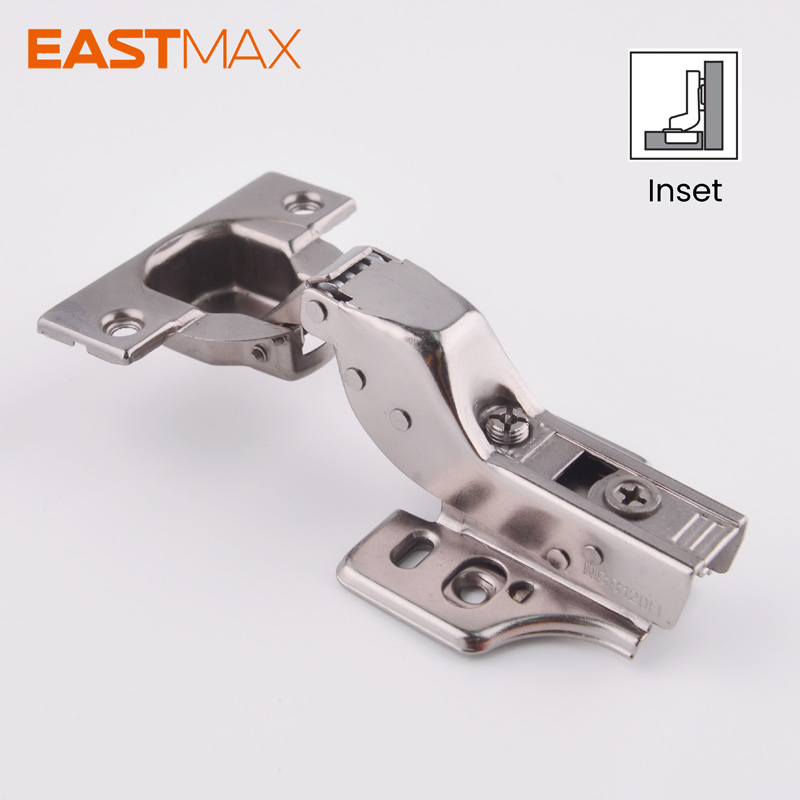

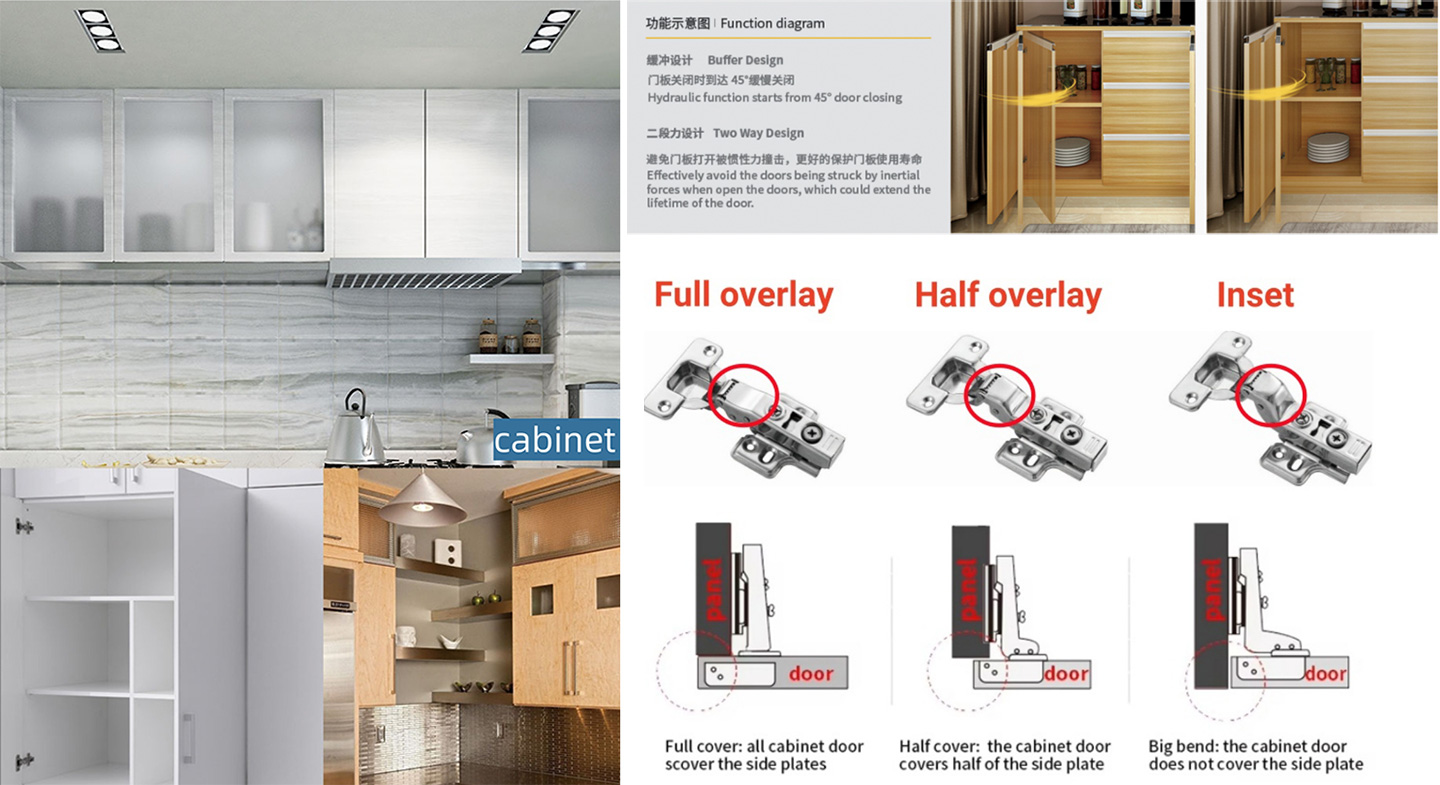

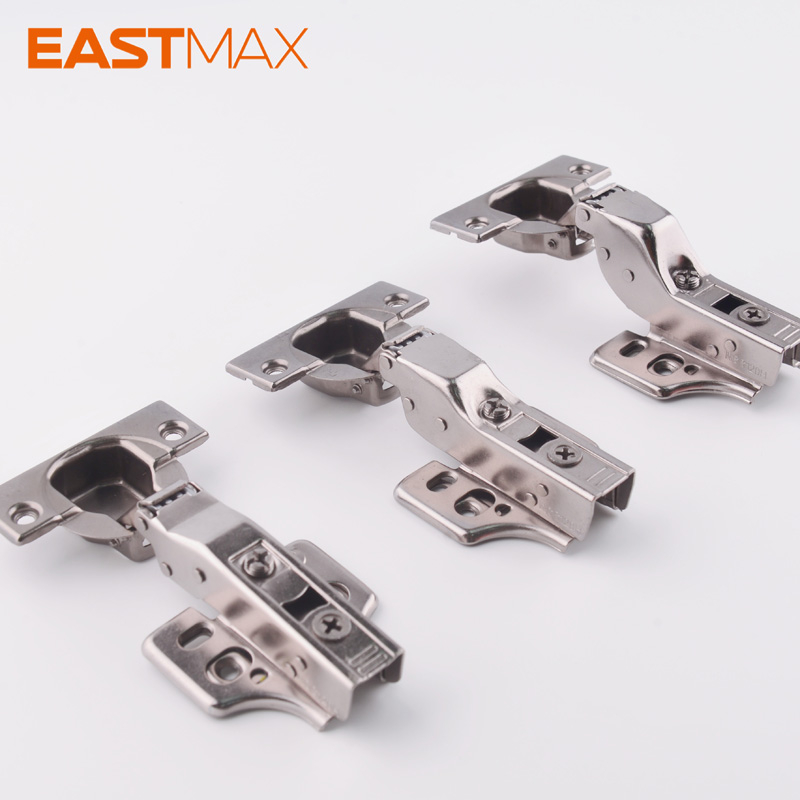

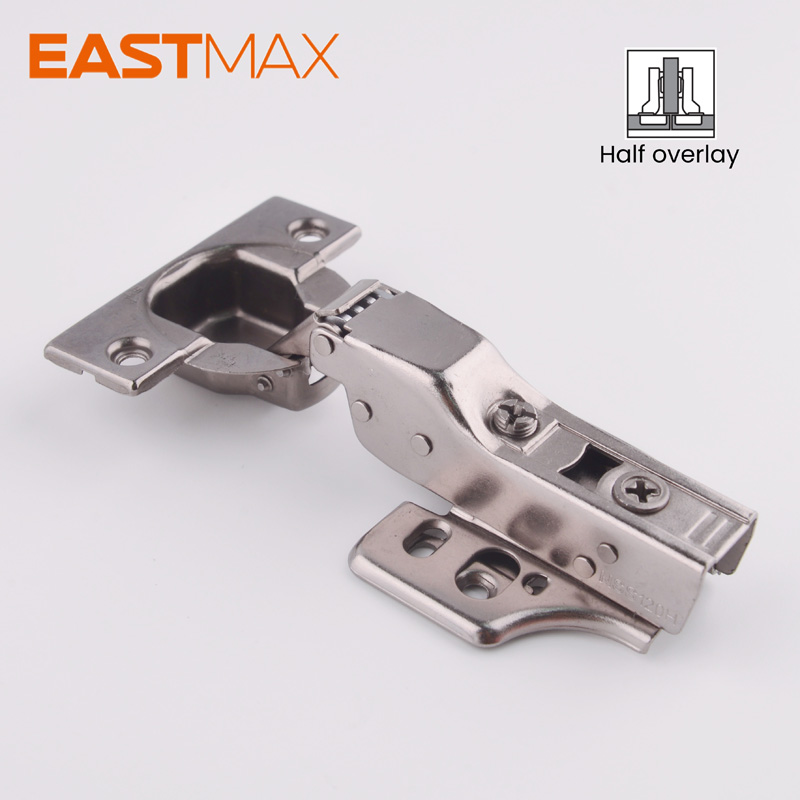

The G04 turbo adjustment hinge is available in three mounting configurations to match different cabinet construction methods. Full overlay (G0411) covers the complete side panel edge; half overlay (G0412) covers half the panel thickness for adjacent double doors; inset (G0413) positions the door flush within the cabinet frame for recessed applications.

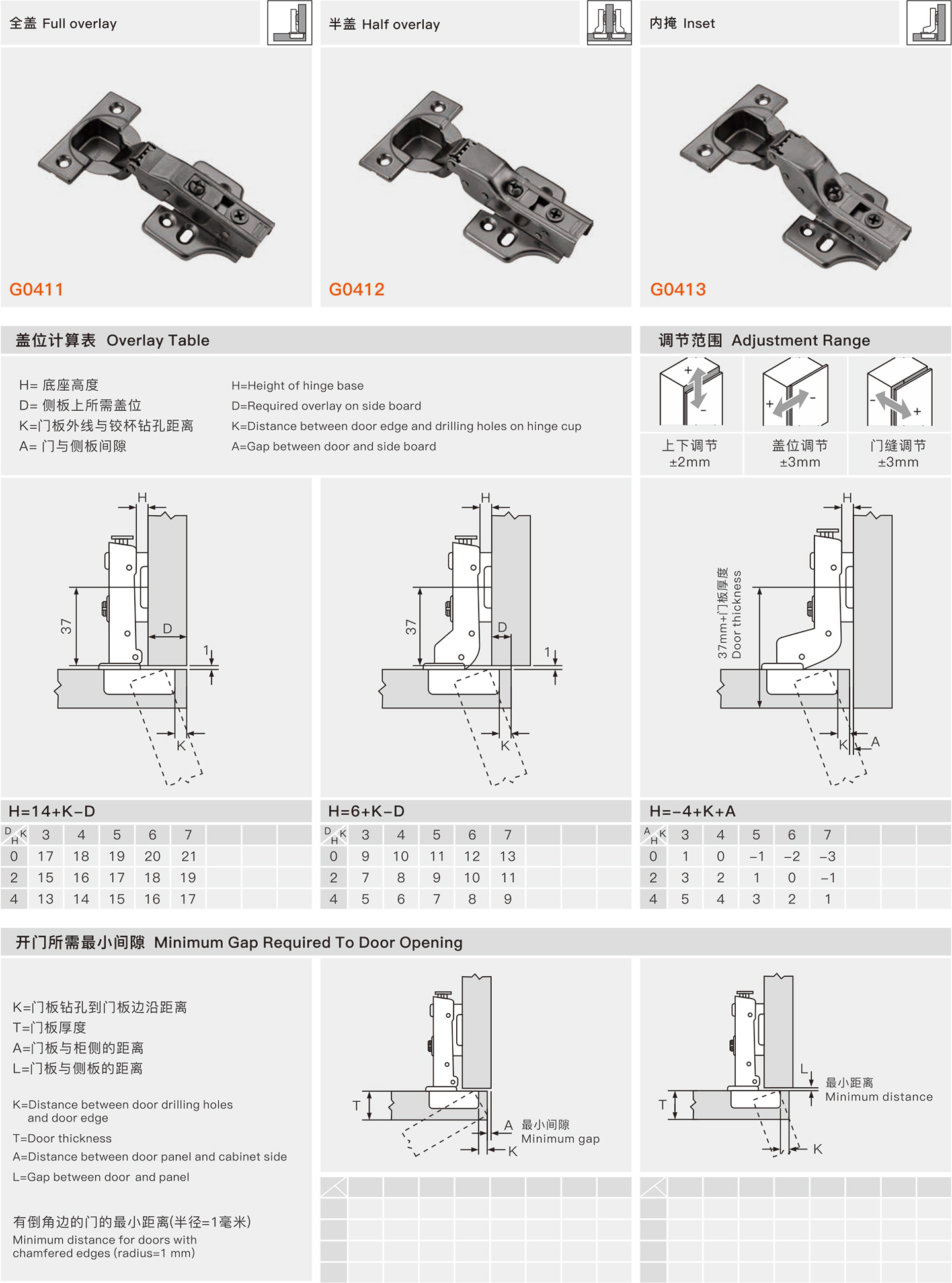

Full overlay (H=14+K-D)
D\K | 3 | 4 | 5 | 6 | 7 |
0 | 17 | 18 | 19 | 20 | 21 |
2 | 15 | 16 | 17 | 18 | 19 |
4 | 13 | 14 | 15 | 16 | 17 |
Half overlay (H=6+K-D)
D\K | 3 | 4 | 5 | 6 | 7 |
0 | 9 | 10 | 11 | 12 | 13 |
2 | 7 | 8 | 9 | 10 | 11 |
4 | 5 | 6 | 7 | 8 | 9 |
Inset (H=-4+K+A)
A\K | 3 | 4 | 5 | 6 | 7 |
0 | -1 | 0 | -1 | -2 | -3 |
2 | 3 | 2 | 1 | 0 | -1 |
4 | 5 | 4 | 3 | 2 | 1 |
Vertical adjustment: ±2mm
Overlay adjustment: ±3mm
Side adjustment: ±3mm
Minimum door thickness for adjustment: 37mm
Chamfered edges (radius=1mm)
T\K | 18 | 19 | 20 | 21 |
4 | 0.9 | 1.1 | 1.5 | 1.7 |
5 | 0.9 | 1.1 | 1.7 | 1.9 |
6 | 1.5 | 1.7 | 1.9 | 2.0 |
Straight edges
T\K | 18 | 19 | 20 | 21 |
4 | 0.9 | 0.9 | 1.0 | 1.0 |
5 | 0.9 | 1.0 | 1.0 | 1.2 |
6 | 1.0 | 1.0 | 1.0 | 1.0 |
Furniture manufacturers producing kitchen cabinetry, hotel wardrobes, and commercial office furniture select the G04 turbo adjustment hinge for its expanded calibration range. The wider ±3mm overlay and side adjustment tolerances accommodate greater variation in panel cutting precision, reducing rework rates on production lines and improving overall assembly efficiency. This hinge model is particularly suitable for contract furniture projects, multi-unit residential developments, and institutional furniture installations where consistent door alignment across large quantities of cabinets is required. The 18-22mm door thickness range covers most standard commercial furniture panel specifications.
Accessory | Specification |
M8 Dowel | M8 thread, 10mm length, φ8mm diameter |
M10 Dowel | M10 thread, 10mm length, φ10mm diameter |
Euro Screw | φ6.3mm diameter, 10.3mm length |
Expanding Dowel | φ10mm head, 10.5mm length |
Wood Screw | φ4mm shank, φ8mm head, 16mm length |
Double-bridge Dowel | 7.8mm width, φ5mm shaft, 32mm length |
Component | Type |
Cup Cap | Hinge cup decorative cover |
Arm Cap | Hinge arm decorative cover |
Base Model | Configuration |
H0 | 2-hole base |
H0S | 4-hole base |
H0A | 3D base |
Turbo adjustment provides an expanded calibration range of ±3mm for both overlay and side positioning, compared to ±2mm on standard models. This wider range allows installers to compensate for larger panel tolerances and achieve uniform door gaps across complete cabinet installations without re-drilling mounting holes.
The G04 hinge is designed for door panels between 18mm and 22mm thick. The hinge cup depth measures 11.3mm, which requires adequate material thickness for proper installation. Panels outside this range may require alternative hinge models or special installation consideration.
The hydraulic damper is factory-calibrated for standard furniture door weights and cannot be field-adjusted or disabled. The damping system engages automatically during the closing cycle and requires no user intervention or maintenance under normal operating conditions.
The nickel-plated iron construction provides basic corrosion resistance for standard indoor environments. For bathrooms, laundry areas, or other high-humidity applications, we recommend verifying moisture exposure levels with our technical team, as prolonged high humidity may affect long-term surface finish and internal spring components.
