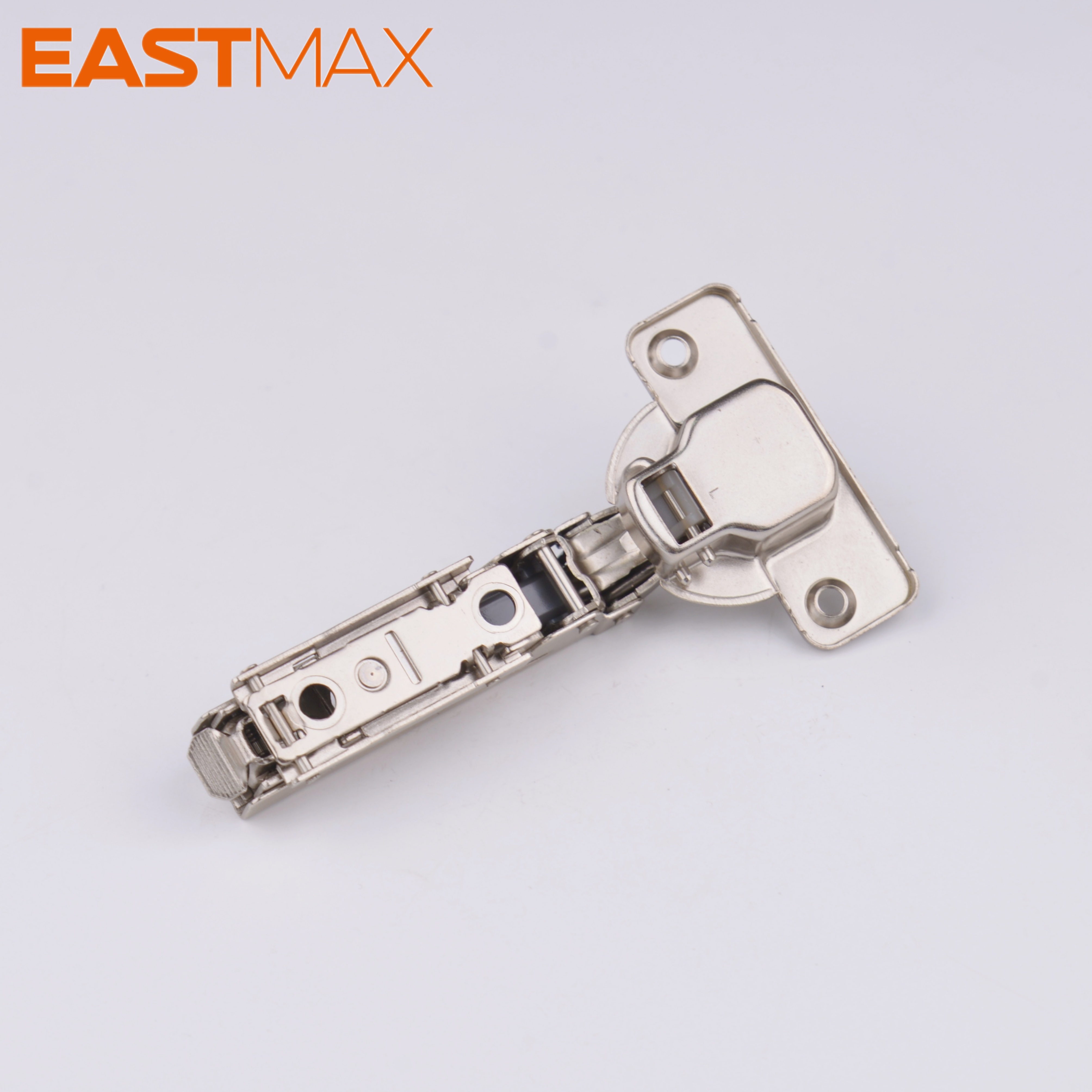

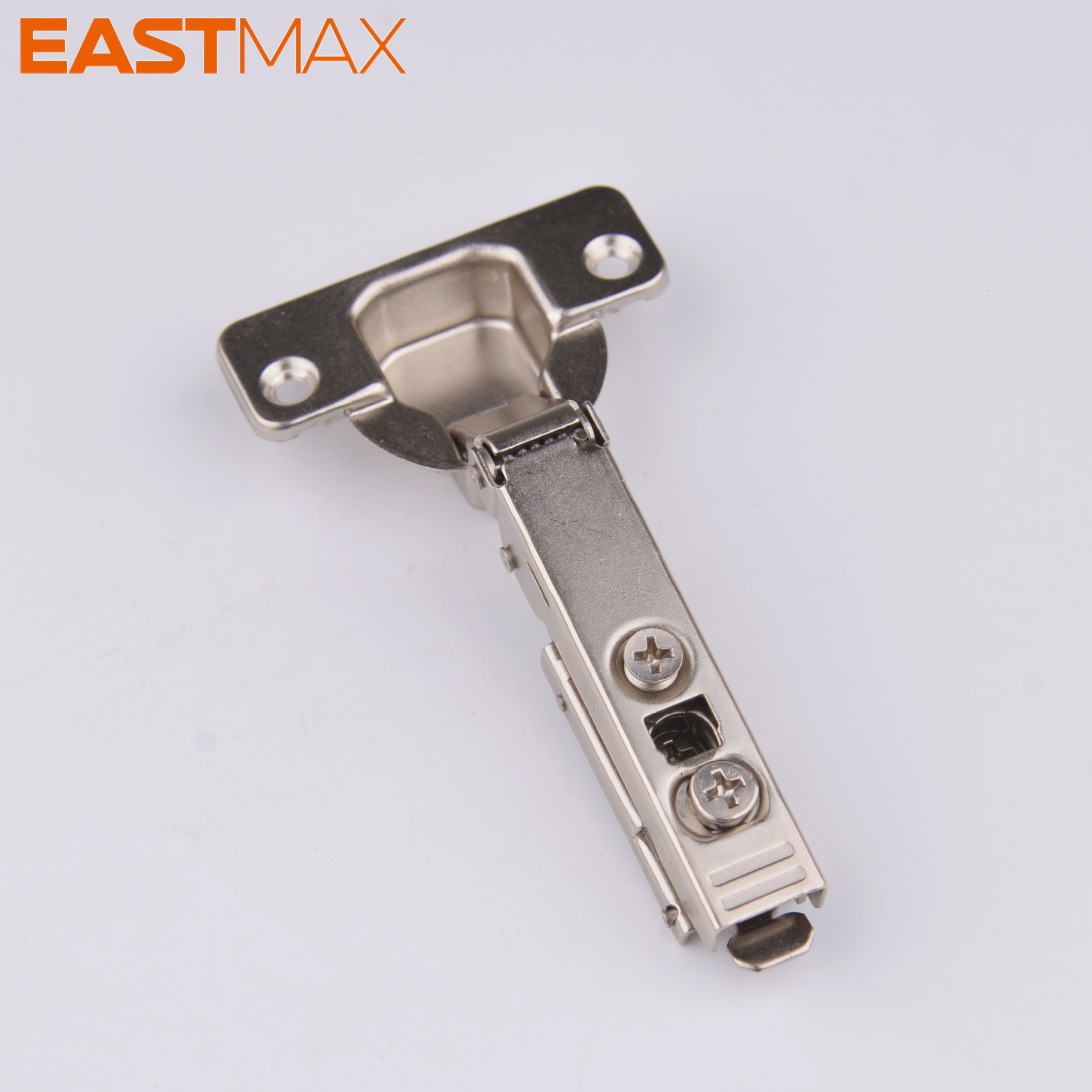

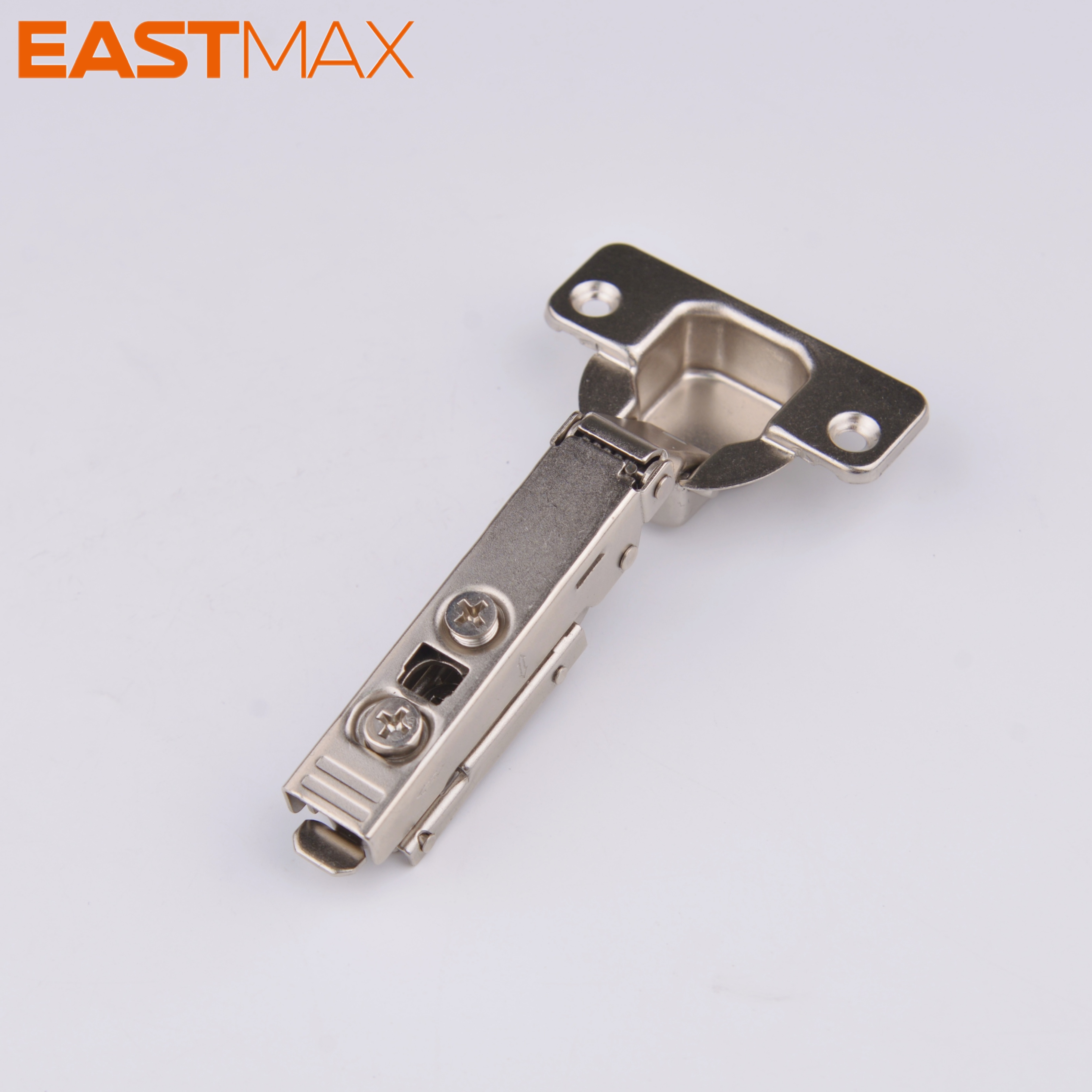

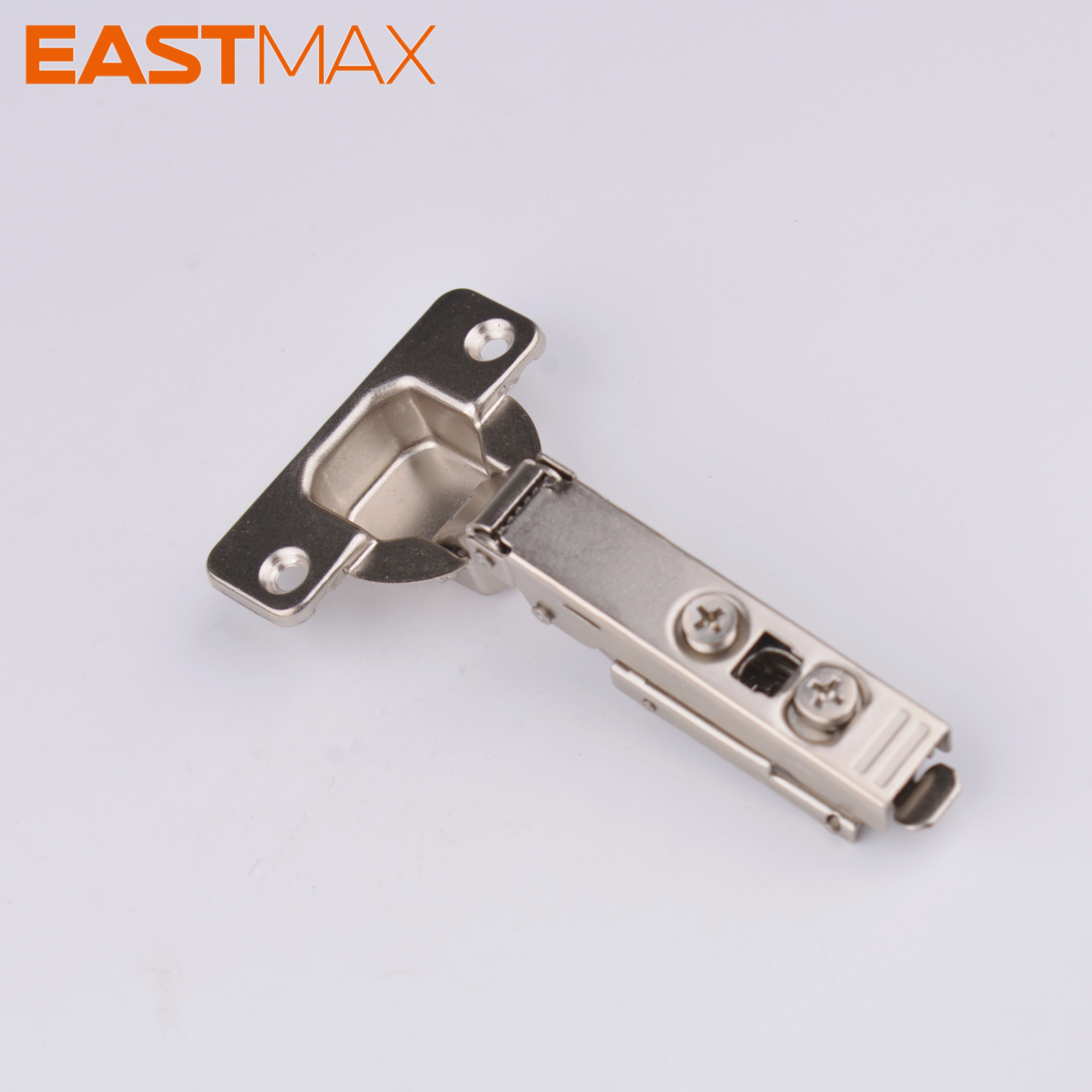

The slide-on soft closing cabinet hinge is a furniture fitting designed for efficient installation in high-volume cabinet manufacturing. Model liner hinge 1 features a slide-on mounting system where the hinge arm slides onto the base plate and secures with a locking screw. This installation method is widely adopted in furniture factory assembly lines due to its straightforward process and compatibility with standard cabinet construction methods.
Manufactured from iron with nickel plating, this hinge incorporates a hydraulic soft-closing mechanism that prevents door slamming and reduces noise during operation. The 105-degree opening angle provides sufficient access for standard cabinet storage use. With a rated cycle life of 50,000 operations, this hinge supports consistent performance across the service life of commercial and residential cabinet installations.

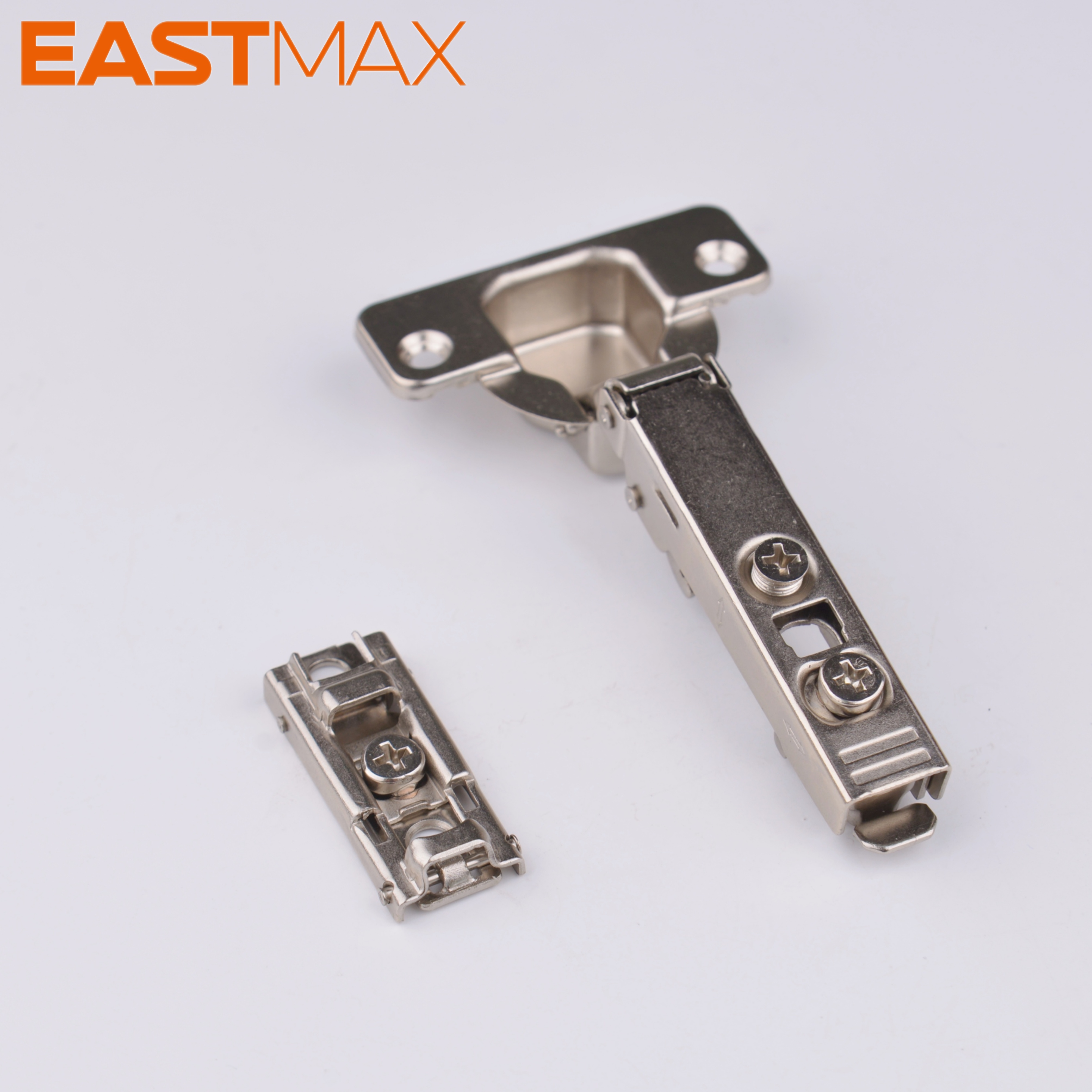

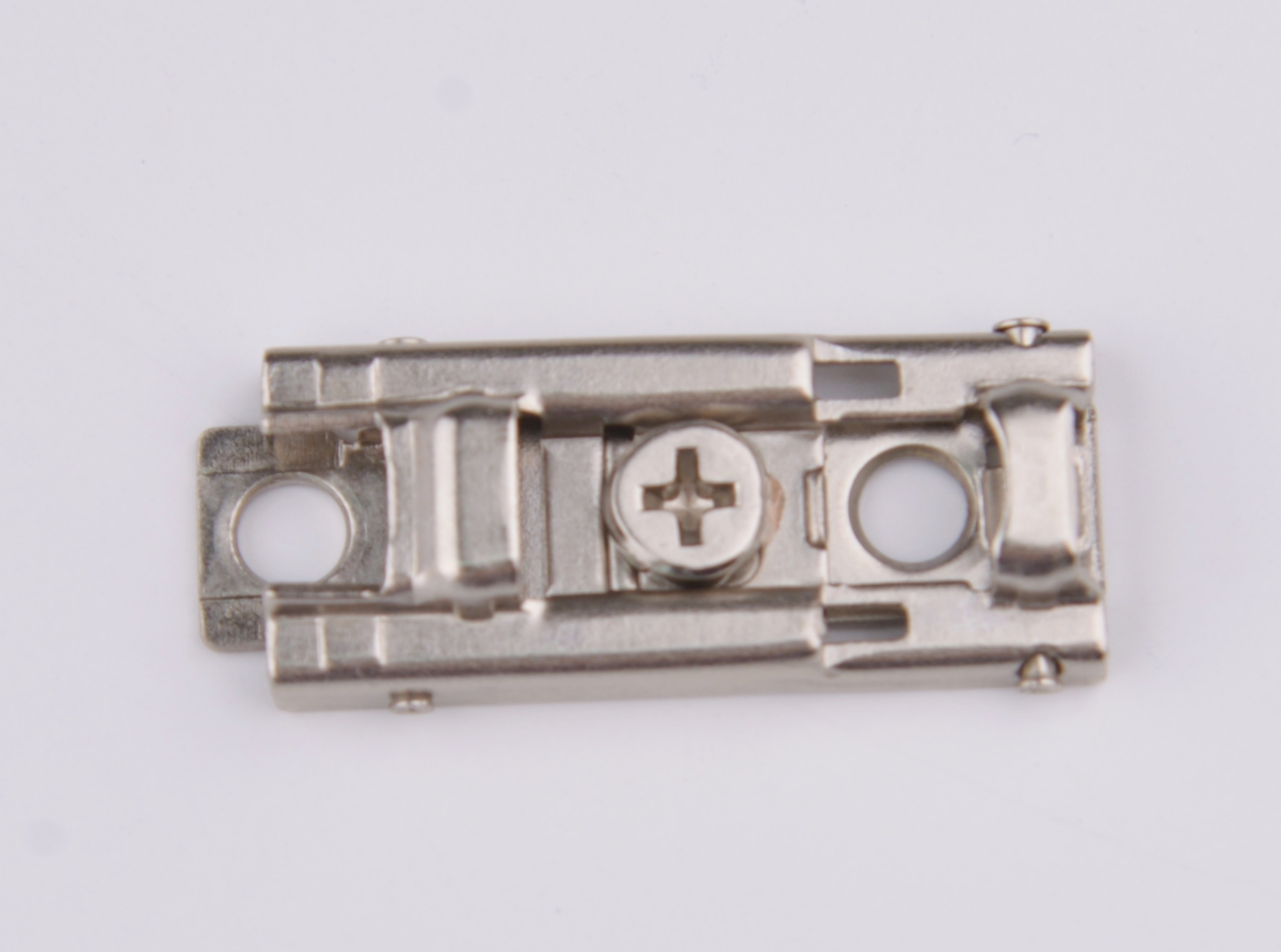

The slide-on mounting mechanism allows the hinge arm to slide horizontally onto the pre-installed base plate. A single locking screw secures the connection. This design simplifies assembly line work, as workers can pre-mount all base plates to cabinet carcases before attaching the hinge arms with doors. For high-volume furniture production, this sequencing reduces assembly time per unit.

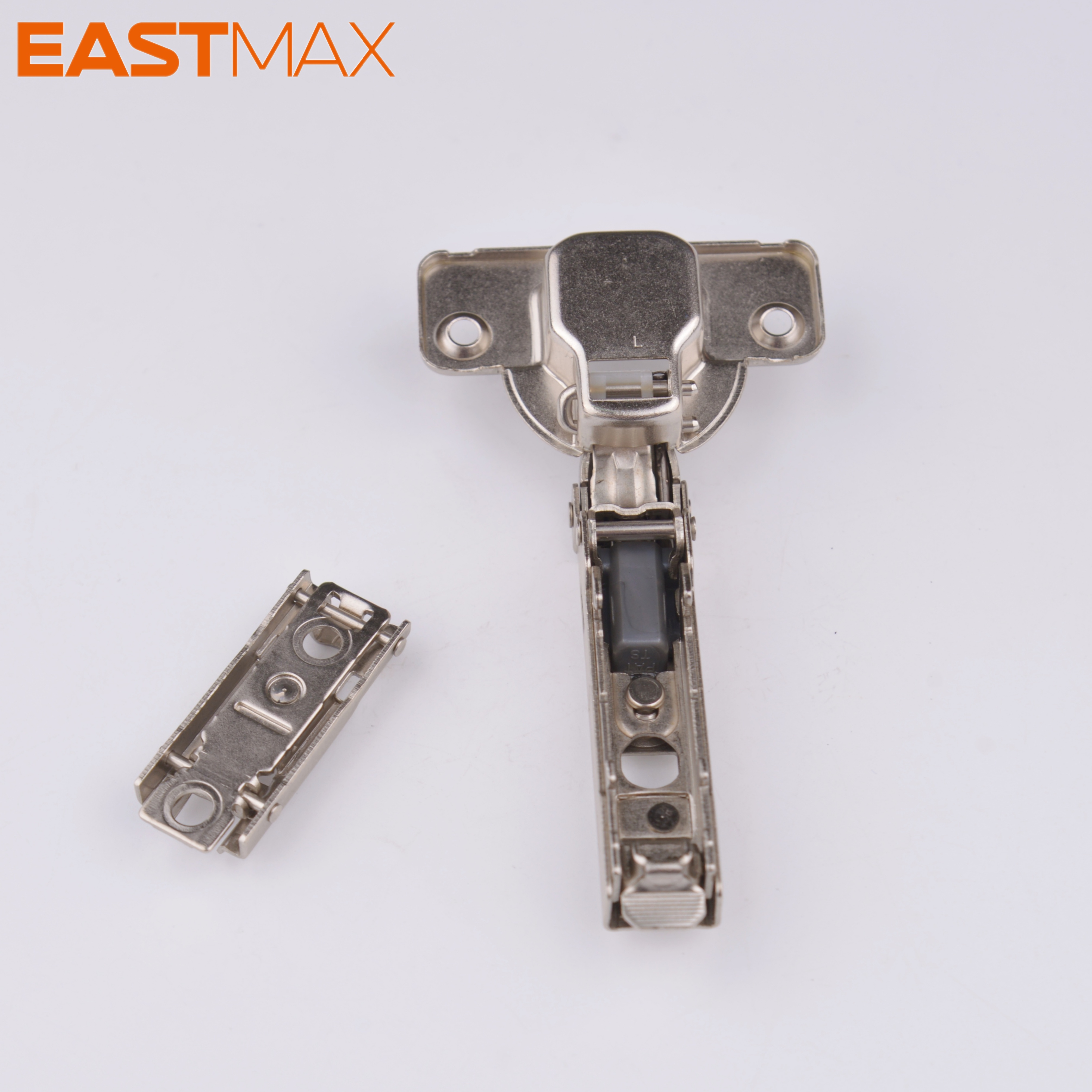

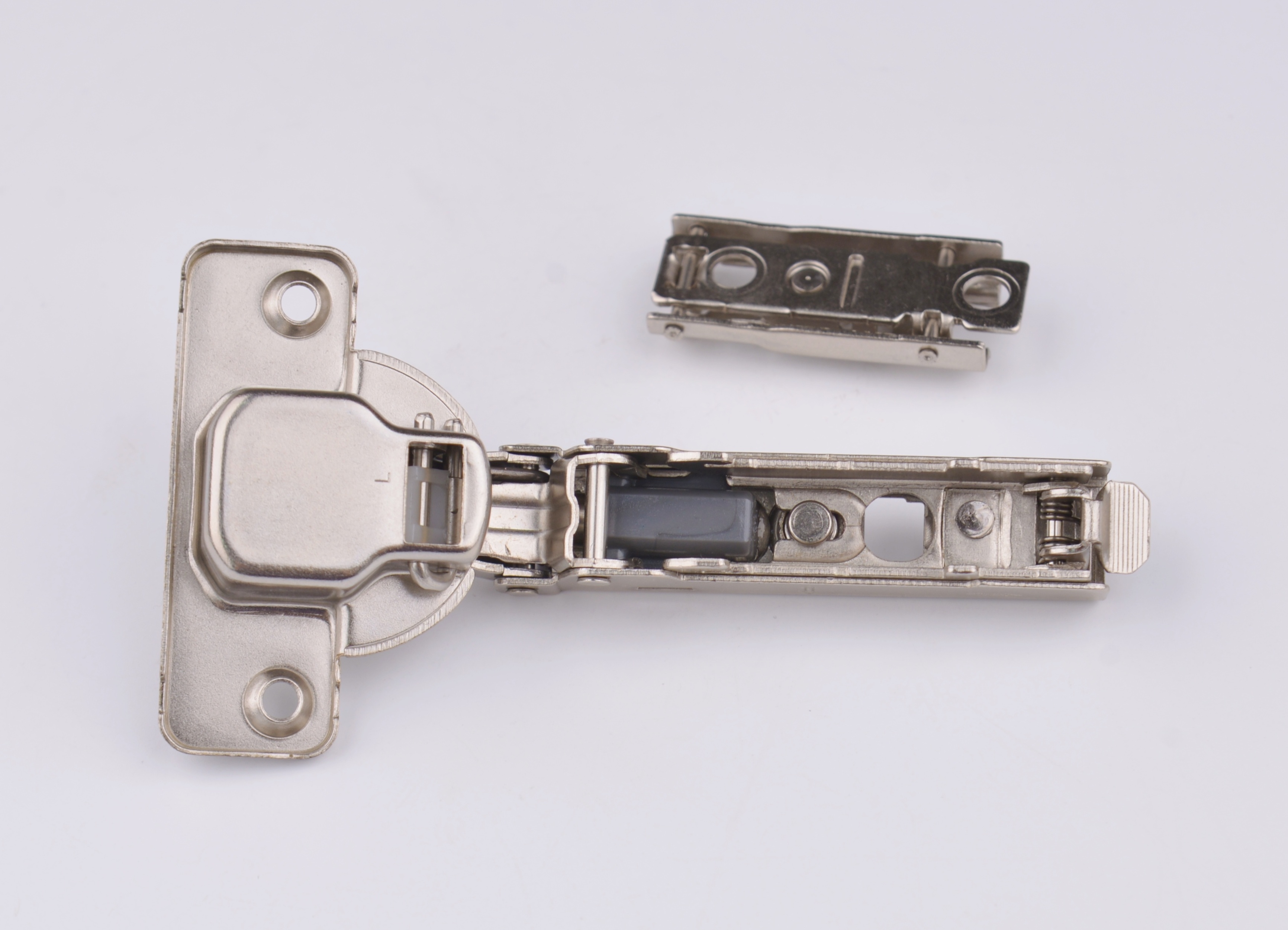

The built-in hydraulic damper activates during the final section of the closing motion, decelerating the door before it reaches the cabinet frame. This prevents impact noise and protects both the door and cabinet structure from repeated slamming. The soft closing function engages automatically on every closing cycle, with no manual adjustment required.
The hinge cup measures 35mm in diameter, matching the most common drilling standard in the furniture hardware industry. This standardization allows cabinet manufacturers to use existing drilling equipment and production templates without retooling when sourcing this hinge model.
The table below lists complete dimensional and operational parameters for the slide-on soft closing hinge. Commercial procurement teams and design engineers can use these specifications for cabinet design planning and product compatibility verification.
Cup diameter | 35mm |
Cup depth | 11.3mm |
Overlay | Full overlay / Half overlay / Inset |
Opening angle | 105 degree |
Optional door thickness | 14-26mm |
Door Dimension(K) | 3-7mm |
Use time | 50000 Times |
Color | Iron with Nickel Plating |
Delivery time | 25-45days |
Payment term | EXW/FOB |
Furniture factories producing kitchen cabinets, wardrobe units, bathroom vanities, and office storage cabinets can integrate this slide-on hinge into standard production workflows. The 14-26mm door thickness range accommodates both standard and thicker door panels used in different furniture grades, from economy line cabinetry to premium commercial furniture.
Contractors undertaking hotel room cabinetry, office kitchenettes, retail display cabinets, and apartment development fit-outs benefit from the straightforward installation process. The slide-on design allows workers to install doors efficiently across large project sites with multiple cabinet units. The nickel plating finish suits indoor applications with normal humidity levels.
The hinge is available in three overlay versions: full overlay, half overlay, and inset. Full overlay hinges cover the entire cabinet side panel edge and are used for single-door cabinets. Half overlay hinges are designed for double-door cabinets where two doors share a single partition. Inset hinges sit flush with the cabinet frame for a seamless appearance. This range of options covers most standard cabinet design specifications.
Each hinge model undergoes cycle testing under standard load conditions, with a rated performance of 50,000 opening and closing operations. This test data provides a baseline for expected service life, allowing commercial buyers to align product selection with project durability requirements.
The iron base material with nickel plating provides structural strength and surface corrosion resistance. The plating process follows standard electroplating procedures for furniture hardware, ensuring consistent finish quality across production batches. For projects requiring specific corrosion resistance levels, additional finish options can be discussed for volume orders.
Standardized tooling and quality inspection checkpoints throughout the manufacturing process help maintain dimensional consistency across production runs. This consistency is important for furniture manufacturers who rely on interchangeable parts across large assembly batches.
Before assembly, drill a 35mm diameter hole to 11.3mm depth in the cabinet door at the specified position. Mount the base plate to the cabinet carcase side panel using the appropriate screw size. The hinge body pre-attaches to the door via the cup and fixing screws.
Align the hinge arm with the base plate and slide horizontally until fully seated. Tighten the locking screw to secure the connection. After all hinges are attached, verify door alignment and make any necessary adjustments. The slide-on system allows for minor repositioning before the locking screw is fully tightened.
Basic side-to-side and depth adjustments are available through the adjustment screws on the hinge body. These adjustments compensate for minor manufacturing tolerances in door and carcase dimensions, ensuring uniform gap appearance across finished cabinet units.
Slide-on hinges require a screw to secure the hinge arm to the base plate, while clip-on hinges use a spring-loaded clip mechanism that snaps into place without tools. Slide-on models are generally more economical for high-volume production where assembly time optimization is less critical.
This hinge model supports door thickness from 14mm to 26mm, covering most standard furniture door specifications including MDF, particleboard, and solid wood panels within this range.
The hinge is rated for standard cabinet door weights within the 14-26mm thickness range. For oversized or solid wood doors exceeding standard weight, additional hinges per door or heavy-duty hinge models may be required.
Standard trade terms include EXW and FOB options. Production lead time is 25-45 days depending on order volume. Detailed quotations with unit pricing, packaging specifications, and shipping arrangements are provided upon formal inquiry.
Sample units can be provided for product evaluation and compatibility testing before placing bulk production orders. Sample availability and lead time details are confirmed through direct inquiry.
