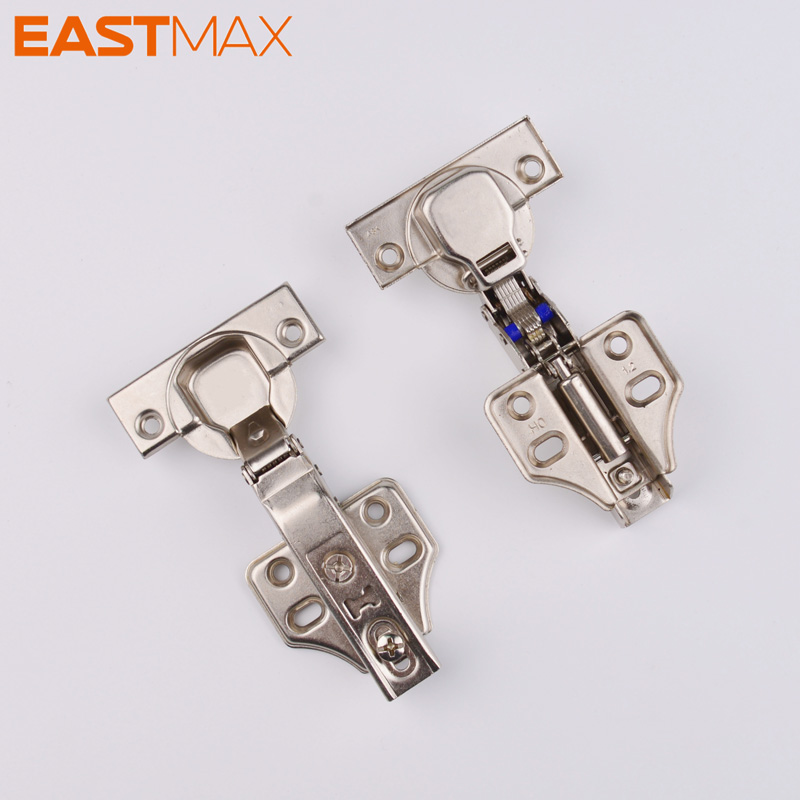

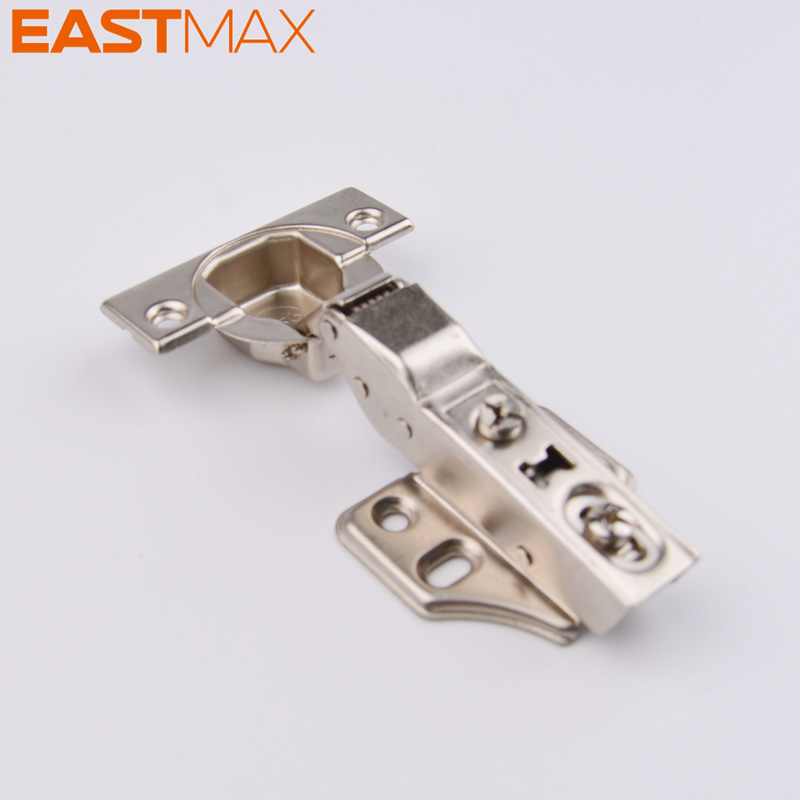

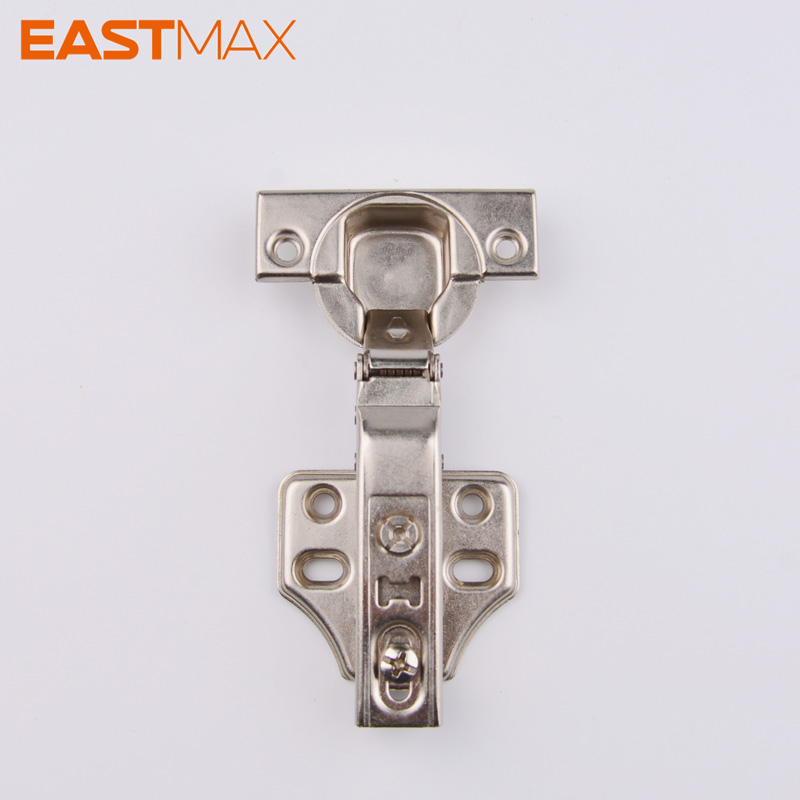

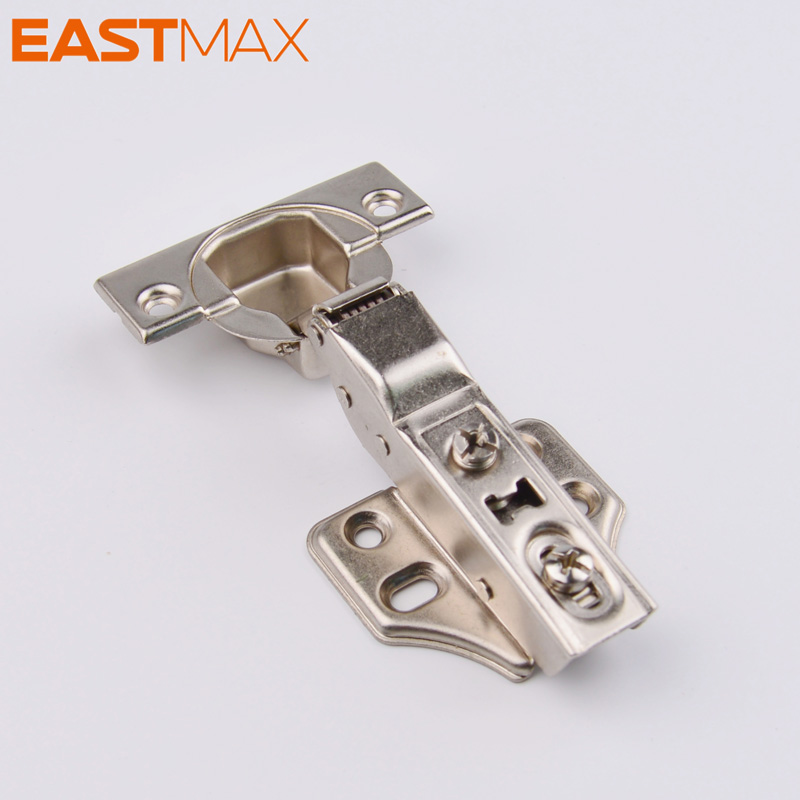

The G01 series fixed mount cabinet hinge delivers controlled door movement through an integrated hydraulic damper system. Designed for 16-20mm door panels with a standard 35mm bore diameter, this concealed hinge supports three mounting configurations: full overlay, half overlay, and inset installation. Each unit operates at a 105-degree opening angle and features two-way opening functionality, making it suitable for commercial cabinetry, wardrobe systems, and office furniture production lines. The nickel-plated iron construction provides consistent surface finish and corrosion resistance for indoor furniture applications.

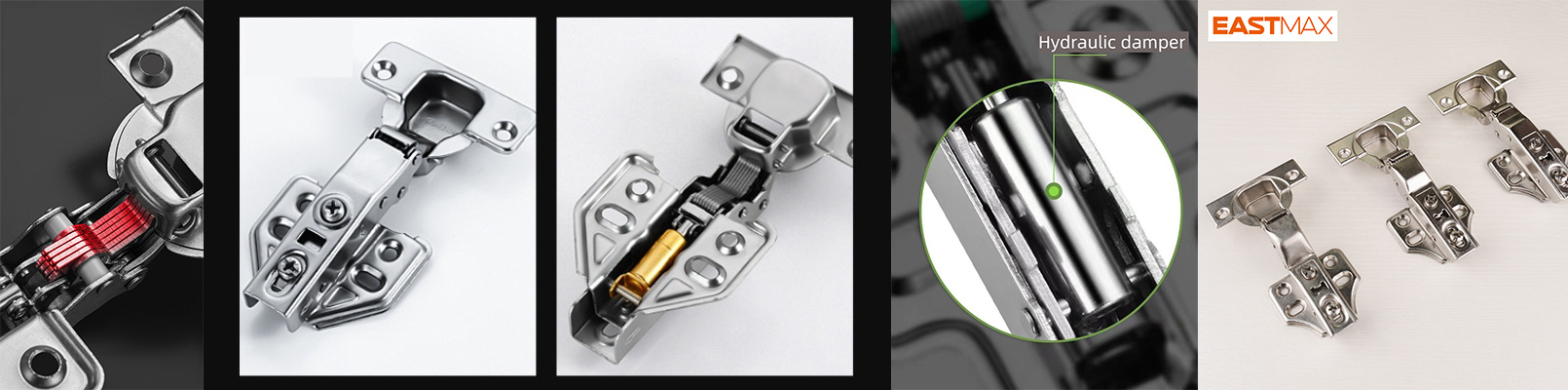

Built-in hydraulic cylinder generates gradual deceleration during the final closing phase. The damping system engages at approximately 45 degrees before full closure, reducing impact noise and preventing door slamming in high-traffic commercial environments.
The hinge assembly allows door movement in both directions within the opening arc, accommodating various cabinet layouts and providing installation flexibility for furniture manufacturers working with different door configurations.
The base plate attaches directly to the cabinet side panel through pre-drilled holes. This fixed mount configuration offers stable positioning and straightforward installation for volume production settings where clip-on systems are not required.
Post-installation adjustment covers three axes: vertical alignment ±2mm, overlay position ±4mm, and side gap ±2mm. These adjustments allow installers to compensate for minor manufacturing tolerances in door and panel dimensions.

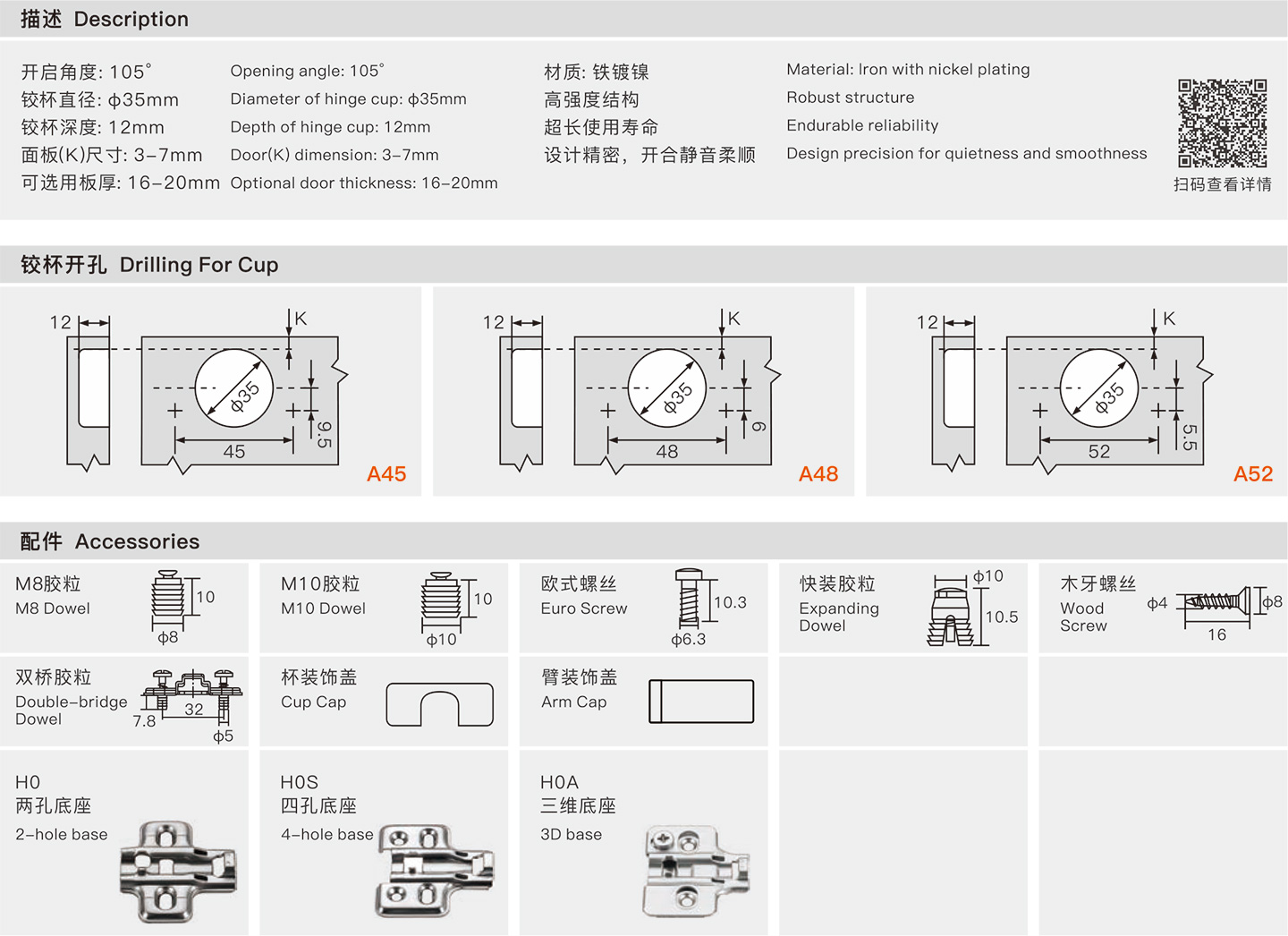

Parameter | Value |
Model | G01 |
Opening angle | 105° |
Diameter of hinge cup | φ35mm |
Depth of hinge cup | 12mm |
Door(K) dimension | 3-7mm |
Optional door thickness | 16-20mm |
Material | Iron with nickel plating |
Structure | Robust structure |
Performance | Design precision for quietness and smoothness |
Bore Pattern | Cup Diameter | Edge Distance | Horizontal Spacing |
A45 | φ35mm | 12mm | 45mm |
A48 | φ35mm | 12mm | 48mm |
A52 | φ35mm | 12mm | 52mm |

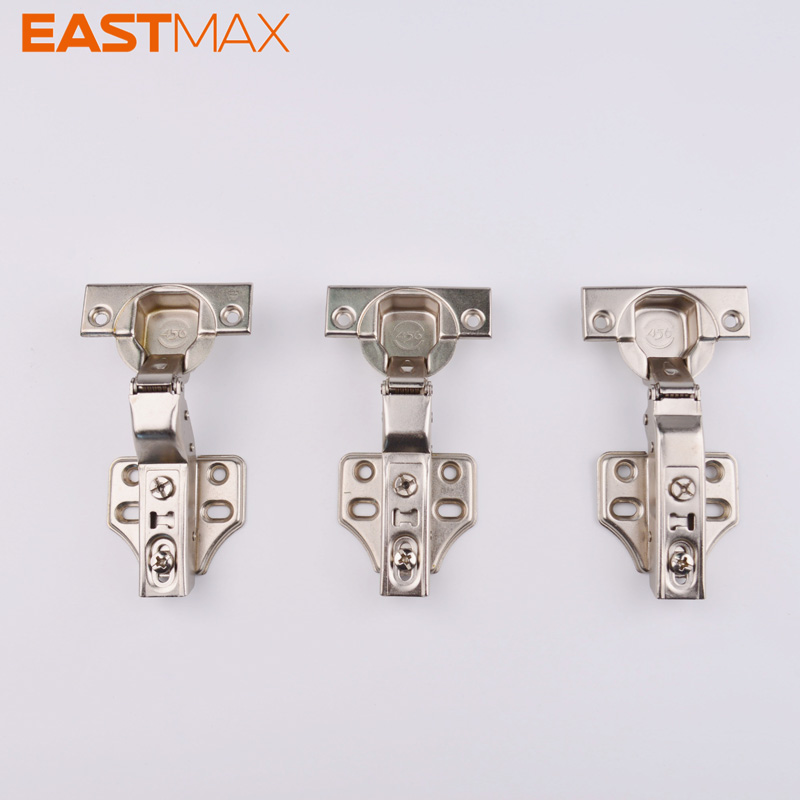

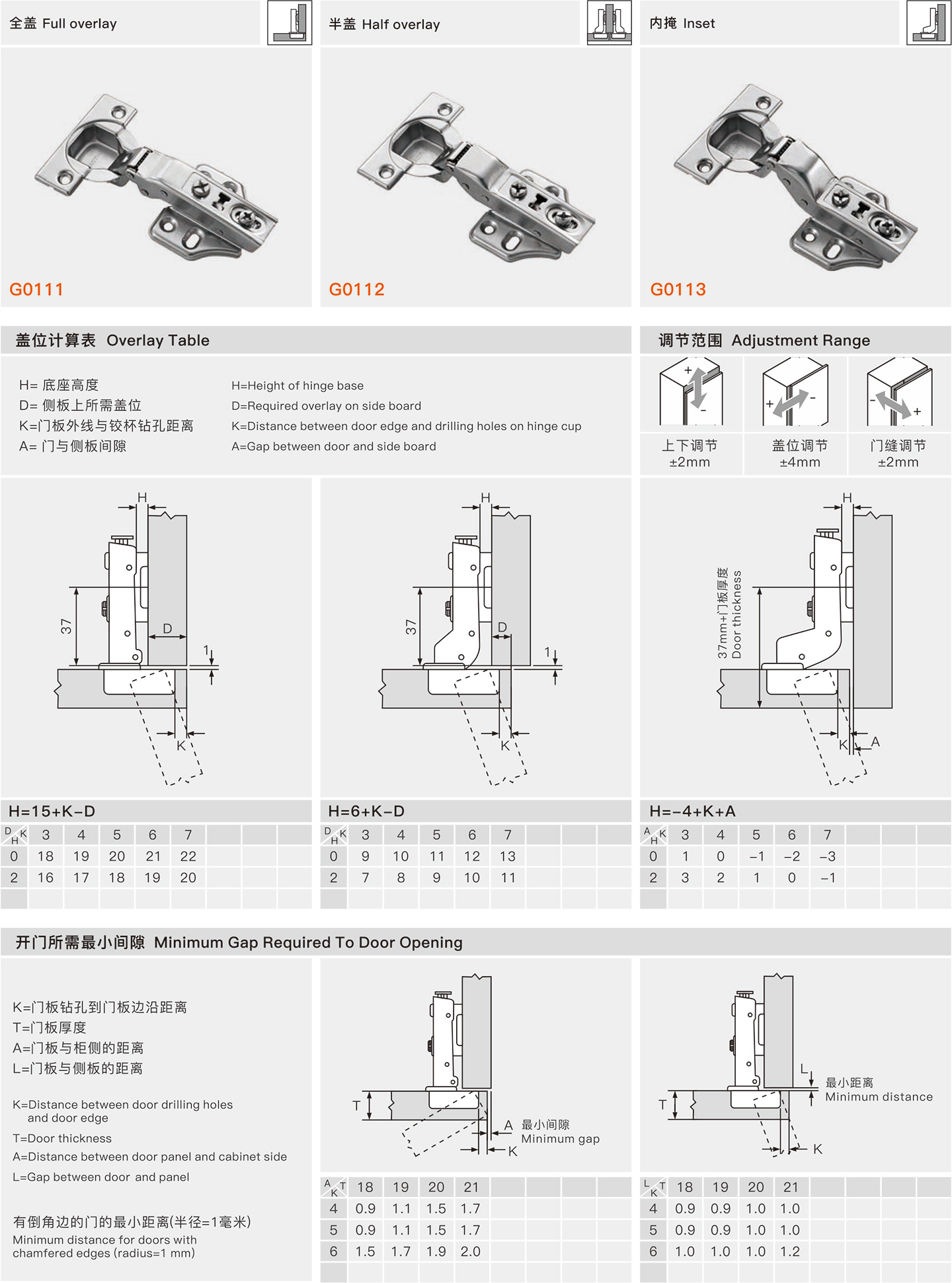

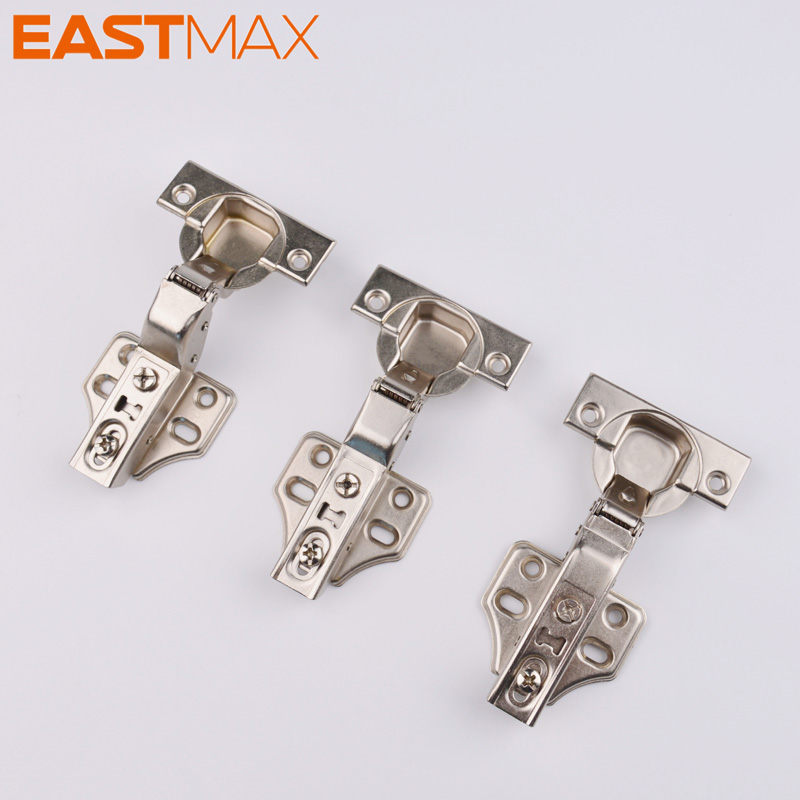

The G01 series is available in three mounting variants to match different cabinet construction methods. Full overlay (G0111) covers the entire side panel edge; half overlay (G0112) covers half the panel thickness for double-door cabinets; inset (G0113) sits flush with the cabinet frame for recessed door designs.
Full overlay (H=15+K-D)
D\K | 3 | 4 | 5 | 6 | 7 |
0 | 18 | 19 | 20 | 21 | 22 |
2 | 16 | 17 | 18 | 19 | 20 |
Half overlay (H=6+K-D)
D\K | 3 | 4 | 5 | 6 | 7 |
0 | 9 | 10 | 11 | 12 | 13 |
2 | 7 | 8 | 9 | 10 | 11 |
Inset (H=-4+K+A)
A\K | 3 | 4 | 5 | 6 | 7 |
0 | -1 | 0 | -1 | -2 | -3 |
2 | 3 | 2 | 1 | 0 | -1 |
Vertical adjustment: ±2mm
Overlay adjustment: ±4mm
Side adjustment: ±2mm
Minimum door thickness for adjustment: 37mm
Chamfered edges (radius=1mm)
T\K | 18 | 19 | 20 | 21 |
4 | 0.9 | 1.1 | 1.5 | 1.7 |
5 | 0.9 | 1.1 | 1.7 | 1.9 |
6 | 1.5 | 1.7 | 1.9 | 2.0 |
Straight edges
T\K | 18 | 19 | 20 | 21 |
4 | 0.9 | 0.9 | 1.0 | 1.0 |
5 | 0.9 | 1.0 | 1.0 | 1.2 |
6 | 1.0 | 1.0 | 1.0 | 1.0 |
The G01 fixed mount hinge serves furniture factories producing kitchen cabinetry, bedroom wardrobes, and storage units for hospitality and commercial projects. Its standard 35mm cup dimension aligns with European furniture manufacturing conventions, allowing direct integration into existing production workflows without retooling. Furniture builders working on apartment complexes, student housing, and office fit-out projects select this hinge for its consistent performance and cost-effective fixed-mount design. The nickel plating provides sufficient corrosion resistance for indoor dry environments such as offices, residential kitchens, and retail display cabinets.
Accessory | Specification |
M8 Dowel | M8 thread, 10mm length, φ8mm diameter |
M10 Dowel | M10 thread, 10mm length, φ10mm diameter |
Euro Screw | φ6.3mm diameter, 10.3mm length |
Expanding Dowel | φ10mm head, 10.5mm length |
Wood Screw | φ4mm shank, φ8mm head, 16mm length |
Double-bridge Dowel | 7.8mm width, φ5mm shaft, 32mm length |
Component | Type |
Cup Cap | Hinge cup decorative cover |
Arm Cap | Hinge arm decorative cover |
Base Model | Configuration |
H0 | 2-hole base |
H0S | 4-hole base |
H0A | 3D base |
The G01 series is designed for door panels between 16mm and 20mm thick. The hinge cup depth measures 12mm, which requires sufficient material thickness for proper bore installation without penetrating the opposite surface.
The G01 hinge is engineered for standard furniture door weights in residential and commercial cabinet applications. For doors exceeding typical cabinet dimensions or constructed from dense solid wood, we recommend verifying load requirements with our technical team and considering additional hinges per door.
Fixed mount hinges attach directly to the mounting plate with screws, providing stable permanent installation suitable for volume furniture production. Clip-on hinges allow tool-free door removal, which is preferred for applications requiring frequent disassembly or post-installation servicing.
Standard cabinet doors up to 1500mm in height typically require two hinges. Doors exceeding 1500mm or constructed from heavier materials may require three or more hinges distributed along the vertical edge to maintain proper alignment and distribute weight evenly.
