Think about it – how often do you open and close drawers in your home or office? From kitchen utensils to important documents, drawers are essential for organization. And what makes them function smoothly? The often-overlooked drawer slide, also known as a drawer runner or slide rail . This crucial piece of hardware, fixed to the cabinet and supporting the drawer, dictates whether your drawers glide effortlessly or stick and wobble. It also plays a significant role in their durability. Let's explore the different types of drawer slides available.
Drawer slides are primarily categorized by how they are mounted to the drawer and cabinet:
Side-Mount Slides : These are mounted on the sides of the drawer box and the inside of the cabinet. You can typically see the hardware when the drawer is open. They come in two-section (allowing partial extension) and three-section (allowing full extension) variations.
Under-Mount Slides : These are installed underneath the drawer box, making the hardware invisible when the drawer is open.
Center-Mount Slides: (Not explicitly mentioned but worth a brief note if relevant to your market - usually a single runner underneath the center of the drawer).
Drawer System/Slim Box: These are essentially slim box with integrated side panels (metal extensions attached to the slides), commonly used in kitchen cabinets.

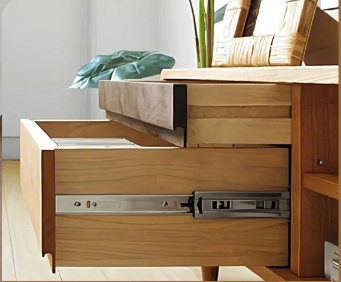

Side mount slide

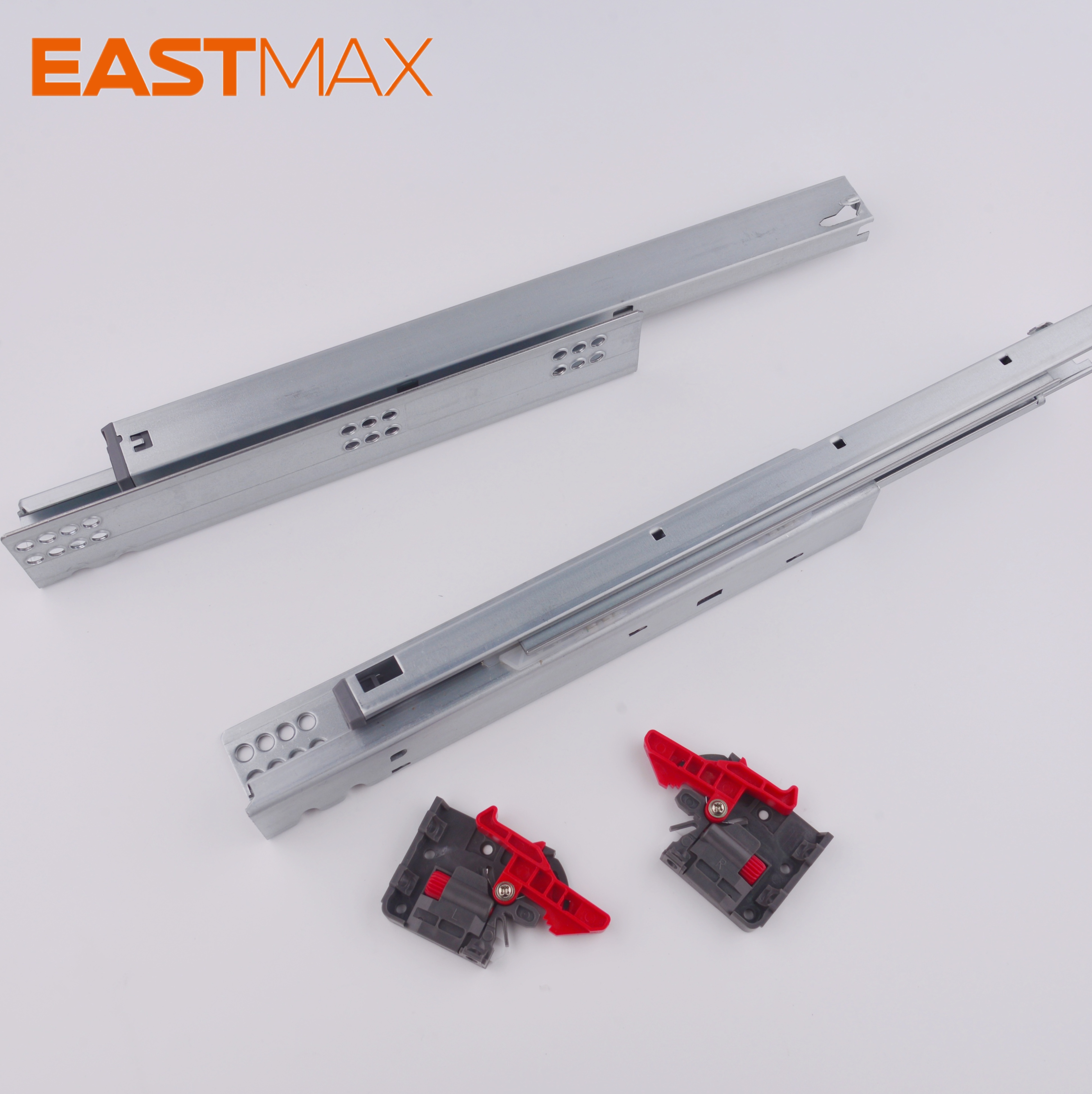

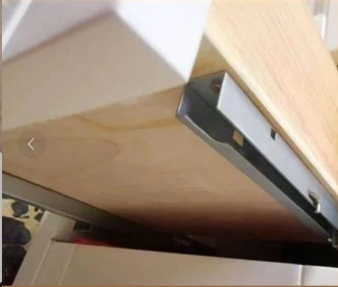

Under mount slide
Slim box Within these mounting styles, drawer slides can be further classified based on their internal mechanisms:
Roller Slides : These are the simplest type, featuring a roller that moves along a track. They are inexpensive and suitable for light-duty applications like keyboard trays or shallow drawers. However, they typically have lower load capacities and lack features like soft-close or push-to-open.
Ball-Bearing Slides : These slides use ball bearings between the inner and outer tracks, providing smoother and more stable movement compared to roller slides. They are commonly side-mounted and offer better load-bearing capacity. Quality ball-bearing slides can also incorporate soft-close or push-to-open mechanisms.
Gear Slides : While less common in typical furniture, gear slides offer precise and synchronized movement, often found in specialized applications.
Damping Slides : This refers to slides equipped with a damping mechanism (often hydraulic or pneumatic) that gently slows down the drawer as it closes, preventing slamming and reducing noise. These can be found in both side-mount and bottom-mount configurations.

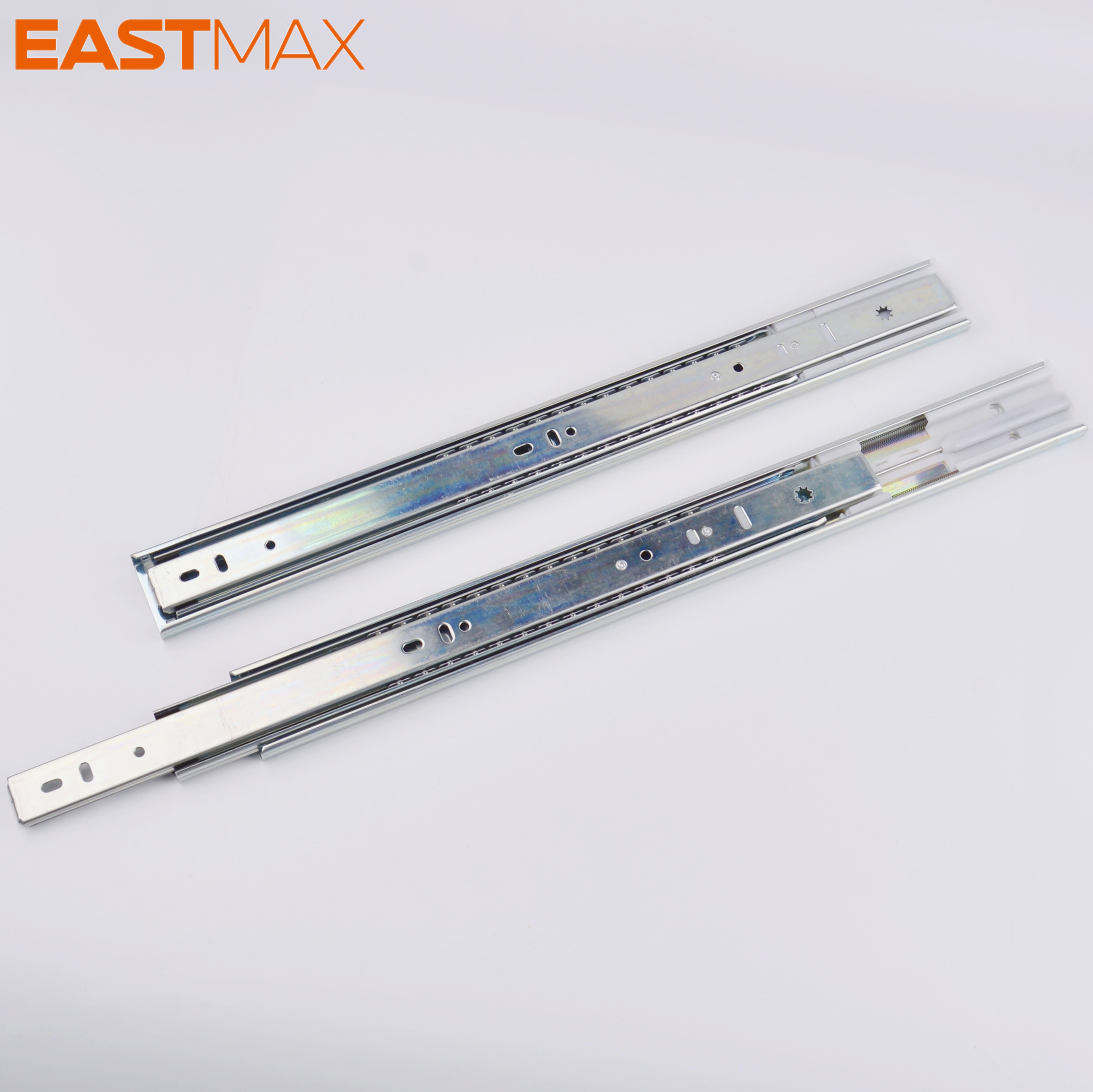

Ball-Bearing Slides
Damping Slides
Slim box
Drawer slides are essential hardware for a wide range of furniture, including:
Kitchen Cabinets
General Furniture
Filing Cabinets
Bathroom Vanities
Wooden and Steel Drawers
Selecting the appropriate drawer slides is crucial for the functionality and longevity of your furniture. Here are some key factors to consider:
1.Material Quality : The material of the slide significantly impacts the smoothness of operation. Common materials include plastic, steel balls, and wear-resistant nylon. Wear-resistant nylon rollers or components often provide the quietest and smoothest operation. To assess the quality of the rollers, try pushing and pulling a drawer equipped with the slide – it should move without any noticeable resistance or noise.
2. Steel Strength and Load Capacity : The thickness and strength of the steel determine the weight a drawer can safely support. When choosing slides, check the steel gauge and try pulling out a drawer and pressing down on the front. Minimal tilting indicates better load-bearing capacity and stronger steel.
3. Slide Dimensions : Drawer slides come in various lengths, typically ranging from 10 inches to 24 inches or more. Select the appropriate length based on the depth of your drawer and cabinet.
4. Brand Reputation: Opting for reputable brands like Eastmax can ensure better quality, reliability, and after-sales support, giving you peace of mind.
