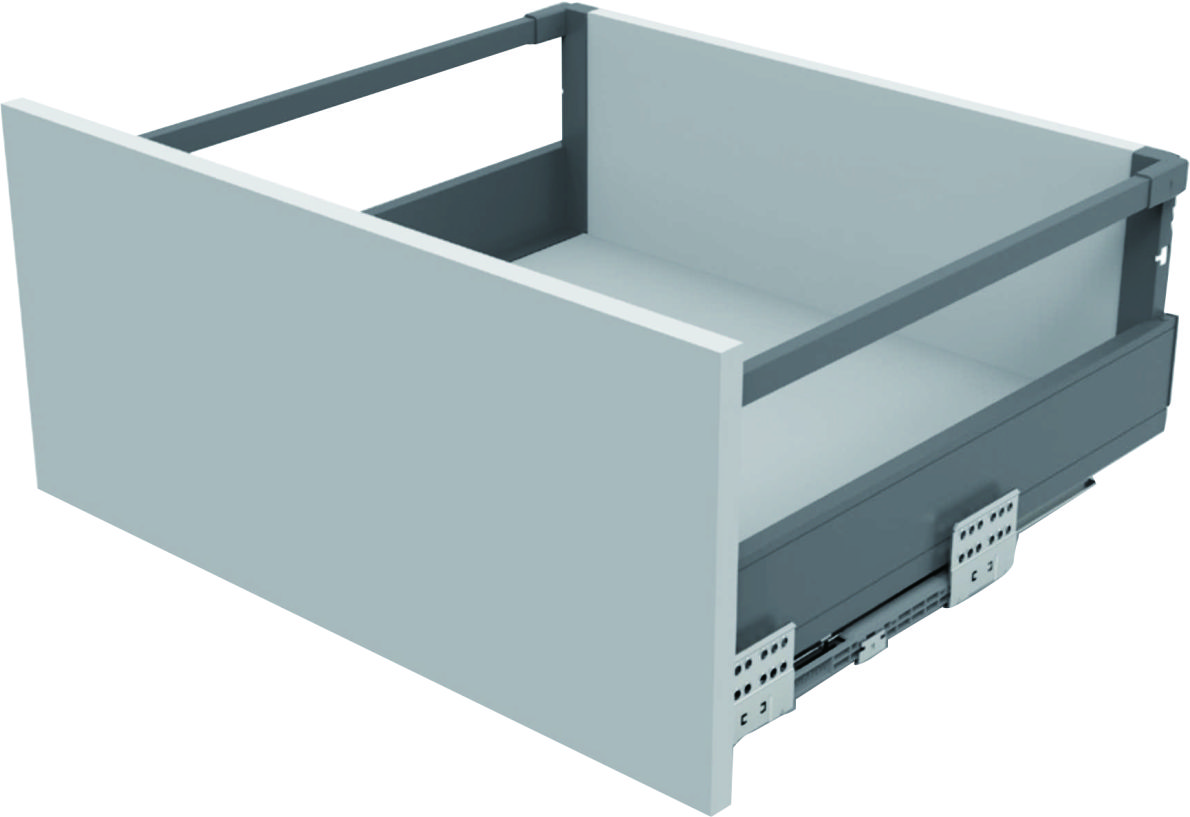

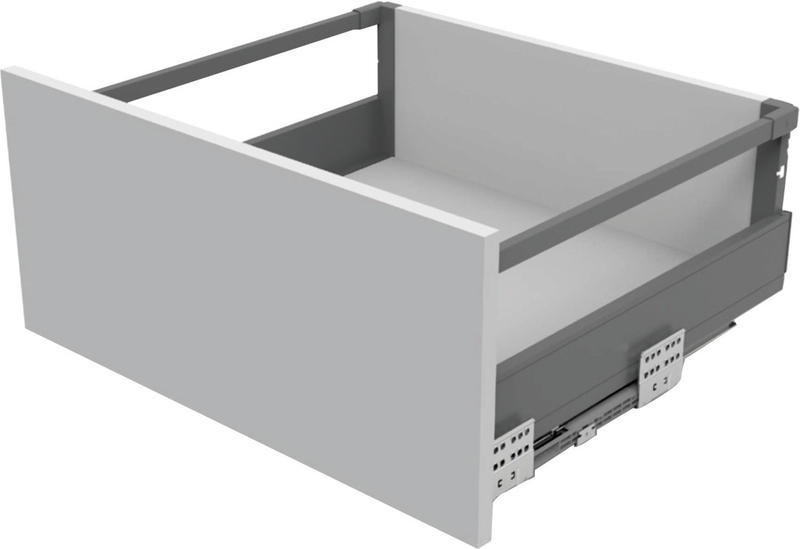

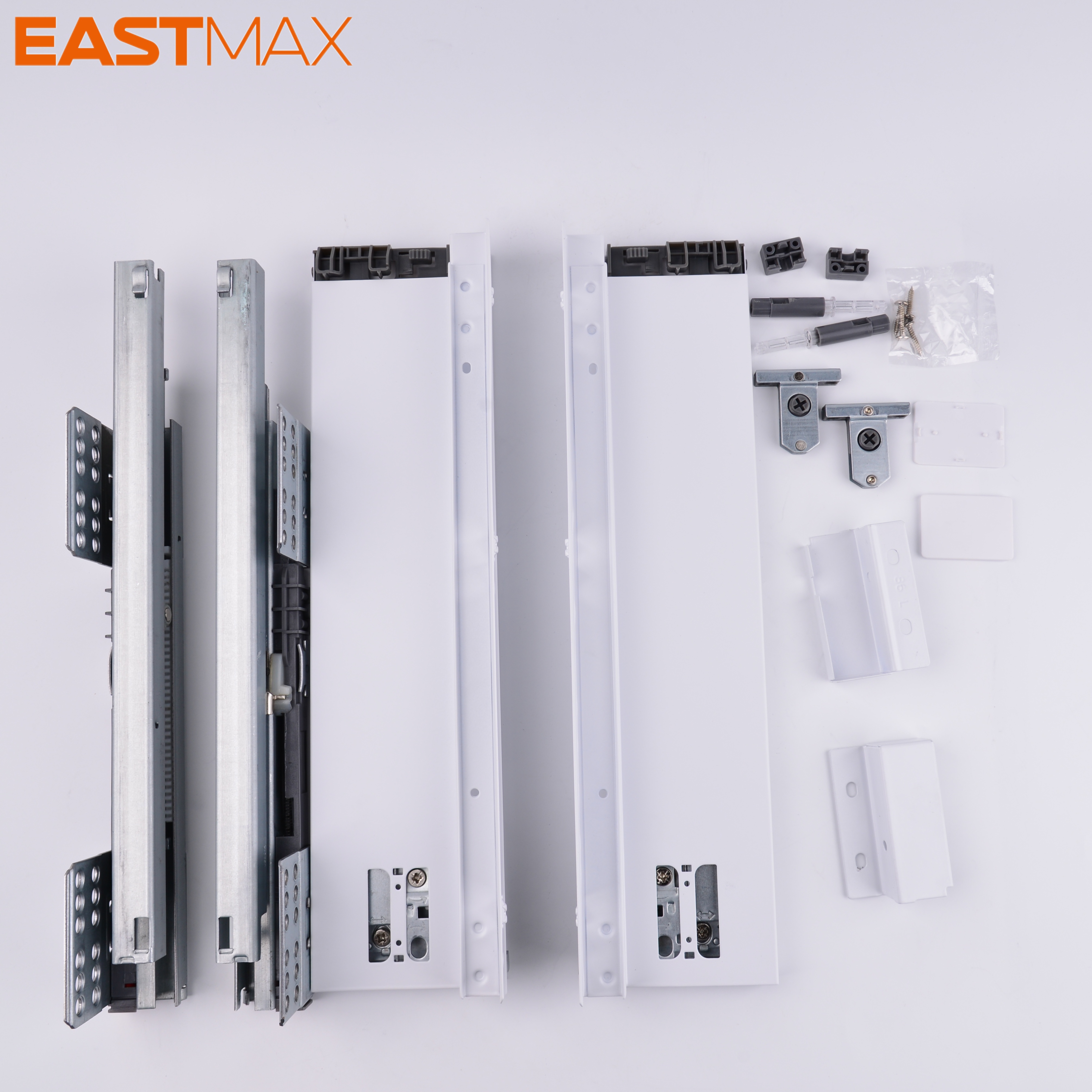

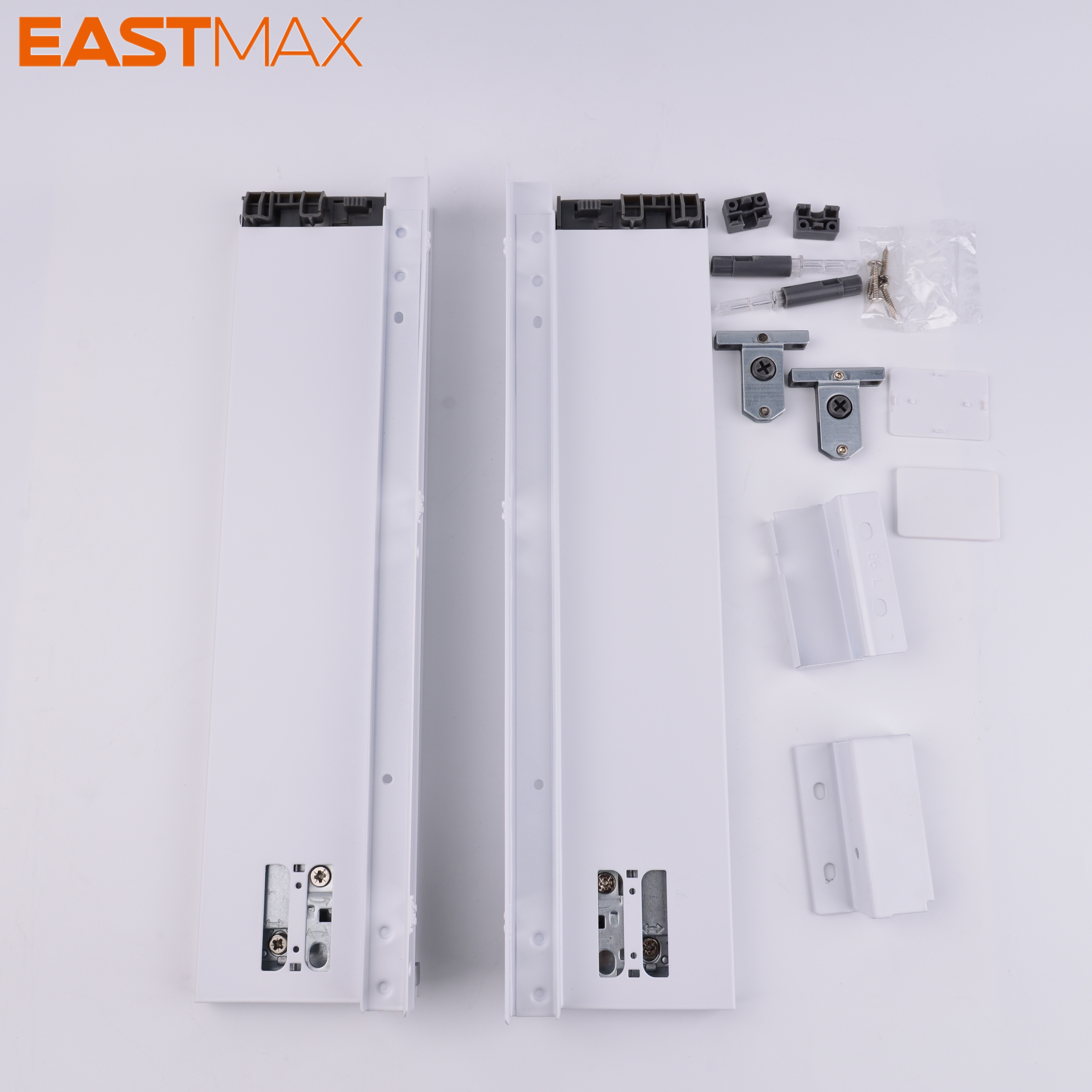

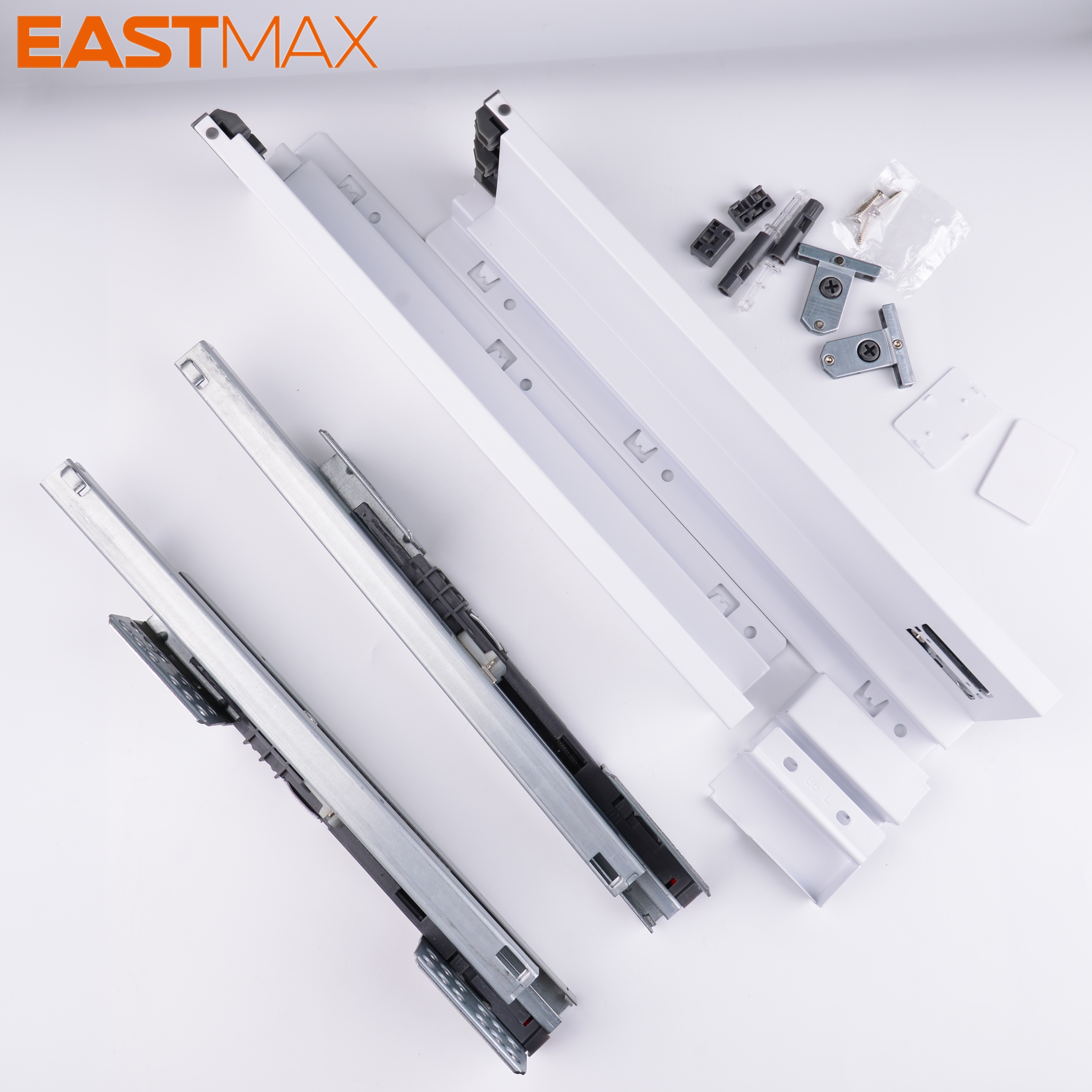

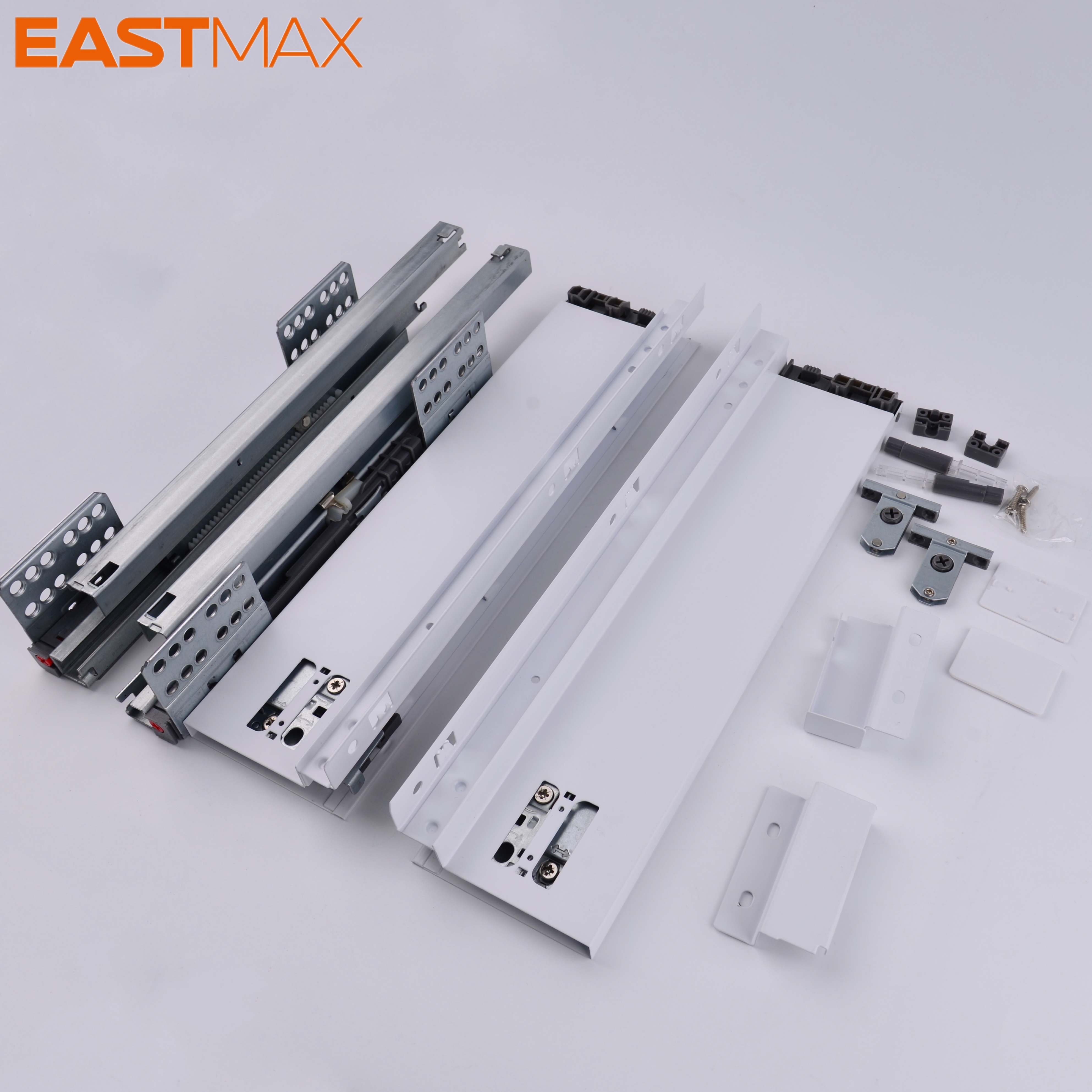

The DL19 furniture drawer system is a complete metal drawer box solution equipped with integrated soft closing slides and side railings. Engineered for furniture manufacturing and commercial procurement projects, this system combines cold rolled steel construction with a three-section ball bearing slide mechanism and hydraulic damping technology. The metal railing structure forms the drawer side walls, eliminating the need for separate wooden side panels and reducing assembly time for production lines. Available in four finish colors and multiple height configurations, the DL19 system adapts to kitchen cabinetry, wardrobes, office furniture, and hotel furnishing applications. Each complete set includes left and right slide assemblies, metal side panels with railings, rear connectors, and all required mounting hardware.
Parameter | Specification |
Model | DL19 |
Brand | Eastmax |
Material | Cold rolled steel |
Color / Finish | Silver / White / Dark Gray / Light Gray |
Load rating | 35 kg per pair |
Slide length range | 250 mm - 600 mm |
Railing height options | 85 mm / 120 mm / 171 mm |
Extension type | Full extension (3-section ball bearing) |
Closing mechanism | Hydraulic soft close damper |
Mounting method | Undermount bottom installation |
Surface treatment | Galvanized steel with electrostatic powder coating |
Durability testing | 50,000 opening and closing cycles |
Compatible drawer width | 300 mm - 1000 mm |
Adjustment range | ±2 mm front-back, ±1.5 mm side, ±2 mm vertical |

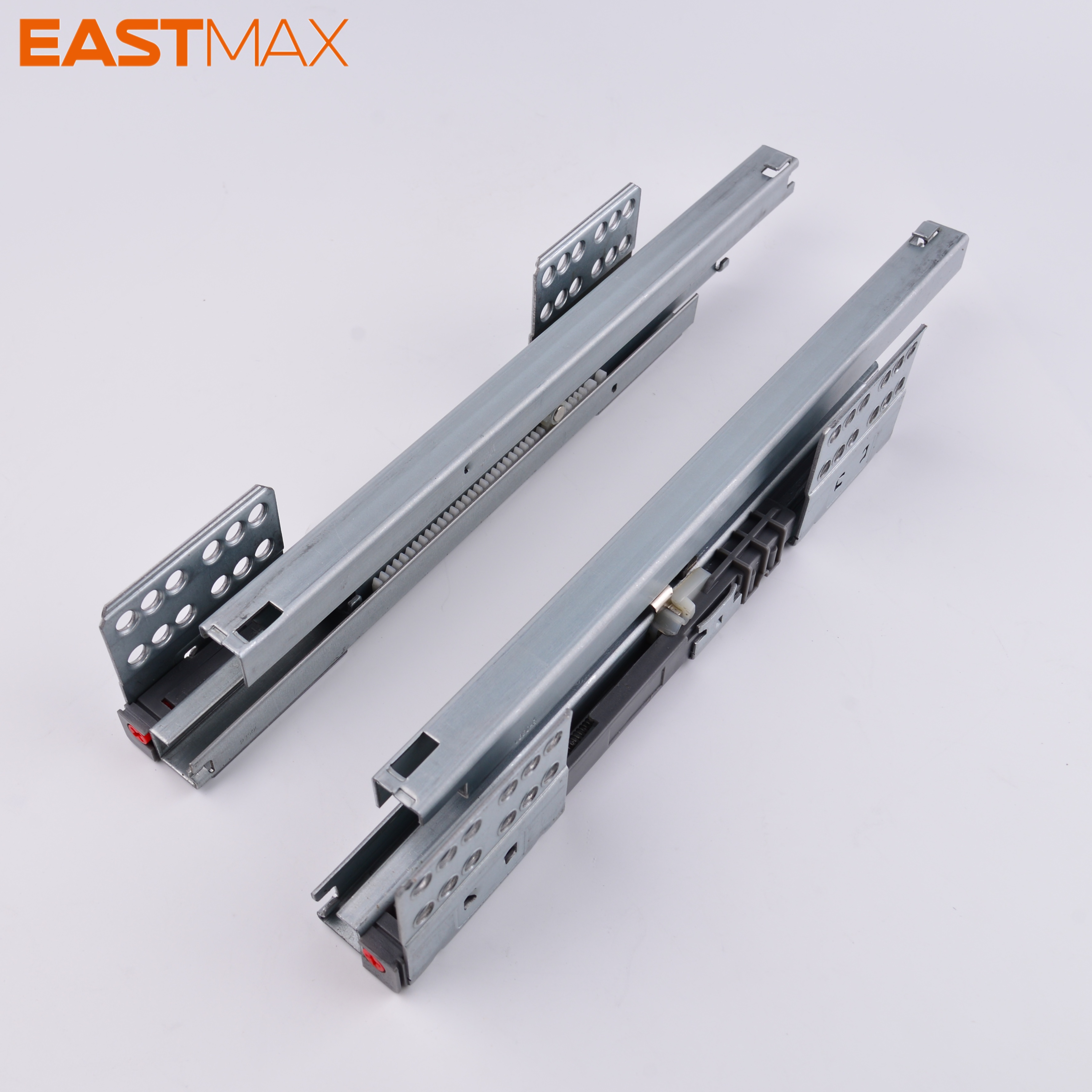

The DL19 system incorporates a three-section rail structure with precision steel ball bearings positioned between each sliding layer. This configuration enables full drawer extension and maintains smooth travel performance across the entire load range. The ball bearing assemblies are enclosed within the rail profile to prevent contamination from dust and debris during furniture assembly and daily use.
Each slide unit contains a hydraulic damper that engages during the final 30 mm to 50 mm of closing travel. The damper decelerates the drawer smoothly and brings it to a quiet, controlled stop. This feature reduces operational noise in residential and commercial environments and protects stored items from impact. The damping system is calibrated for consistent performance from light to full rated loads.

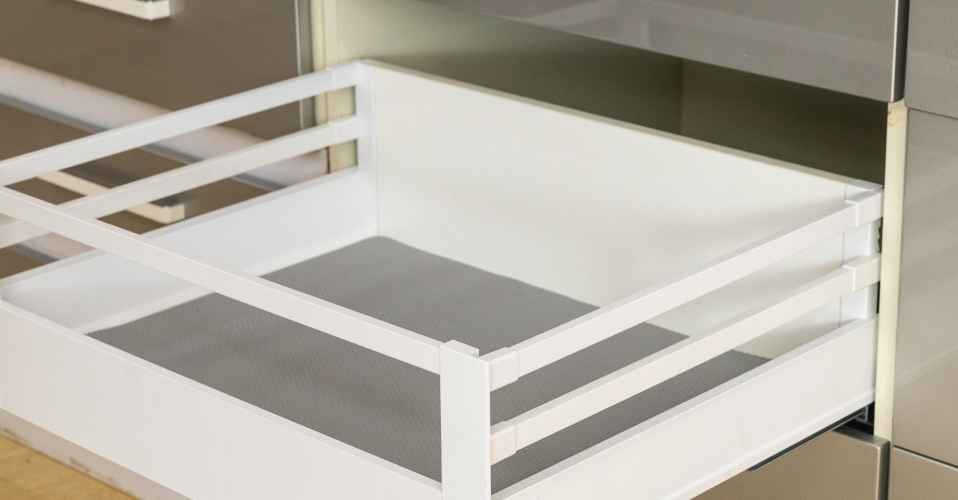

The drawer side walls are formed as integrated metal railings from single pieces of cold rolled steel. This monolithic construction provides consistent structural rigidity along the full drawer length. The railing design includes horizontal reinforcement ribs that increase side panel strength without adding material thickness. Top railing edges are rolled for safety and clean appearance. The metal railing system replaces traditional wooden drawer sides, reducing material cost and assembly steps for furniture manufacturing operations.

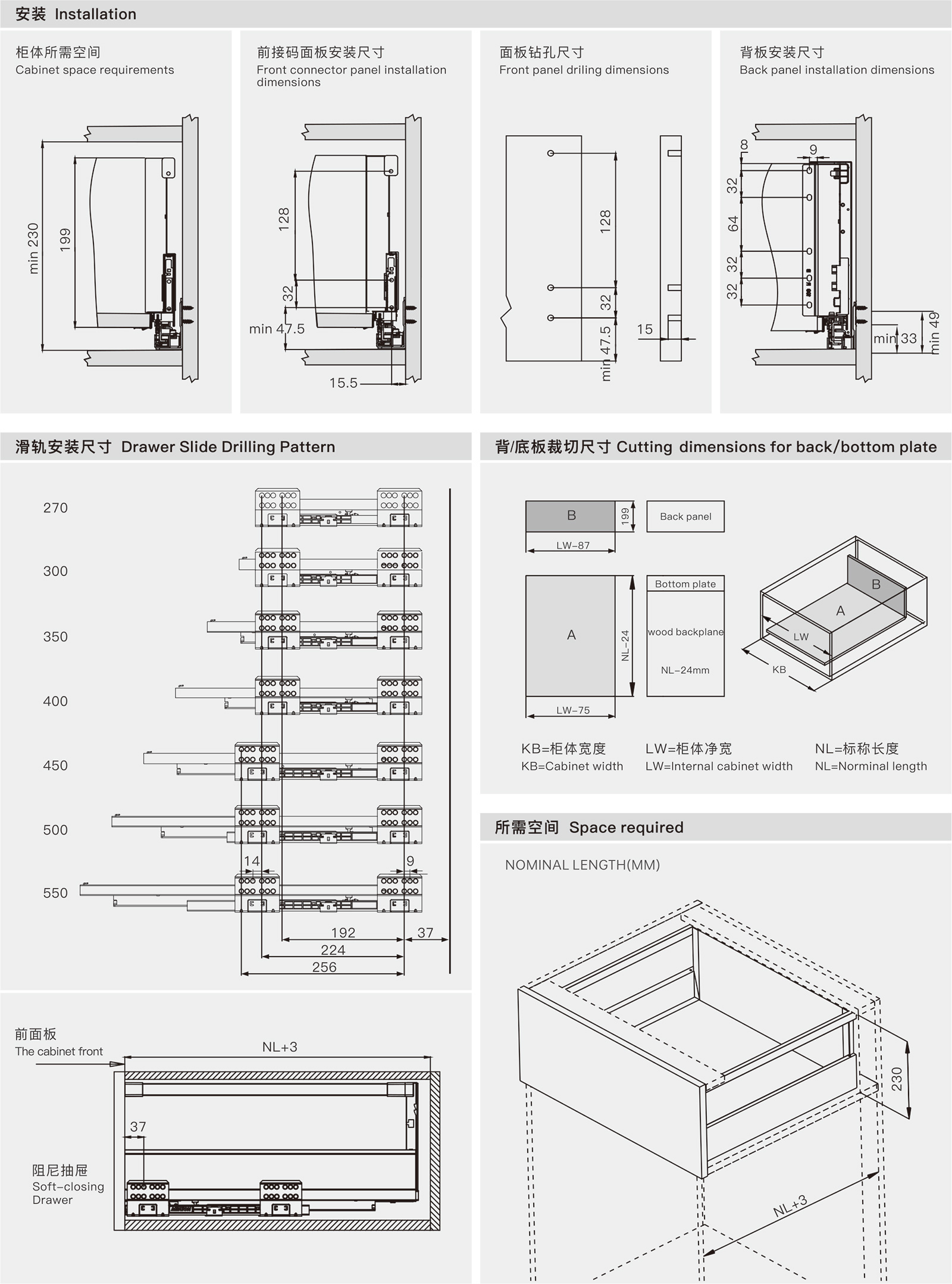

The DL19 system installs from beneath the drawer body. Mounting brackets secure to the cabinet floor, and the drawer assembly locks into position with clip-on connectors. This undermount configuration leaves the drawer sides and front completely free of visible hardware, supporting seamless furniture aesthetics. Installation follows standard cabinetry measurements and requires standard woodworking tools.
After installation, the drawer position can be adjusted in three axes without disassembly. Front-to-back adjustment covers a ±2 mm range for depth alignment. Side-to-side adjustment within ±1.5 mm corrects lateral gap consistency. Vertical height adjustment within ±2 mm fine-tunes the drawer front alignment with adjacent cabinet components. These adjustments are performed using the integrated adjustment screws located on the front mounting brackets.
All structural components of the DL19 system are manufactured from cold rolled steel with controlled material thickness. The base steel receives a zinc galvanized coating for baseline corrosion protection. Exterior visible surfaces receive an electrostatic powder coat finish available in silver, white, dark gray, and light gray options. The powder coating process produces a uniform, abrasion-resistant surface that withstands regular handling and cleaning. Internal sliding surfaces maintain the galvanized finish for consistent friction characteristics over the product service life.
For cabinet manufacturers, the DL19 metal drawer system reduces production steps by providing pre-formed drawer sides. The system works with standard 16 mm and 18 mm cabinet construction and supports drawer widths up to 1000 mm for wide pot and pan drawers in kitchen applications.
The multiple railing height options accommodate different storage requirements in wardrobe installations. Lower railing heights work for accessory drawers, while taller railings suit folded clothing and bulkier items. The soft close function is suitable for residential and hospitality closet environments.
In office furniture production including file cabinets, desk pedestals, and storage units, the 35 kg load rating and 50,000-cycle durability support frequent daily use in business operations. The uniform metal construction provides consistent quality across volume production runs.
Minimum order quantity for standard DL19 sets is 100 units. Custom color matching and custom railing height options are available for volume orders with adjusted minimum quantities. Each set is packaged with all required hardware components and printed installation instructions. Standard production lead time ranges from 15 to 25 working days depending on order volume and finish specifications. The product is supplied directly for furniture manufacturing clients and commercial procurement projects, with technical support available for installation planning.
The DL19 system is offered in three standard railing heights: 85 mm, 120 mm, and 171 mm. These heights correspond to low, medium, and high drawer profiles to match different storage purposes from flatware drawers to deep clothing storage. Custom height options can be discussed for volume production orders.
Each pair of DL19 slides has a rated load capacity of 35 kg under even distribution. This rating is established through standardized cycle testing and applies when the system is installed according to specifications with proper cabinet floor support.
Yes, the DL19 system accepts various drawer front materials including wood, MDF, and panel products commonly used in furniture manufacturing. The front connection brackets accommodate standard panel thicknesses and provide adjustment for front panel alignment.
Standard production lead time is 15 to 25 working days for bulk orders of standard configurations. Projects requiring custom colors or non-standard dimensions may require additional production time. Contact the sales team for project-specific scheduling for industrial applications.
