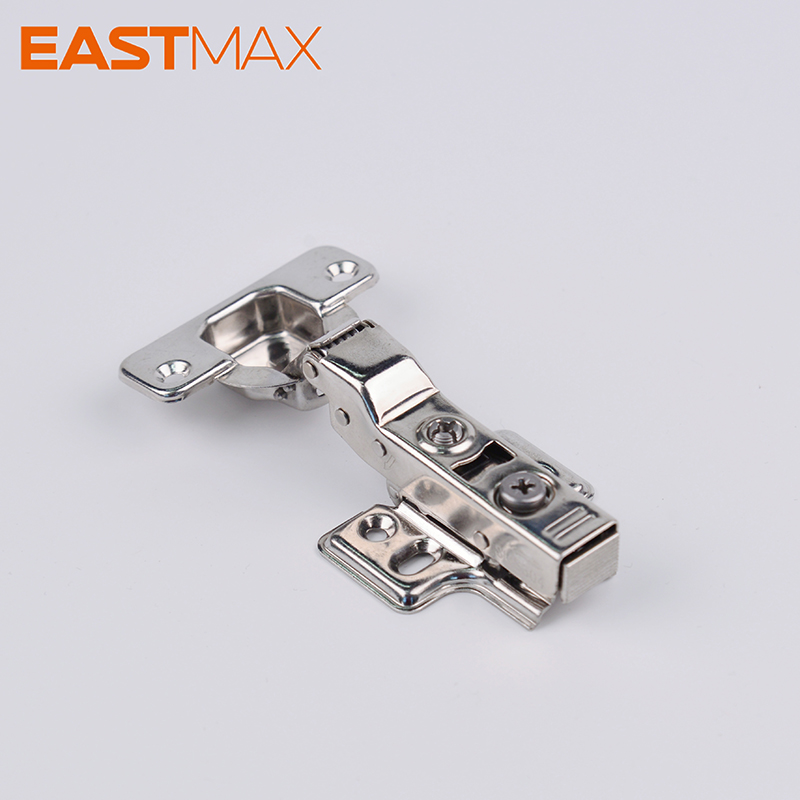

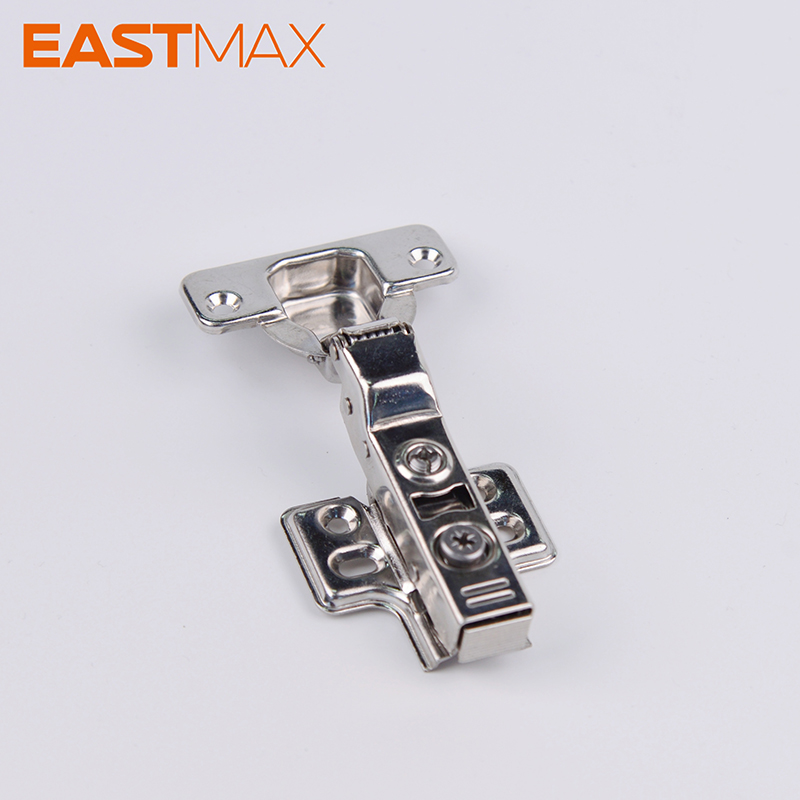

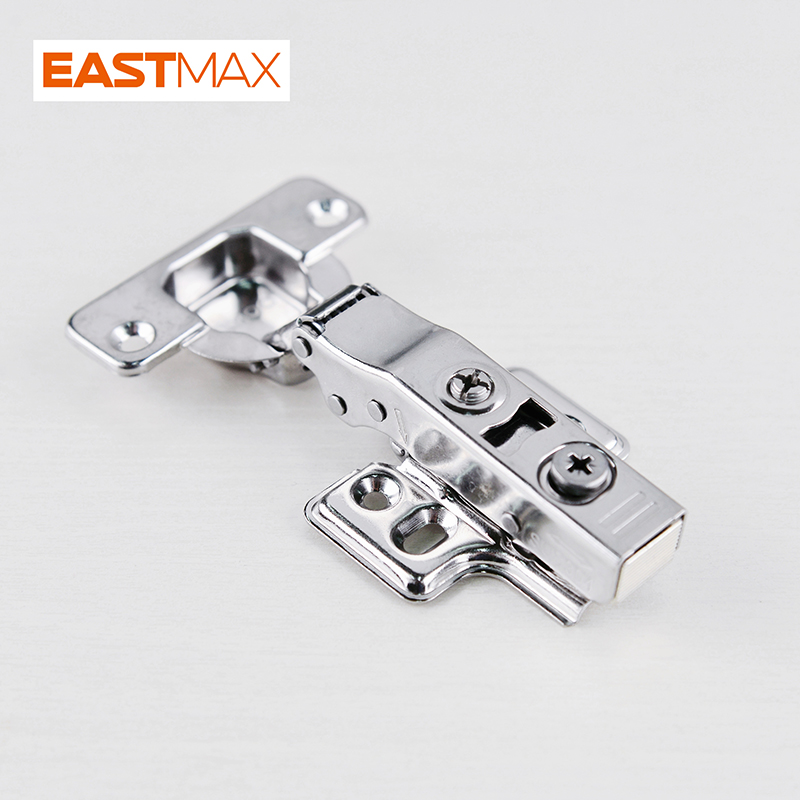

The KS01 clip-on soft-closing one-way hinge with CAM adjustment is constructed from SUS 304 stainless steel and designed for bathroom cabinet doors and other cabinetry applications. This hinge integrates a hydraulic damping system with a CAM height adjustment mechanism, allowing installers to fine-tune door position after mounting without disassembly. The clip-on mounting base enables tool-free removal of the hinge arm from the mounting plate, which streamlines installation and maintenance workflows for cabinet manufacturing and commercial fit-out projects.
SUS 304 stainless steel contains 18% chromium and 8% nickel, providing corrosion resistance suitable for humid environments such as bathrooms, laundry rooms, and outdoor kitchen cabinets. The hinge cup measures 35mm in diameter, which conforms to standard European cabinet boring specifications, making this product compatible with most conventional cabinet door production lines.
Opening angle | 100° |
Diameter of hinge cup | ф35mm |
Depth of hinge cup | 10.5/11.3mm |
Door(K)dimension | 3-7mm |
Optional door thickness | 14-20mm |
Material | SUS 304 |
Better corrosion resistance | |
Robust structure, Endurable reliability, | |
Design precision for quietness and smoothness | |

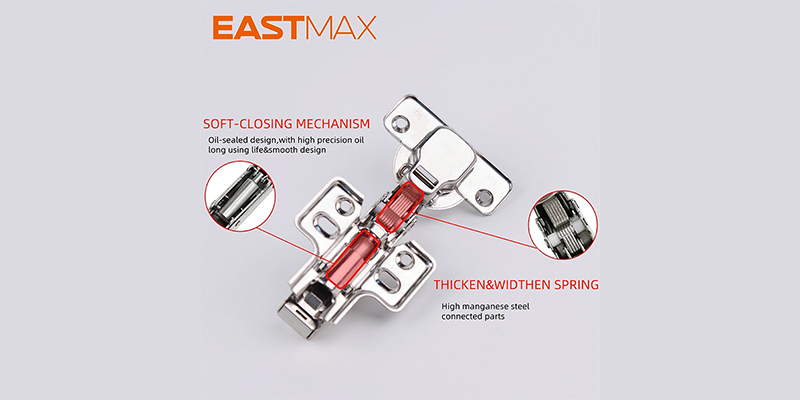

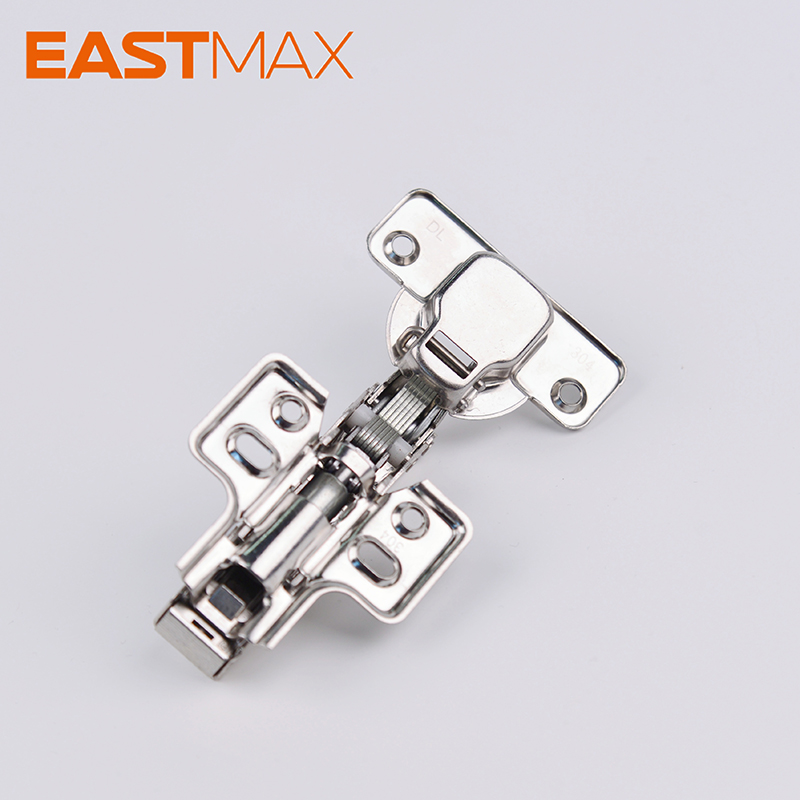

 | Soft-Closing Hydraulic MechanismThe hinge incorporates an oil-sealed hydraulic cylinder that controls door velocity during the final closing phase. As the door approaches the closed position, the damping cylinder engages to decelerate movement, resulting in a silent, impact-free close. This mechanism reduces slamming noise and minimizes wear on both the door panel and cabinet frame, which contributes to longer service life in high-traffic commercial settings. |

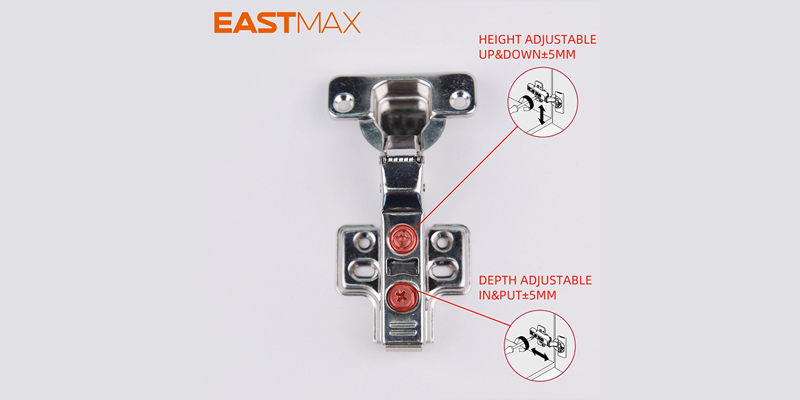

CAM Adjustment SystemThe CAM adjustment feature on the hinge arm provides vertical positioning control. By turning the CAM screw, installers can adjust the door height by ±2mm after installation. This compensates for minor variations in door cutting, cabinet assembly, or settling over time, reducing the need for re-drilling or hardware replacement during post-installation adjustments. |  |

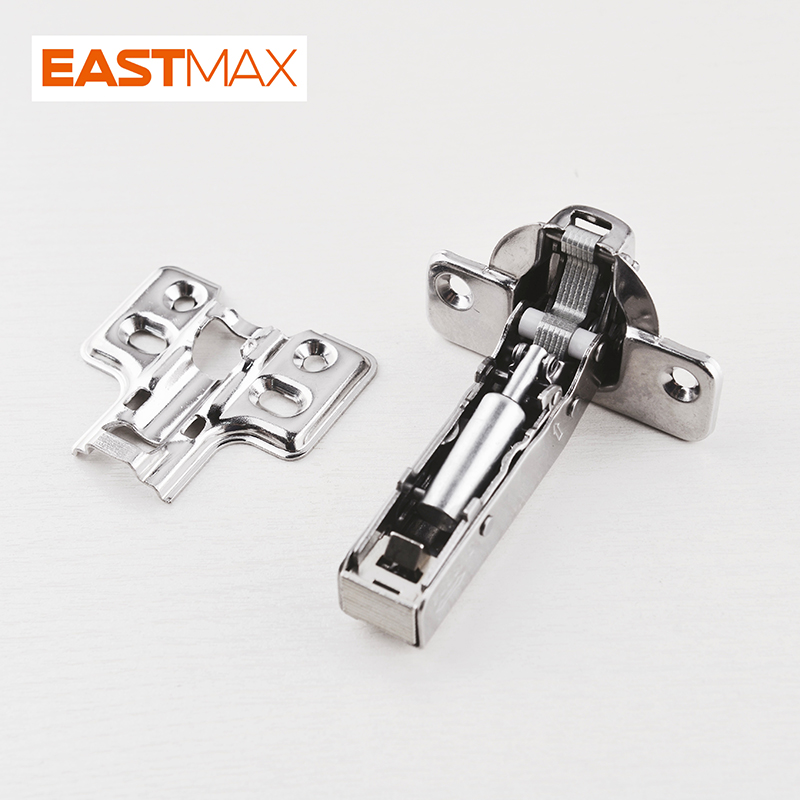

The clip-on design allows the hinge arm to snap onto and release from the mounting base without tools. Pressing the release lever detaches the arm from the base plate, which simplifies door removal for finishing, transportation, or replacement. For furniture manufacturers assembling units on production lines, this feature reduces assembly time per cabinet.
The hinge body, cup, and mounting plate are fabricated from SUS 304 stainless steel. This grade offers higher corrosion resistance compared with 200-series stainless steel alternatives, making it appropriate for installations exposed to moisture or occasional cleaning agents. The silver finish maintains a consistent appearance across production batches.
Each hinge design undergoes standardized performance testing in the factory quality control process. The product completes 50,000 open-close cycles during life cycle testing, and samples pass a 96-hour salt spray test. These test results provide measurable reference points for evaluating product lifespan under normal operating conditions.

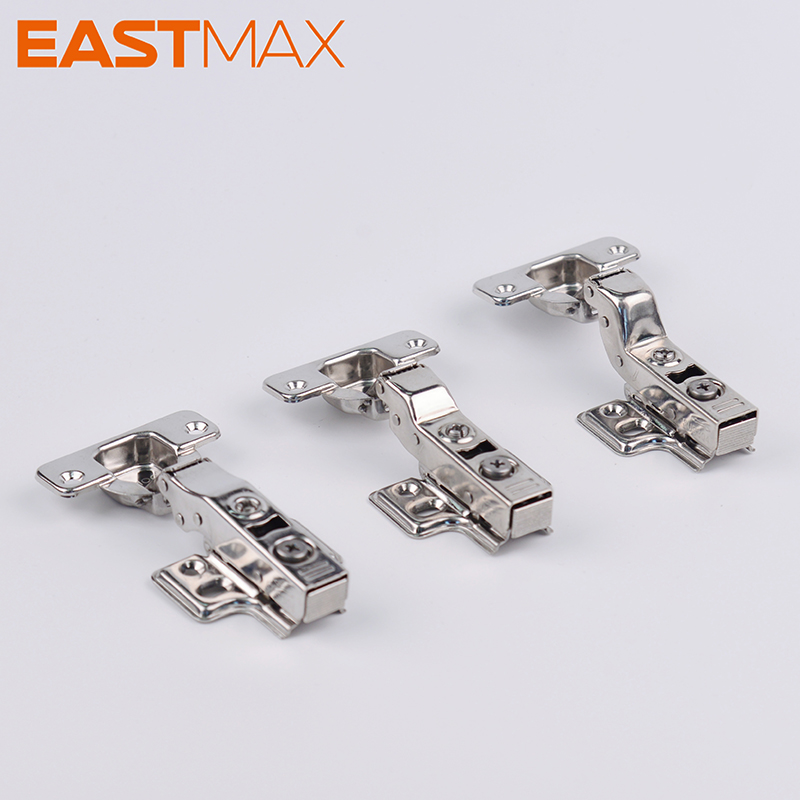

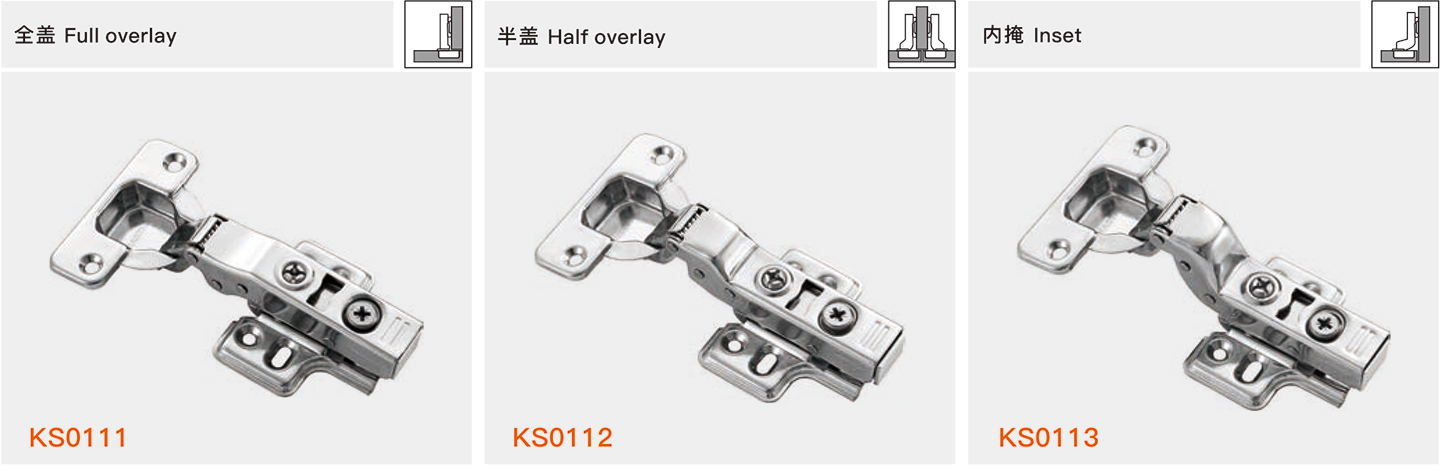

The KS01 series is available in three mounting configurations to accommodate different cabinet construction styles. Full overlay (KS0111) is used when the door covers the entire side panel edge. Half overlay (KS0112) is designed for double-door cabinets where two doors share a single partition. Inset (KS0113) is selected when the door sits flush within the cabinet frame opening.

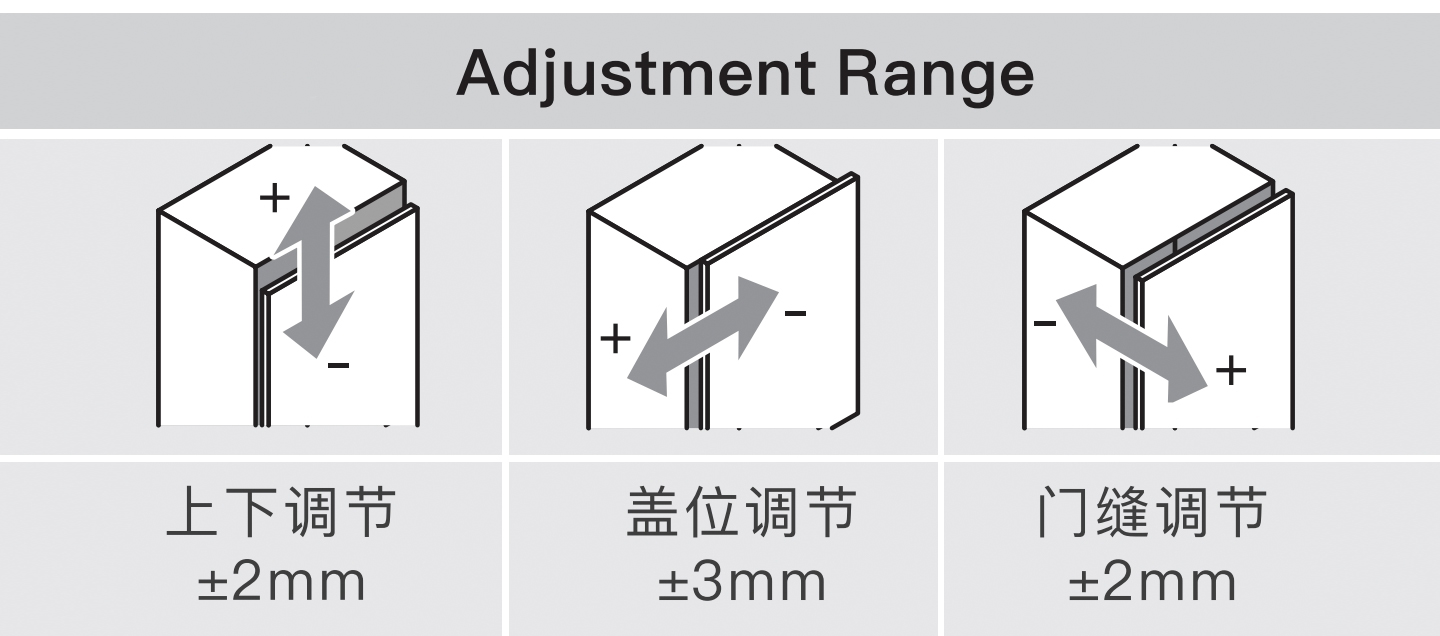

After installation, three independent adjustments are possible without re-drilling. Vertical adjustment covers ±2mm via the CAM screw. Side-to-side overlay adjustment covers ±3mm. Depth adjustment for door gap covers ±2mm. Together, these adjustments allow precise door alignment across the full cabinet run.
This SUS 304 soft close hinge serves a range of commercial and industrial applications. It is specified for bathroom vanities, kitchen cabinetry, hotel furniture, apartment renovations, hospital casework, and office storage cabinets. Furniture manufacturers, cabinet shops, and contract fit-out companies source this hinge for projects where moisture resistance and consistent closing performance are required. The product supports OEM and ODM customization, including adjustments to color, logo printing, packaging configuration, and size specifications for volume orders.
The KS01 hinge is designed for door panels with a thickness between 14mm and 20mm. The hinge cup depth options of 10.5mm and 11.3mm accommodate different panel thicknesses within this range.
Full overlay means the door completely covers the cabinet side panel. Half overlay is used when two doors share one common side panel, each covering half of the panel width. Inset means the door sits inside the cabinet frame and is flush with the cabinet face. The KS01 series offers a dedicated model for each of the three configurations.
Yes, OEM and ODM services are available for volume orders. Customization options include logo printing, packaging design, material variations, and size modifications. Contact the sales team with specific project requirements to receive a quotation.
The KS01 SUS 304 hinge has an opening angle of 100 degrees, which provides sufficient access for most standard cabinet door applications.
