High Quality165 Degree Clip-on Soft-closing Hinge with CAM Adjustment for Wholesale Order

Key Specifications of 165 Degree Wide Angle Hinge

The KJ02 series 165 degree clip-on hinge comes with defined technical parameters for commercial procurement. Below are the core specifications extracted from product documentation:

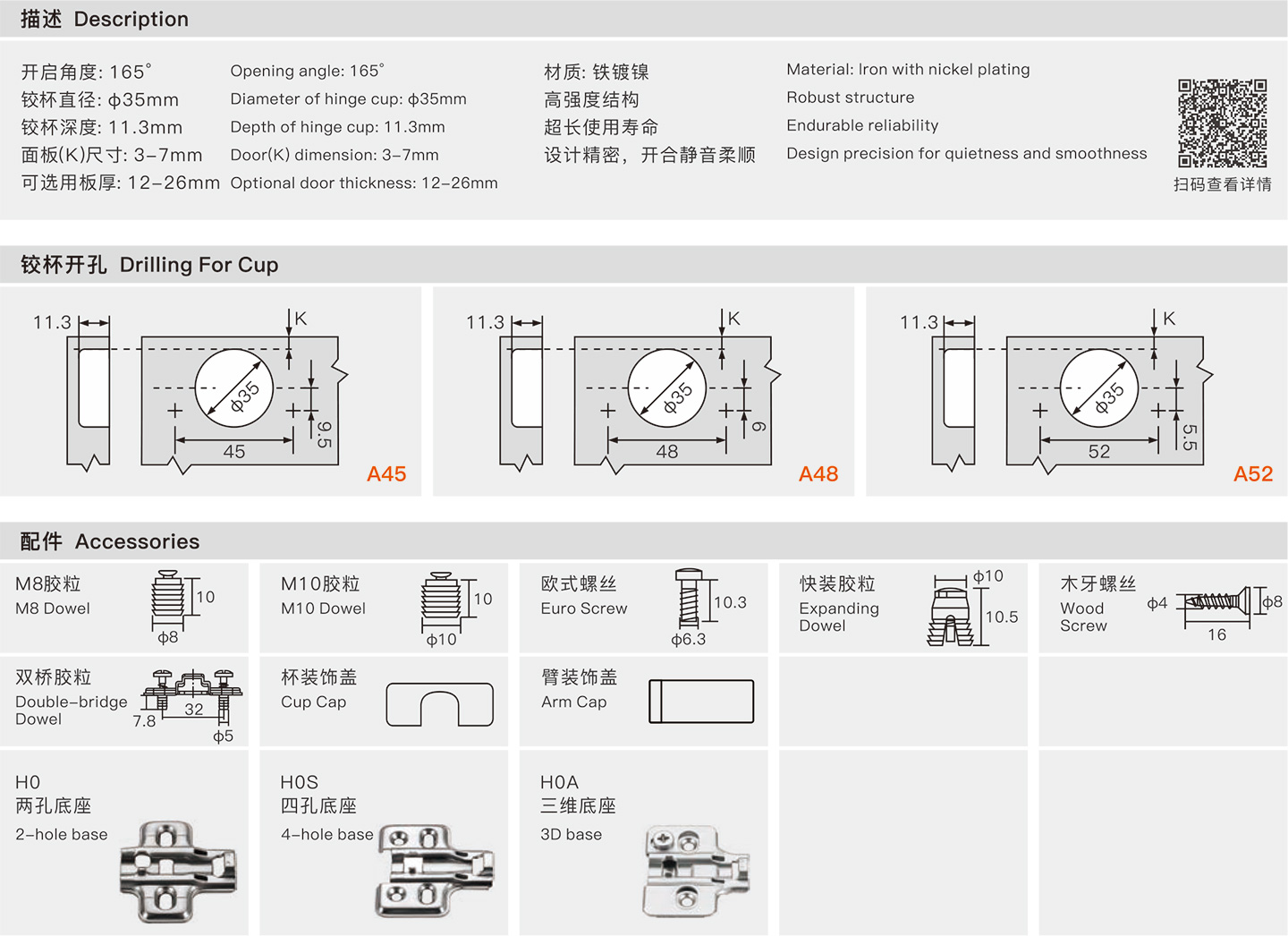

Drilling Dimensions for Hinge Cup

Three standard drilling patterns are available for different cabinet designs:

Adjustment Range

Three-dimensional adjustment supports precise alignment during installation:

Vertical adjustment: ±2mm

Side adjustment: ±5mm

Depth adjustment: ±2mm

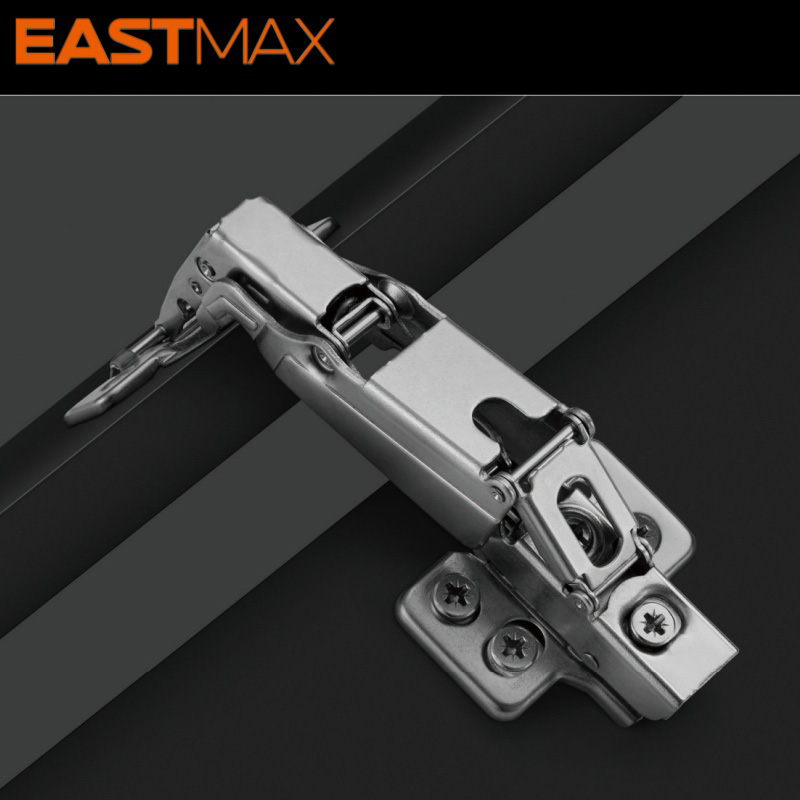

Construction and Material Features of Soft-closing Cabinet Hinge

	Constructed from cold-rolled iron with nickel plating, the KJ02 hinge provides a corrosion-resistant surface suitable for indoor furniture environments. The stamped steel body forms a rigid structure that supports repeated door opening and closing cycles.
The integrated hydraulic damper sits inside the hinge arm, delivering controlled deceleration during the final stage of closing. This mechanism reduces impact noise and prevents slamming, which contributes to longer service life for both the hinge and the cabinet door.

The clip-on mounting design allows the hinge arm to attach and detach from the base plate without tools, which streamlines assembly and maintenance procedures for furniture manufacturers and installation teams.

CAM Adjustment and Installation Compatibility

The CAM adjustment system on the base plate enables side-to-side positioning by turning a screw mechanism. With a side adjustment range of ±5mm, installers can correct alignment gaps between cabinet doors after mounting, reducing rework time on site.

Vertical adjustment of ±2mm and depth adjustment of ±2mm complete the three-axis calibration capability. These adjustments accommodate minor variations in cabinet construction and door panel thickness, which is particularly relevant for large-volume commercial furniture production where dimensional tolerances accumulate across assemblies.

The hinge supports door thicknesses ranging from 12mm to 26mm, covering most standard cabinet door configurations used in kitchen, wardrobe, and office furniture applications.

Applications for Commercial Furniture Manufacturing

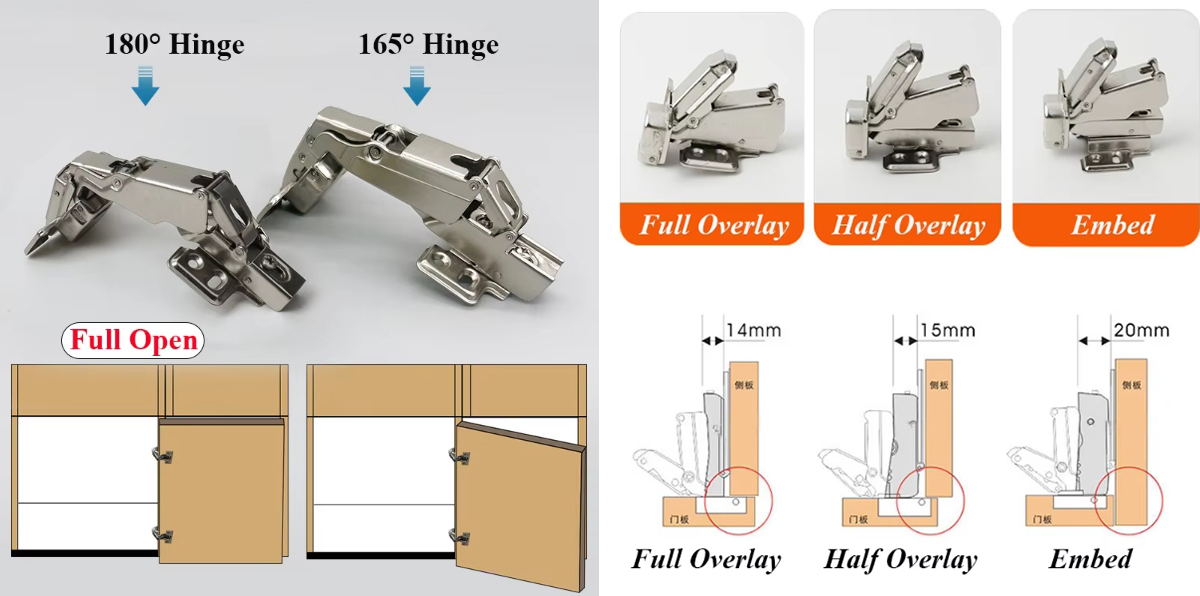

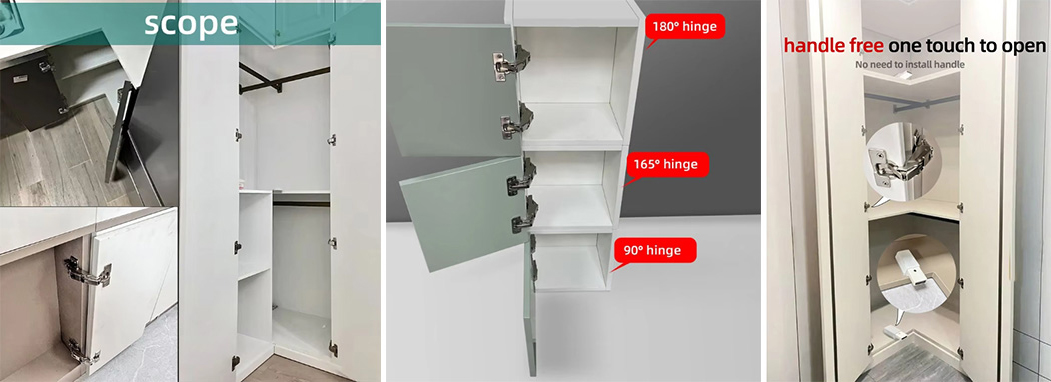

The 165 degree wide opening angle makes this hinge suitable for corner cabinet designs where standard 110 degree hinges cannot provide sufficient door clearance. In kitchen corner units and L-shaped cabinet layouts, the 165 degree opening allows full access to interior storage space without door obstruction.

For furniture manufacturers serving hospitality, office, and residential project clients, the clip-on mechanism reduces assembly time per unit. The standardized 35mm cup diameter aligns with common European drilling jigs, so production lines can integrate the hinge without additional tooling investment.

The nickel-plated finish maintains a consistent appearance across bulk orders, supporting uniform product presentation for furniture brands and cabinetry suppliers.

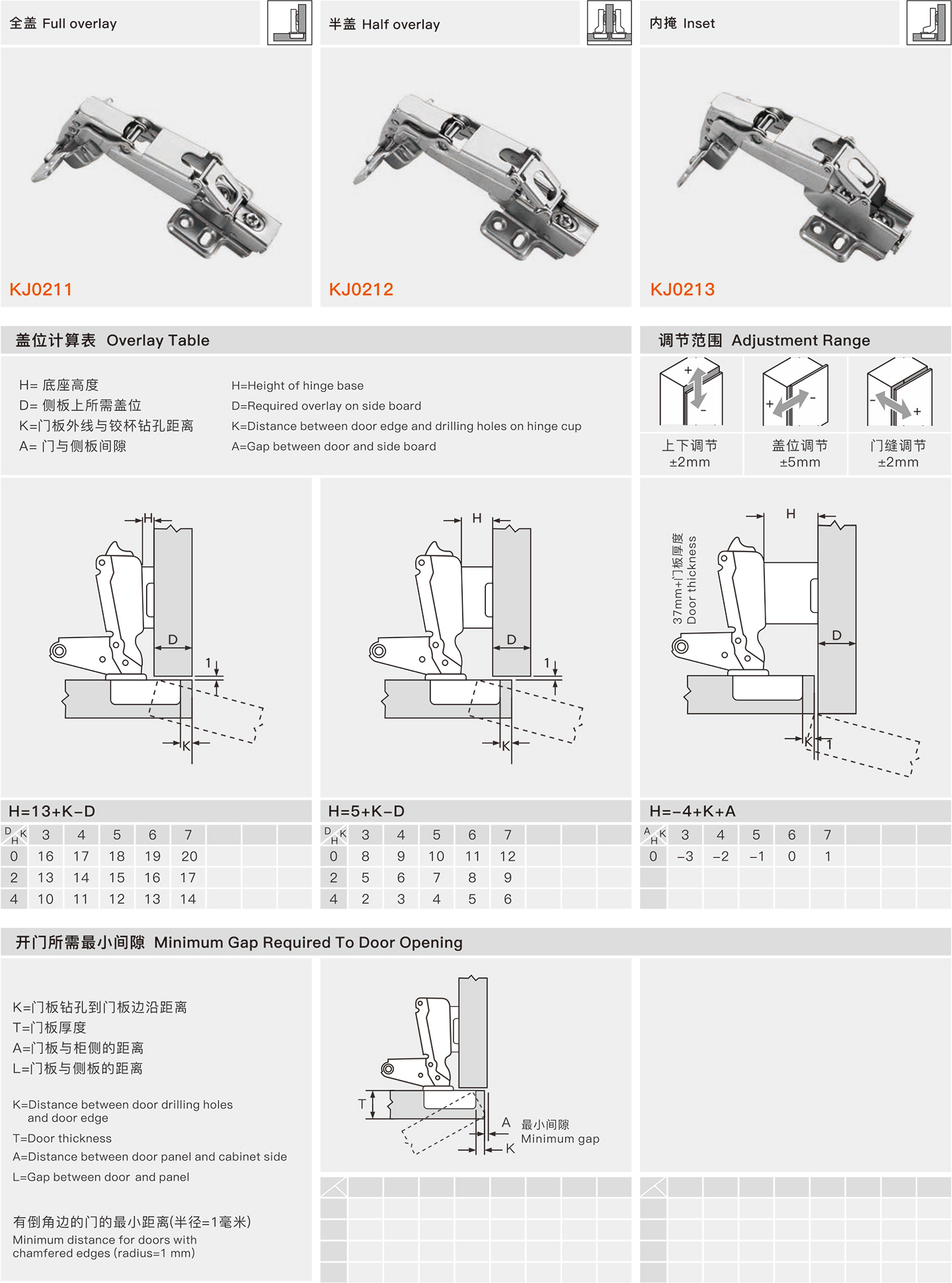

Mounting Types and Base Options for 165 Degree Hinges

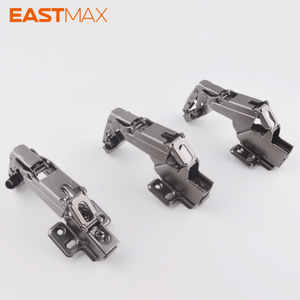

The KJ02 series is available in three mounting configurations to match different cabinet construction styles:

Available Base Plates

H0: 2-hole base

H0S: 4-hole base

H0A: 3D base

Compatible Accessories

M8 dowel, M10 dowel

Euro screw (φ6.3 × 10.3mm)

Expanding dowel (φ10 × 10.5mm)

Wood screw (φ4 × 16mm)

Double-bridge dowel

Cup cap, arm cap

FAQ About Clip-on Soft-closing Hinges

What door thickness range does the 165 degree hinge support?

The KJ02 series supports door panels from 12mm to 26mm in thickness. For panels outside this range, consult with the supplier about custom configuration feasibility.

Can the soft-closing function be adjusted or disabled?

The hydraulic damper is factory-calibrated and does not offer user-adjustable tension settings. The soft-closing mechanism activates automatically during the final closing stroke.

What base plate types are available for commercial orders?

Three base plate options are offered: 2-hole, 4-hole, and 3D adjustable. The 3D base provides additional adjustment dimensions for complex installations.

Are these hinges compatible with standard 35mm drilling jigs?

Yes, the 35mm hinge cup diameter conforms to widely used European standard drilling templates, so existing production equipment can be used without modification.

What is the minimum order quantity for commercial procurement?

MOQ details and volume pricing are available through direct inquiry. Sample orders for evaluation purposes can be arranged prior to bulk purchase.
