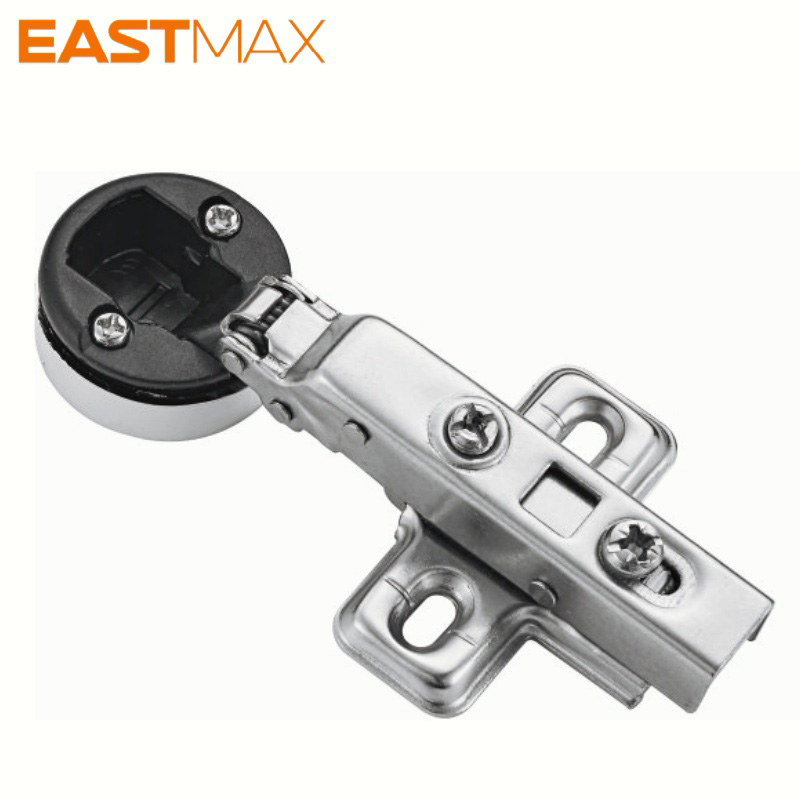

This 26mm cup hinge is designed for frameless glass doors used in cabinet and display furniture. Built with a hydraulic soft-closing mechanism and a clip-on mounting structure, it supports three installation configurations: full overlay, half overlay, and inset. The product serves furniture manufacturers, display cabinet builders, and commercial fit-out projects requiring controlled door movement on glass-panel cabinets. Each hinge comes with an ABS protective cup that interfaces directly with the glass surface, supporting door thicknesses from 4mm to 6mm.
Parameter | Value |
Opening angle | 95° |
Diameter of hinge cup | φ26mm |
Depth of hinge cup | 9mm |
Door(K) dimension | 3-5mm |
Optional door thickness | 4-6mm |
Material | Iron with nickel plating |

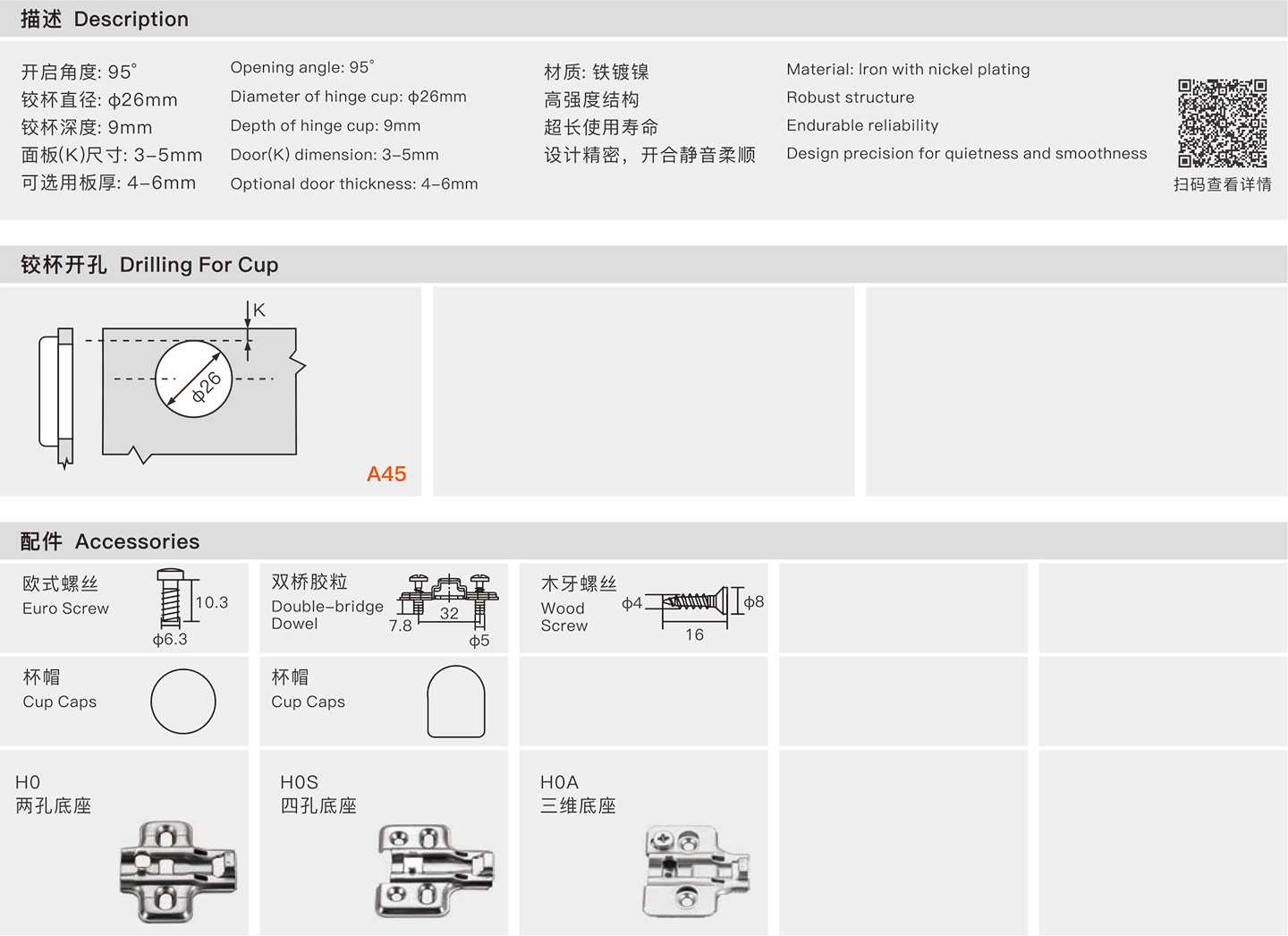

Hinge cup drilling diameter: φ26mm, model reference A45.
Adjustment direction | Range |
Vertical adjustment | ±2mm |
Overlay adjustment | ±4mm |
Gap adjustment | ±2mm |

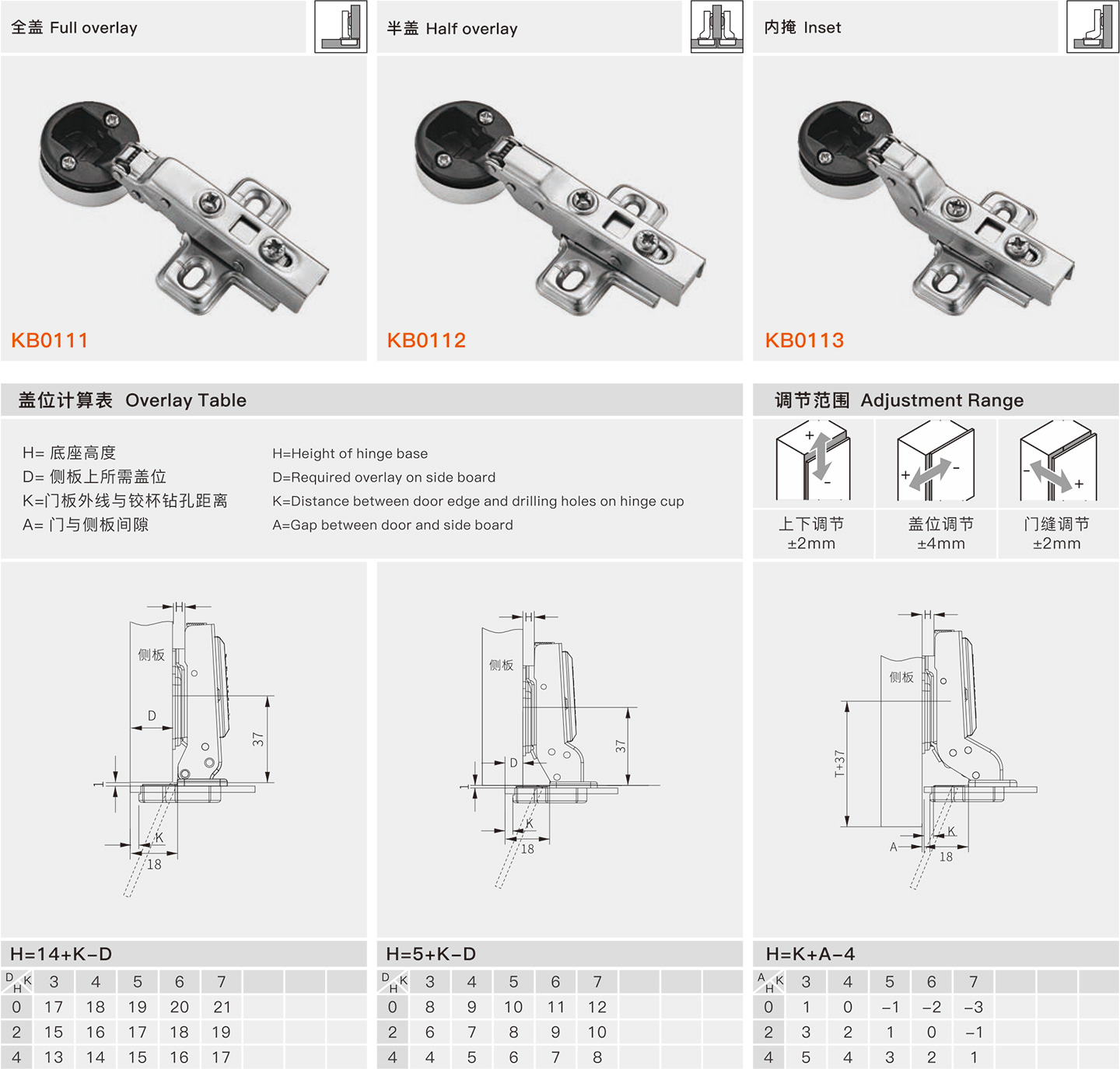

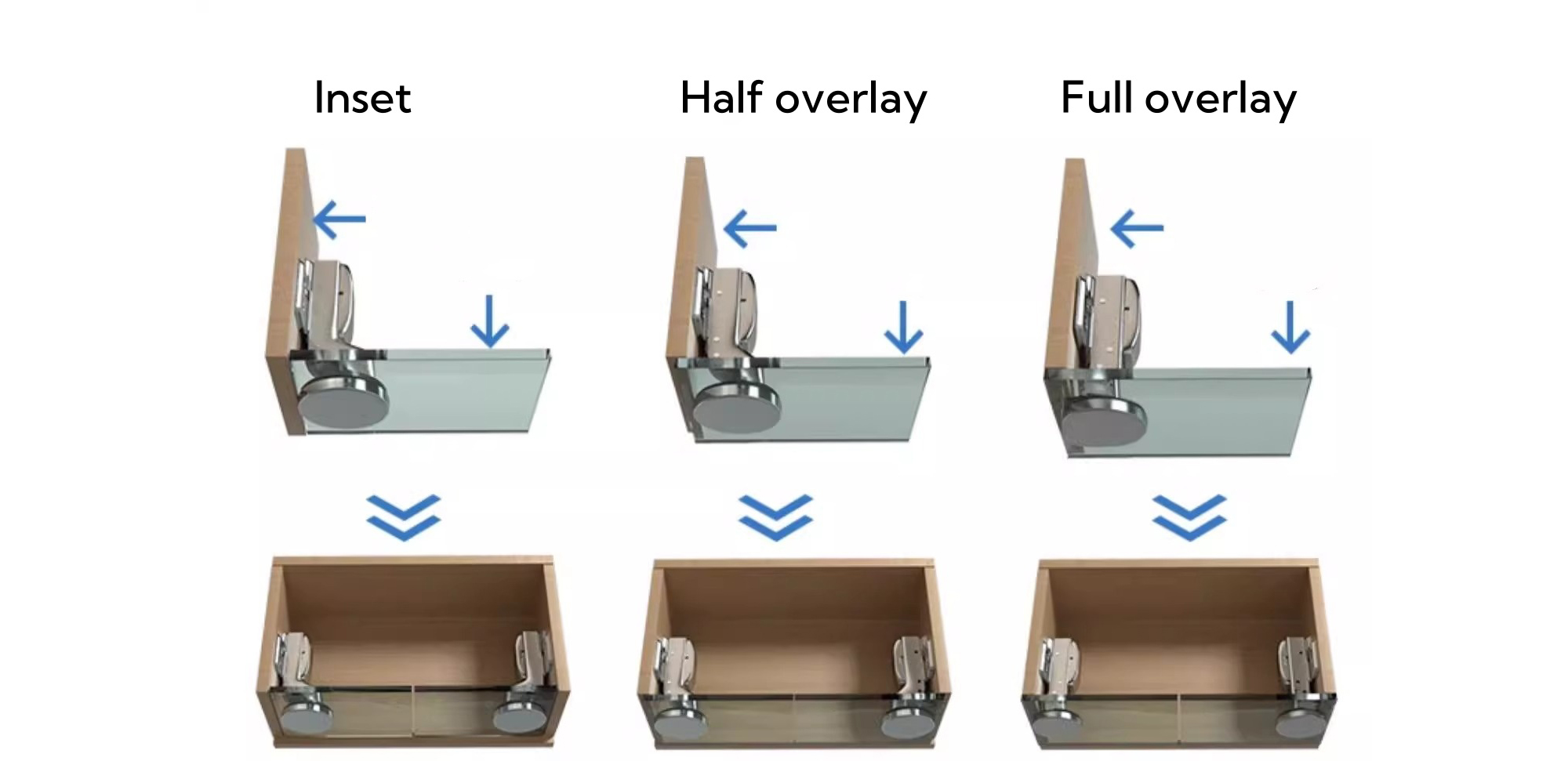

Three mounting configurations are available with corresponding calculation formulas:

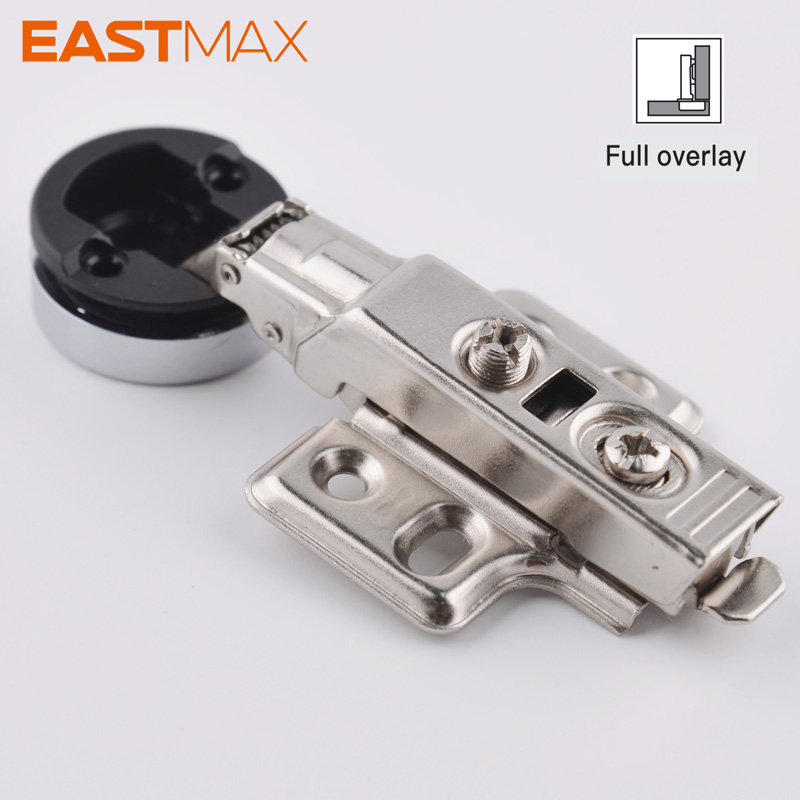

Full overlay: H = 14 + K - D

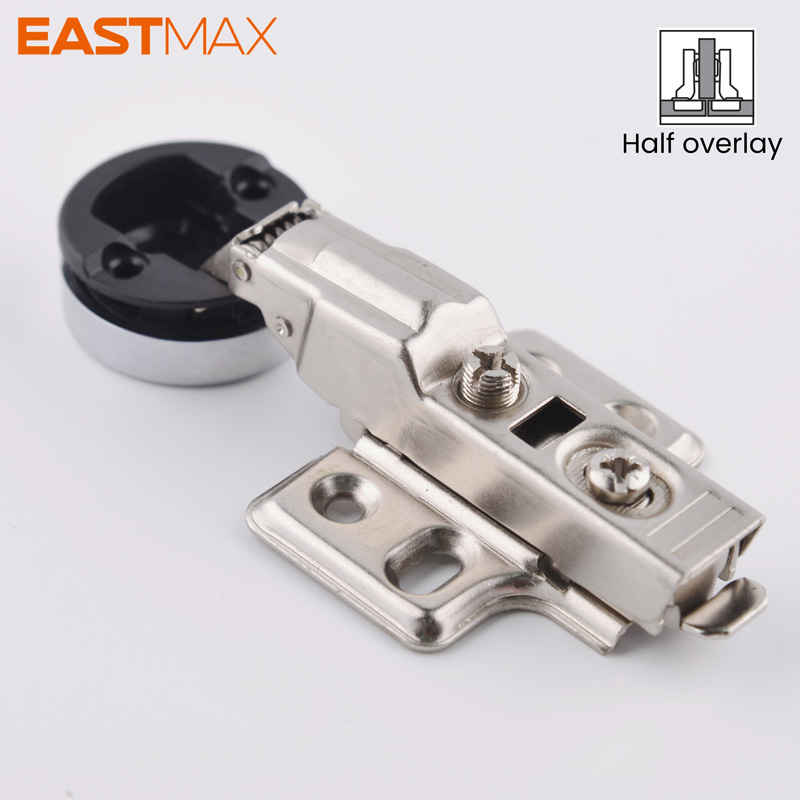

Half overlay: H = 5 + K - D
Inset: H = K + A - 4
Where H = height of hinge base, D = required overlay on side board, K = distance between door edge and drilling holes on hinge cup, A = gap between door and side board.

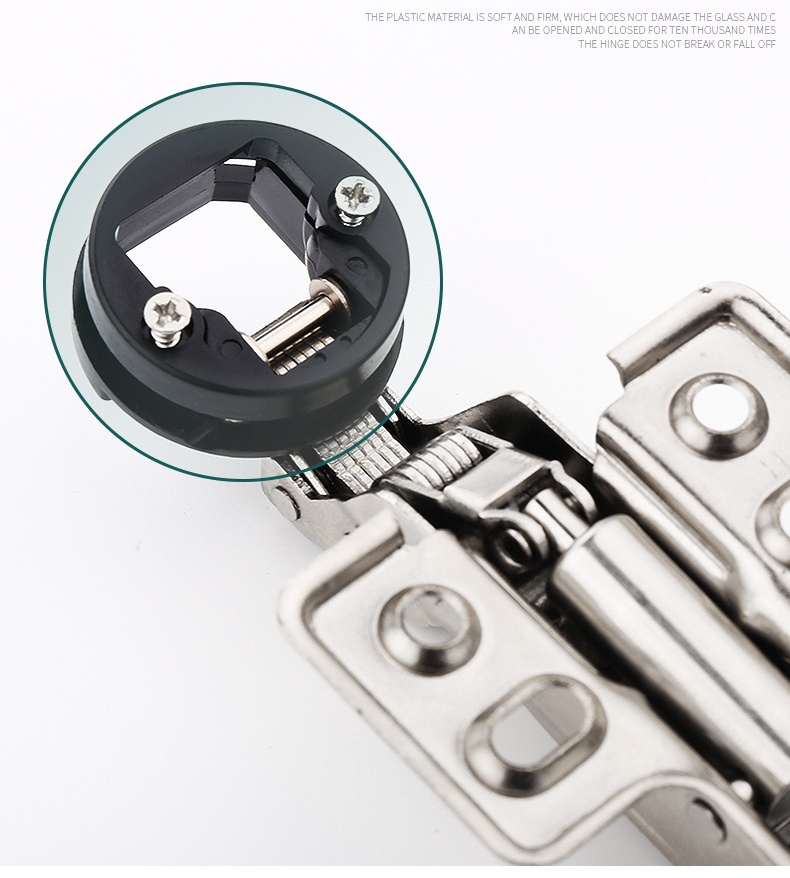

 | Hydraulic damping mechanismThe integrated hydraulic cylinder delivers gradual deceleration during the closing cycle, reducing impact between the glass door and cabinet frame. This mechanism operates across the full 95-degree opening range and engages automatically as the door approaches the closed position. ABS protective cup interfaceThe 26mm cup is fitted with an ABS plastic ring that contacts the glass directly. The plastic interface distributes clamping pressure across the glass edge and prevents surface scratching during installation and daily operation. |
Clip-on assembly designThe hinge body attaches to the mounting plate via a clip-on locking system, allowing tool-free removal of the door panel after initial installation. This structure simplifies maintenance and panel replacement in commercial settings. Nickel-plated iron constructionManufactured from cold-rolled iron with a nickel-plated finish, the hinge provides corrosion resistance for indoor cabinet applications. The plating covers all exposed metal surfaces of the arm and base plate. |  |

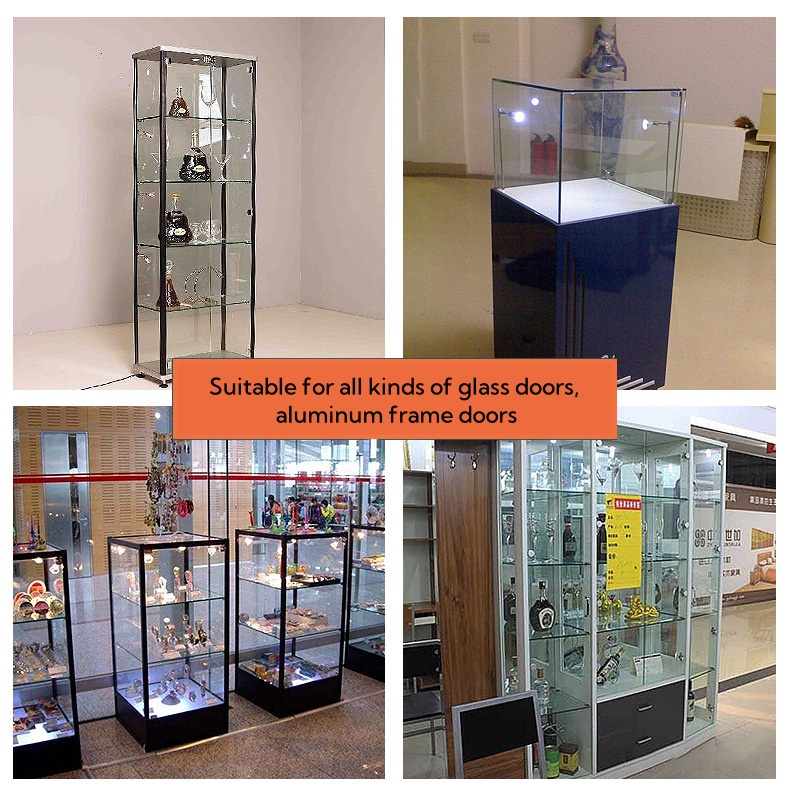

This hinge series fits frameless glass display cabinets, jewelry showcases, retail display units, and glass-door bathroom vanities. It is specified in commercial procurement projects for retail interiors, museum display cases, hospitality furniture, and office storage cabinets where glass doors require controlled closing. The 4-6mm glass thickness range covers most standard tempered glass cabinet doors used in industrial applications.

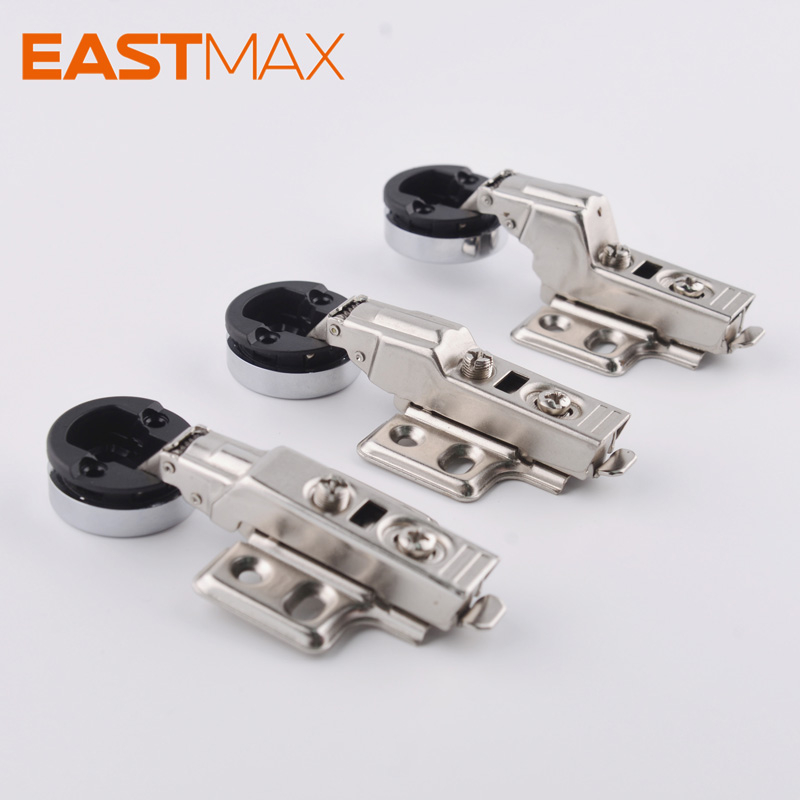

Three mounting versions are offered under model family KB01:
KB0111: Full overlay
KB0112: Half overlay

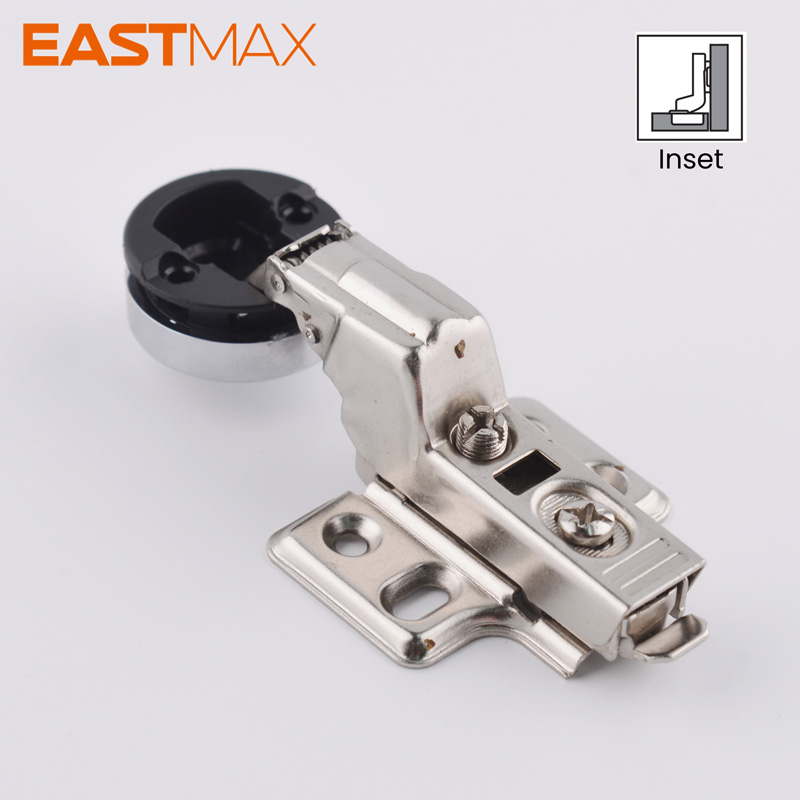

KB0113: Inset
Each version shares the same 26mm cup diameter and soft-closing mechanism, allowing furniture designers to select the appropriate configuration based on side board thickness and door layout.
Euro Screw: φ6.3 × 10.3mm
Double-bridge Dowel: 7.8 × 32mm
Wood Screw: φ4 × 16mm (head φ8)
Cup Caps (round and D-shape)

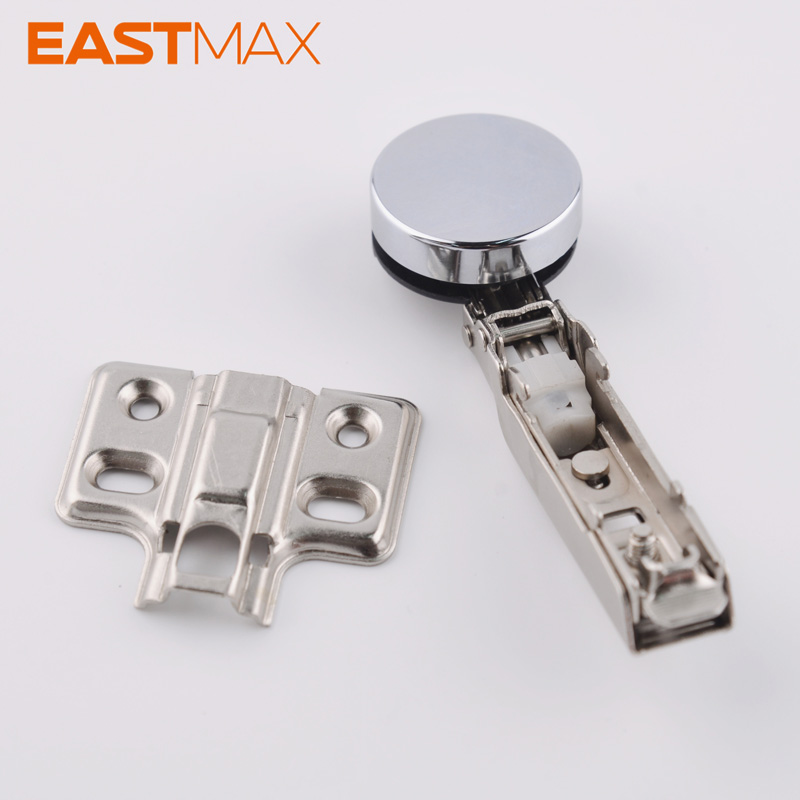

Mounting bases: H0 (2-hole base), H0S (4-hole base), H0A (3D base)

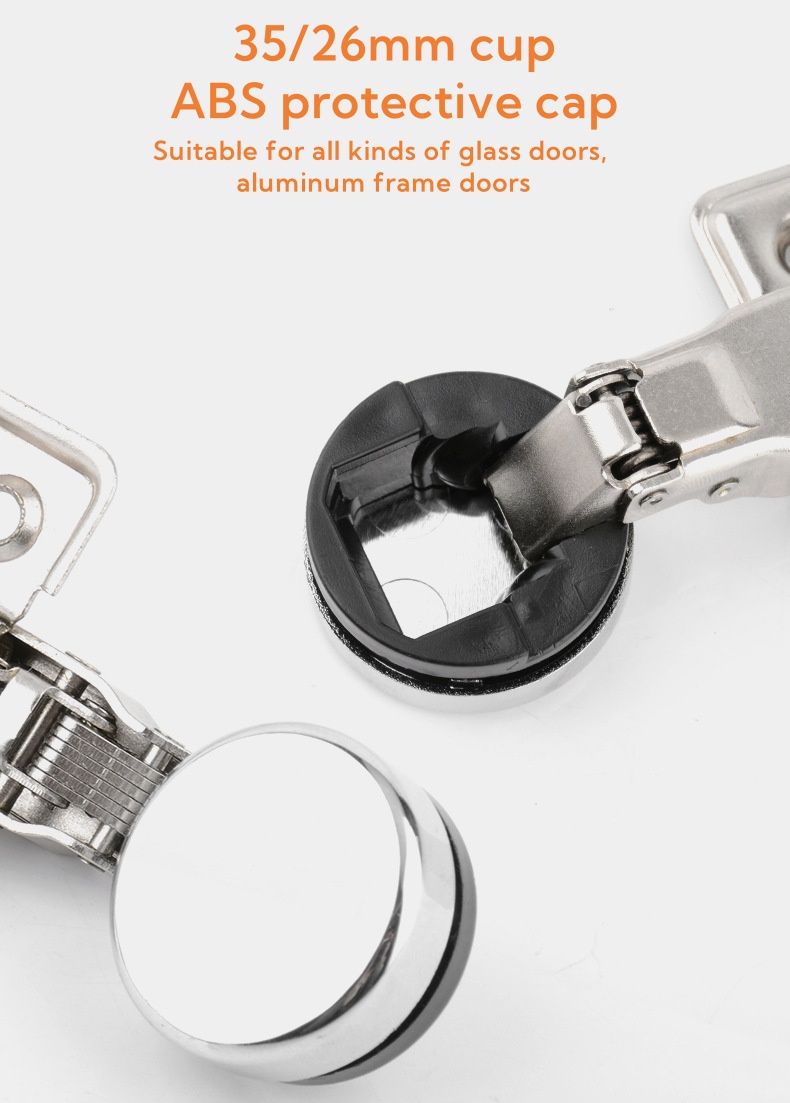

The hinge is designed for glass doors with a thickness of 4-6mm. The ABS protective cup inside the hinge head provides the clamping surface for the glass panel.
Three-direction adjustment is supported: vertical adjustment of ±2mm, overlay adjustment of ±4mm, and door gap adjustment of ±2mm. Adjustments are made via the two screws on the hinge body.
This hinge is rated for standard glass cabinet doors within the 4-6mm thickness range. For heavier or taller glass panels, additional hinges per door are recommended to distribute weight evenly.
Three base plate options are available: H0 two-hole base, H0S four-hole base, and H0A three-dimensional adjustment base. Selection depends on the side board material and required adjustment precision.
