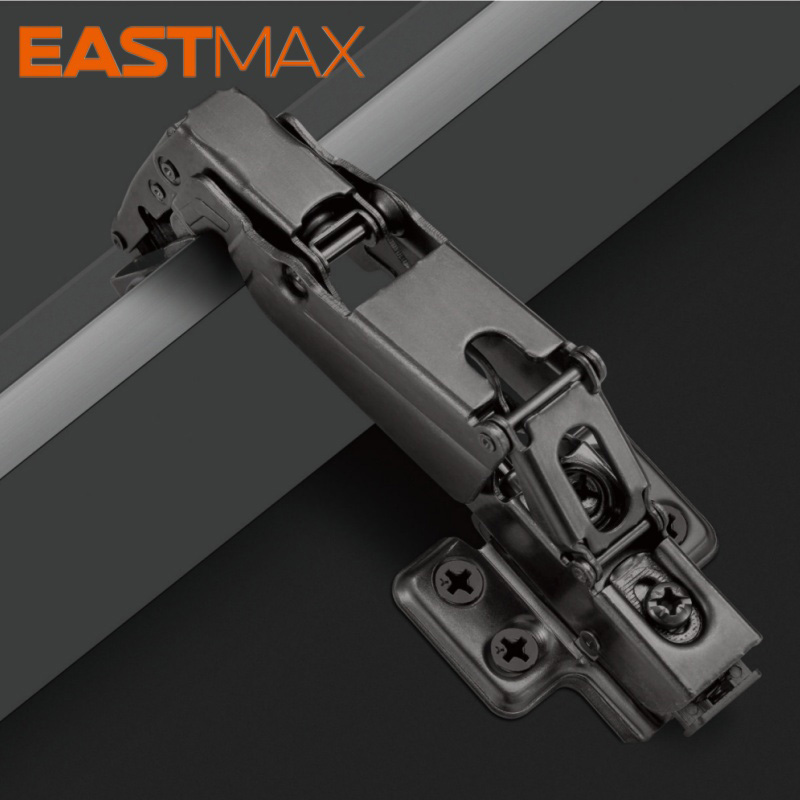

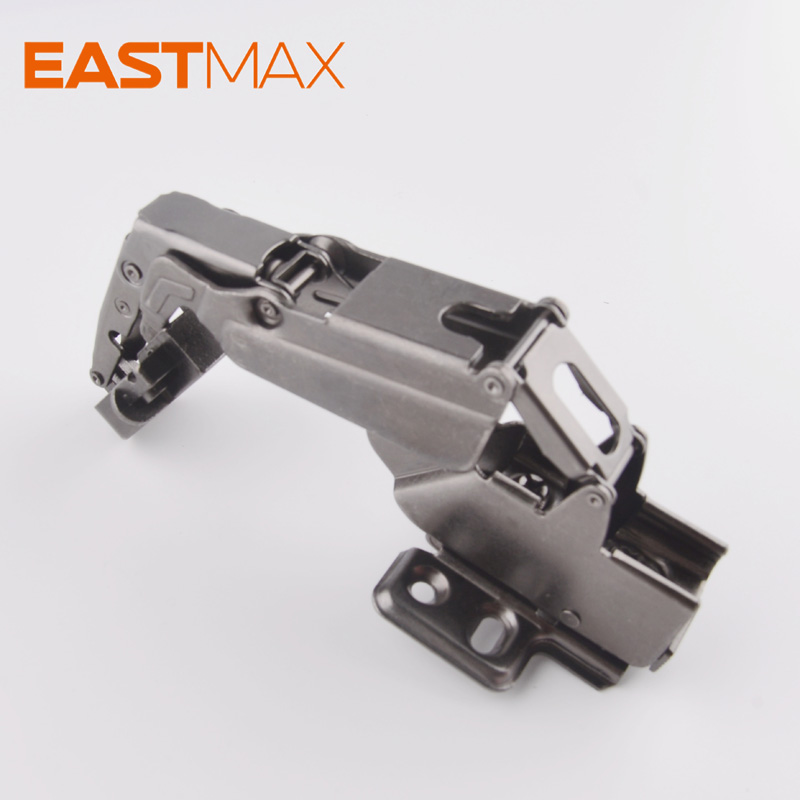

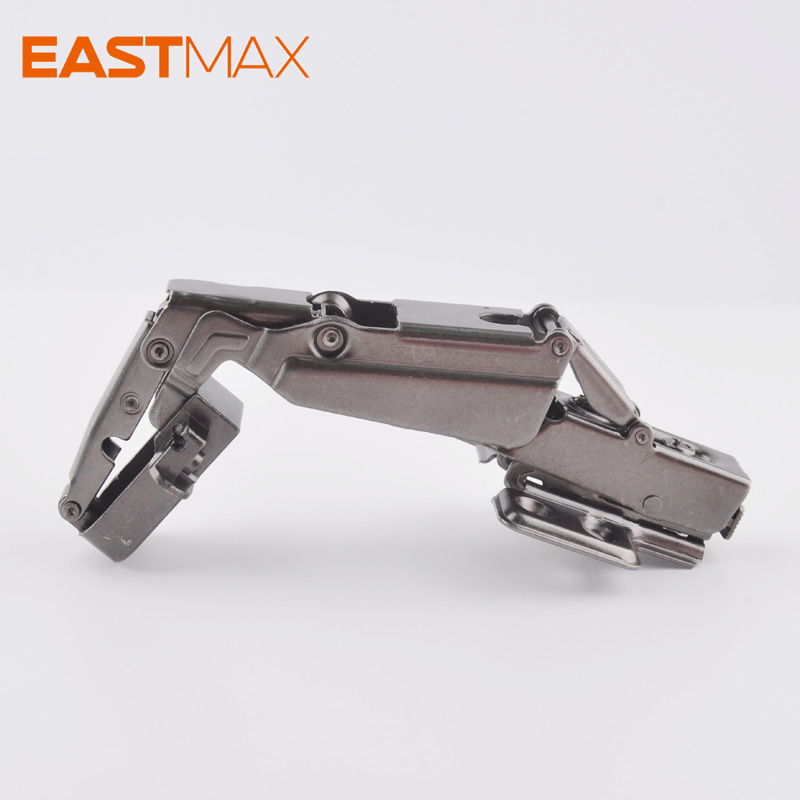

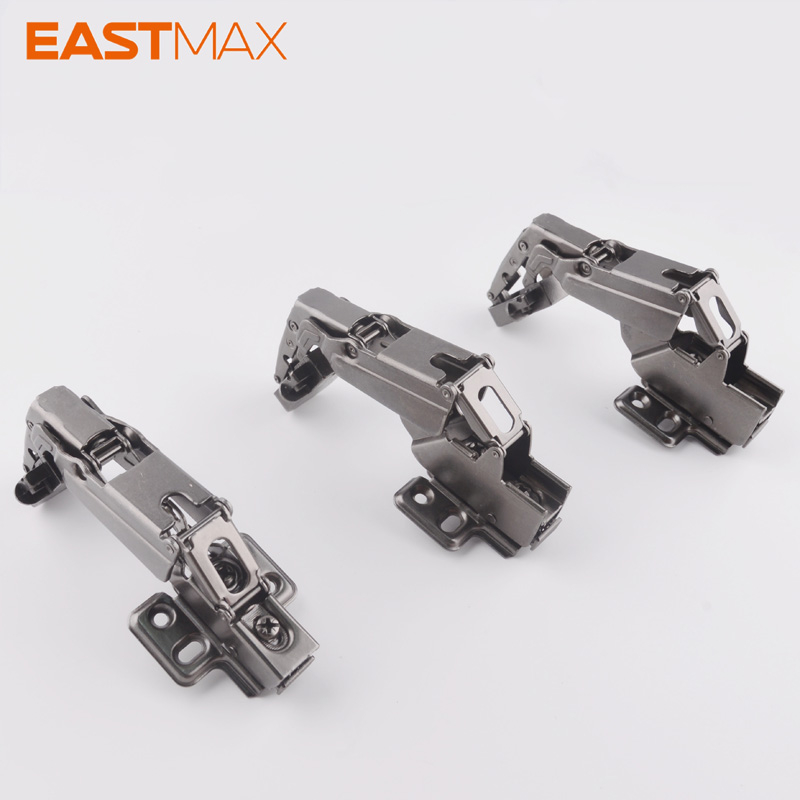

This 165-degree hinge is engineered for aluminum-frame cabinet doors requiring wide opening access. Equipped with a built-in hydraulic damper and a clip-on mounting system, it accommodates aluminum profile widths from 22mm to 25mm. The product targets furniture manufacturers, kitchen cabinet producers, and commercial fit-out contractors working with aluminum-framed door systems. Three mounting configurations — full overlay, half overlay, and inset — are available to match different cabinet construction methods.
Parameter | Value |
Opening angle | 165° |
Drilling size on aluminum frame | φ38mm |
Width of aluminum profile | 22-25mm |
Material | Iron with nickel plating |
Structure | Robust structure |
Closing performance | Design precision for quietness and smoothness |
Aluminum profile drilling dimensions include 28/32mm hole spacing, 18.8mm width, and 16.2mm total height with 6/7mm edge distance. Slot dimensions measure 42/46mm in length with 10mm depth and 1.3/2.3mm lip thickness. Side mounting range spans 18-27mm with 1.5-3.0mm depth adjustment.
Adjustment direction | Range |
Vertical adjustment | ±2mm |
Overlay adjustment | ±5mm |
Gap adjustment | ±2mm |

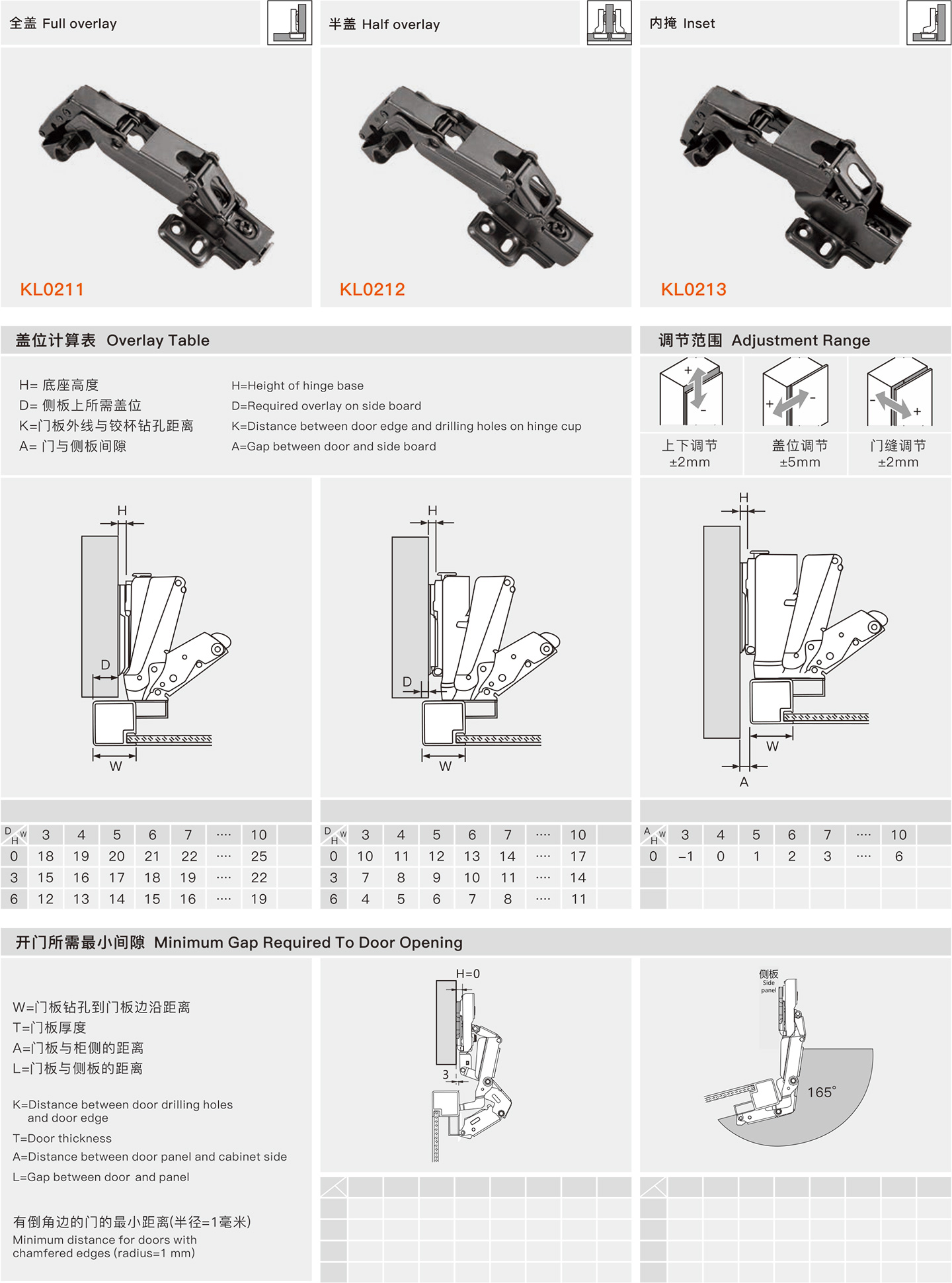

Three mounting configurations with corresponding calculation parameters:
Full overlay: D range 3-7mm, K range 0-15mm
Half overlay: D range 3-10mm, K range 0-7mm
Inset: A range 3-10mm, K range 0-6mm
Where D = required overlay on side board, K = distance between door edge and drilling holes on hinge cup, A = gap between door and side board.
Minimum gap specifications are provided for doors with chamfered edges (radius +1mm), accounting for the 165-degree swing arc and preventing panel collision during full opening.

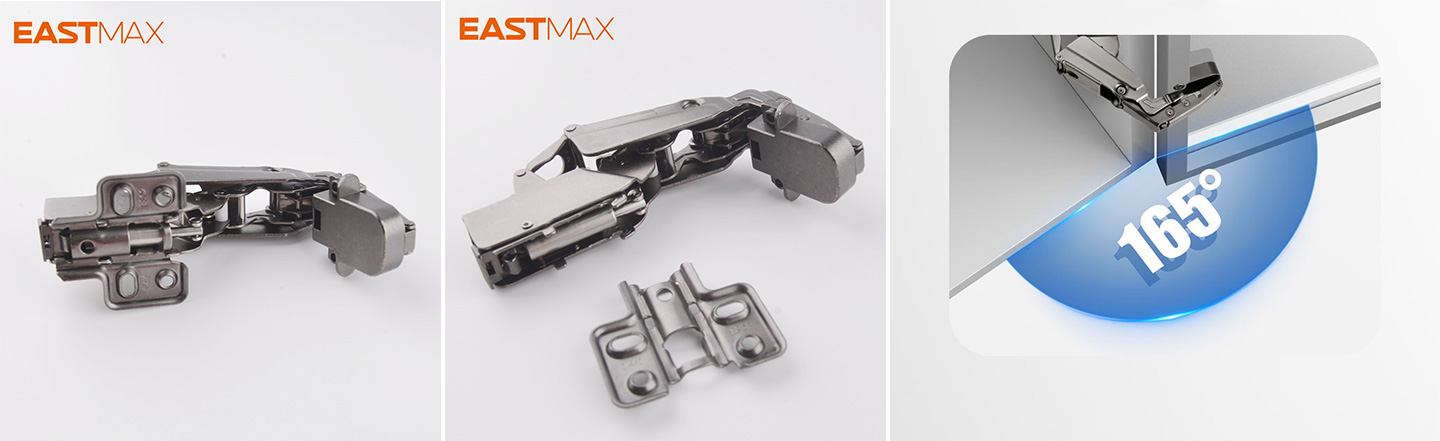

The hinge arm geometry enables a 165-degree opening angle, allowing unobstructed access to cabinet interiors. This wide swing is specified for corner cabinets, pantry units, and pull-out storage systems where standard 95-degree hinges restrict access.
The hydraulic damper is integrated into the hinge cup assembly, delivering progressive deceleration through the final segment of the closing stroke. The copper pipe hydraulic cylinder operates within the aluminum frame profile without protruding into the cabinet interior.

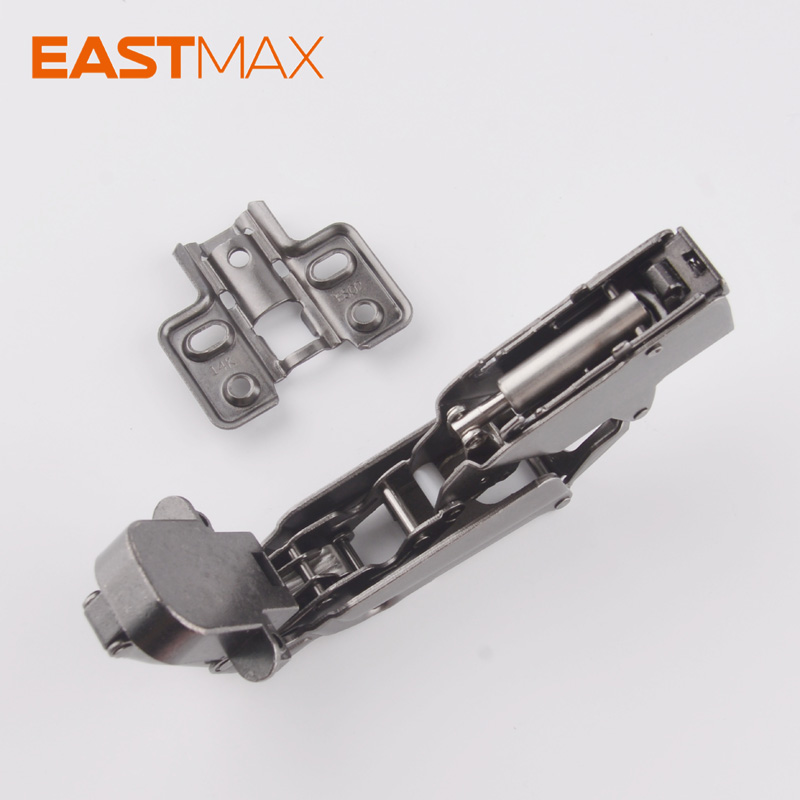

The hinge body locks onto the mounting plate via a spring-loaded clip, enabling tool-free attachment and removal of the door panel. This feature supports streamlined assembly in furniture production lines and simplifies on-site installation.
Post-installation adjustment covers vertical ±2mm, overlay ±5mm, and side gap ±2mm. The extended 5mm overlay adjustment range accommodates variations in aluminum profile dimensions common in batch production.
This hinge series is specified for aluminum-frame kitchen cabinet doors, wardrobe systems, office storage cabinets, and display furniture with aluminum profiles. It supports commercial procurement for residential projects, hotel fit-outs, office furniture contracts, and retail cabinetry where aluminum frame doors require wide opening access. The 22-25mm profile width range covers most standard aluminum extrusion profiles used in furniture manufacturing.

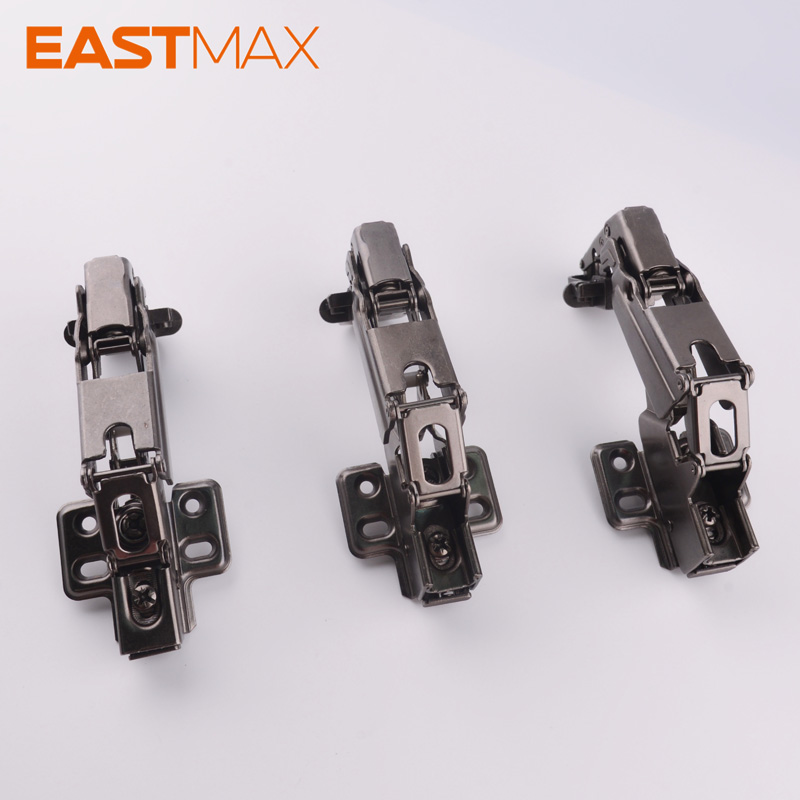

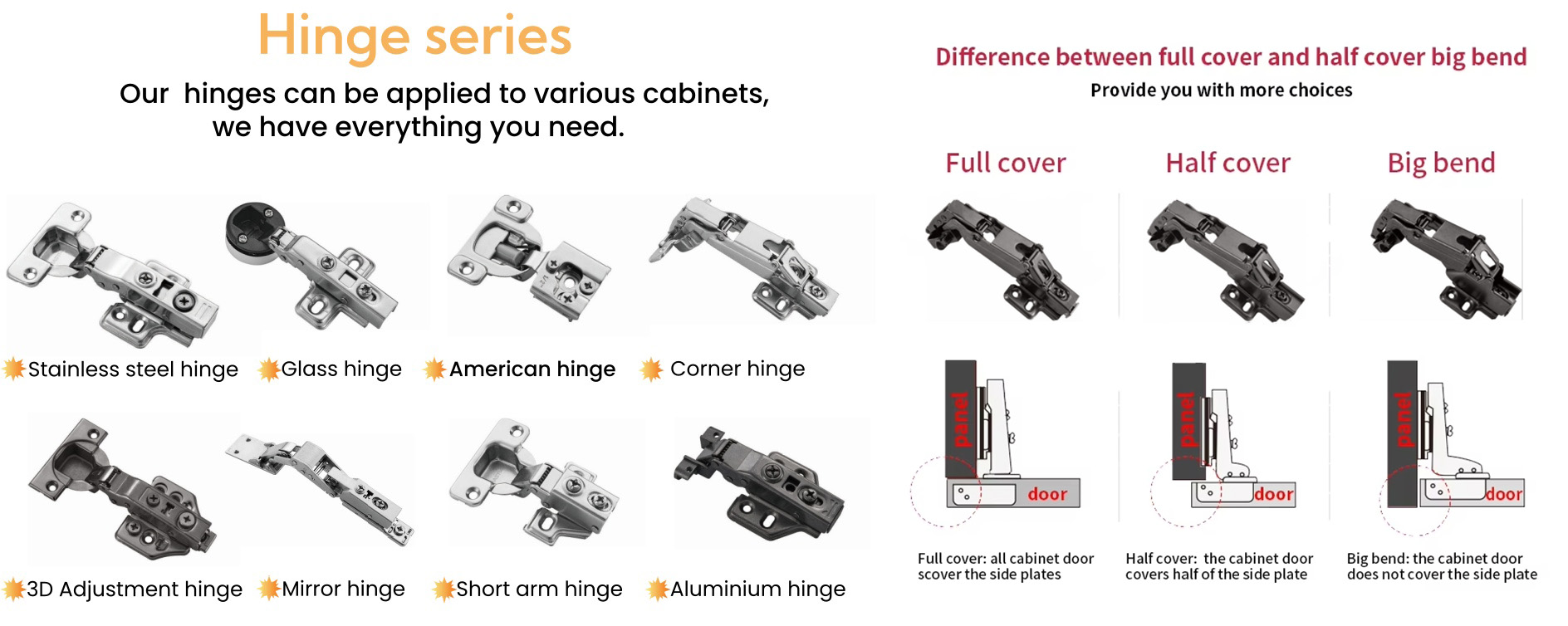

Three mounting versions are offered under model family KL02:
KL0211: Full overlay
KL0212: Half overlay
KL0213: Inset
All three versions share the same 165-degree opening angle, soft-closing damper, and clip-on base interface, allowing consistent specification across different cabinet layouts within a single project.
M8 Dowel: φ8 × 10mm
M10 Dowel: φ10 × 10mm
Euro Screw: φ6.3 × 10.3mm
Expanding Dowel: φ10 × 10.5mm
Wood Screw: φ4 × 16mm (head φ8)
Double-bridge Dowel: 7.8 × 32mm
Cup Cap (U-shape decorative cover)
Arm Cap (rectangular decorative cover)
Mounting bases: H0 (2-hole base), H0S (4-hole base), H0A (3D base)
The hinge fits aluminum frame profiles with a width of 22-25mm. The drilling template requires a 38mm diameter cup hole in the profile.
Three-direction adjustment is provided: vertical ±2mm, overlay ±5mm, and door gap ±2mm. The 5mm overlay adjustment accommodates production tolerance variations in aluminum extrusions.
This hinge is designed for standard aluminum frame cabinet doors within the 22-25mm profile width range. For taller or heavier door panels, specifying three or more hinges per door distributes the load across the panel height.
Three mounting base options are compatible: H0 two-hole base, H0S four-hole base, and H0A three-dimensional adjustment base. Selection depends on the cabinet side board material and the level of installation adjustment required.
