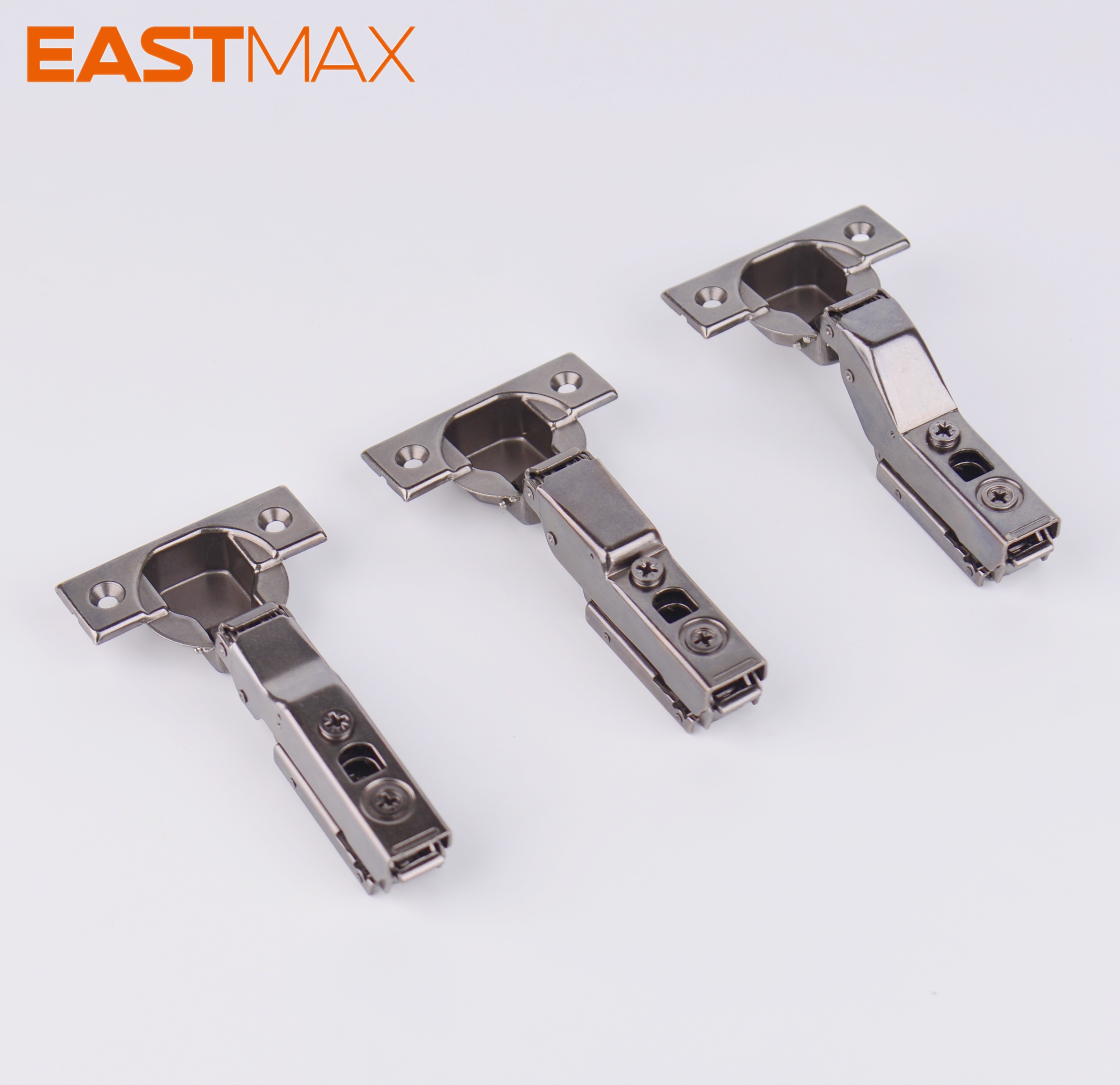

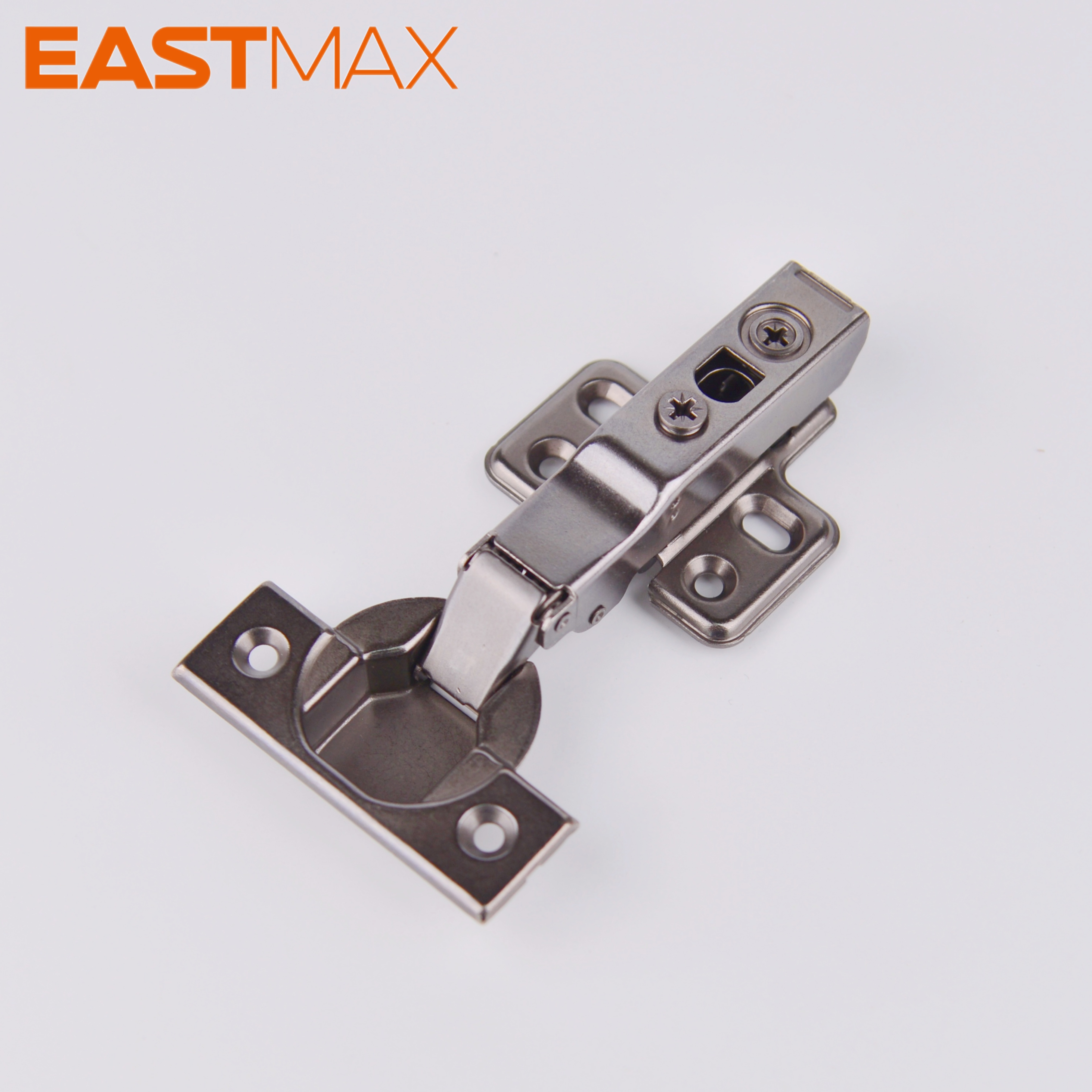

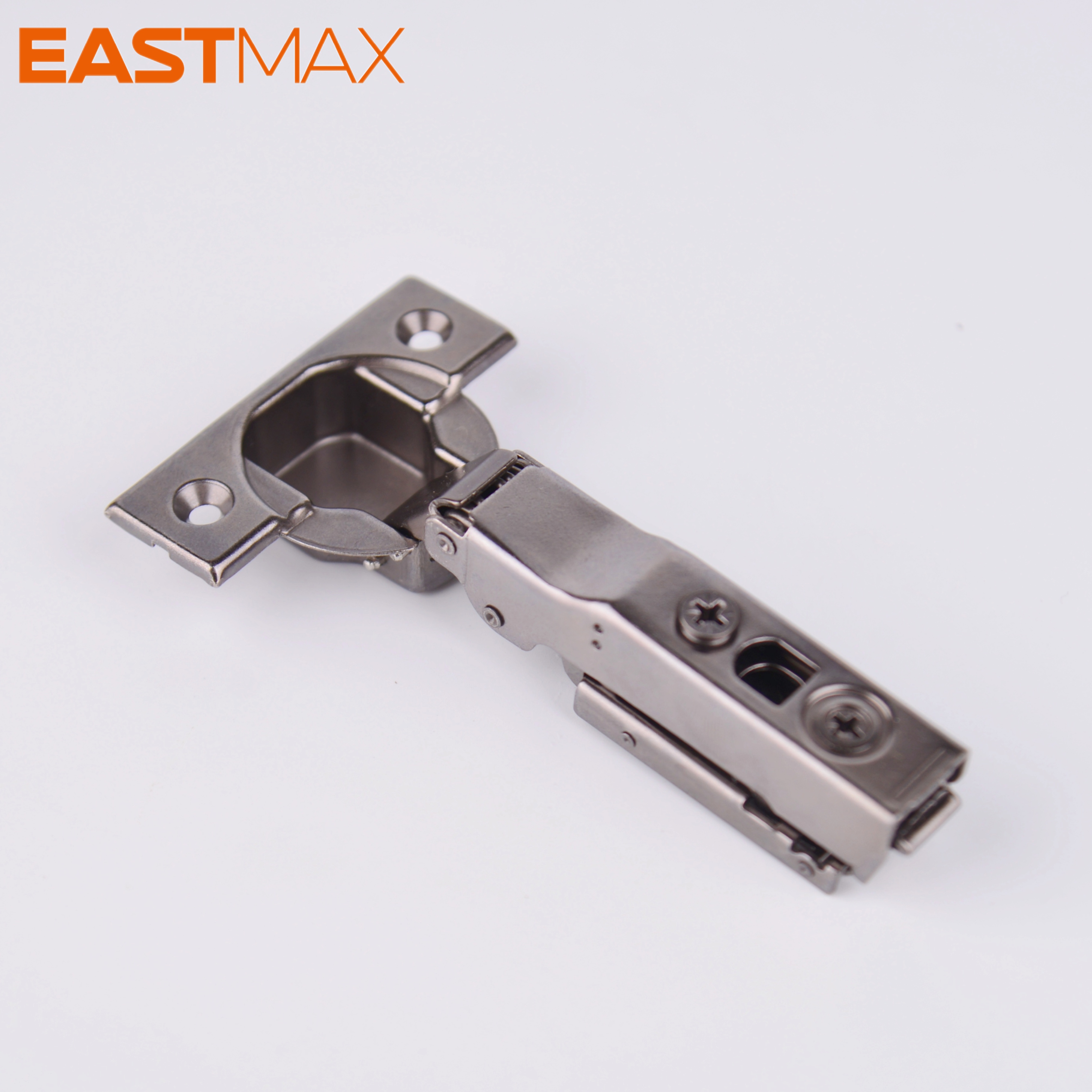

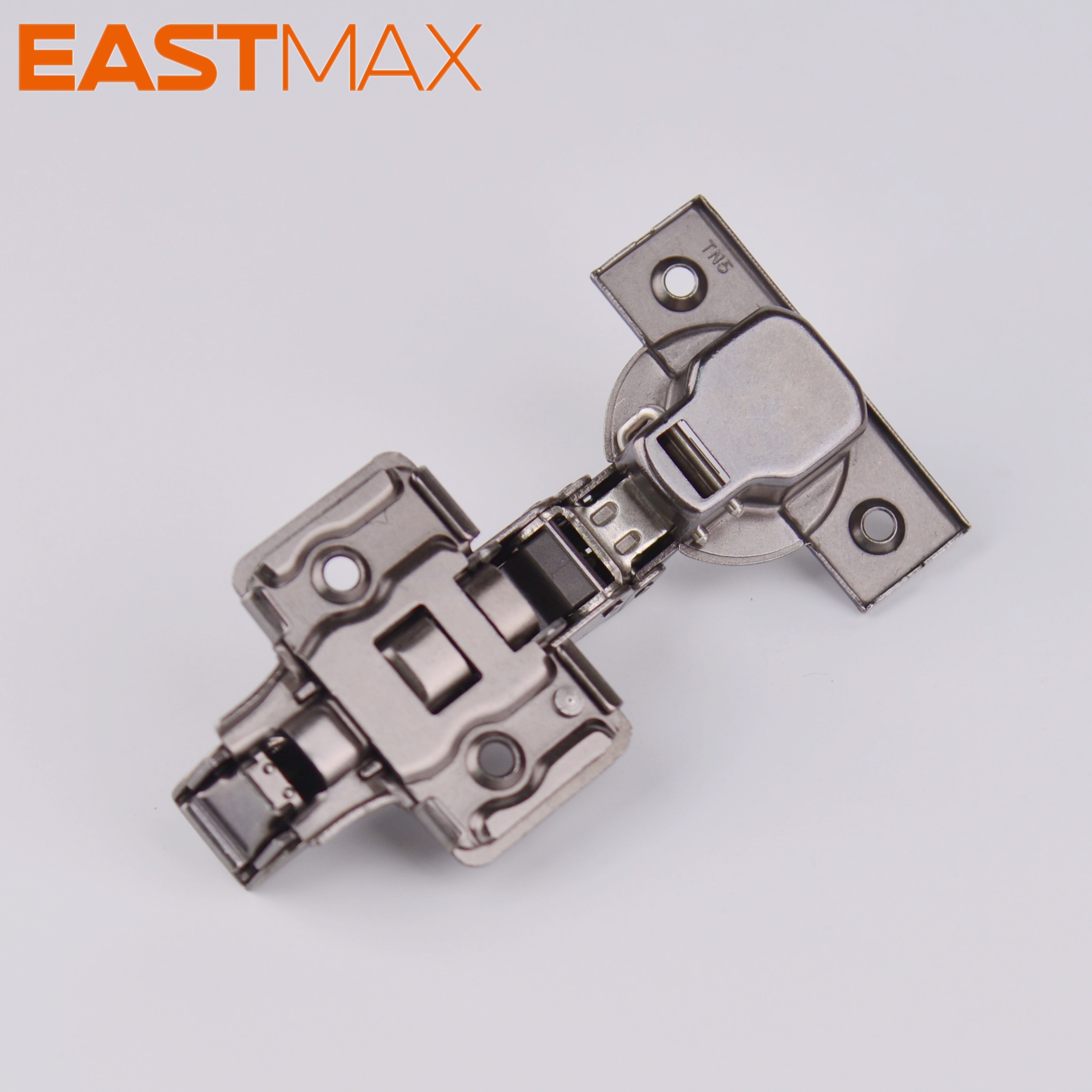

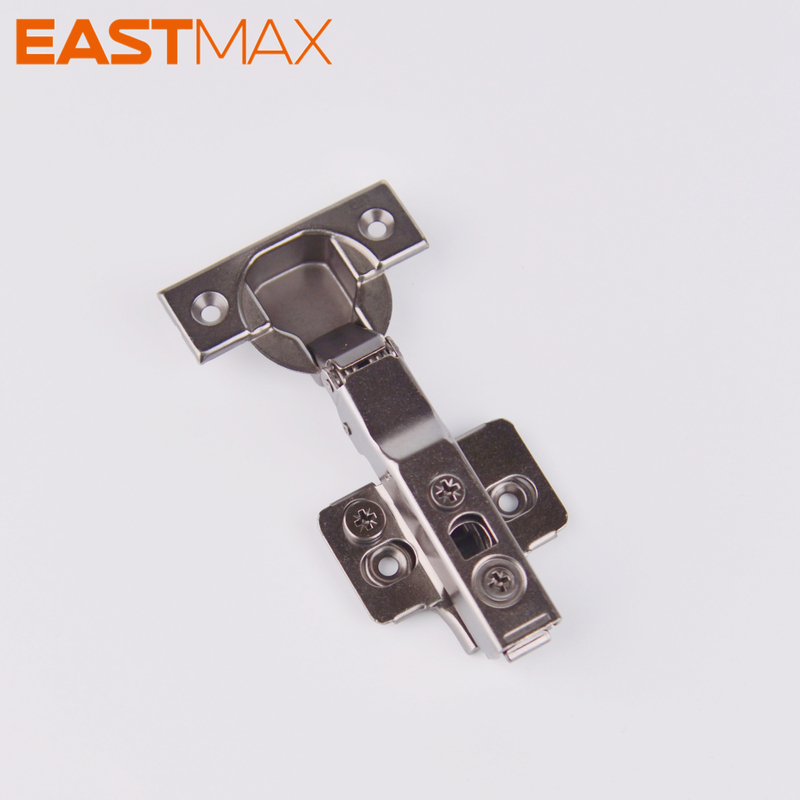

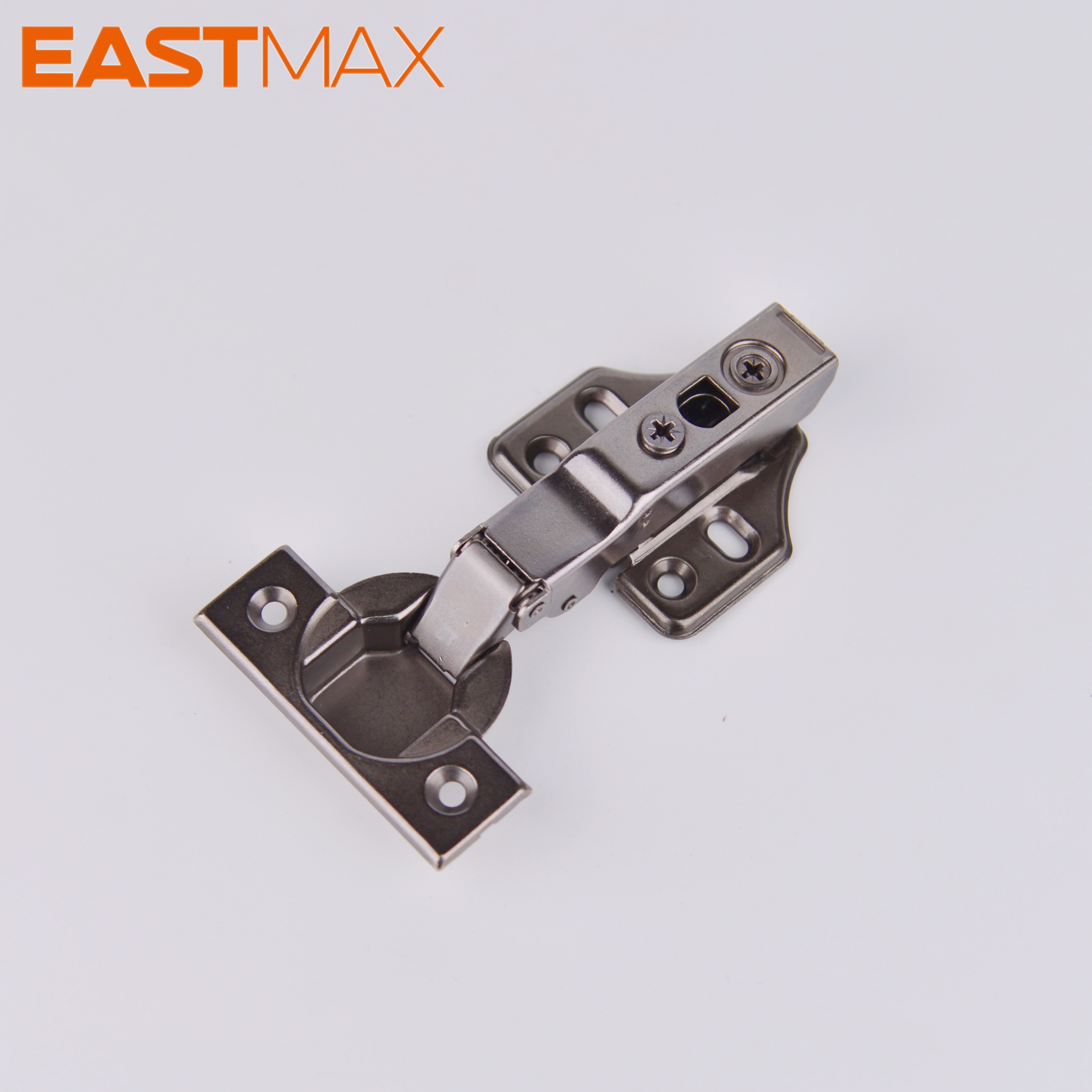

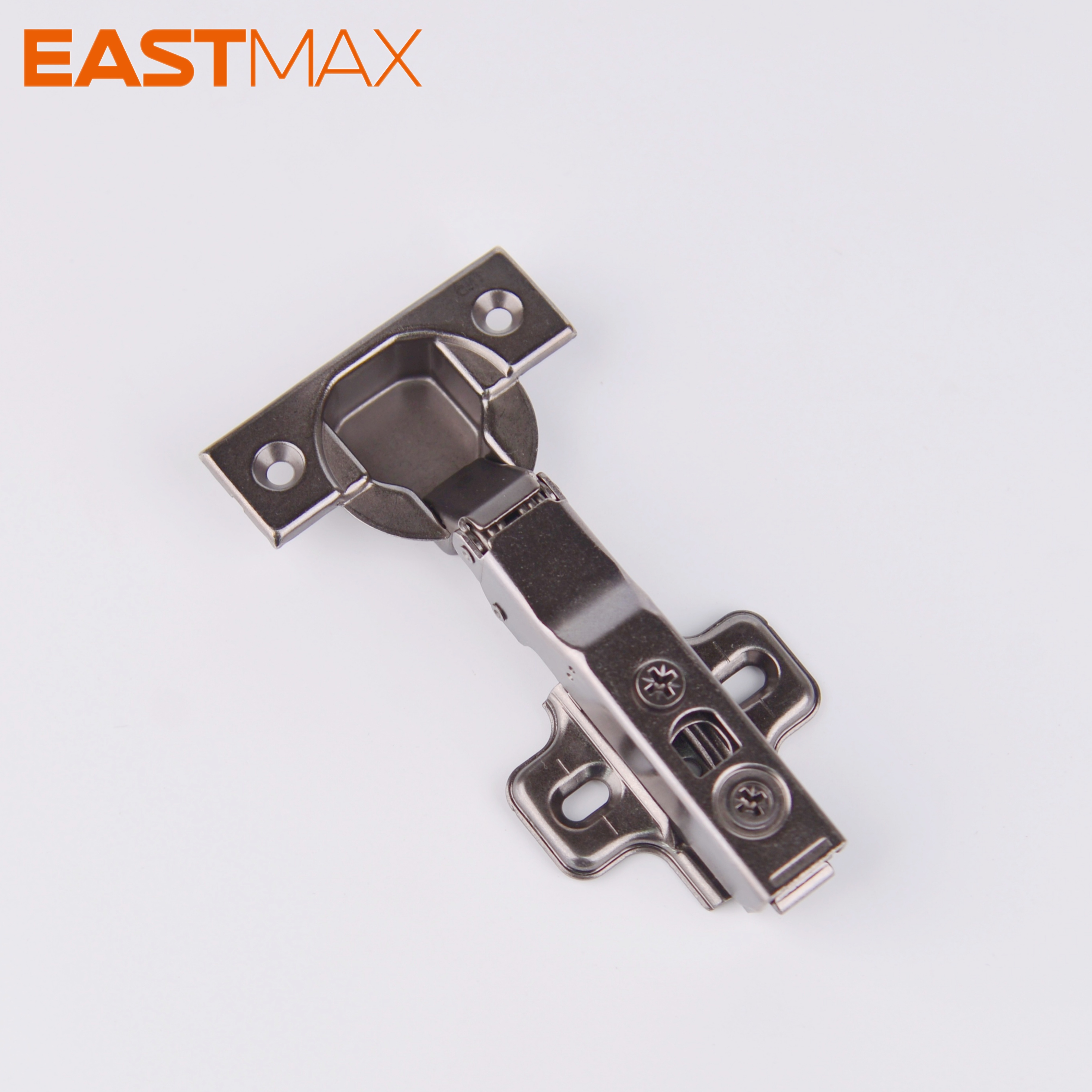

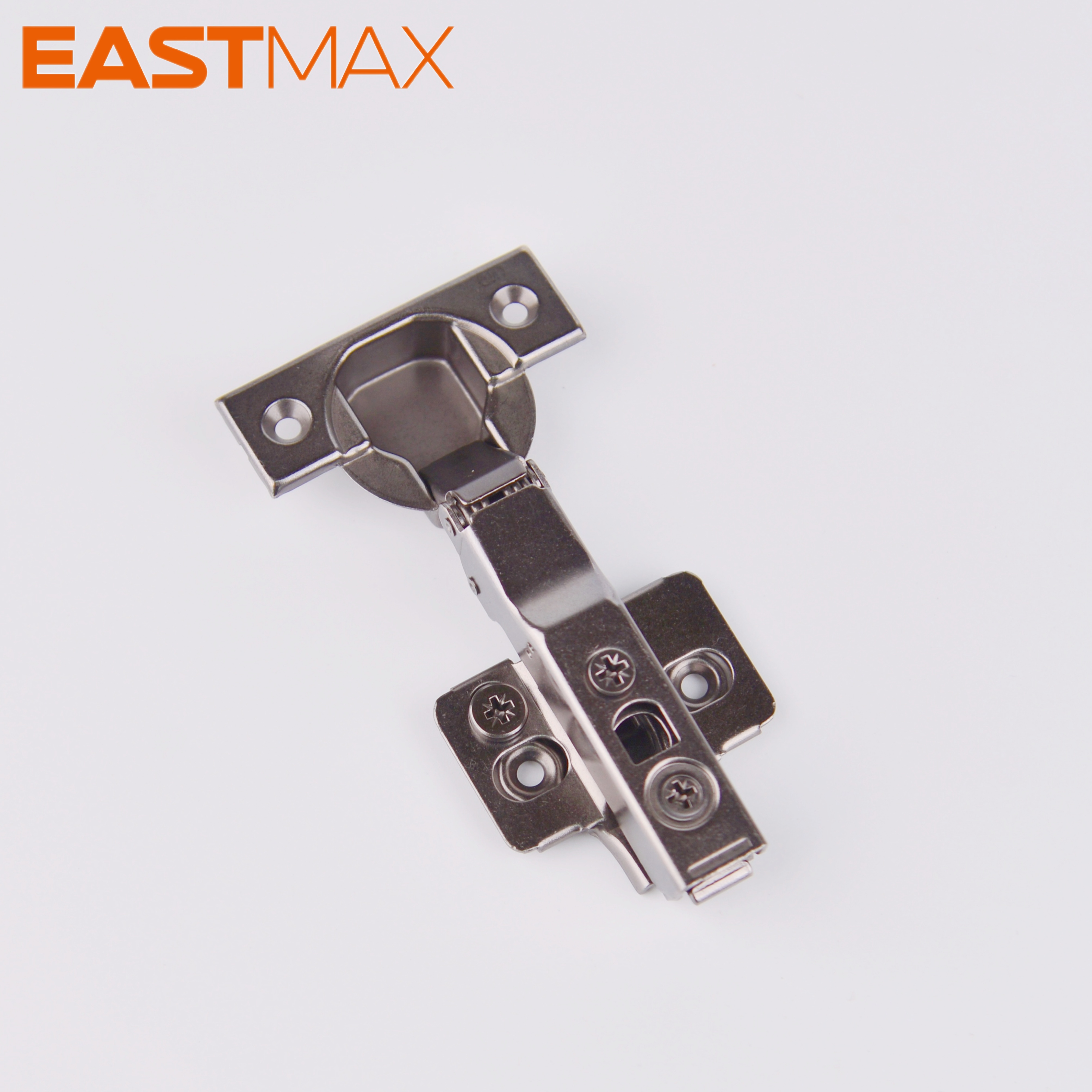

The T1 turbine eccentric hinge represents the 2025 upgraded version of clip-on soft-closing cabinet hinges, featuring a three-stage force control system and small-angle buffering technology. Constructed from iron with nickel plating in a titanium finish, this hinge incorporates a turbine-style eccentric adjustment mechanism that enables three-way alignment tuning. The three-stage force design delivers controlled door movement through the full opening and closing cycle, with a 25kg load capacity per hinge that supports standard and thicker door panels used in commercial furniture production. This model targets furniture manufacturers and commercial procurement teams seeking consistent closing performance across high-volume cabinet installations.
The hinge operates through three distinct motion phases. During stage one, the door panel remains freely suspended between 40 degrees and 70 degrees of opening, allowing users to position the door at intermediate angles without automatic closing. Stage two extends the door smoothly to the 97-degree full-open position. Stage three engages as the door returns past the 40-degree mark, initiating soft-close buffering that decelerates the panel through the final closing arc.
Buffering activation begins at just 8 degrees of opening, which means the damping mechanism engages earlier in the closing stroke compared to standard hinges. This earlier activation produces a more gradual deceleration and reduces the likelihood of door slamming even when panels are pushed with moderate force.

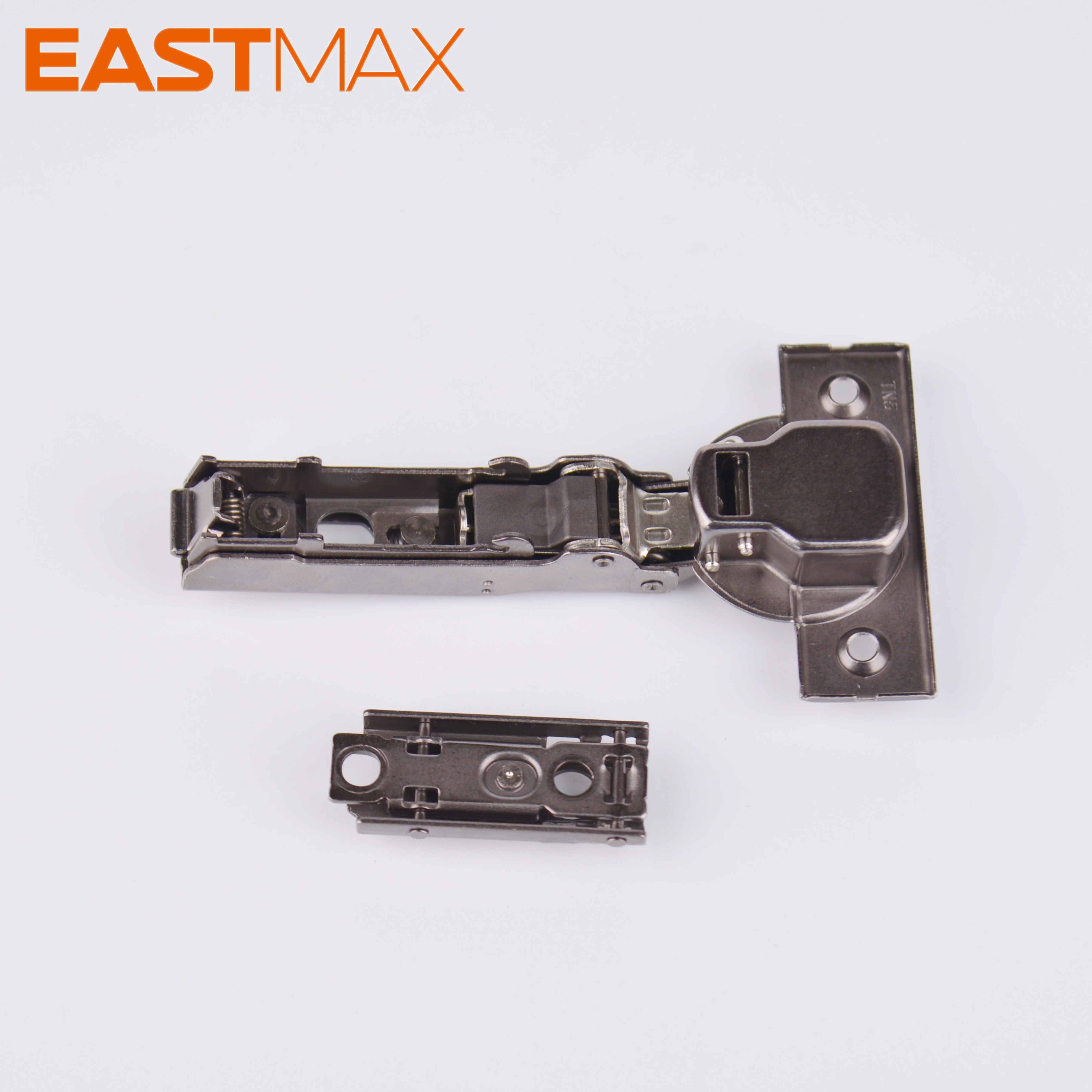

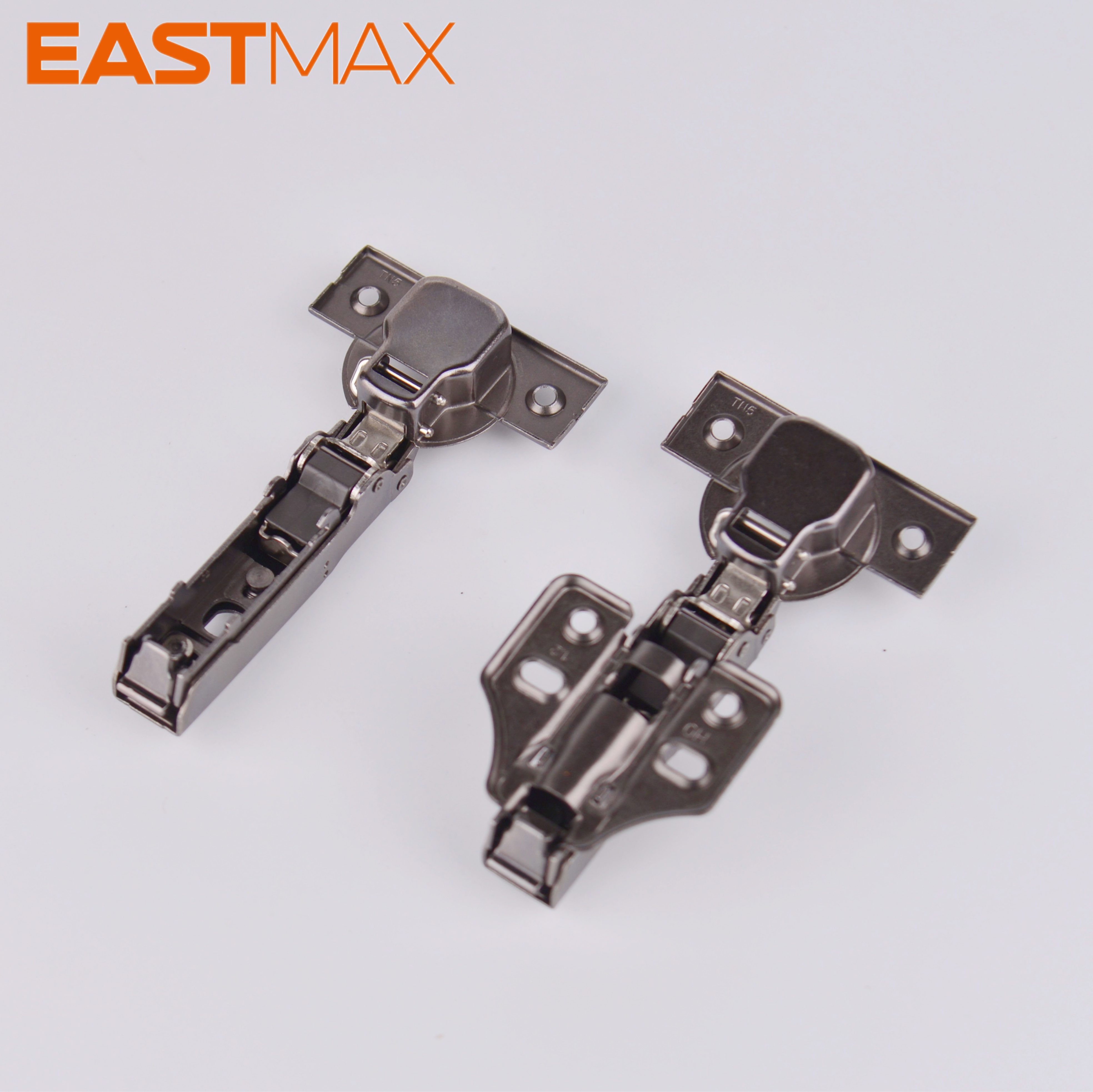

The turbine-style eccentric adjustment mechanism supports alignment across three axes. Installers can fine-tune vertical, horizontal, and depth positioning using the dedicated adjustment screws on the hinge body. The clip-on mounting plate allows the hinge body to be attached or removed without tools, which accelerates batch installation workflows.
This hinge accommodates door panels ranging from 16mm to 26mm in thickness. Five available base plate options allow the same hinge body to be used across multiple cabinet construction configurations, reducing SKU complexity for procurement and inventory management in furniture manufacturing operations.
Parameter | Value |
Full opening angle | 97° |
Load capacity per hinge | 25kg |
Buffering activation angle | 8° |
Free suspension range | 40-75° |
Compatible door thickness | 16-26mm |
Material | Iron with nickel plating |
Finish color | Titanium |
Mounting type | Clip-on |
Adjustment type | Turbine eccentric three-way |
Base plate options | 5 variants |
Force control stages | 3 stages |
 |  |
Stage | Angle Range | Motion Characteristic |
Stage 1 | 40-70° | Free suspension, door stays in position |
Stage 2 | 70-97° | Smooth extension to full open position |
Stage 3 | 40° to closed | Soft-close buffering with deceleration |

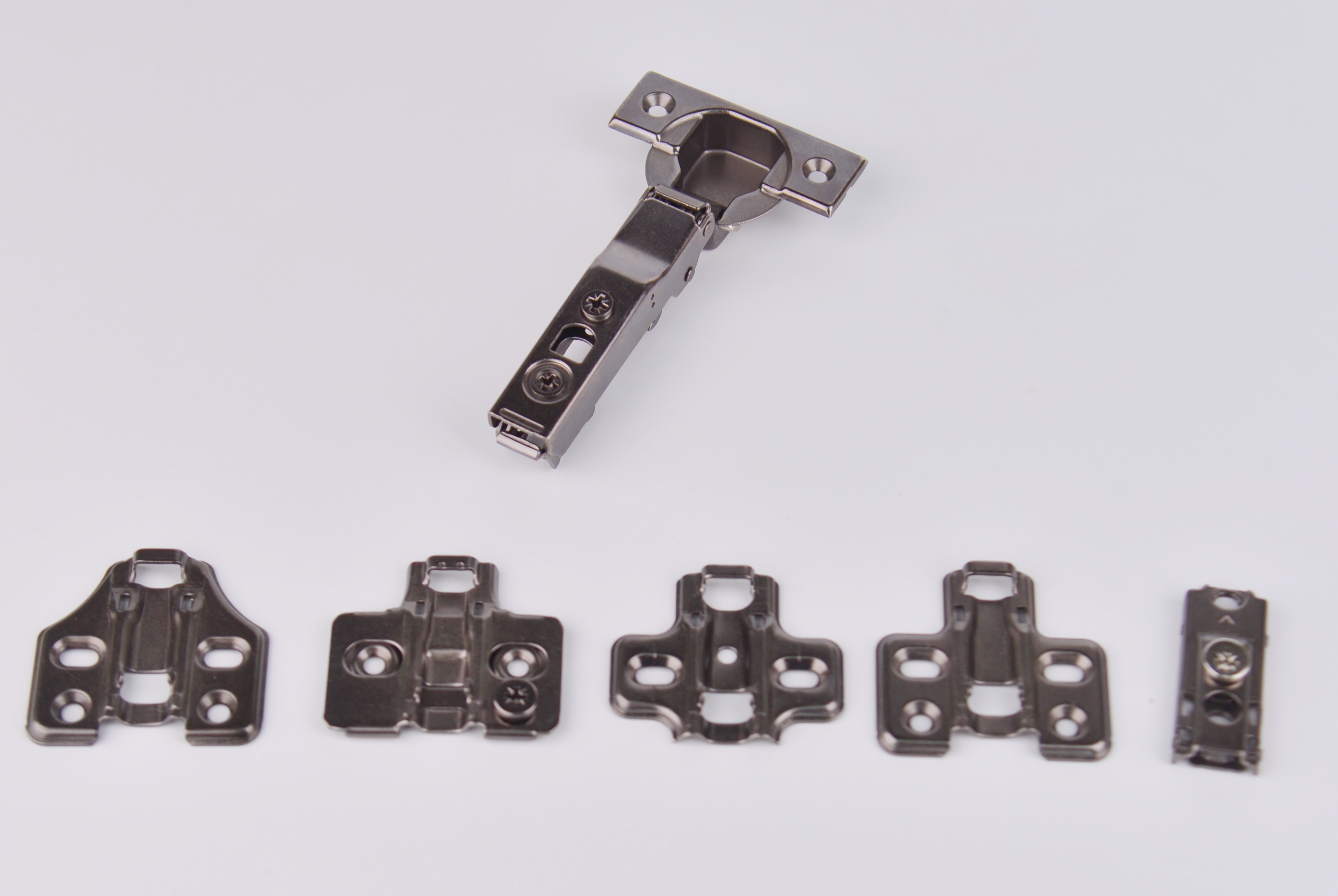

Five mounting base options are available for this hinge model, allowing configuration for full overlay, half overlay, and inset cabinet constructions with different side panel thickness requirements. Each base plate uses the standard clip-on interface for compatibility with the T1 hinge body.
This upgraded hinge model serves a range of commercial and industrial furniture applications. Kitchen cabinet manufacturers use it for mid-range and premium cabinet lines where controlled closing motion and door hold-open functionality are specified. Wardrobe and storage furniture producers integrate the hinge into units with thicker door panels, leveraging the 25kg load capacity and wide thickness compatibility. Hotel and residential development procurement teams source these hinges for uniform performance across large-scale fit-out projects. Commercial office furniture builders also deploy them for cabinetry and storage units where door position control supports ergonomic use in workspace environments. The titanium finish provides a consistent appearance suitable for contemporary furniture designs.
Installation follows standard concealed hinge procedures with a 35mm diameter hinge cup bore. The clip-on base plate is first mounted to the cabinet side panel using the provided screws, after which the hinge body clips into place without additional tools. Post-installation adjustment is performed via the turbine eccentric mechanism, with separate screws controlling vertical, horizontal, and depth positioning. The five available base plate options allow installers to match the correct mounting footprint to each cabinet construction type, from full overlay doors on single cabinets to inset doors on framed cabinetry. The wide door thickness range of 16-26mm means the same hinge model can be specified across multiple product lines within a furniture manufacturing catalog.
Each hinge supports a maximum load of 25kg. For standard cabinet doors, two hinges per door provide sufficient load bearing capacity. Heavier or taller doors may require additional hinges distributed along the door height.
Standard soft close hinges provide damping only during the final closing phase. The three-stage system adds a free-suspension zone between 40 and 75 degrees, where the door remains stationary at any angle within that range. This allows users to leave cabinet doors partially open without automatic closing.
The hinge is compatible with door panels from 16mm to 26mm thick. Five different base plate options are offered to accommodate full overlay, half overlay, and inset mounting configurations across various side panel dimensions. All five bases use the same clip-on interface with the T1 hinge body.
