The TY301S series undermount drawer slides feature a synchronized linkage system that ensures both sides of the drawer move in parallel during opening and closing. This design reduces side-to-side misalignment and supports consistent drawer movement across repeated cycles. A hydraulic soft-close damper engages during the final segment of closure, slowing the drawer before it reaches the cabinet frame.

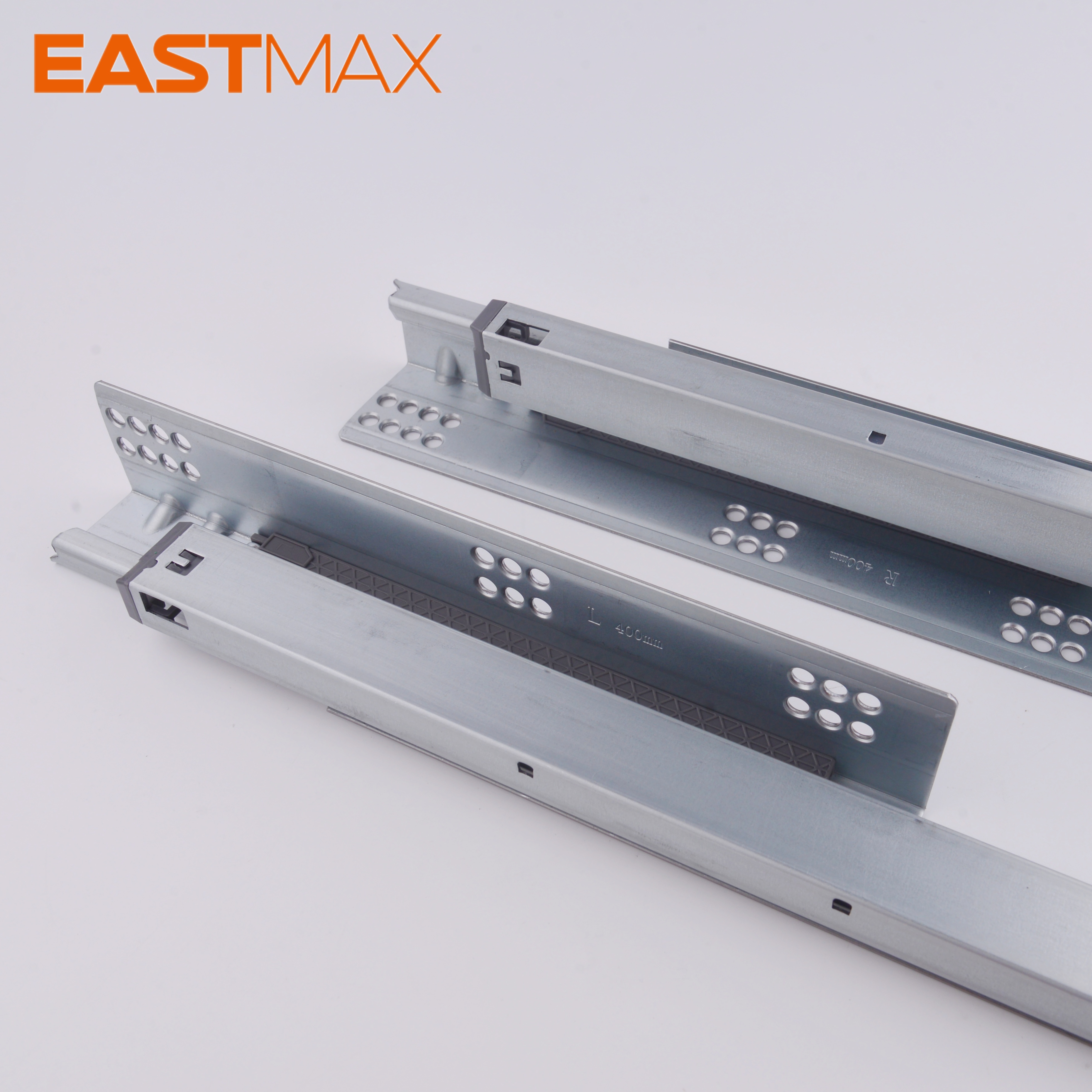

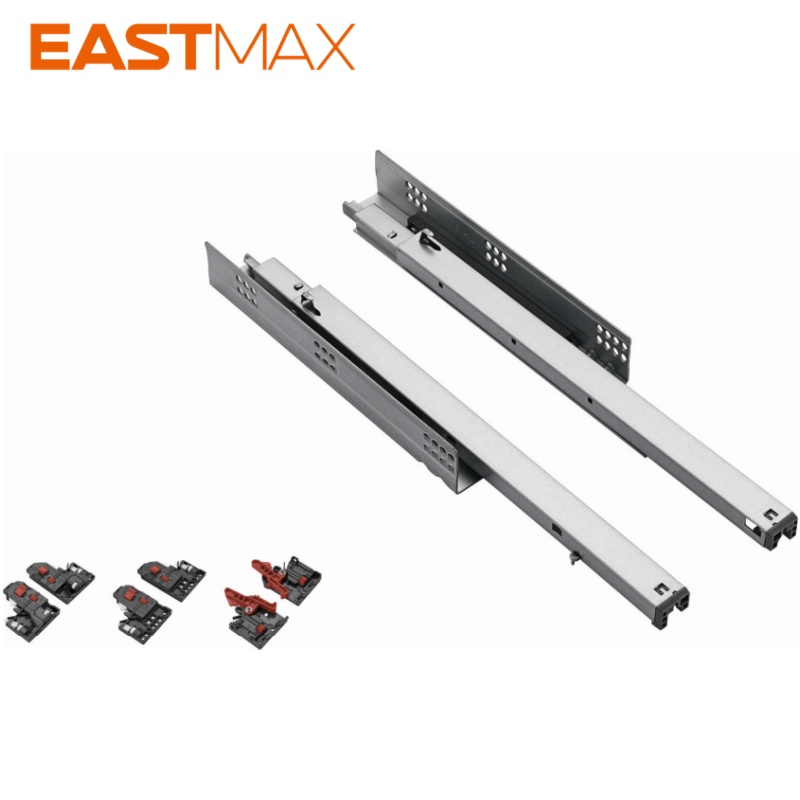

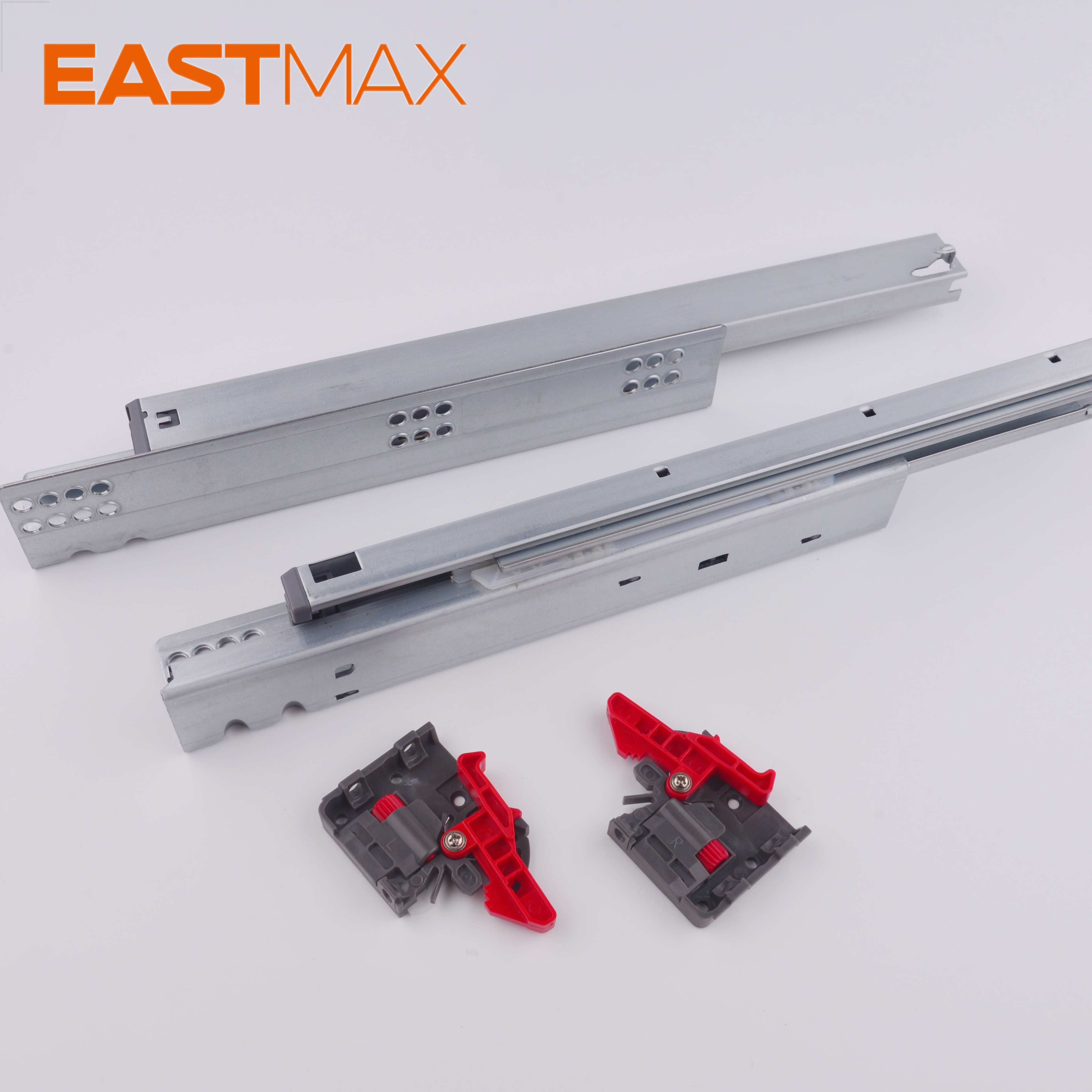

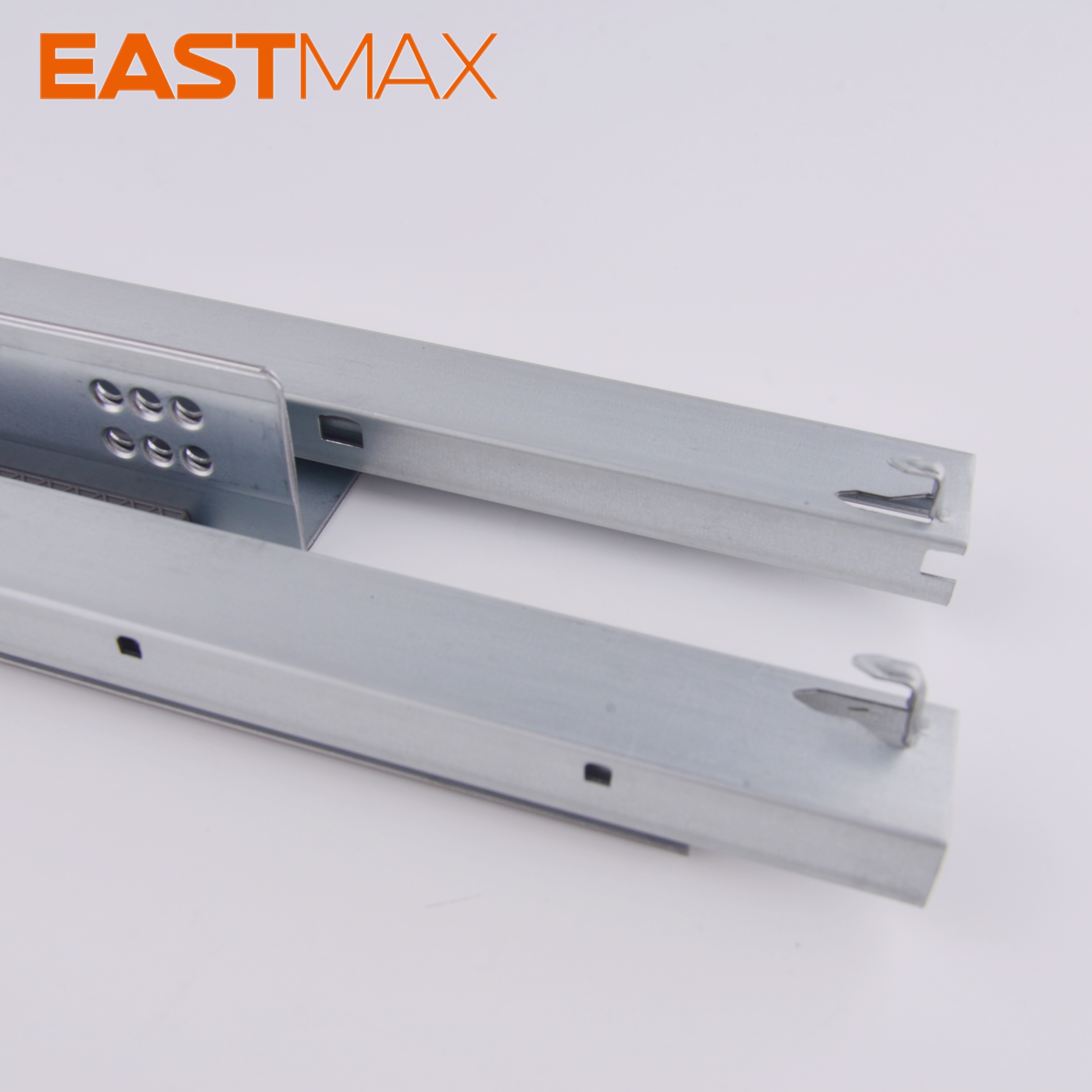

Built from galvanized steel, these concealed slides mount beneath the drawer box, leaving the cabinet sides visible without exposed track hardware. The clip-on locking mechanism allows tool-free attachment and removal of the drawer from the cabinet, which supports efficient assembly line operations and post-installation maintenance. Each set supports a maximum load capacity of 35kg and fits drawer side panels with thicknesses of 16mm and 19mm.

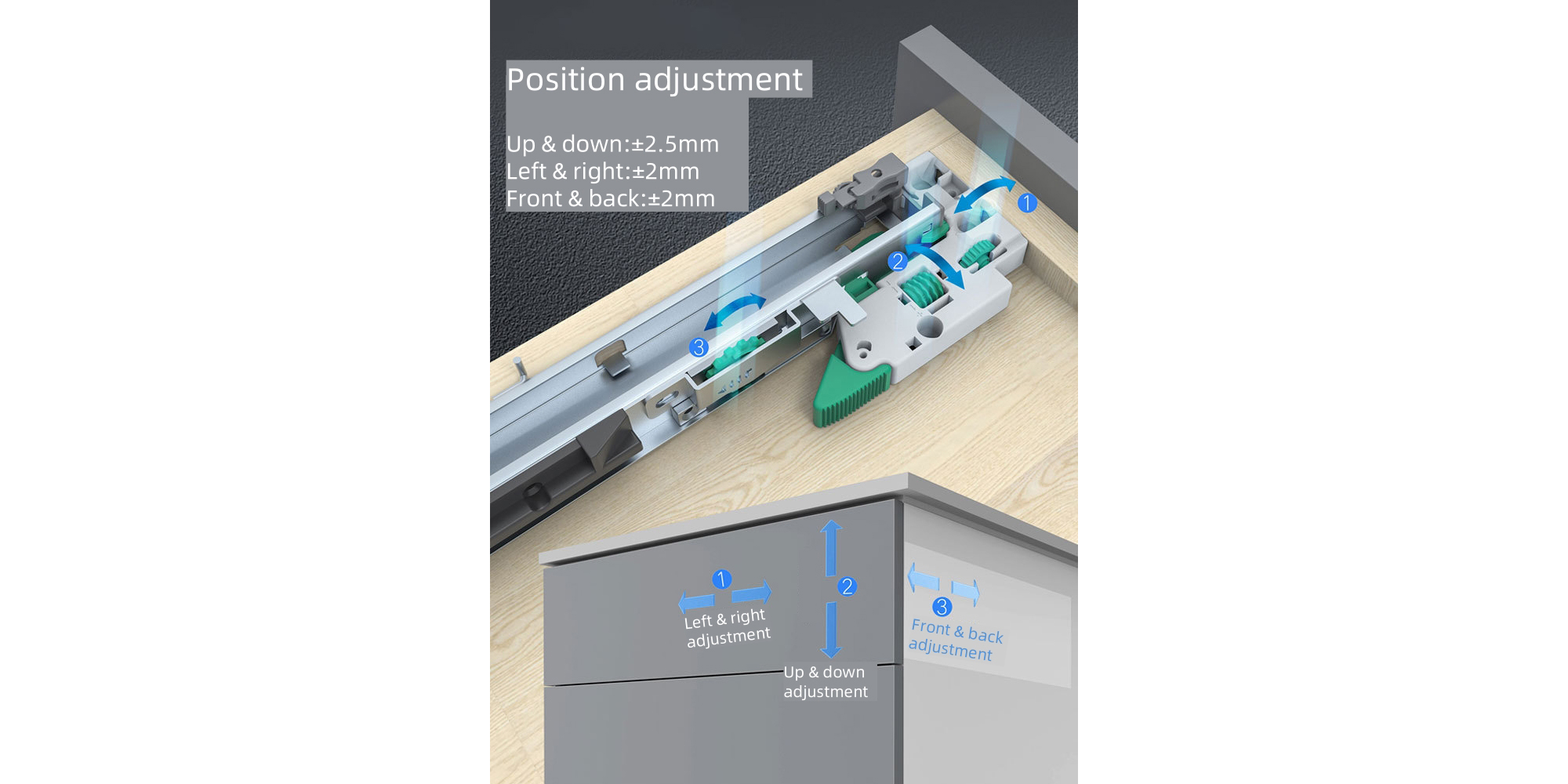

Position adjustment is available on three axes: up and down ±2.5mm, left and right ±2mm, and front and back ±2mm. This adjustment range accommodates minor variations in cabinet construction and helps installers achieve uniform gap alignment across drawer fronts. Full extension travel provides complete access to the interior of the drawer, compared with approximately 70 percent access offered by partial-extension alternatives.
Main material: galvanized steel Max loading capacity: 35kgs Length range: 250-550mm Thickness of board: 16/19mm Hydraulic soft-close damper: integrated Synchronization bar: included Mounting type: undermount / concealed Release mechanism: clip-on, tool-free

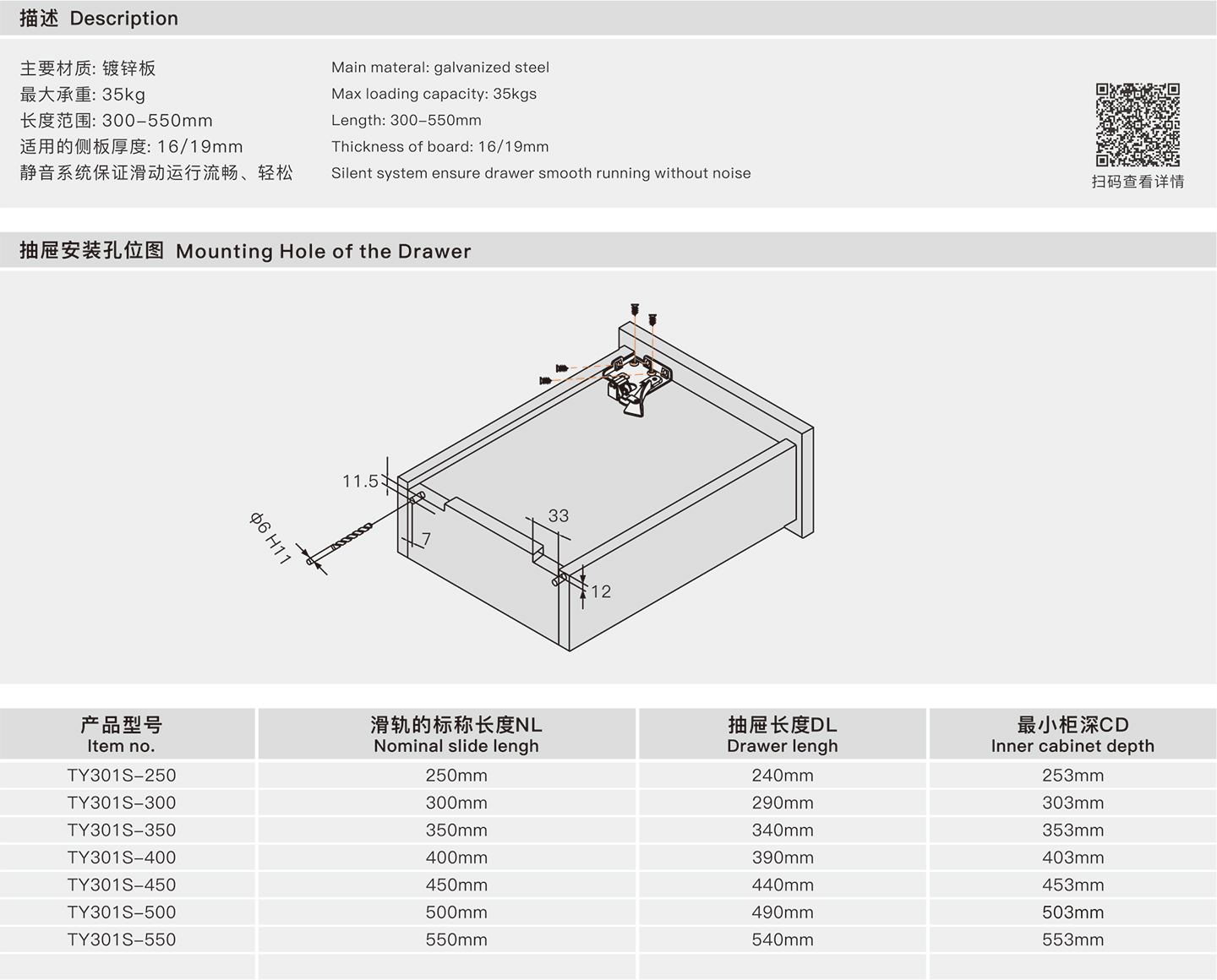

Item no. | Nominal slide length | Drawer length | Inner cabinet depth |
TY301S-250 | 250mm | 240mm | 253mm |
TY301S-300 | 300mm | 290mm | 303mm |
TY301S-350 | 350mm | 340mm | 353mm |
TY301S-400 | 400mm | 390mm | 403mm |
TY301S-450 | 450mm | 440mm | 453mm |
TY301S-500 | 500mm | 490mm | 503mm |
TY301S-550 | 550mm | 540mm | 553mm |

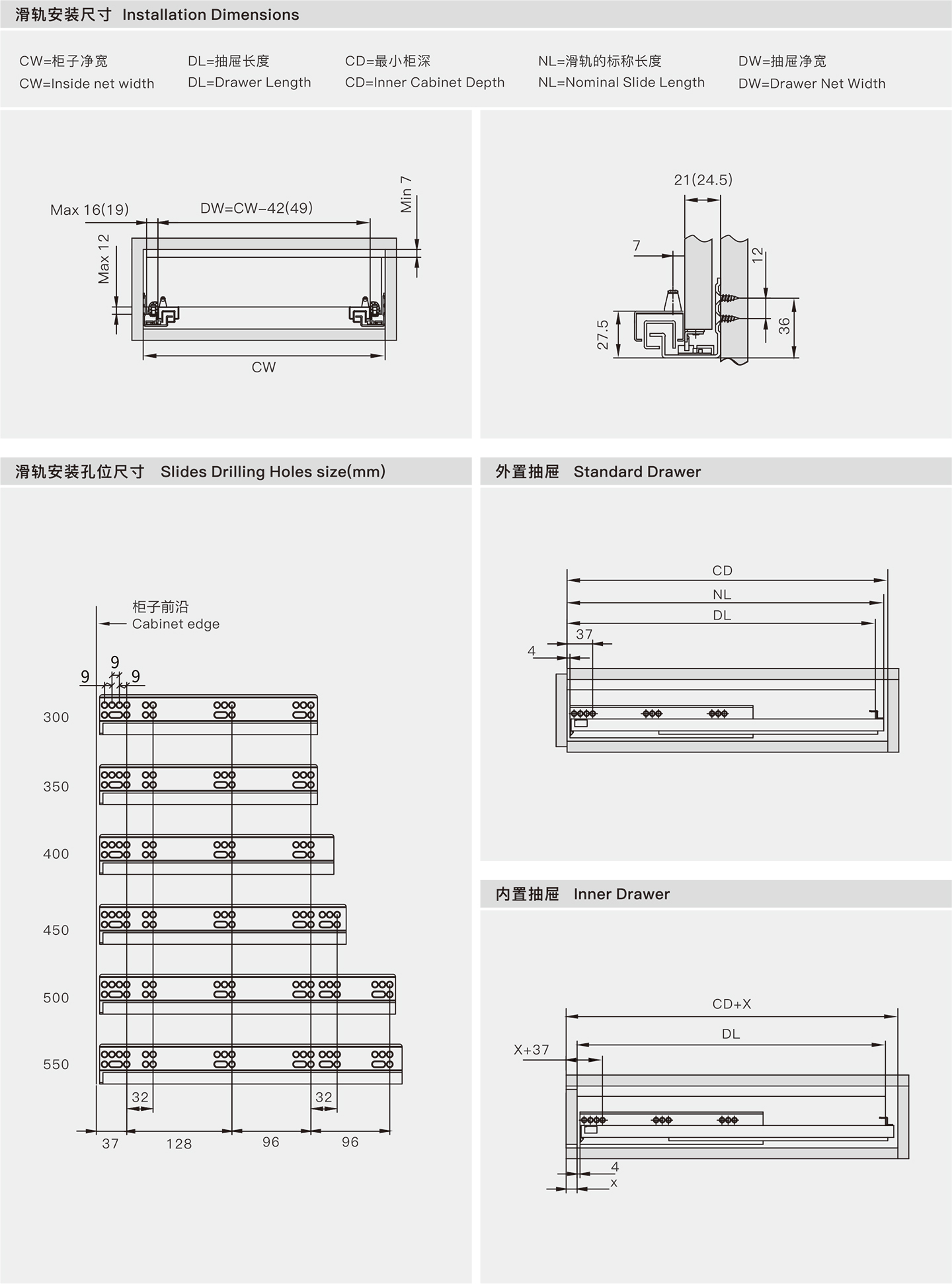

Drawer side clearance for 16mm boards requires a 42mm gap from the drawer side to the inner cabinet wall. For 19mm boards, the required clearance measures 49mm. Minimum cabinet depth corresponds to each slide length as listed in the specification table.
Mounting holes are pre-positioned along the slide length at standard intervals. Multiple hole positions on the rear mounting bracket accommodate different cabinet depth conditions and allow installers to select the fastening point that matches their cabinet construction. Screw diameter for drawer mounting is 6mm with a 11.5mm countersink dimension.
These concealed slides serve commercial procurement needs across furniture manufacturing segments. Kitchen cabinet producers use them for base cabinet drawers and pantry pull-outs where full access and quiet operation are required. Bathroom vanity manufacturers specify undermount slides to maintain clean visual lines on vanity drawers and reduce noise in residential and hospitality settings.
Office furniture builders integrate these slides into filing cabinets and desk pedestals, where synchronized movement prevents binding under uneven loading. Wardrobe and closet system suppliers use the concealed design to support handleless drawer fronts and maintain consistent interior aesthetics. Additional applications include retail display cabinets, hotel case goods, and institutional furniture projects.
Yes. The TY301S clip mechanism is compatible with 16mm and 19mm board thicknesses. The required side clearance differs between the two board thicknesses: 42mm for 16mm boards and 49mm for 19mm boards.
Each pair of slides is rated for a 35kg load capacity when installed according to specification. Load ratings are calculated based on evenly distributed weight within the drawer.
No. Each set includes one left-side slide and one right-side slide, marked accordingly. The synchronization bar connects the two sides and is direction-specific.

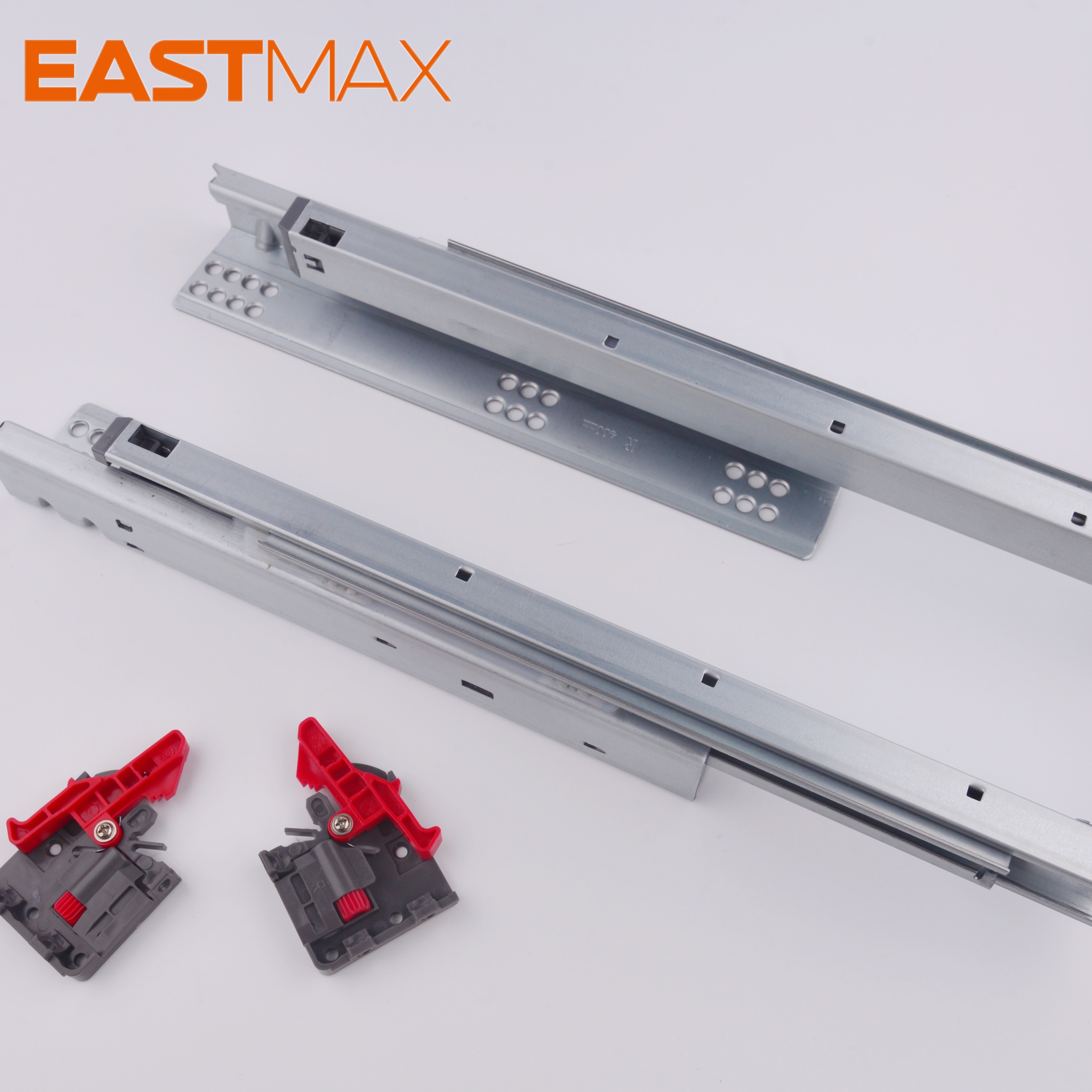

Yes. The clip-on release mechanism allows the drawer to be lifted and detached from the slides without tools, which simplifies cabinet finishing and servicing.

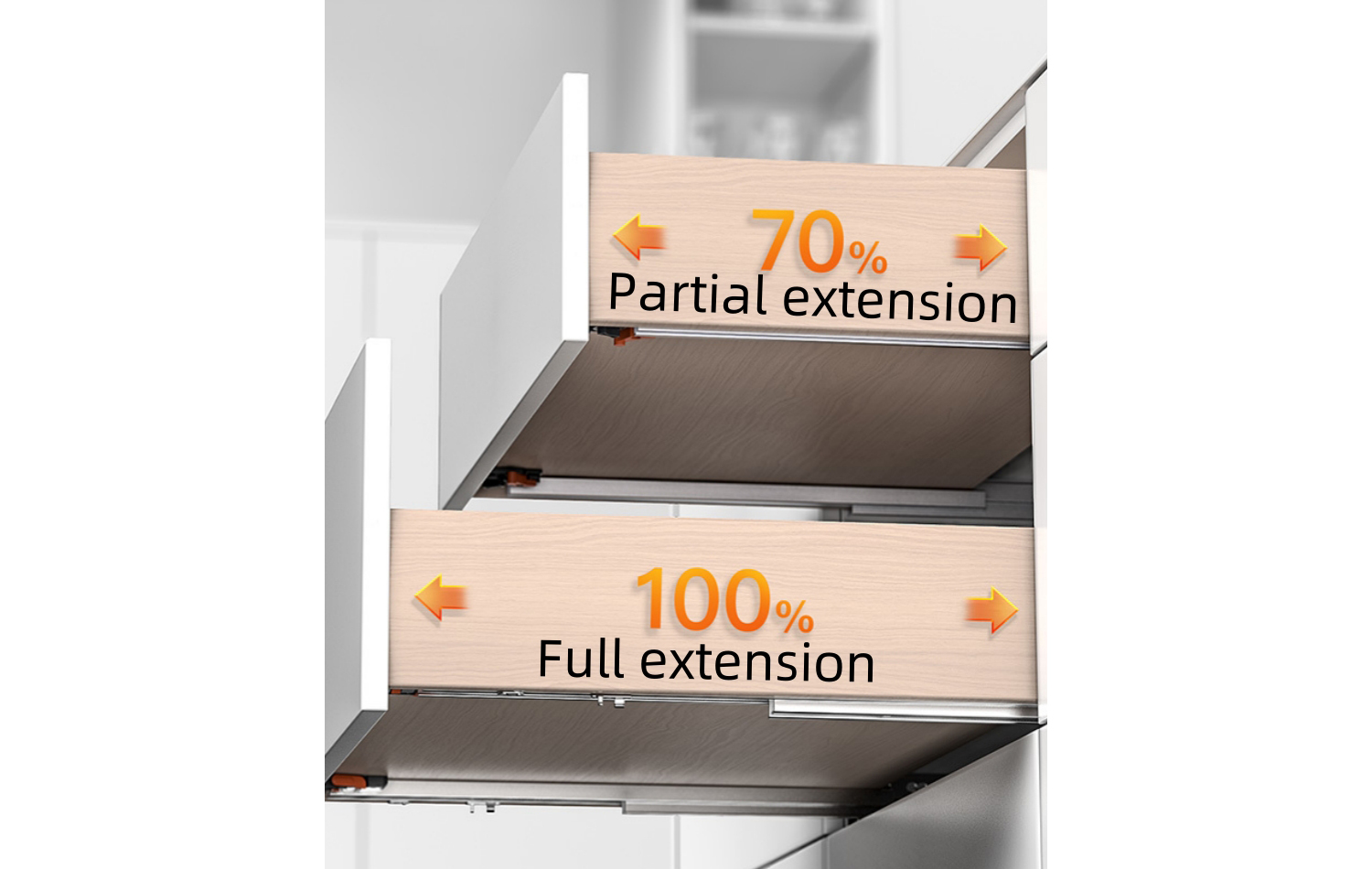

Full extension slides allow the drawer to travel the full length of the slide, exposing 100 percent of the drawer interior. Partial extension slides typically expose about 70 percent of the drawer depth.
