35mm Width Full Extension Ball Bearing Slide Manufacturer

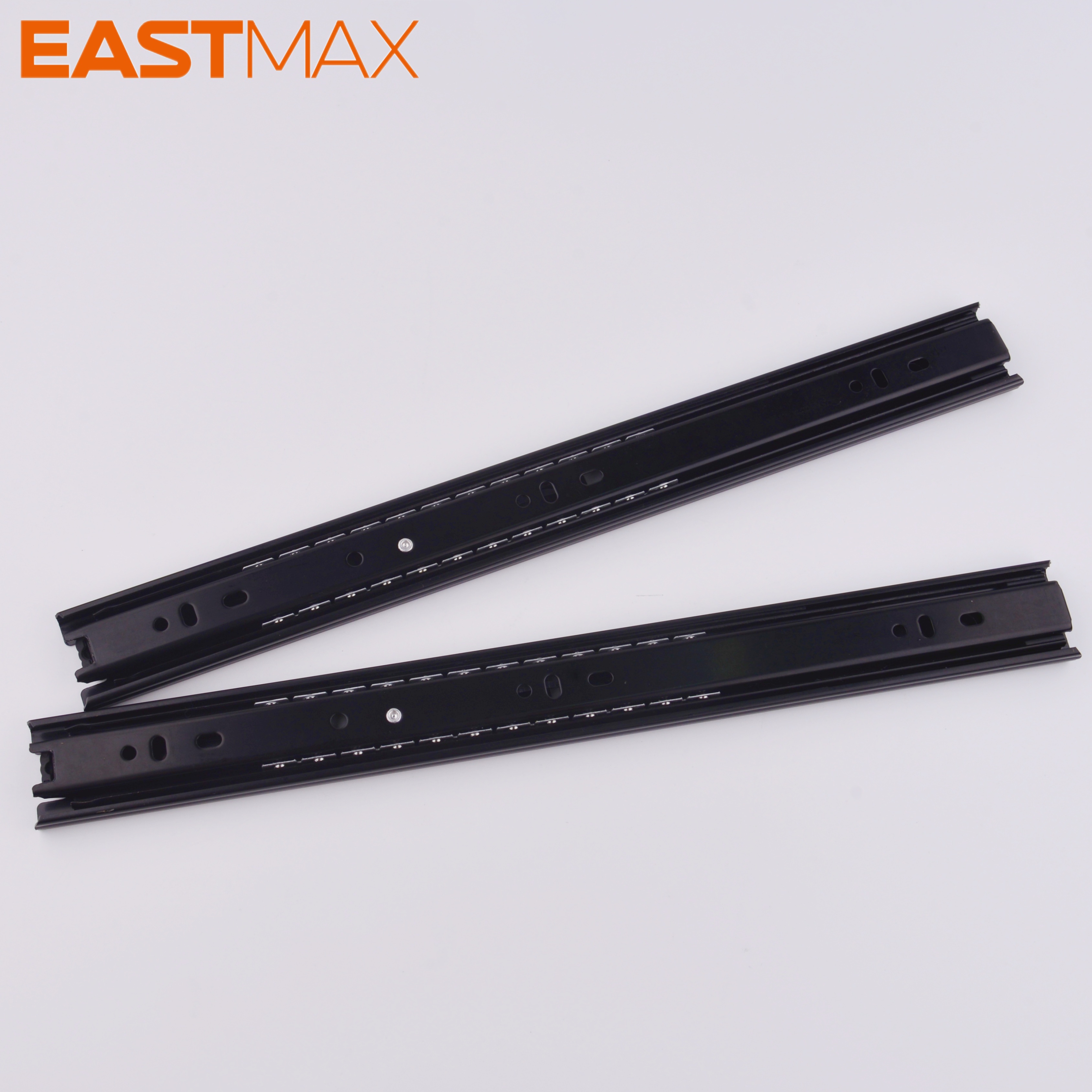

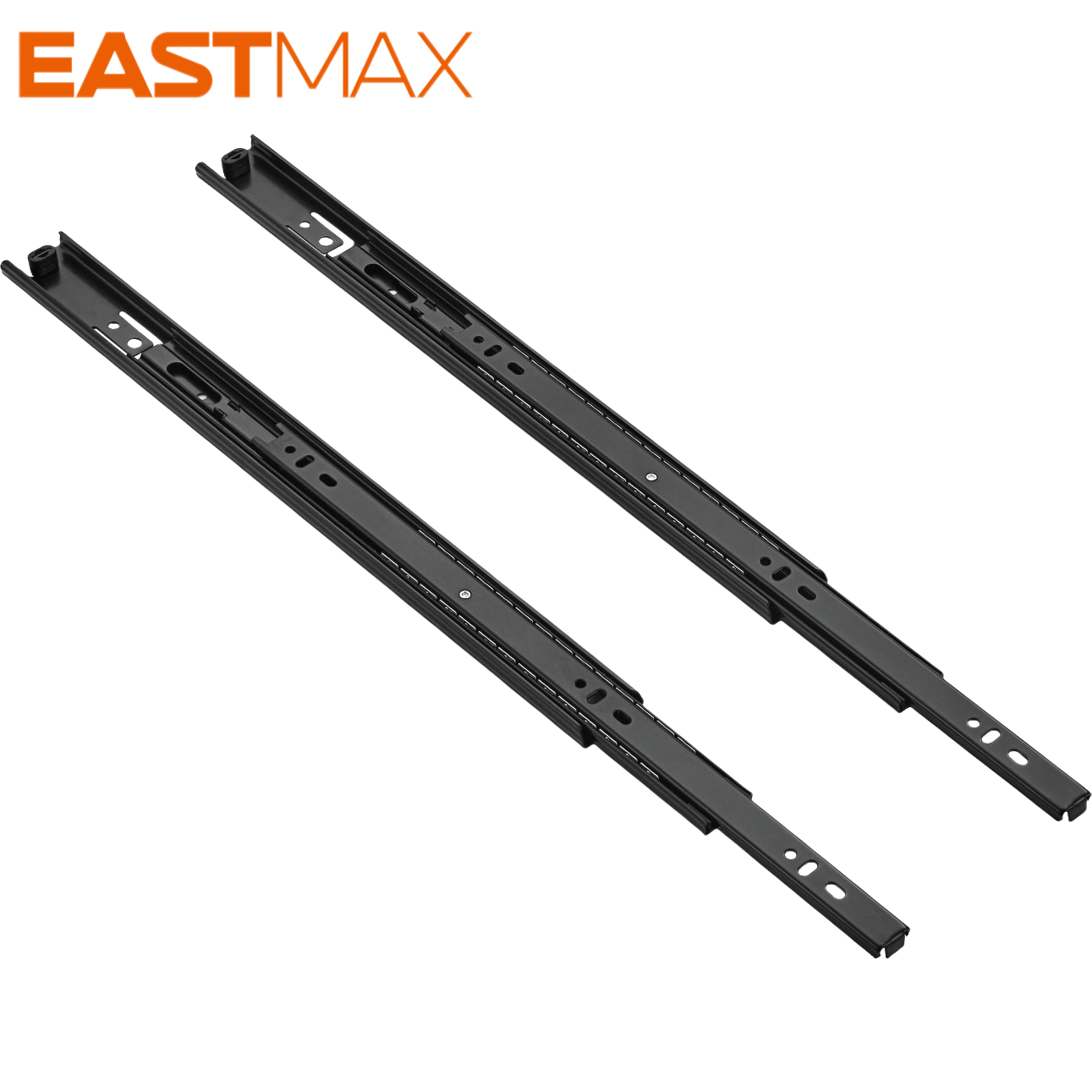

The 35mm width ball bearing drawer slides represent a standard-duty hardware solution designed for commercial furniture and industrial storage applications. Manufactured from cold rolled steel with electroplated blue zinc or black electrophoretic finish options, these three-section full extension slides deliver consistent performance across 250mm to 600mm length configurations. With load ratings ranging from 25kg to 35kg per pair depending on thickness selection, they suit medium-duty drawer requirements in office cabinetry, retail displays, and residential furniture production lines. Commercial procurement teams working on mid-volume furniture projects can select from three material thickness tiers—1.0×1.0×1.2mm, 1.1×1.1×1.4mm, and 1.2×1.2×1.5mm—to match specific load and budget parameters.

Construction and Material Specifications of 35mm Ball Bearing Slides

Cold Rolled Steel Base Structure Each slide assembly consists of three interlocking rail sections formed from cold rolled steel, a material selected for its dimensional stability and uniform surface quality. The rail profiles are precision-stamped to maintain consistent clearance between sections, which contributes to smooth travel along the full extension path. The steel substrate receives either an electroplated blue zinc coating for corrosion resistance in standard indoor environments or a black electrophoretic finish for applications requiring a darker aesthetic and additional surface protection.

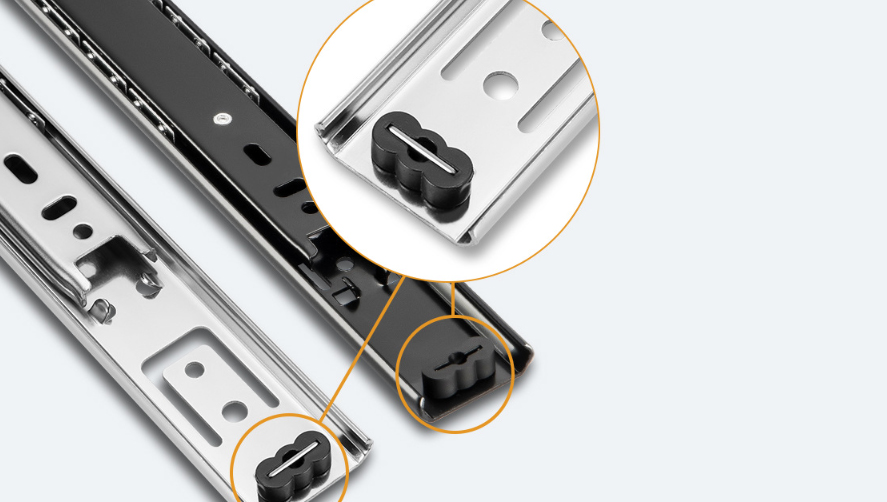

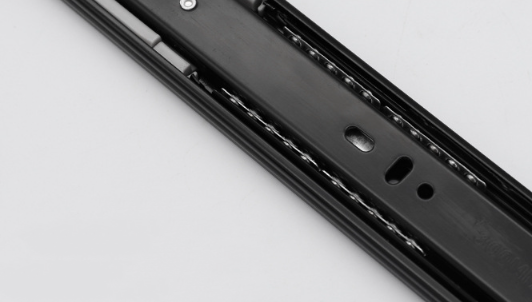

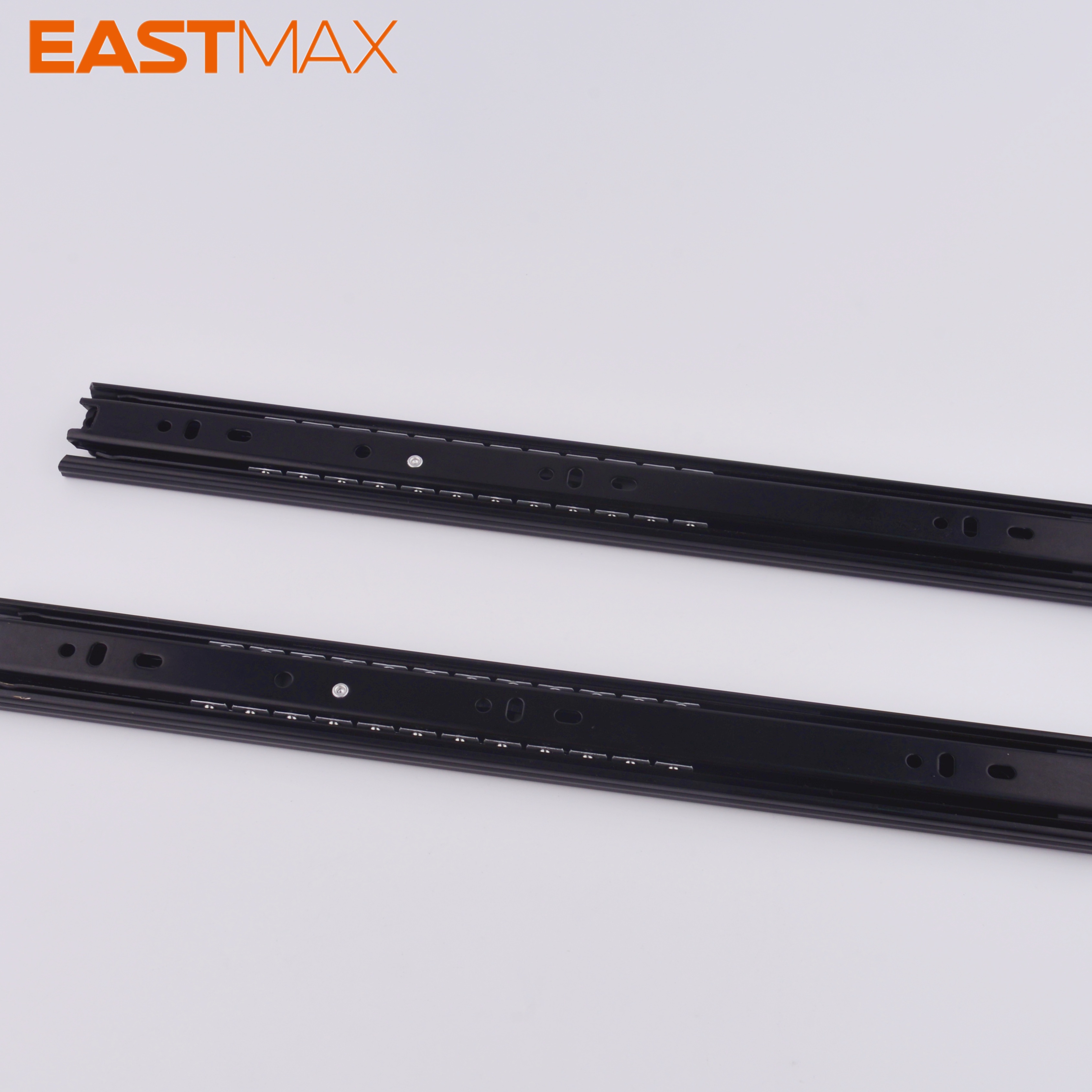

Ball Bearing Cage Assembly Steel ball bearings housed in nylon retainers run along precision-formed raceways integrated into each rail section. The ball cage design distributes load across multiple contact points, reducing point pressure and extending service life under regular cycling. Rubber bumpers positioned at both ends of the travel path absorb impact at full extension and full closure, reducing noise during operation and preventing metal-to-metal contact at the stroke limits.

Full Extension Mechanism and Load Capacity Performance

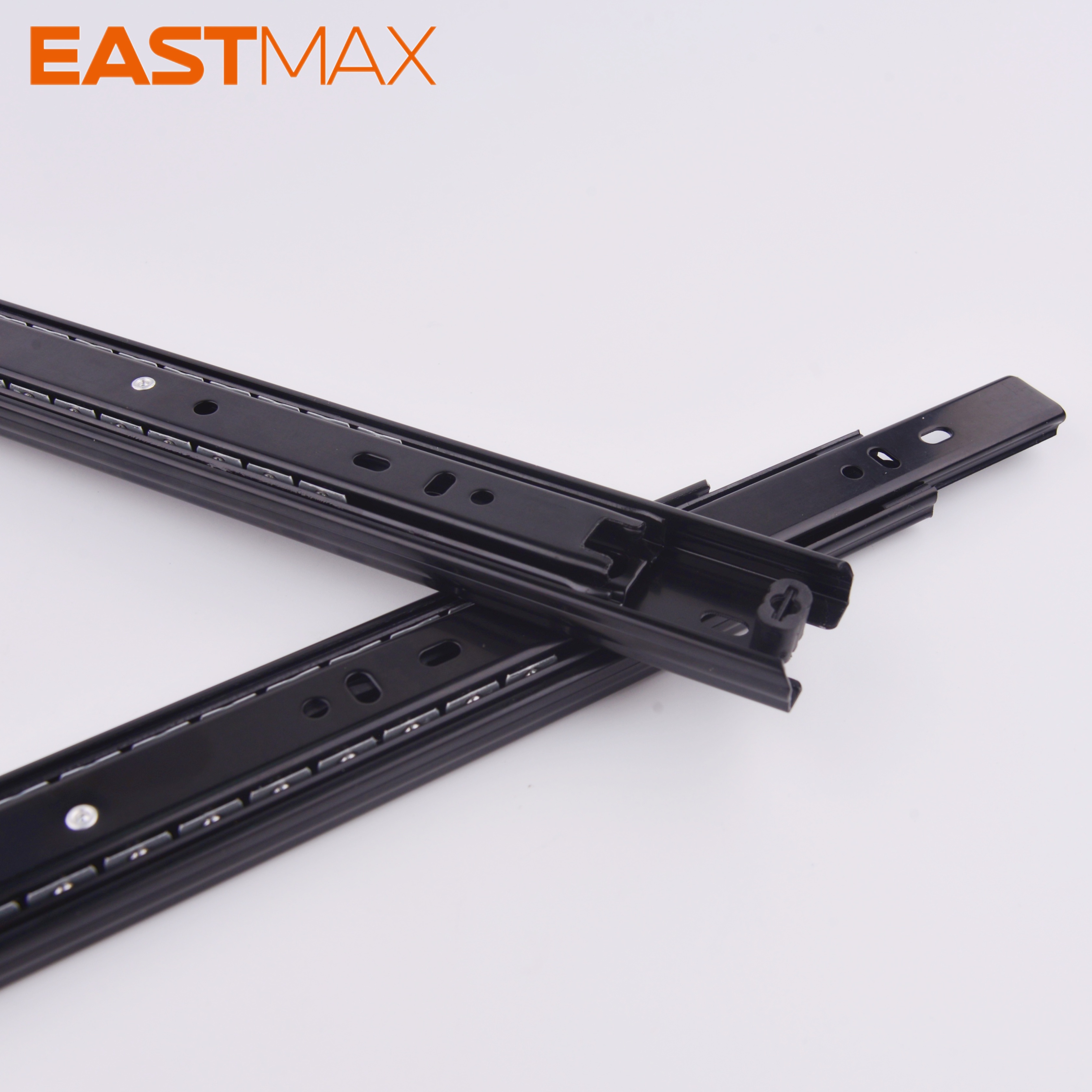

Three-Section Full Extension Travel

The three-section design enables the drawer to extend fully beyond the cabinet face, providing unobstructed access to the entire drawer interior. Full extension travel matches the nominal slide length across all standard sizes—250mm slides deliver 250mm of travel, while 600mm slides deliver 600mm of travel. This 1:1 extension ratio allows furniture designers to maximize storage volume without compromising reach depth, a relevant consideration for commercial cabinetry and industrial tool storage units.

Rated Load Capacity by Thickness

Load capacity varies with material thickness configuration. The 1.0×1.0×1.2mm version supports approximately 25kg per pair, the 1.1×1.1×1.4mm version supports approximately 30kg per pair, and the 1.2×1.2×1.5mm version supports up to 35kg per pair when side-mounted and tested per standard furniture hardware protocols. Load ratings assume evenly distributed weight and proper installation alignment. Furniture engineers should reference the thickness tier when specifying slides for drawers carrying documents, kitchenware, or retail inventory.

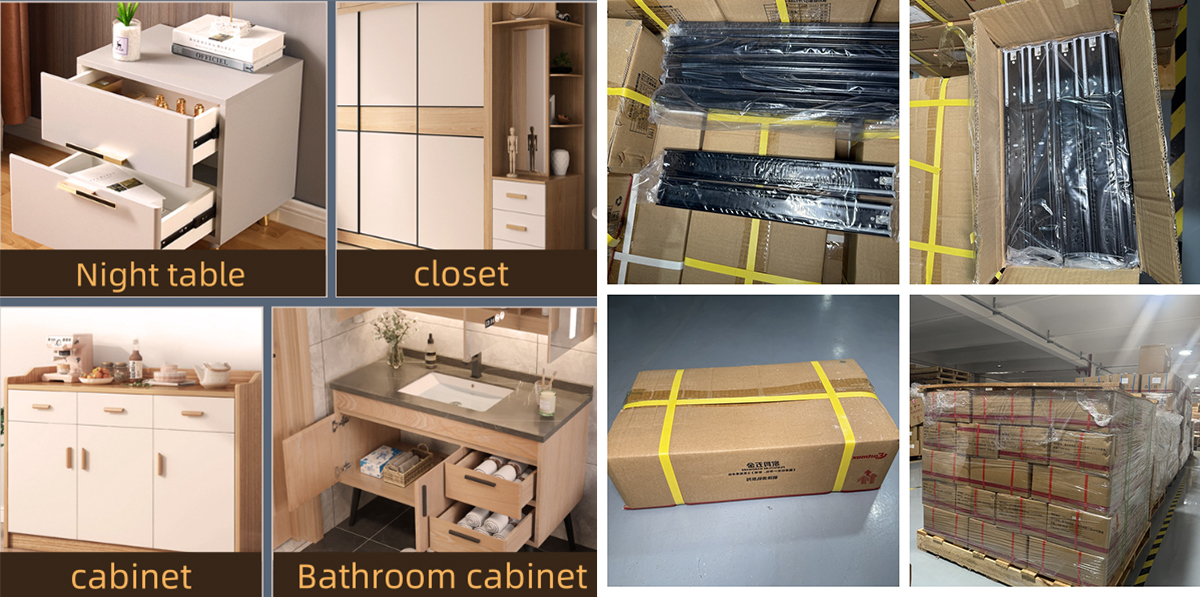

Application Scenarios for Commercial Furniture Hardware

Office and Administrative Furniture

In filing cabinets, desk pedestals, and storage credenzas, the 35mm profile provides a space-efficient solution that accommodates standard drawer depths commonly found in office furniture lines. The medium load rating supports typical office contents including file folders, stationery, and peripheral equipment. Full extension access allows staff to retrieve documents from the rear of drawers without difficulty.

Retail Display and Hospitality Cabinetry

Retail display counters, hospitality storage units, and point-of-sale cabinets benefit from the smooth operation and clean appearance of these slides. Both zinc and black finish options coordinate with different cabinet aesthetics, from modern retail fixtures to traditional hospitality furniture. The rubber bumper system supports quieter operation in customer-facing environments where noise levels affect the overall experience.

Residential Furniture Production

For furniture manufacturers producing dressers, kitchen cabinets, bathroom vanities, and nightstands, these slides offer a cost-effective hardware option with consistent supply availability. The range of available lengths matches standard furniture module dimensions, reducing the need for custom modifications during assembly.

Installation and Mounting Dimensions for 35mm Drawer Runners

Side Mount Configuration

These slides are designed for side-mount installation, with elongated mounting holes that allow for minor positional adjustment during assembly. The hole patterns are spaced to align with standard cabinet construction methods, supporting both screw and bolt fastening depending on the cabinet material. Installation clearance requirements include the 35.3±0.2mm slide height and 12.7-0.3mm side profile dimension, which designers should account for in drawer box width calculations.

Drilling Hole Reference Dimensions

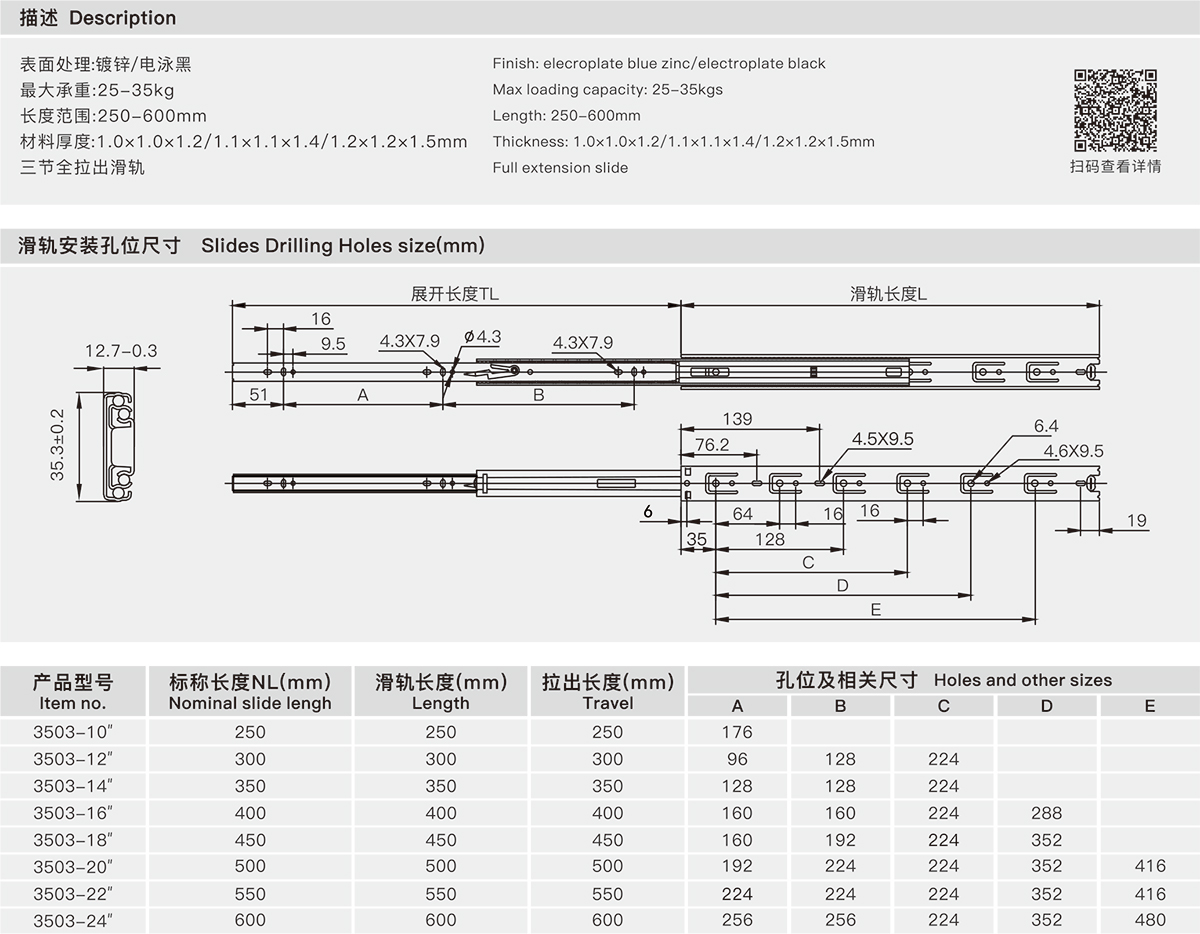

The table below lists nominal slide lengths, travel distances, and critical hole position dimensions for all standard sizes. Furniture designers and production teams can use these dimensions to plan cabinet drilling templates and drawer box machining specifications.

General Specifications:

Finish: electroplate blue zinc / electroplate black

Max loading capacity: 25-35kgs

Length: 250-600mm

Thickness: 1.0×1.0×1.2 / 1.1×1.1×1.4 / 1.2×1.2×1.5mm

Type: Full extension slide

FAQ About Ball Bearing Drawer Slides

How do I determine the correct slide length for my drawer?

Select a slide length that matches the interior depth of the cabinet or the drawer box length. The full extension design means travel distance equals slide length, so a 400mm slide provides 400mm of drawer travel. Measure the cabinet interior depth from the front face frame to the back panel before specifying.

What is the difference between blue zinc and black electrophoretic finishes?

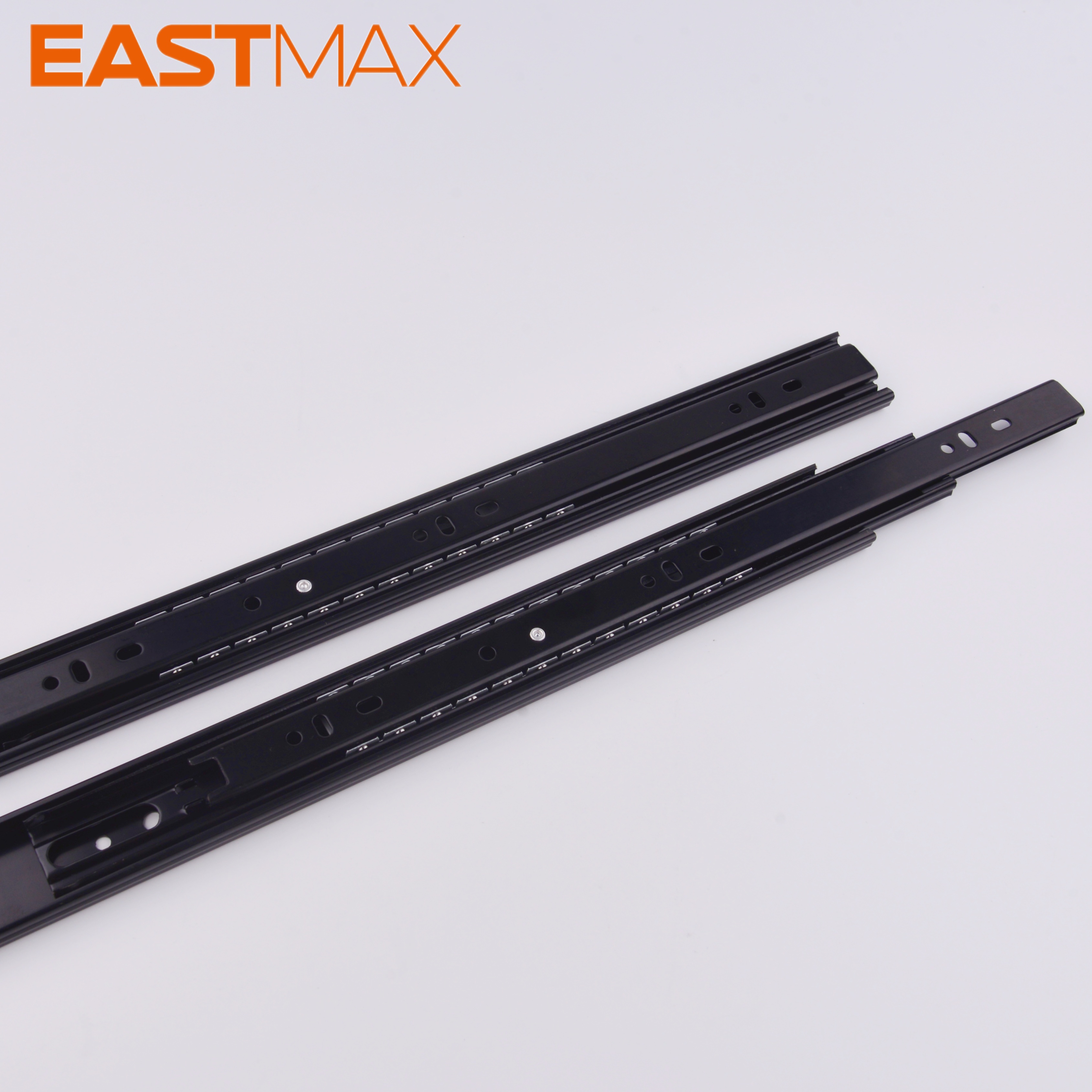

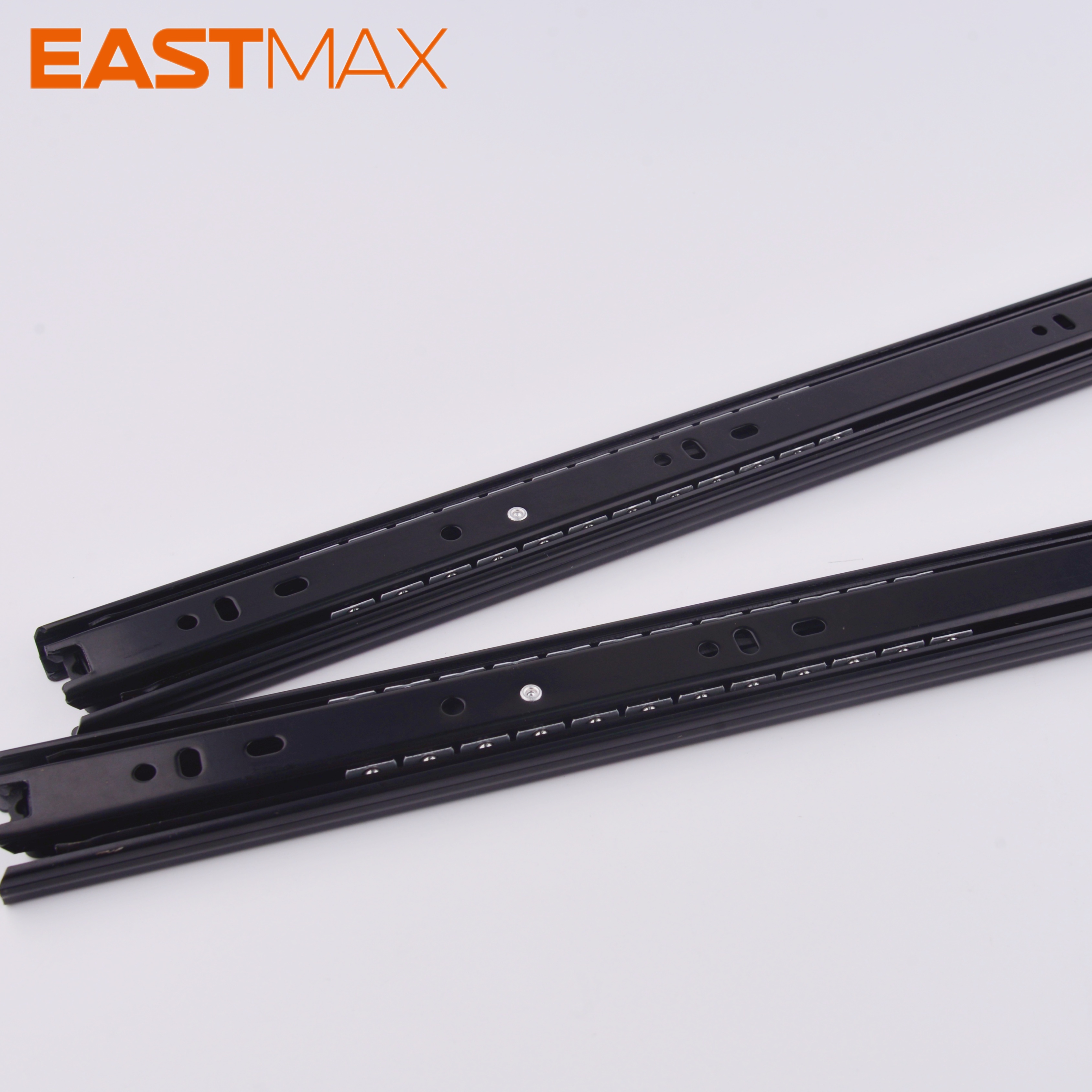

Electroplated blue zinc provides corrosion resistance for standard indoor use and delivers a metallic silver appearance. Black electrophoretic coating produces a uniform black surface with additional corrosion protection, suitable for furniture designs requiring dark hardware or for applications with higher humidity exposure such as bathroom cabinetry.

Can these slides be used for under-mount installation?

These 35mm slides are engineered for side-mount installation only. They attach to the sides of the drawer box and the interior sides of the cabinet. For under-mount applications, a different slide profile would be required. The side-mount configuration works with most standard cabinet construction methods using wood, particleboard, or MDF materials.

What is the minimum order quantity for commercial orders?

Standard sizes are available for volume procurement with flexible MOQ policies depending on the specific length and finish configuration. Custom length options or special finish requirements may require adjusted minimum quantities and lead times. Business buyers can submit detailed specification sheets for quotation on production orders.

How should load capacity be calculated for drawer design?

Rated load capacities refer to evenly distributed weight per pair of slides when installed per manufacturer guidelines. For drawers carrying concentrated loads or operating under frequent cycling conditions, select the next thickness tier to maintain performance margins. Load testing assumes side-mount installation, horizontal alignment, and static weight distribution.
