Smooth Glide 45mm Ball Bearing Runners for Commercial Furniture

The 45mm width ball bearing drawer runners are engineered for medium to heavy-duty commercial furniture applications where higher load capacity and extended travel are required. Constructed from cold rolled steel with electroplated blue zinc or black electrophoretic finish options, these three-section full extension slides are available in lengths from 250mm to 700mm with corresponding full extension travel. Rated load capacities range from 30kg to 45kg per pair across three material thickness configurations—1.0×1.0×1.2mm, 1.1×1.1×1.4mm, and 1.2×1.2×1.5mm. Furniture manufacturers, commercial procurement specialists, and industrial storage solution providers specify these 45mm runners for kitchen cabinetry, office filing systems, retail display units, and heavy residential furniture where durability under regular use is a primary consideration.

Construction and Material Specifications of 45mm Ball Bearing Runners

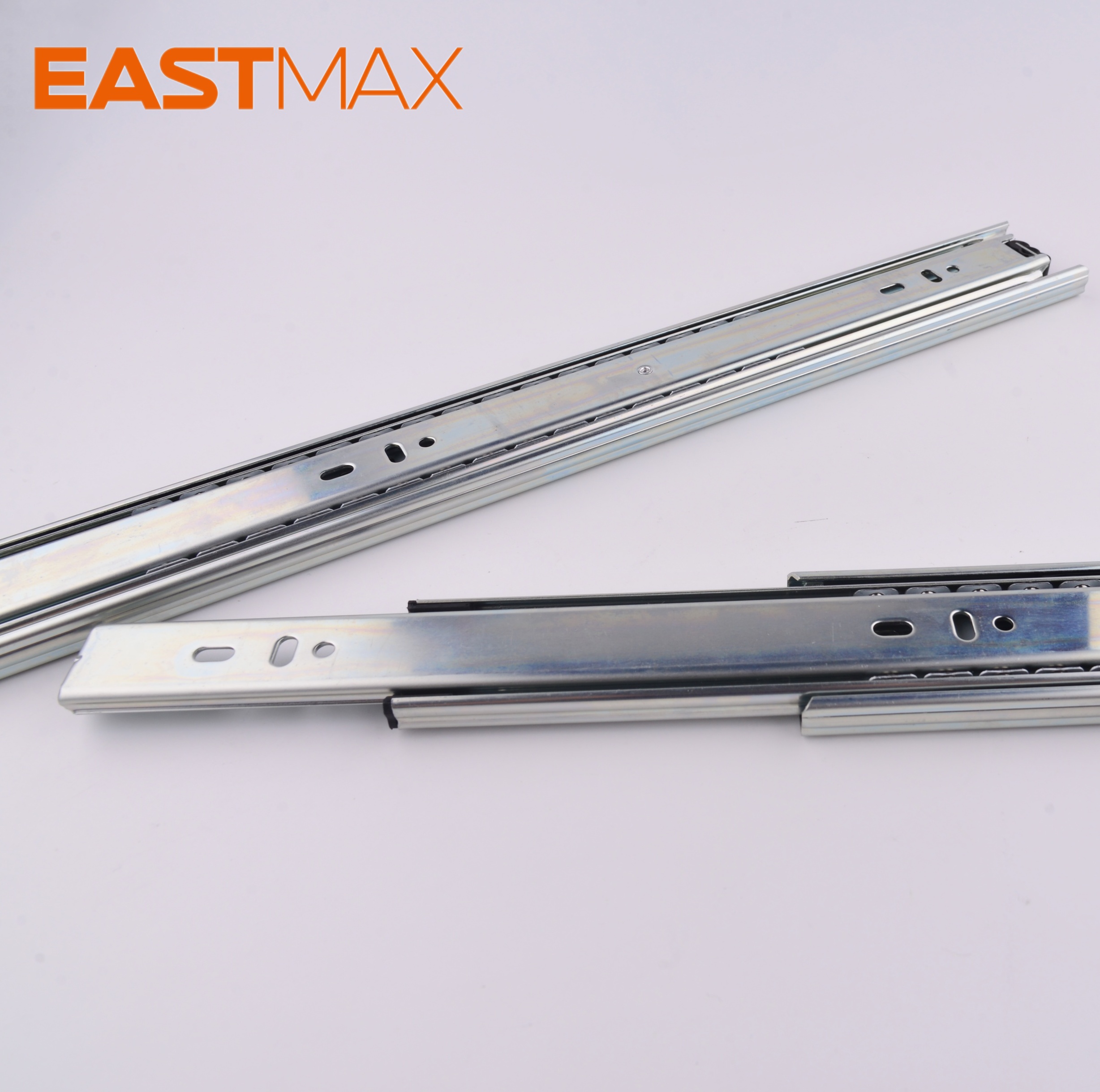

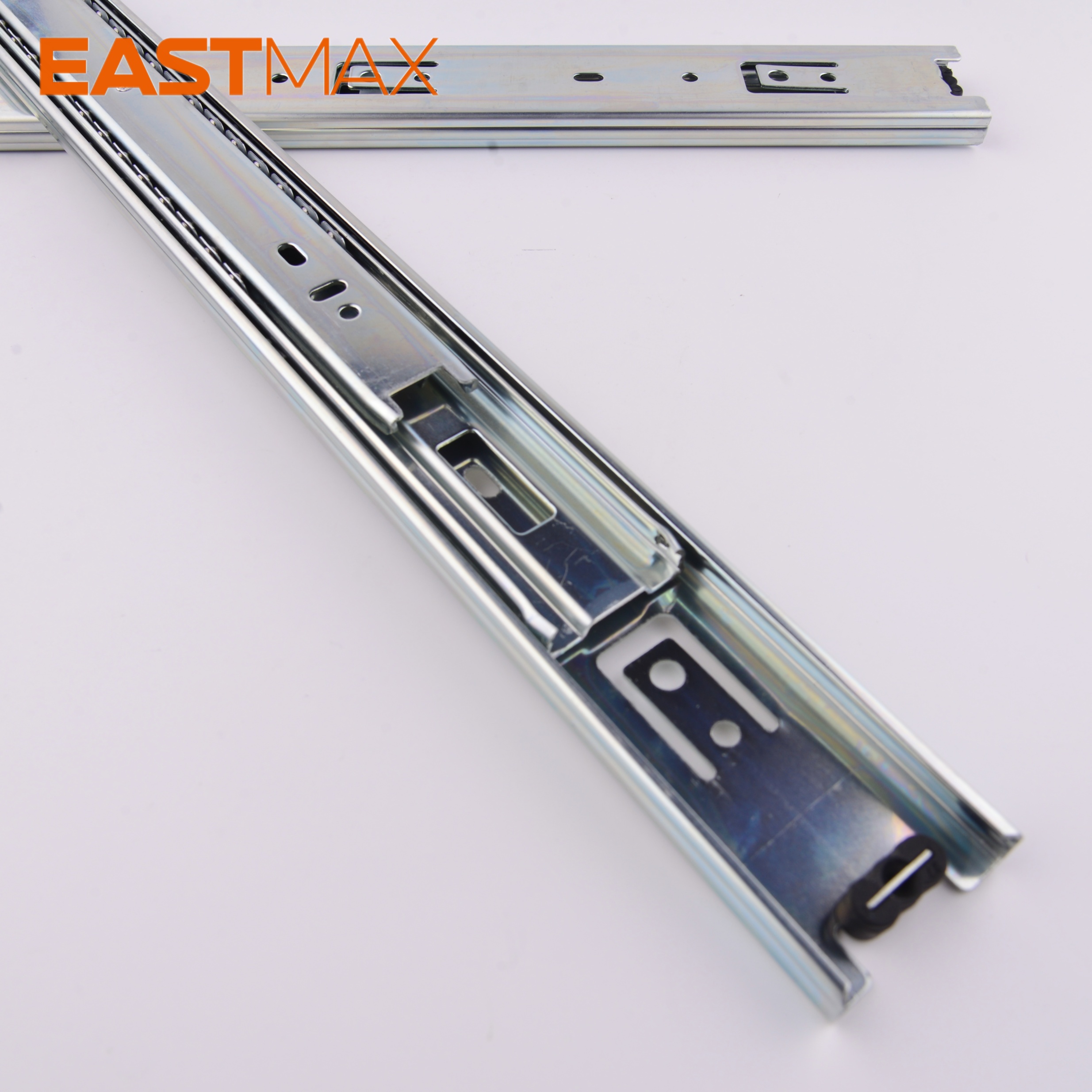

	Cold Rolled Steel Rail Structure Each runner assembly comprises three precision-stamped cold rolled steel sections that interlock through integrated ball bearing raceways. The 45mm profile provides wider rail surfaces compared to narrower alternatives, contributing to increased lateral stability and higher load distribution across the bearing contact areas. Cold rolled steel is selected for its consistent material properties and smooth surface finish, which supports uniform raceway formation during the stamping process.

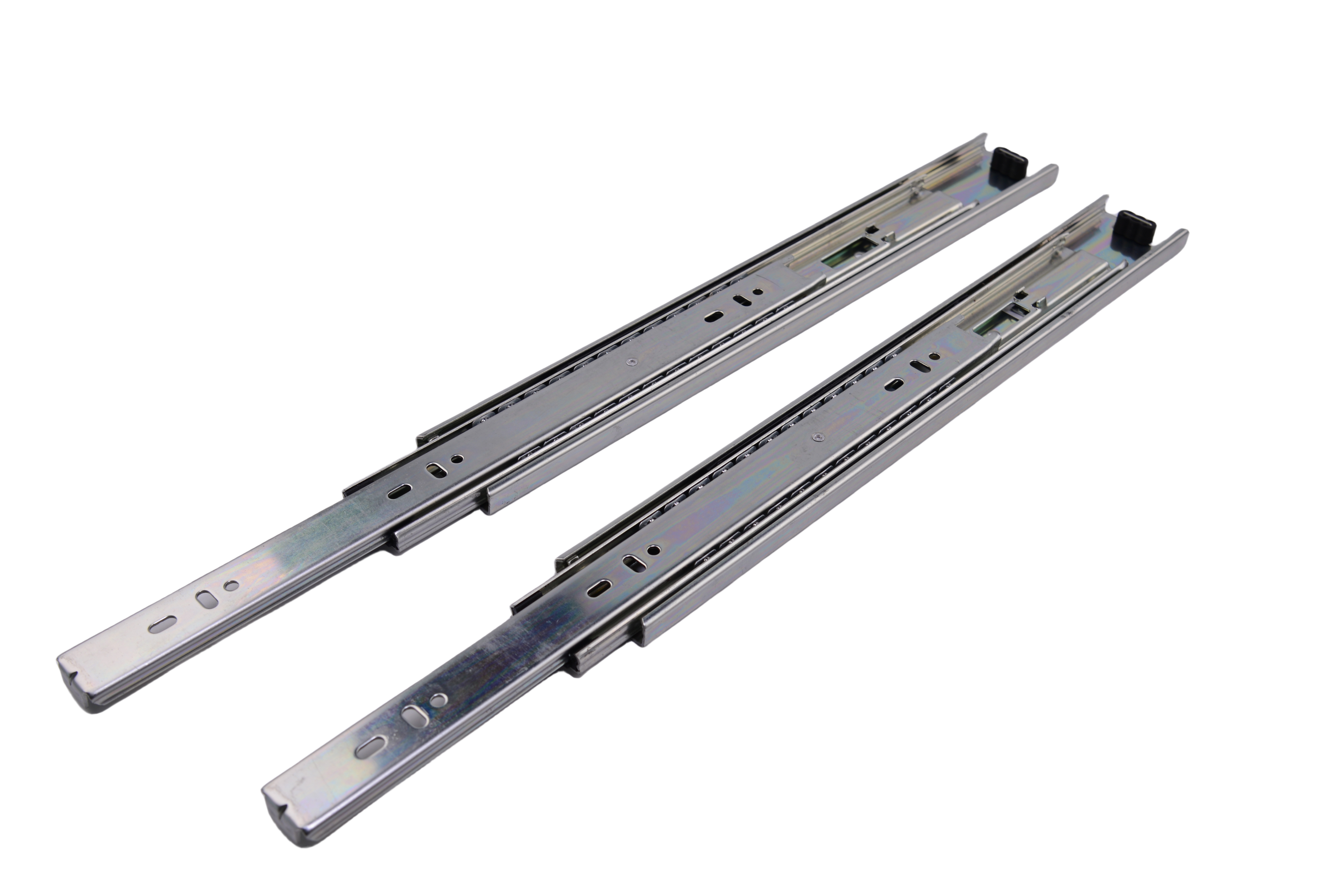

Surface Finish Options Two standard surface treatments are available. Electroplated blue zinc delivers a metallic silver finish with corrosion resistance suitable for most indoor commercial environments. Black electrophoretic coating provides a uniform matte black surface with enhanced corrosion protection for higher-humidity areas or design specifications requiring dark hardware. Both finishes are applied following fabrication to cover all exposed metal surfaces of the assembled runner.

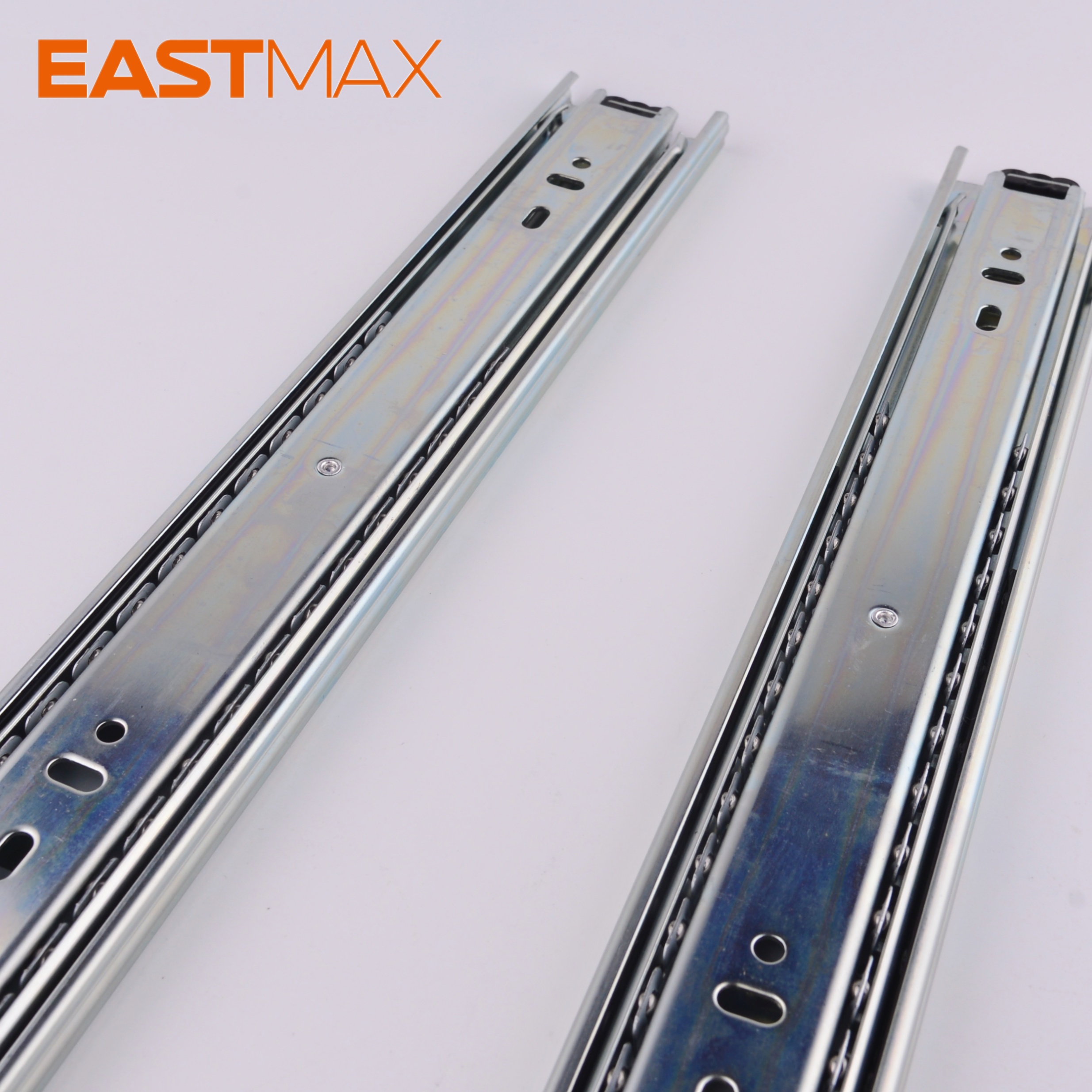

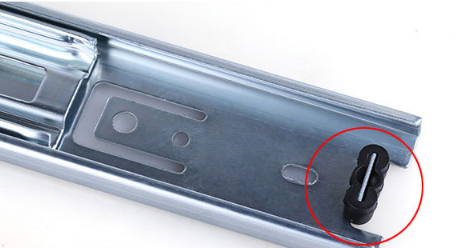

	Ball Bearing and Bumper Components Steel ball bearings contained within polymer retainers circulate along the formed raceways in each rail section, enabling low-friction travel throughout the extension range. The bearing cage maintains consistent ball spacing, preventing contact between individual bearings and ensuring smooth operation across the full stroke. Rubber bumpers integrated at the front and rear travel limits absorb impact at full extension and full closure positions, reducing operational noise and protecting rail ends from direct metal impact.

Full Extension Mechanism and Load Bearing Performance

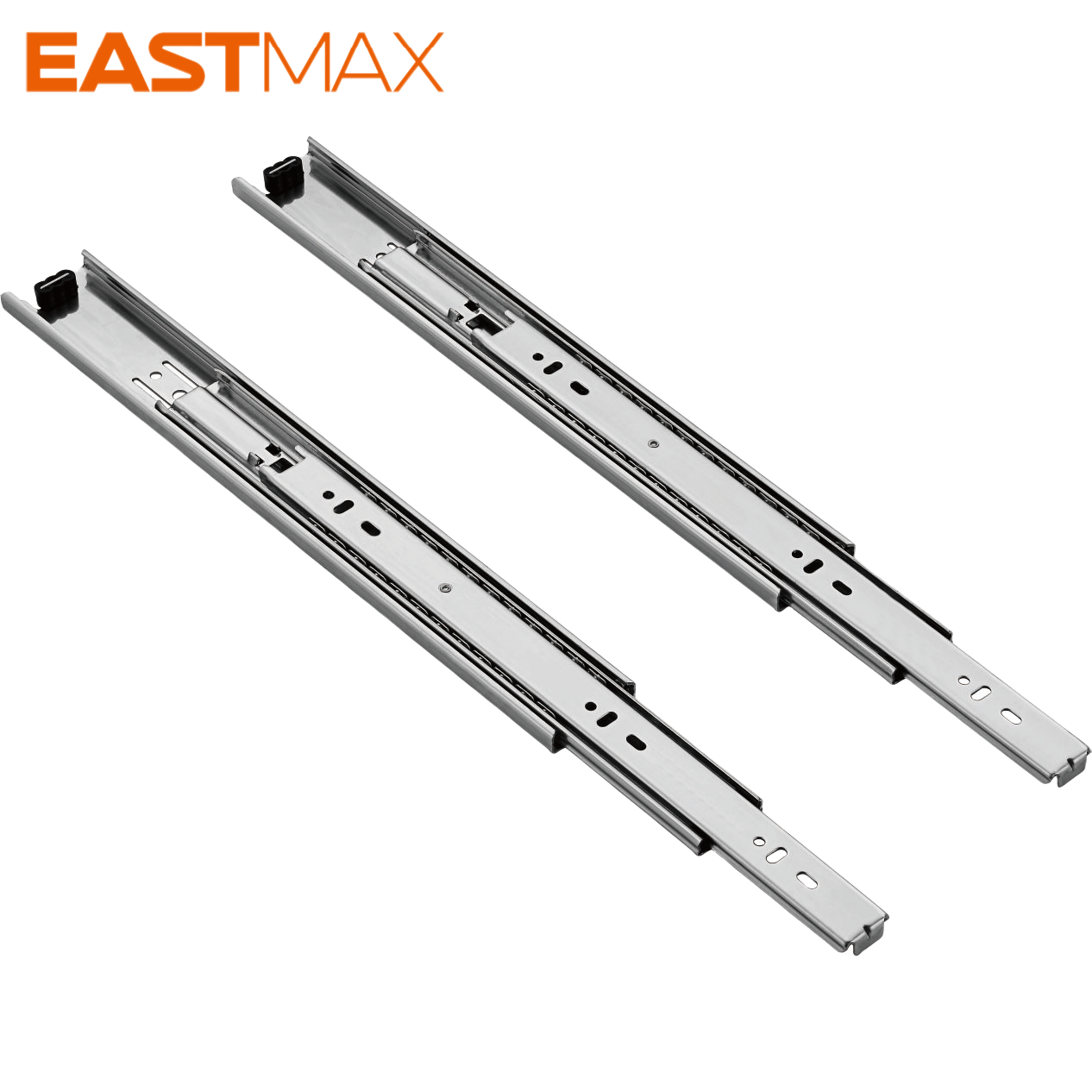

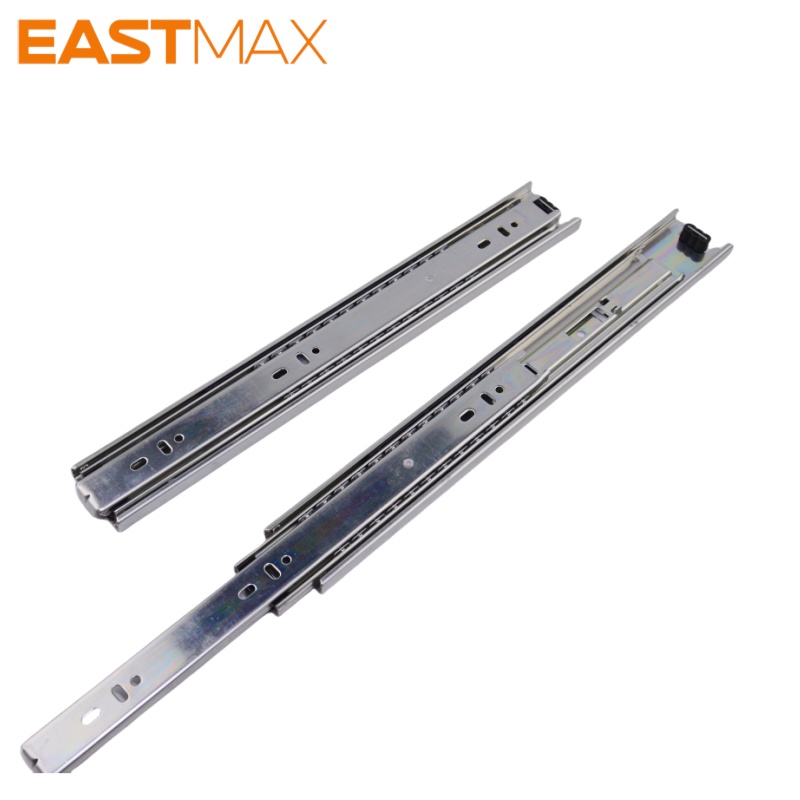

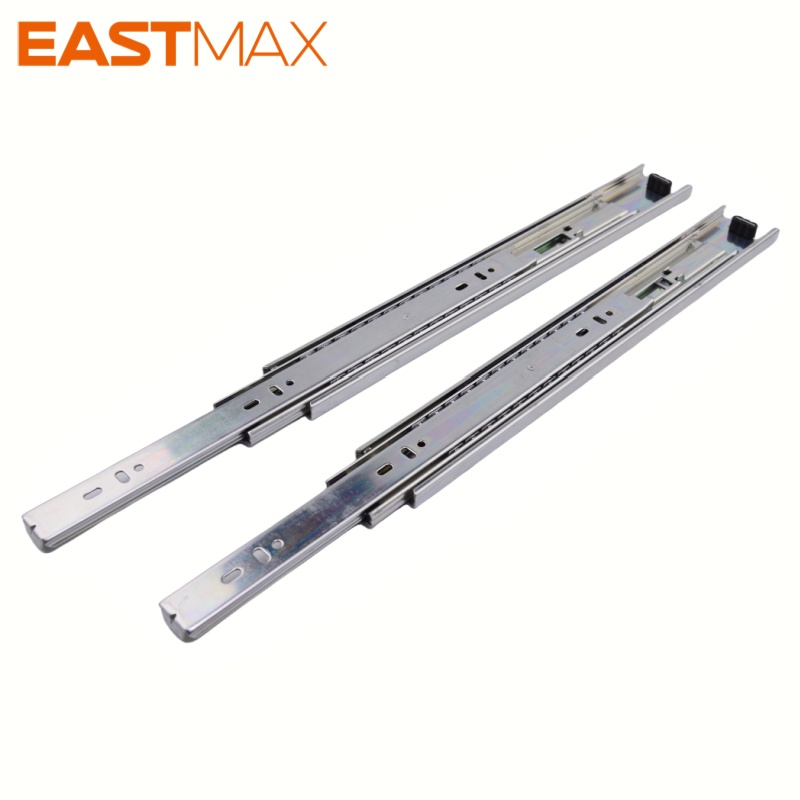

Three-Section Full Extension Travel

The three-section design delivers full extension where travel distance equals nominal runner length, allowing complete access to drawer interiors. This 1:1 extension ratio applies across all standard sizes from 250mm through 700mm, enabling designers to specify consistent hardware behavior across different drawer depth configurations. Full extension access is particularly relevant for deep storage drawers in commercial kitchens, industrial tool cabinets, and archive filing systems where rear access impacts operational efficiency.

Load Capacity by Thickness Configuration

Load ratings correspond to material thickness tiers. The 1.0×1.0×1.2mm configuration supports approximately 30kg per pair, the 1.1×1.1×1.4mm configuration supports approximately 35kg per pair, and the 1.2×1.2×1.5mm configuration supports up to 45kg per pair under standard side-mount installation and evenly distributed load conditions. Commercial procurement teams should match thickness selection to the intended drawer contents, with the heaviest tier reserved for drawers carrying tableware, tools, dense file storage, or retail inventory.

Application Scenarios for Commercial Furniture Hardware

Commercial Kitchen and Hospitality Cabinetry

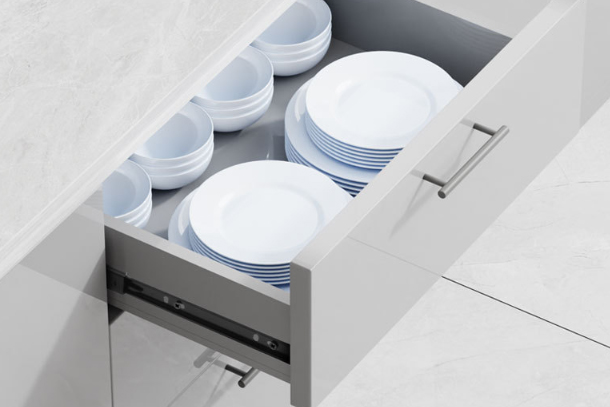

In restaurant kitchens, hotel housekeeping carts, and catering storage units, the 45mm runner supports drawers carrying tableware, cookware, and supply inventory. The higher load capacity accommodates stacked dishware and metal utensils, while the zinc finish withstands regular cleaning cycles typical of food service environments. Full extension access allows kitchen staff to reach items at the back of deep drawers without shifting contents.

Office Filing and Document Storage Systems

For legal filing cabinets, administrative storage walls, and personnel file systems, the 45mm profile delivers the load capacity required for densely packed paper documents. The full extension feature supports proper file retrieval from front to back without manual repositioning, which contributes to efficient records management in corporate and government office settings.

Retail Display and Inventory Storage

Retail environments including department store fixtures, specialty shop display counters, and back-of-house stock drawers benefit from the smooth operation and load capacity of these runners. Both finish options coordinate with different retail design schemes, from contemporary zinc-accented displays to all-black boutique fixtures. The rubber bumper system supports quieter drawer operation on sales floors.

Industrial Workstation and Tool Storage

In workshop cabinets, maintenance stations, and assembly workstations, the 45mm runner handles drawers containing hand tools, replacement parts, and assembly components. The steel construction and multiple thickness options allow facilities engineers to specify the appropriate load tier based on tool weight and usage frequency.

Installation and Mounting Dimensions for 45mm Drawer Runners

Side Mount Installation Method

These runners are designed for side-mount installation with elongated mounting holes that permit horizontal and vertical adjustment during cabinet assembly. The elongated hole pattern accommodates minor variations in cabinet construction and allows installers to fine-tune drawer alignment. Standard installation requires clearance for the 45.3±0.2mm runner height and 12.6±0.1mm side profile dimension, which must be factored into drawer box width calculations during the design phase.

Drilling Hole and Dimension Specifications

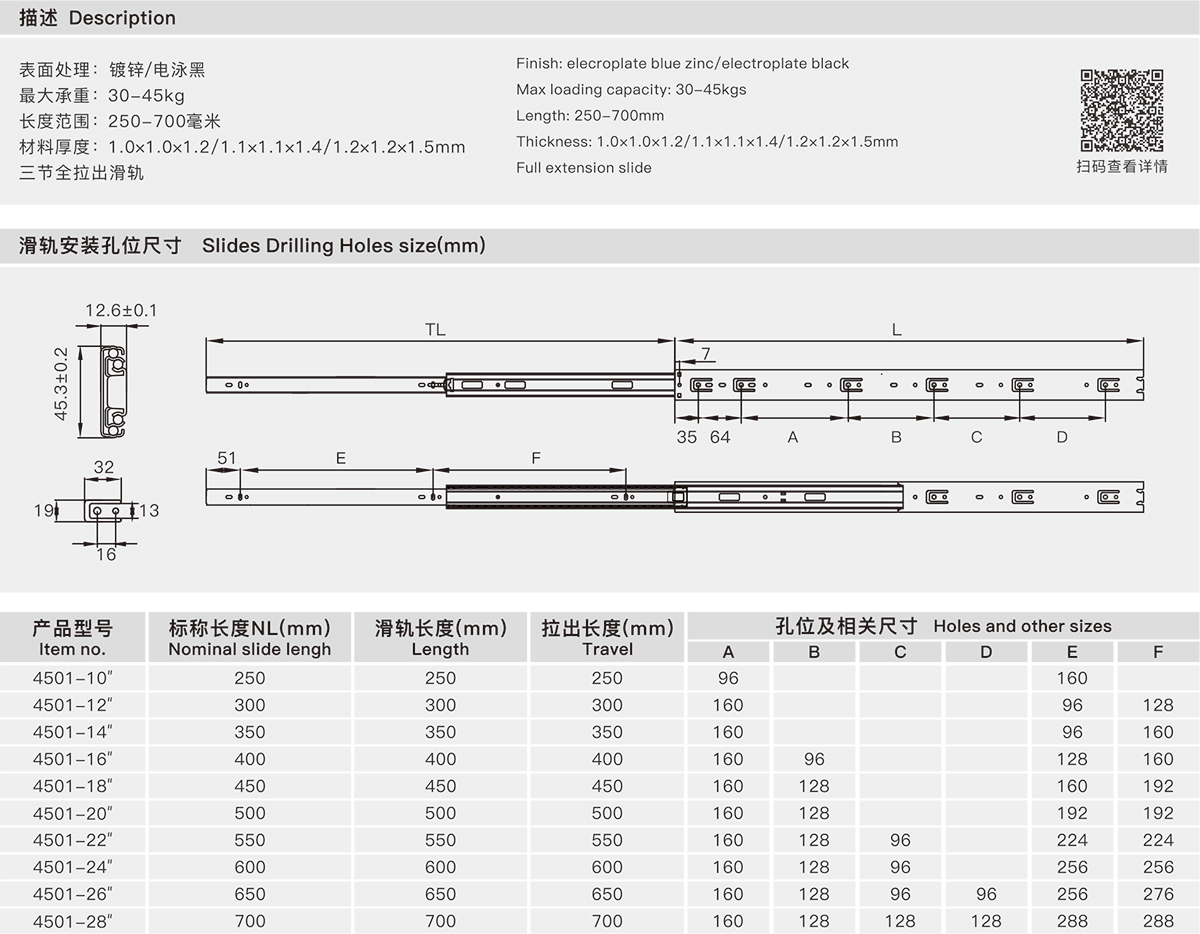

The table below provides nominal dimensions, travel distances, and hole position references for all standard 45mm runner sizes. These dimensions support the creation of drilling templates and machining specifications for volume furniture production.

General Specifications:

Finish: electroplate blue zinc / electroplate black

Max loading capacity: 30-45kgs

Length: 250-700mm

Thickness: 1.0×1.0×1.2 / 1.1×1.1×1.4 / 1.2×1.2×1.5mm

Type: Full extension slide

FAQ About Ball Bearing Drawer Runners

What length runner should I select for my cabinet depth?

Choose a runner length that matches the interior depth of your cabinet or the length of your drawer box. Since these are full extension runners, the travel distance equals the runner length—for example, a 500mm runner provides 500mm of drawer extension. Measure from the cabinet front opening to the interior back panel before finalizing specifications.

How does the 45mm runner compare to narrower 35mm slides?

The 45mm profile offers wider rail surfaces and higher load capacity across equivalent thickness tiers, with the top tier supporting up to 45kg per pair compared to 35kg for the 35mm version. The 45mm line also extends to 700mm lengths while the 35mm line reaches 600mm. Select the 45mm runner for heavier drawer contents or deeper cabinet configurations.

Are both finishes suitable for humid environments?

Electroplated blue zinc provides standard corrosion resistance for dry to moderately humid indoor areas. Black electrophoretic coating offers enhanced corrosion protection and is better suited for bathrooms, kitchen areas, or facilities with higher ambient humidity. For extreme moisture conditions such as outdoor cabinets, additional sealing or stainless steel hardware would be required.

Can I order custom lengths or special hole patterns?

Standard production covers the ten listed sizes from 250mm to 700mm. Custom length specifications or modified hole patterns are available for volume production orders with adjusted minimum quantities and lead times. Furniture manufacturers working on dedicated product lines can submit technical drawings for evaluation and quotation.

How is load capacity tested and what conditions apply?

Published load ratings represent per-pair capacity under side-mount installation with evenly distributed static weight, following standard furniture hardware testing conventions. Actual performance depends on proper installation alignment, uniform load distribution, and cycling frequency. For applications involving frequent daily operation or concentrated point loads, specify the next higher thickness tier to maintain performance margins over the product service life.
