The TY201 series concealed undermount telescopic drawer slides provide a hidden installation solution for cabinet and furniture manufacturing. Designed for commercial furniture production and joinery projects, these slides mount beneath the drawer box, leaving side panels visible for a clean interior appearance. The galvanized steel construction supports a load capacity of 25 kilograms per pair, with length options ranging from 250mm to 600mm to accommodate different drawer depths.

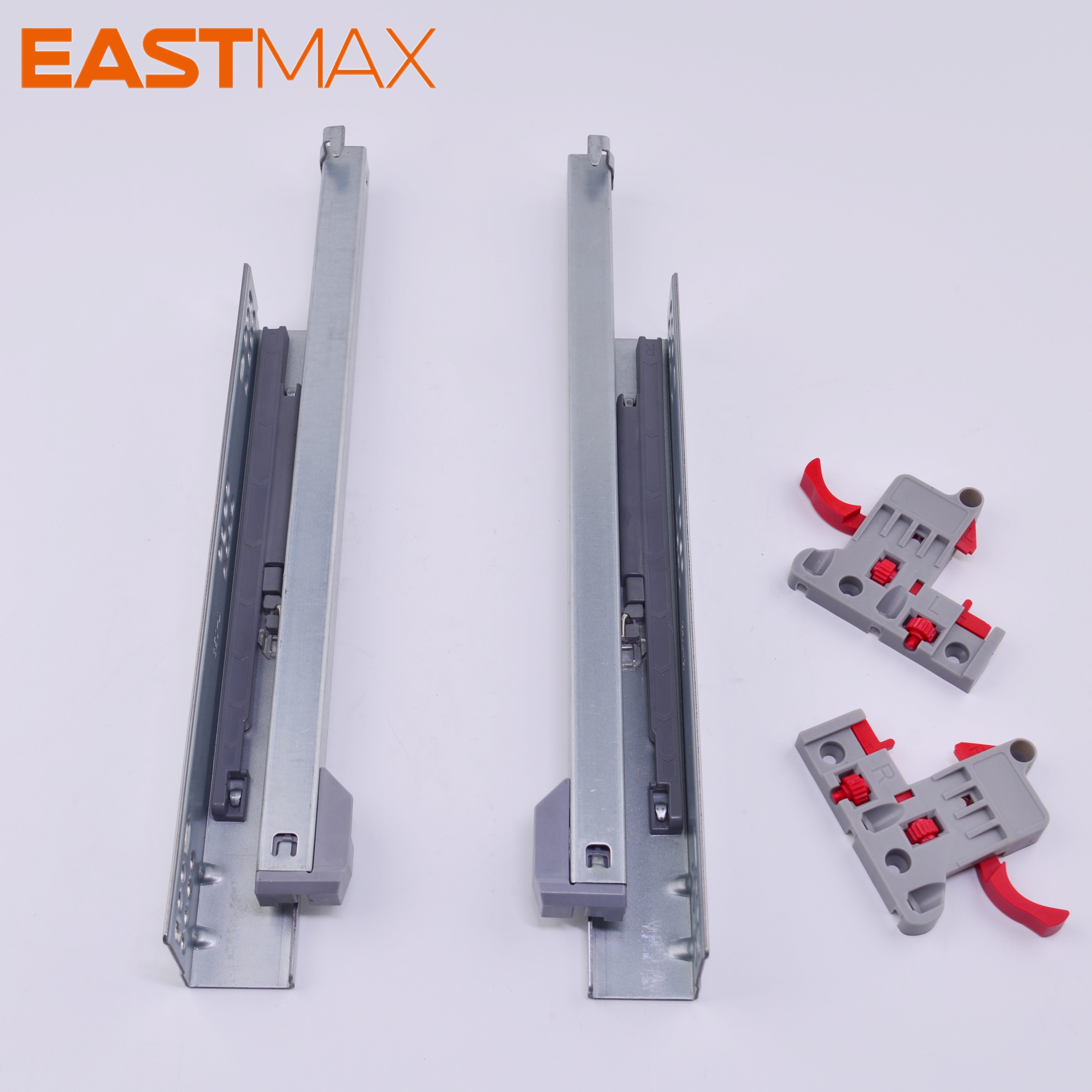

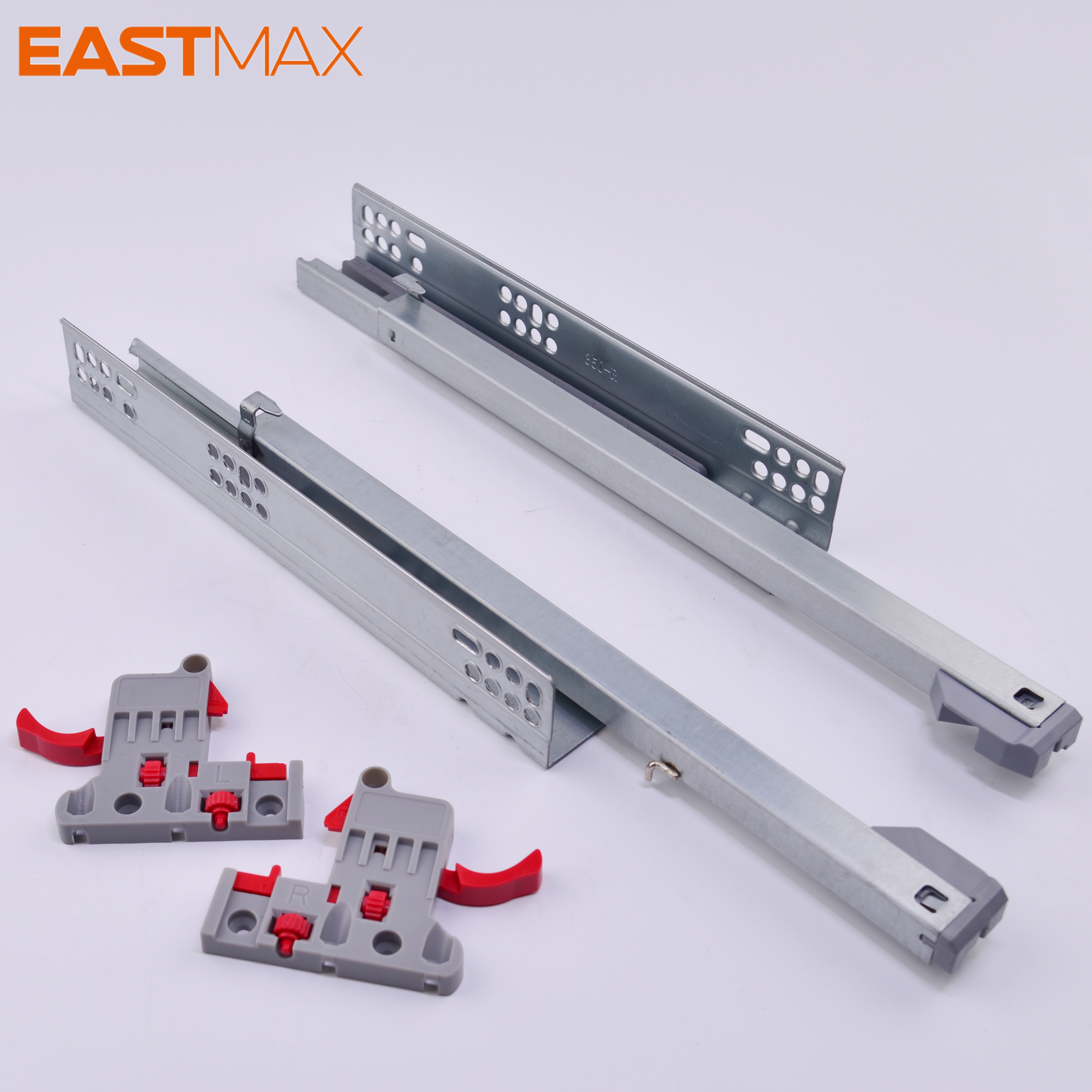

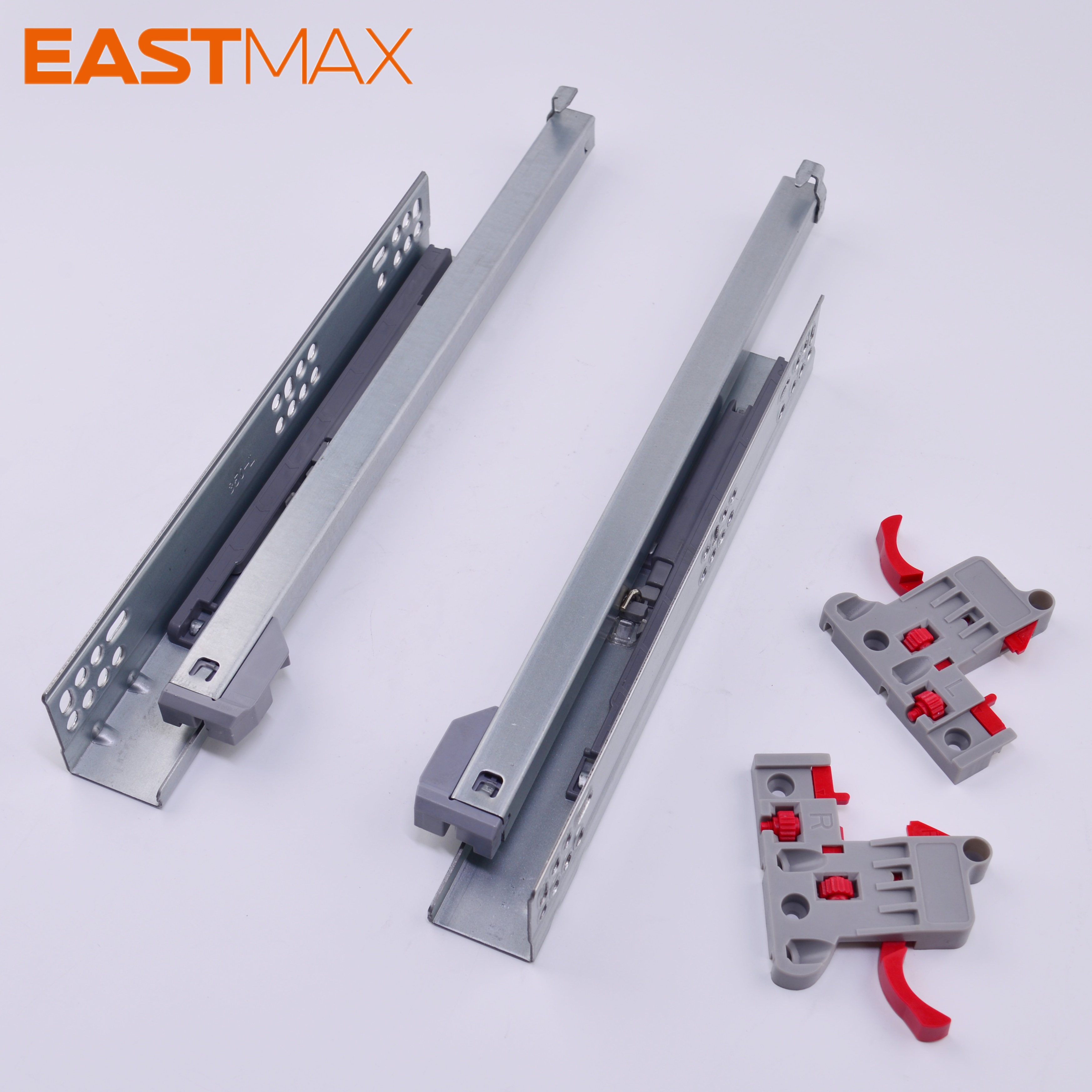

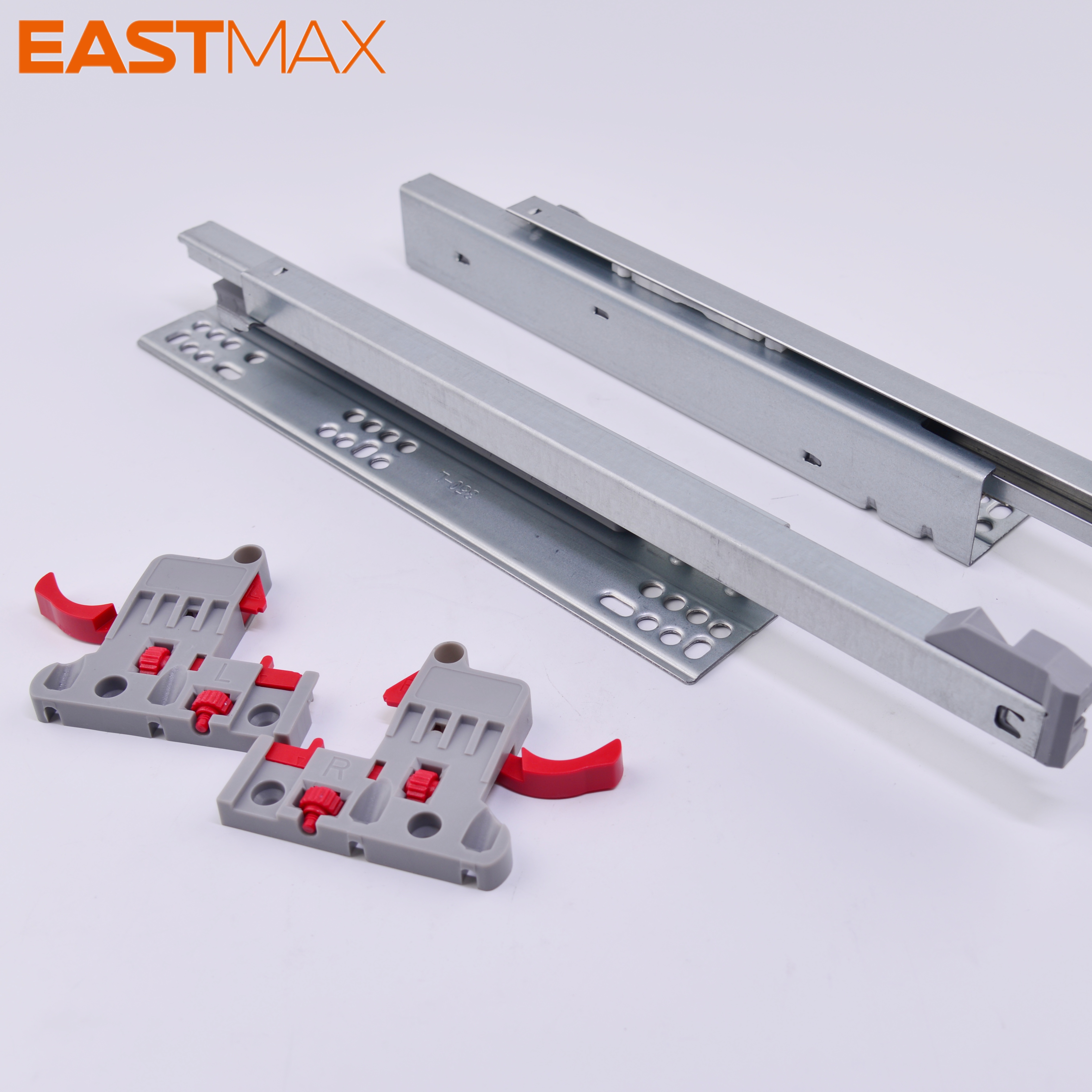

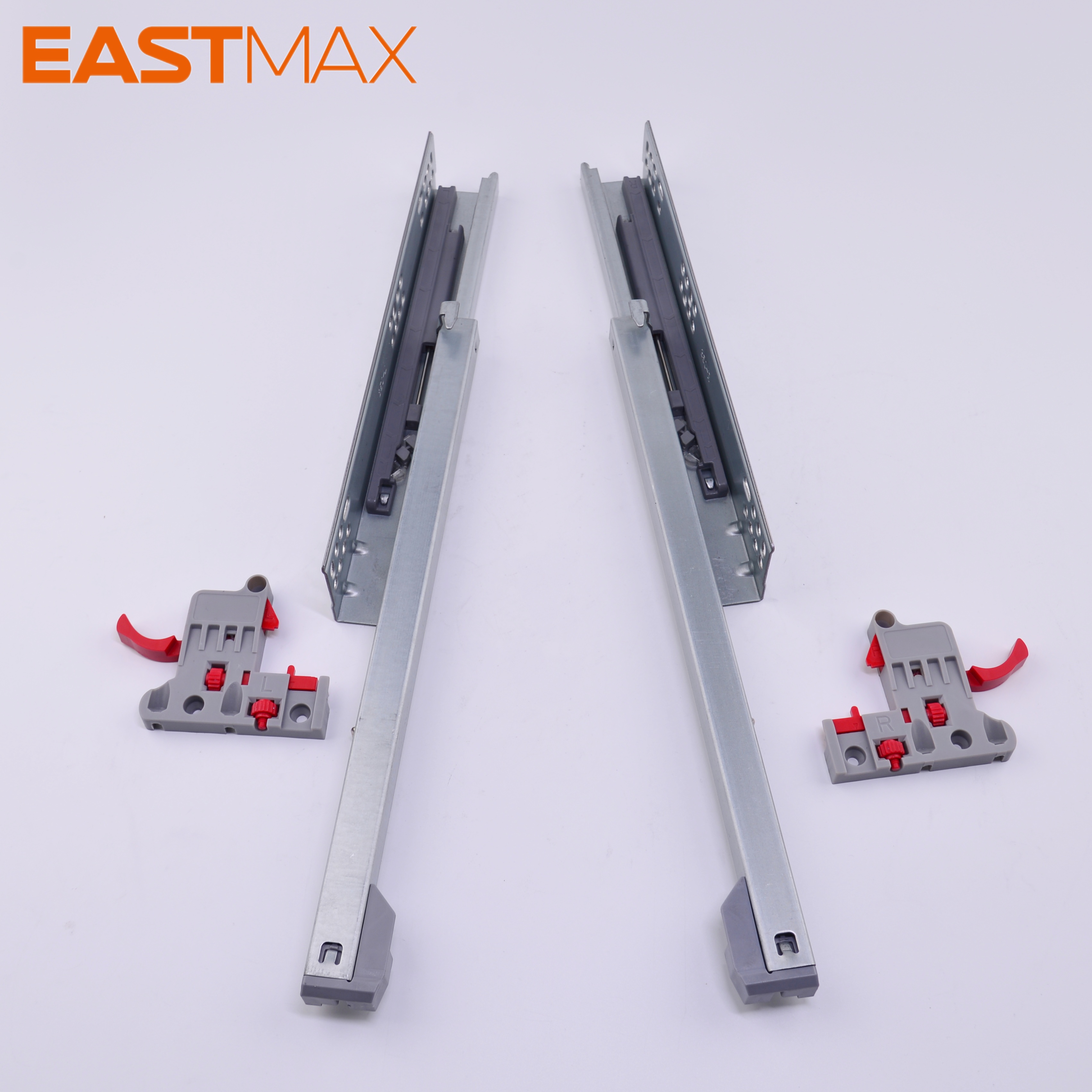

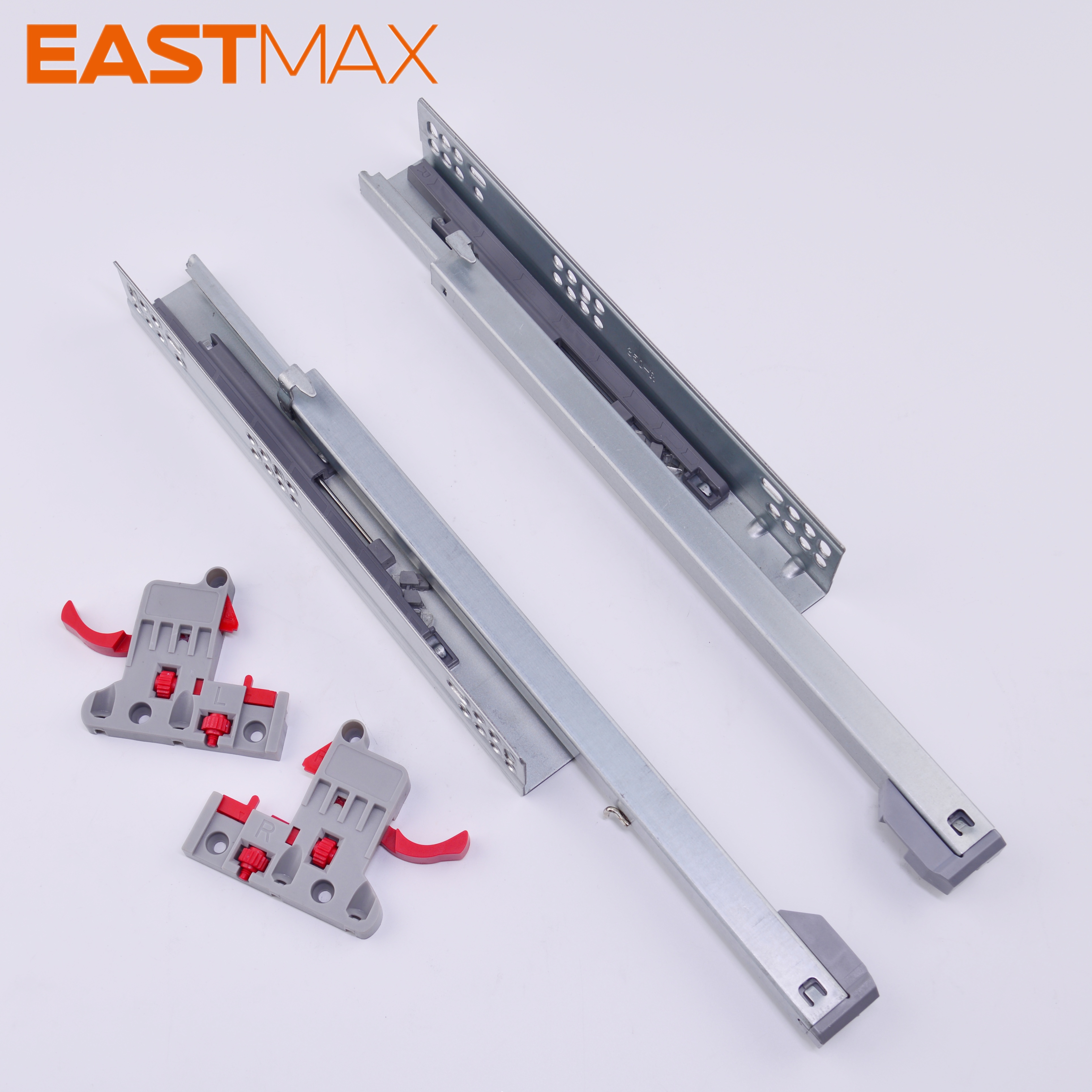

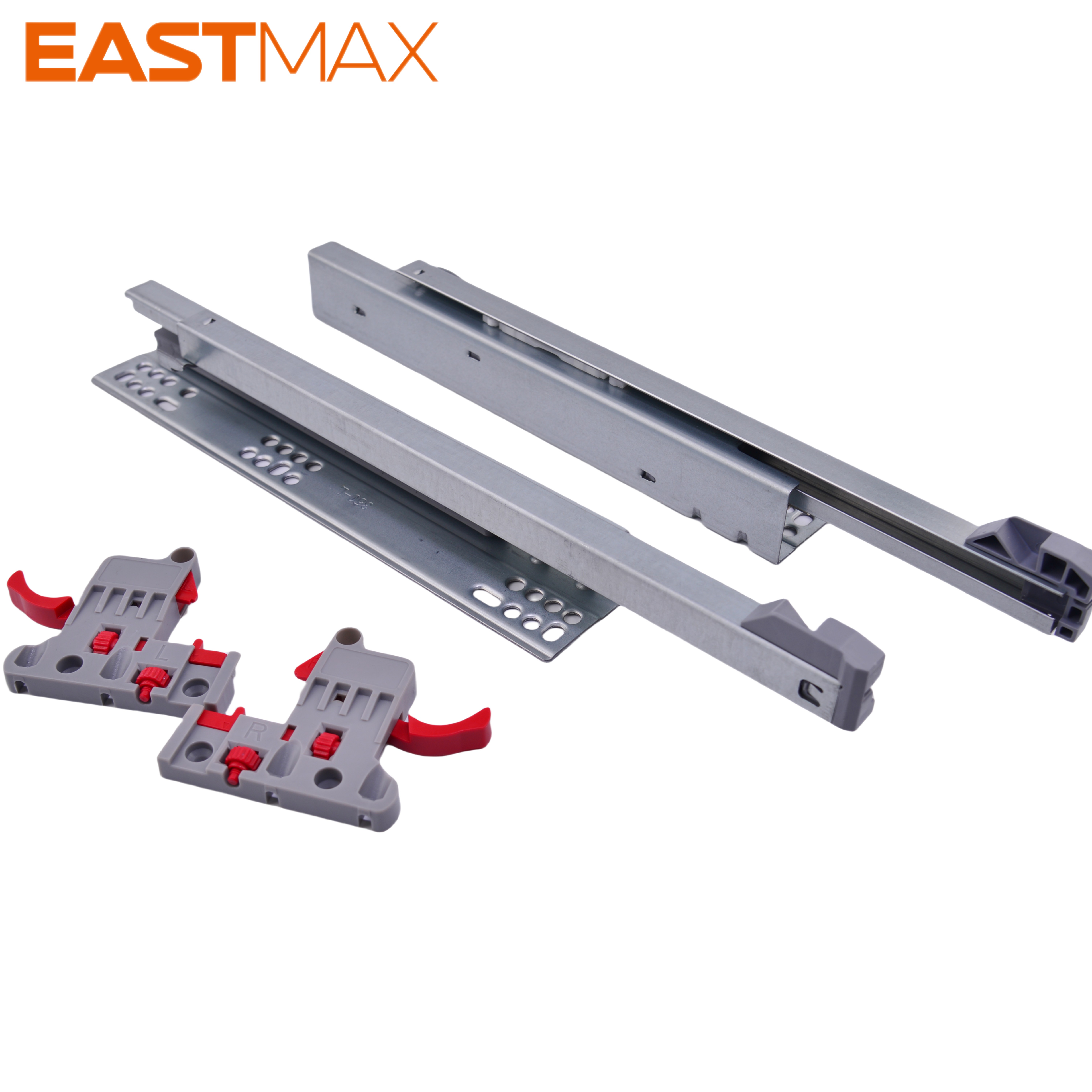

Each set includes left and right slide rails paired with plastic locking clips featuring red release levers. The integrated silent system dampens movement during operation. Full extension and half extension configurations are available, allowing selection based on specific drawer access requirements. The plug-in design simplifies assembly processes for high-volume production environments.
Main material: galvanized steel Max loading capacity: 25kgs Length: 250-600mm Thickness of board: 16/19mm Silent system ensures drawer smooth running without noise
Item no. | Nominal slide length | Drawer length | Inner cabinet depth |
TY201-250 | 250mm | 240mm | 253mm |
TY201-300 | 300mm | 290mm | 303mm |
TY201-350 | 350mm | 340mm | 353mm |
TY201-400 | 400mm | 390mm | 403mm |
TY201-450 | 450mm | 440mm | 453mm |
TY201-500 | 500mm | 490mm | 503mm |
TY201-550 | 550mm | 540mm | 553mm |
TY201-600 | 600mm | 590mm | 603mm |
Cabinet net width calculation: Drawer width = Cabinet inside width - 42(49)mm Side clearance requirement: 10mm maximum per side Front setback dimension: 37mm from cabinet front edge Drilling hole positions follow standardized patterns for each length variant, with pre-marked hole positions on the slide body for alignment during assembly.
The TY201 drawer slides are manufactured from galvanized steel sheet, formed through a continuous roll-forming process that creates the telescopic channel profile. The zinc coating provides corrosion resistance for interior furniture applications. The slide assembly consists of multiple steel channels that nest together, enabling the extension movement.
The locking clips are constructed from reinforced polymer material with integrated metal threaded inserts for mounting screws. The red release levers allow tool-free drawer removal and installation. The silent system incorporates damping elements within the slide channel that engage during the final portion of closing travel, reducing impact sound as the drawer reaches the closed position.
These undermount slides are compatible with drawer side panels of 16mm or 19mm thickness, covering the two most common panel thicknesses used in panel furniture production. Installation requires drilling mounting holes on the underside of the drawer box and the inner surface of the cabinet side panels. The included mounting clips attach to the drawer rear and lock into the slide channel, securing the drawer in place.
The 37mm front setback dimension provides consistent alignment across all length sizes. For standard overlay drawer fronts, the slides accommodate typical gap tolerances used in commercial cabinetry. Full extension models allow complete access to the drawer interior, while half extension models suit applications where full drawer pull-out is not required.
These telescopic channels serve across multiple furniture manufacturing segments. Kitchen cabinet producers use them for base cabinet drawers and pantry pull-outs where concealed hardware supports premium visual aesthetics. Office furniture manufacturers specify these slides for desk pedestals and filing cabinet drawers, where the 25kg load capacity accommodates standard office supplies and document storage.
Retail display fixtures and commercial storage systems also utilize this slide type where hidden hardware maintains clean product presentation. Joinery and custom furniture workshops stock multiple length variants to match project-specific drawer dimensions without custom fabrication.
Each pair of TY201 slides supports a maximum load of 25 kilograms when properly installed according to specifications. This rating applies to evenly distributed loads within the drawer box.
The TY201 series is designed for drawer side panels of 16mm or 19mm thickness. These two dimensions cover the majority of standard melamine, plywood, and particle board panel sizes used in commercial furniture production.
No tools are needed. The red release levers on both left and right mounting clips disengage the drawer from the slide channel when pressed simultaneously, allowing straightforward removal for installation or maintenance.
Full extension slides allow the drawer to pull out completely, providing full access to the entire drawer interior. Half extension slides open to approximately three-quarters of the total length, suitable for shallow drawers or applications where complete extension is unnecessary.
The galvanized steel construction provides basic corrosion resistance for interior environments. For outdoor or high-moisture applications, additional sealing or stainless steel hardware options would be more appropriate.
Minimum inner cabinet depth varies by slide length. The 250mm slide requires 253mm internal depth, while the 600mm slide requires 603mm. The specification table lists exact depth requirements for each size variant.
