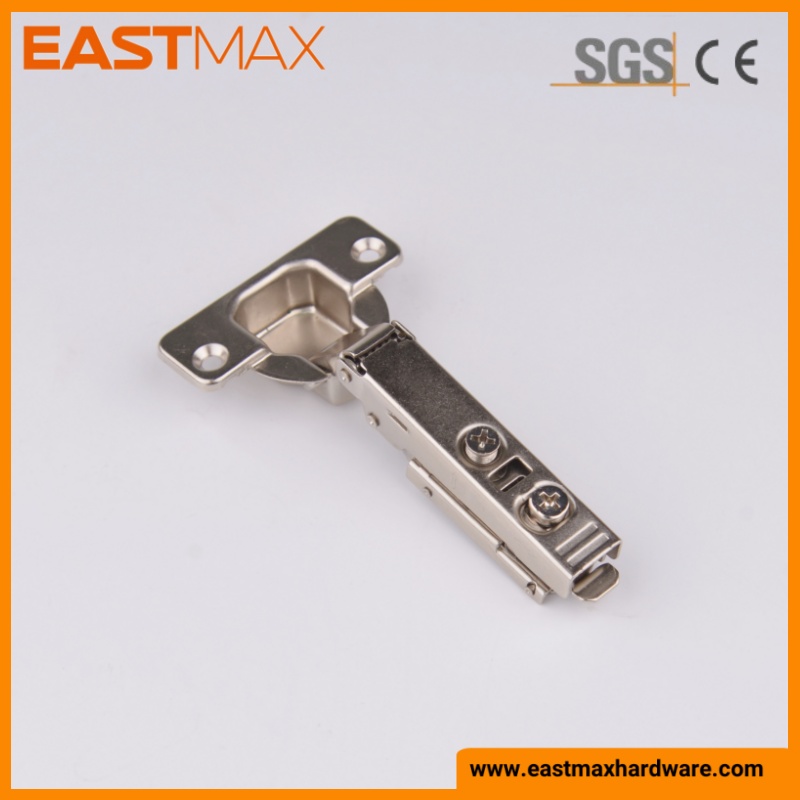

The K02 series 3D clip-on hinge with CAM adjustment delivers three-dimensional positioning capability for cabinet door installation in commercial furniture manufacturing. This hydraulic soft-closing hinge features a 35mm cup diameter and fits standard European-style cabinet construction. The clip-on mounting system enables tool-free attachment and removal of the door from the base plate, streamlining assembly and maintenance workflows for production environments.
Three-way adjustment covers height, depth, and side-to-side positioning through CAM-style adjustment screws. The integrated hydraulic soft-close mechanism controls door speed during the final closing phase, preventing slamming. Opening angle options of 95 degrees and 105 degrees accommodate different cabinet configurations and door overlay requirements. The hinge works with door thicknesses from 16mm to 22mm, covering the primary panel sizes used in kitchen, wardrobe, and office furniture production.
Parameter | Specification |
Model | K02 |
Opening angle | 95°/105° |
Diameter of hinge cup | 35mm |
Depth of hinge cup | 12mm |
Door (K) dimension | 3-7mm |
Optional door thickness | 16-22mm |
Material | Iron with nickel plating |

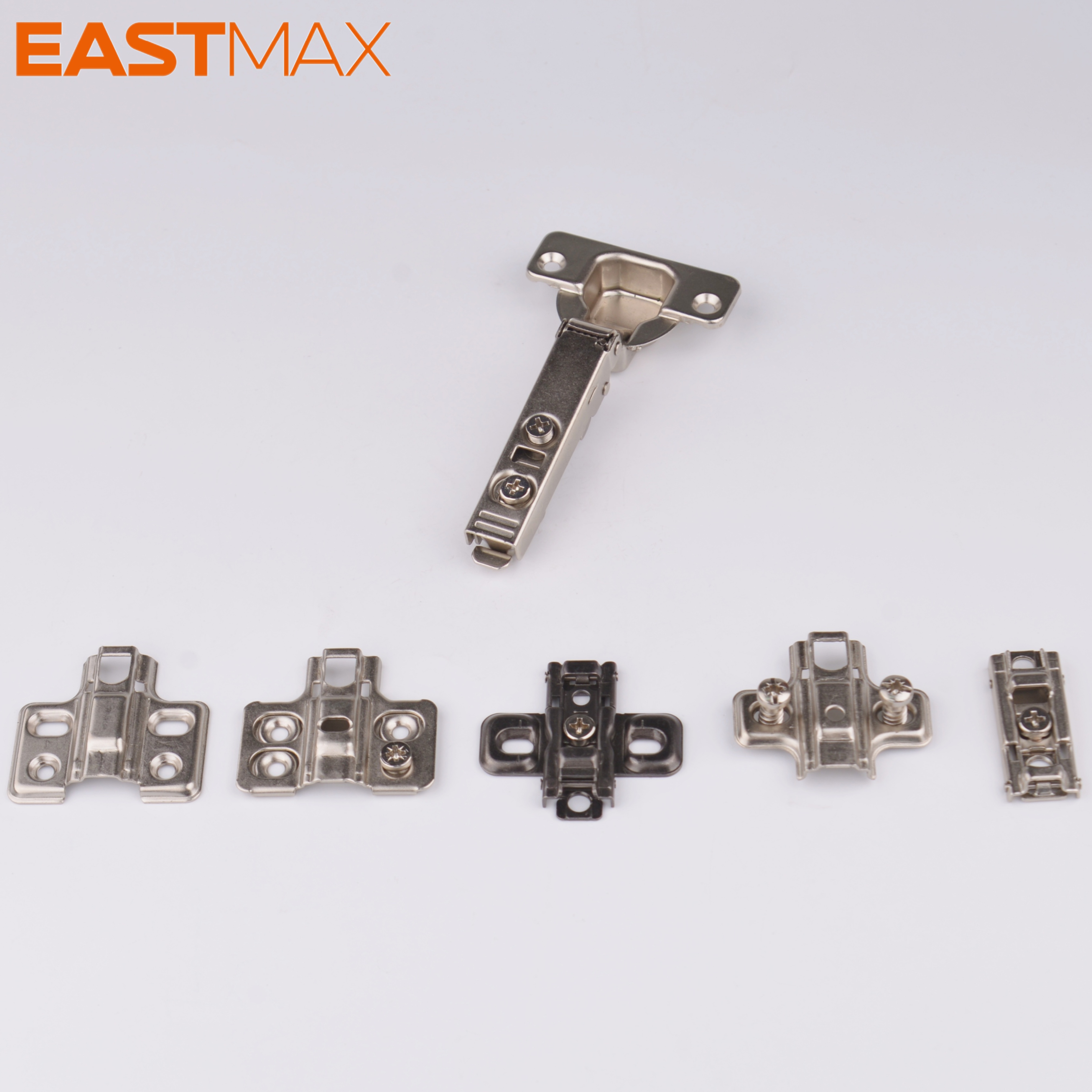

Base plate options | 3D / 2 holes / 4 holes / linear |

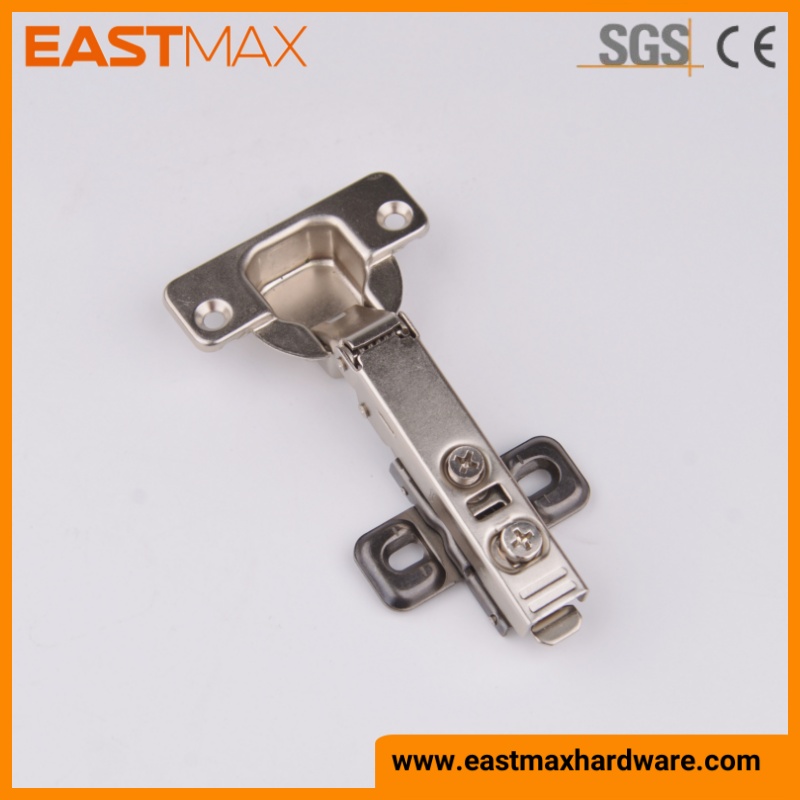

3D adjustment base: Provides all three adjustment axes on the mounting plate

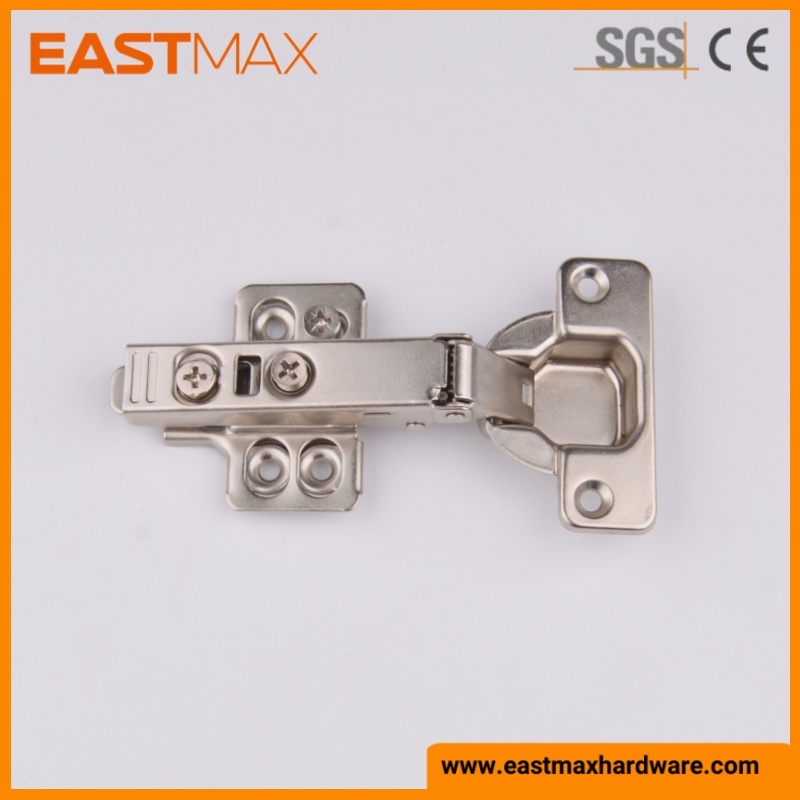

2-hole base: Standard two-screw mounting for standard cabinet frames

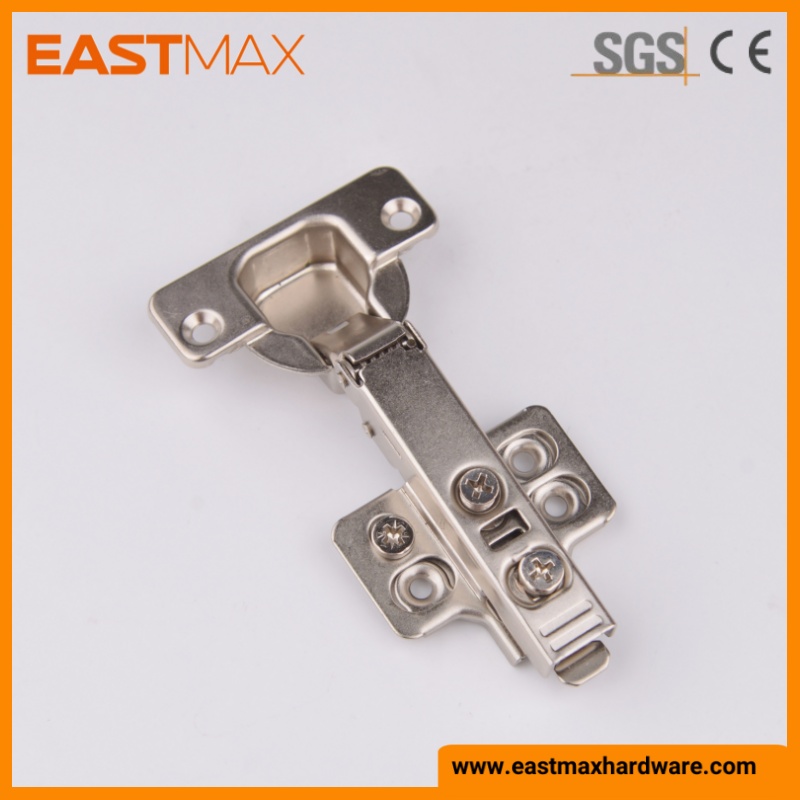

4-hole base: Four-screw mounting pattern for increased holding strength
Linear base: Sliding adjustment design for specific depth alignment requirements
The K02 hinge body is constructed from cold-rolled iron with nickel plating applied through an electroplating process. The nickel finish provides a silver metallic appearance and corrosion resistance for interior cabinet applications. The hinge cup, arm, and base plate all receive the same surface treatment for consistent appearance across the assembly.
Inside the hinge arm, a hydraulic cylinder filled with damping oil regulates the closing motion. As the door approaches the closed position, the hydraulic mechanism engages and gradually decelerates the door travel. The spring mechanism returns the door to the fully closed position while the hydraulics control the final movement speed. The CAM adjustment screws feature precision threading for incremental positioning without play or backlash.
Three-dimensional adjustment allows precise door alignment without re-drilling mounting holes. The side adjustment CAM shifts the door horizontally by plus or minus 2mm, compensating for minor variations in cabinet construction. Height adjustment provides vertical positioning range of plus or minus 2mm to align door tops across a run of cabinets. Depth adjustment moves the door in and out by 3mm to set consistent reveal gaps between the door and cabinet frame.
Installation requires a 35mm diameter bore hole drilled 12mm deep into the back surface of the door panel. The hinge cup presses into this pre-drilled hole and secures with included mounting screws. The base plate attaches to the cabinet side panel with screws matching the selected base type (2-hole, 4-hole, or linear). Once both components are mounted, the hinge arm clips onto the base plate with an audible click, securing the door in position.
The K dimension (distance from door edge to cup center) ranges from 3mm to 7mm, allowing installation on different overlay configurations. For standard full-overlay doors, a K dimension of 5mm to 6mm is typical. Half-overlay and inset door applications use different K dimension settings within the available range.
These 3D adjustable hinges serve across multiple furniture manufacturing segments. Kitchen cabinet manufacturers use them for standard base and wall cabinet doors, where the soft-close feature adds functional value for residential and commercial kitchen projects. Wardrobe and closet producers specify these hinges for wardrobe doors and built-in storage units, taking advantage of the 16-22mm door thickness compatibility to work with various panel materials.
Office furniture manufacturers install them on storage cabinets and desk pedestals for commercial workspace installations. Hotel and hospitality furniture suppliers use soft-closing hinges to reduce noise in guest room cabinetry. Custom joinery and shopfitting operations stock multiple base plate variants to match different project specifications without switching hinge models.
Three-dimensional adjustment refers to independent positioning along three axes: horizontal (side-to-side), vertical (height), and depth (in-and-out). Each axis adjusts via a separate CAM screw on the base plate, allowing precise door alignment after installation.
The K02 hinge fits door panels with thickness from 16mm to 22mm. This range covers standard melamine-faced chipboard, MDF, plywood, and solid wood door panels commonly used in commercial furniture production.
A 35mm diameter Forstner bit is required to drill the hinge cup recess. The recommended drilling depth is 12mm, matching the cup depth specification. Drilling guides or jigs help maintain consistent depth and positioning across production batches.
The soft-close mechanism operates at a fixed damping rate calibrated for standard door weights within the hinge's rated capacity. The closing speed is set during manufacturing to provide consistent performance across normal operating temperatures.
The 2-hole base plate uses two mounting screws and suits standard cabinet side panels where space is limited. The 4-hole base plate uses four screws for increased pull-out resistance, specified for heavier doors or high-frequency use environments.
To remove the door, press the release lever on the back of the hinge arm and lift the door away from the base plate. Reinstallation aligns the arm with the base plate and presses until it clicks into the locked position, no tools required.
