The following table outlines the complete technical parameters of the liner hinge series, providing accurate reference data for commercial procurement and furniture manufacturing projects.
Cup diameter | 35mm |
Cup depth | 11.3mm |
Overlay | Full overlay / Half overlay / Inset |
Opening angle | 105 degree |
Optional door thickness | 14-26mm |
Door Dimension(K) | 3-7mm |
Use time | 50000 Times |
Color | Iron with Nickel Plating |
Delivery time | 25-45days |
Payment term | EXW/FOB |
 |  |

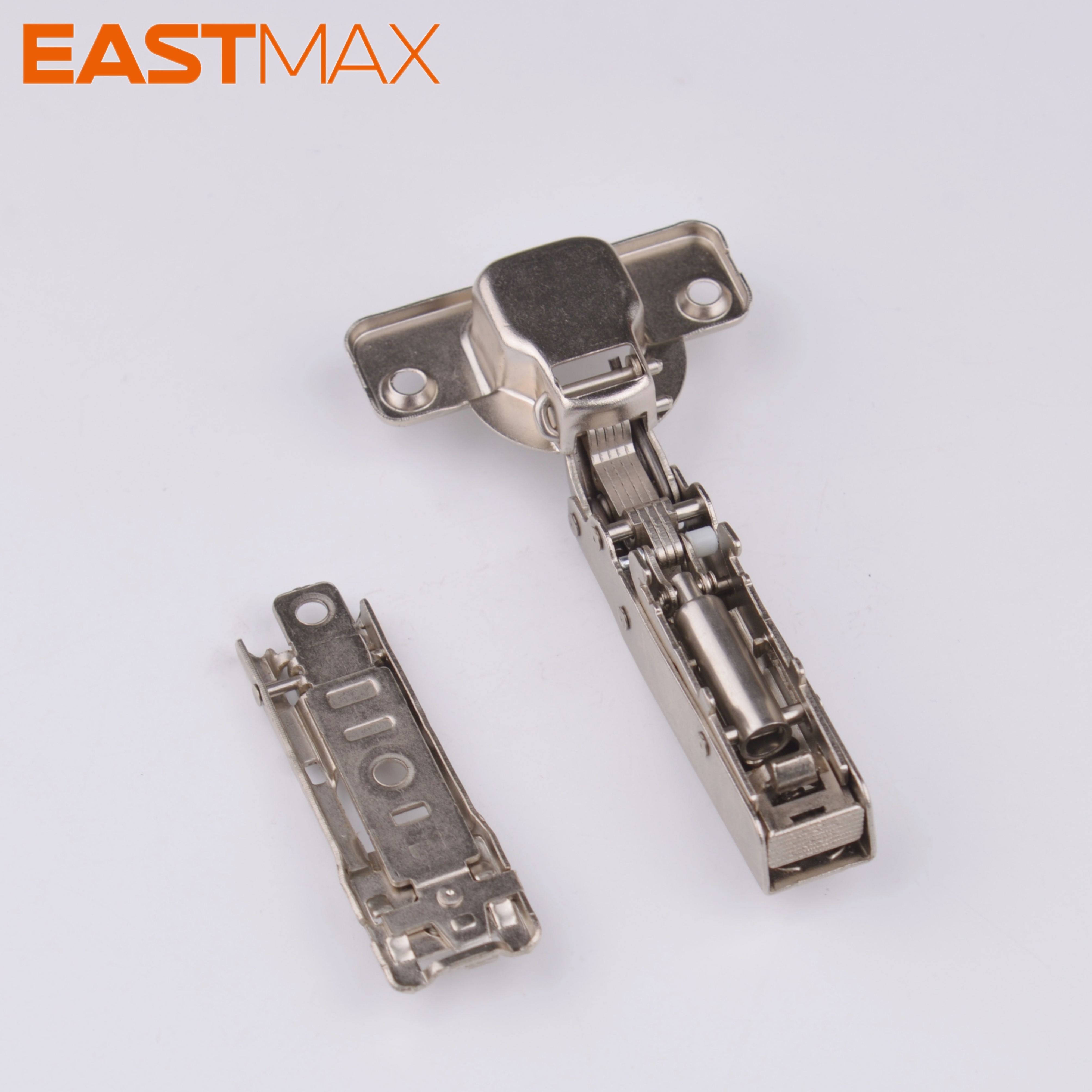

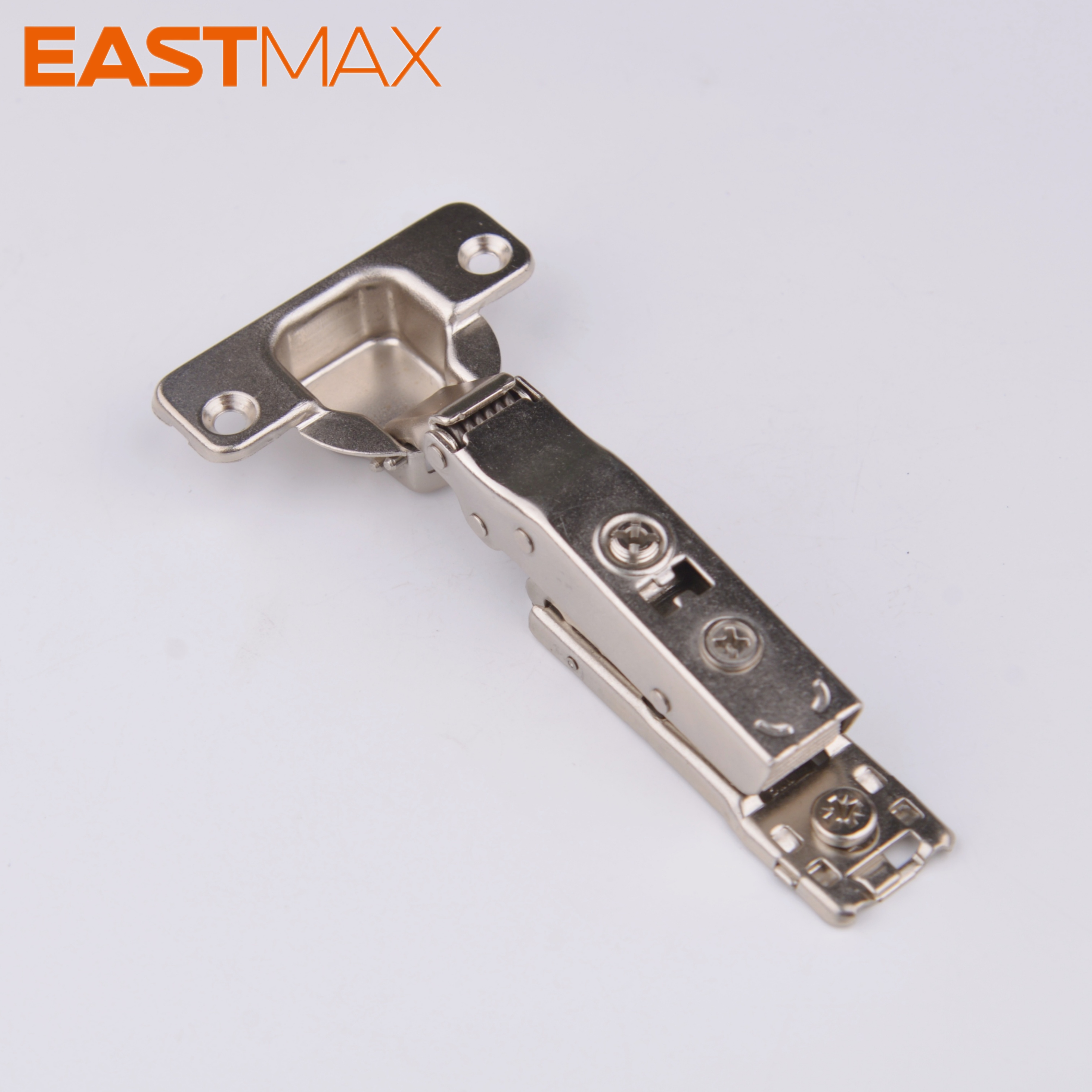

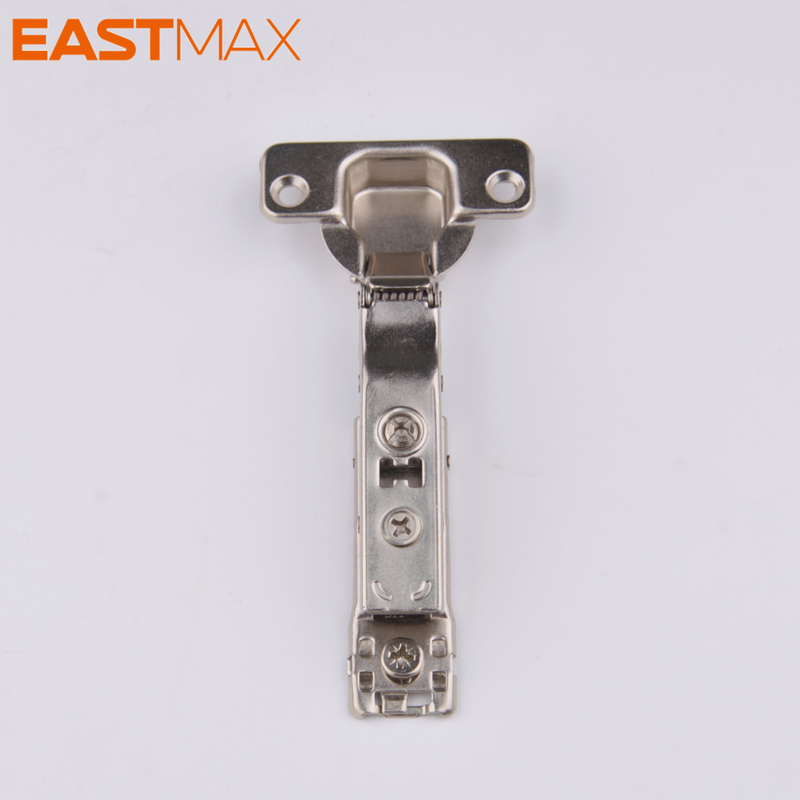

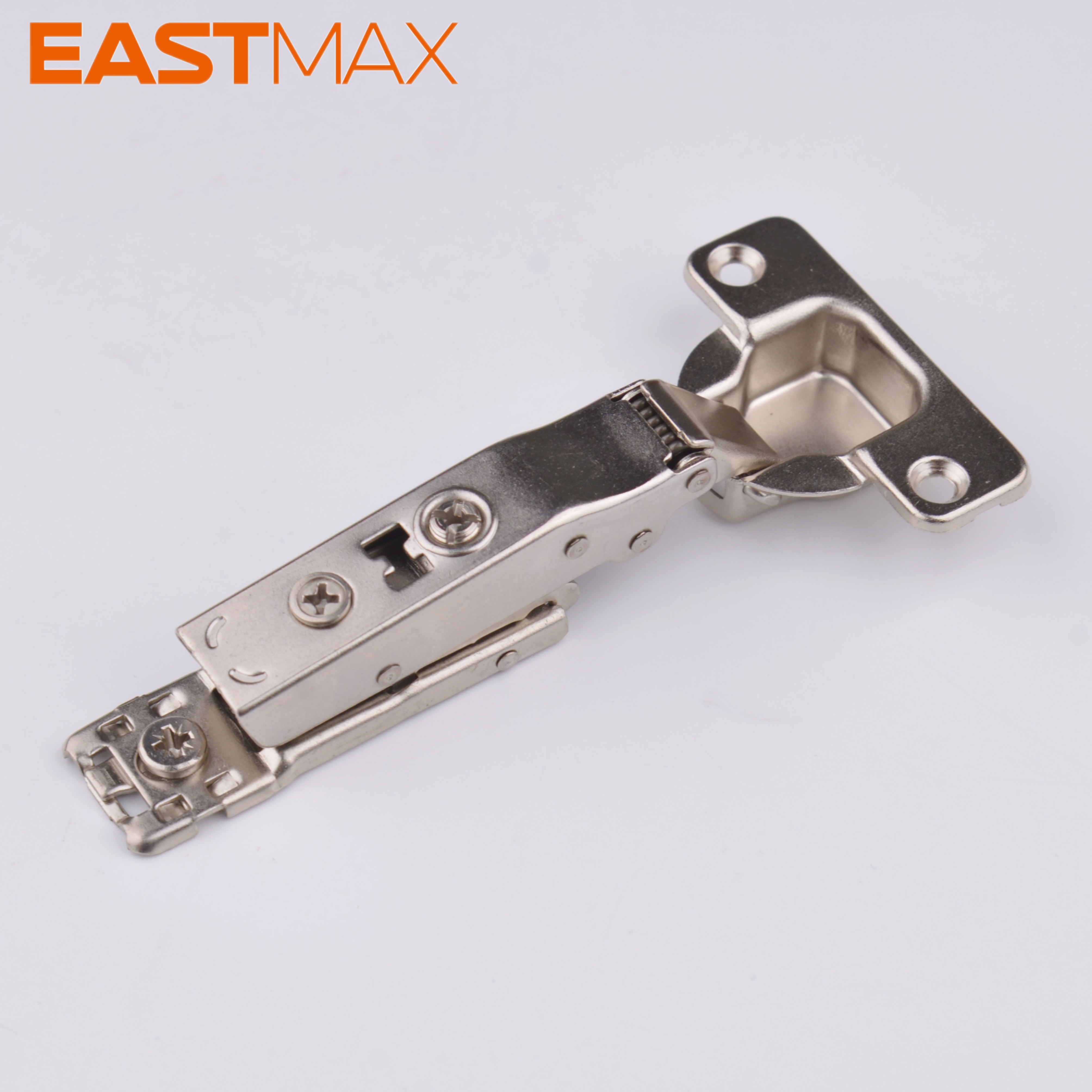

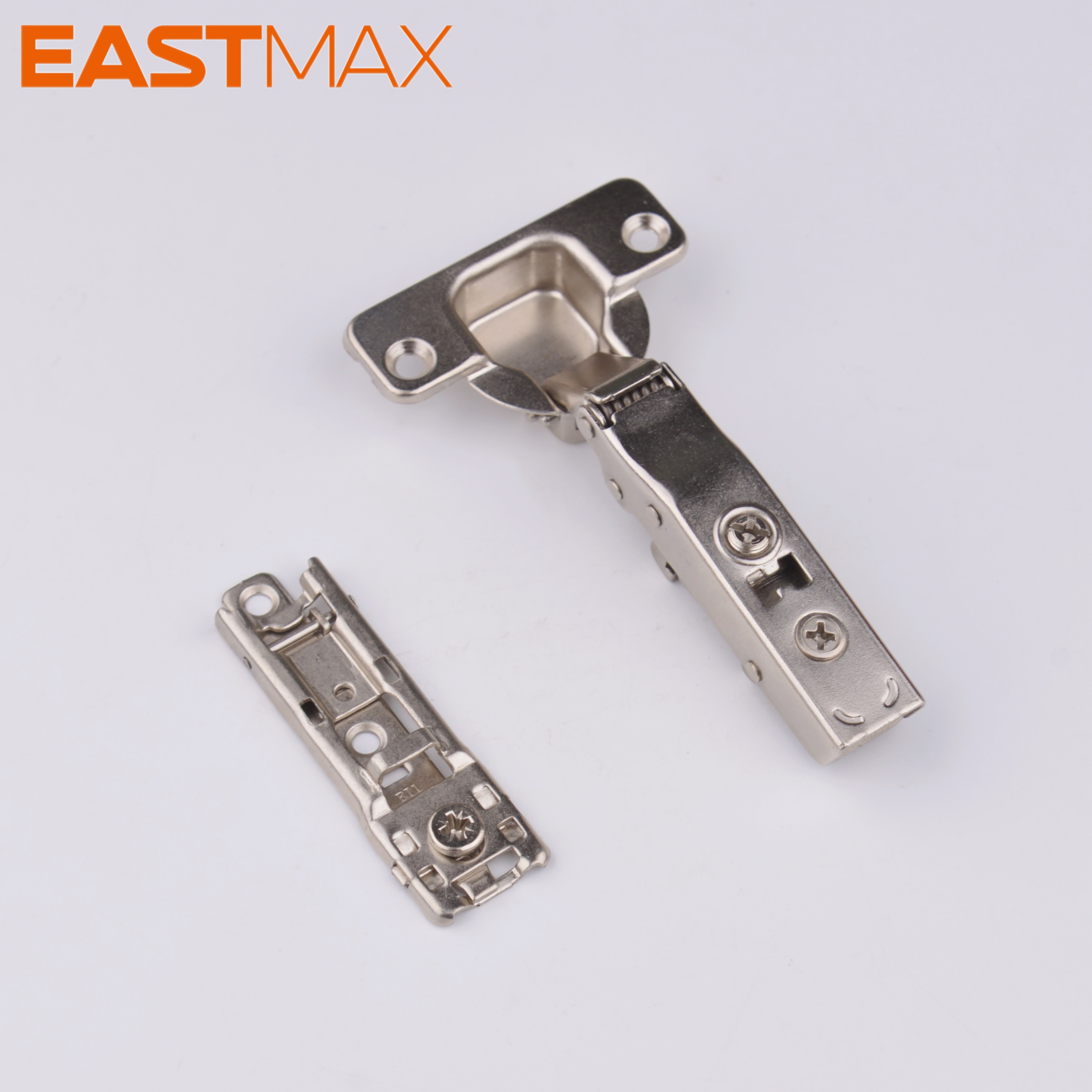

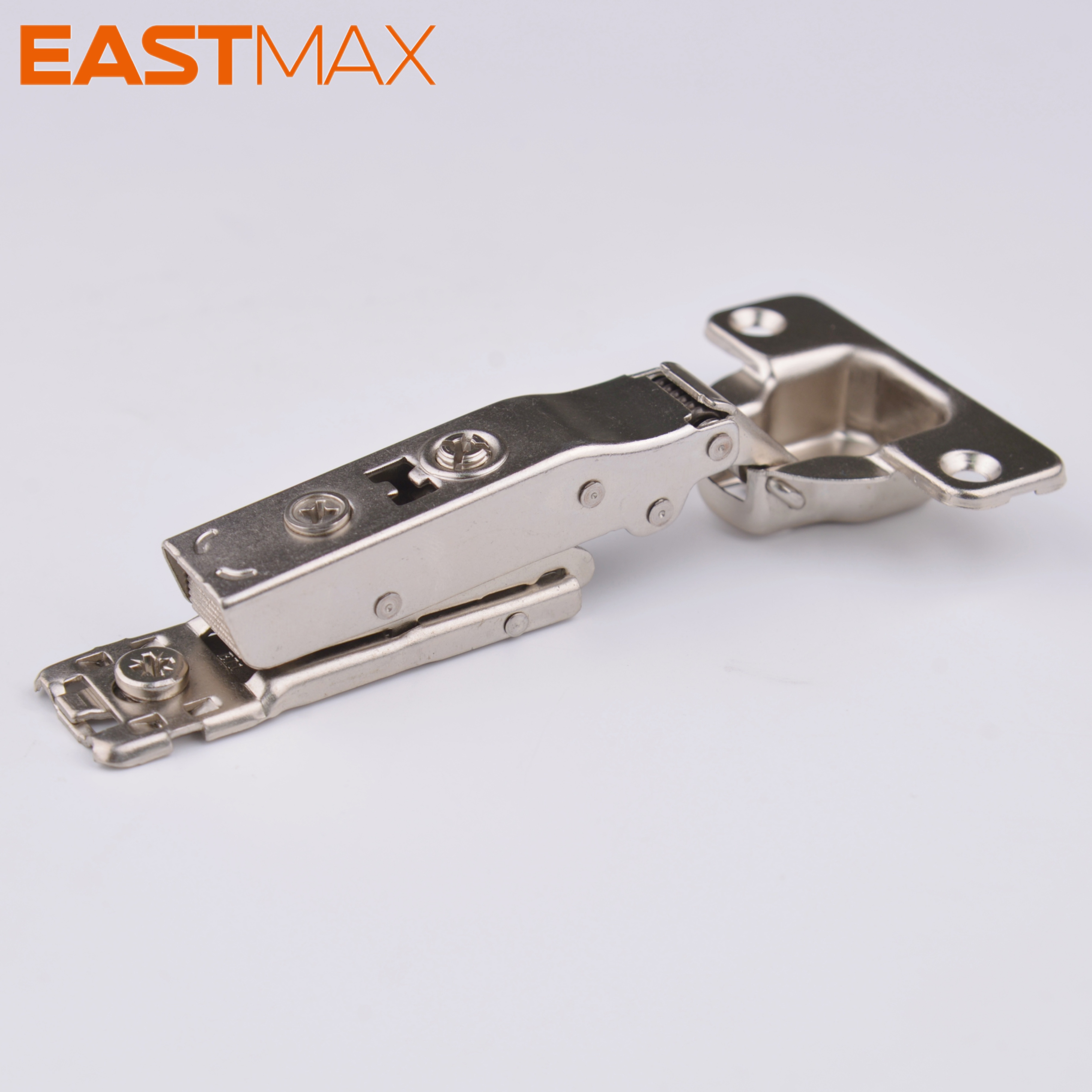

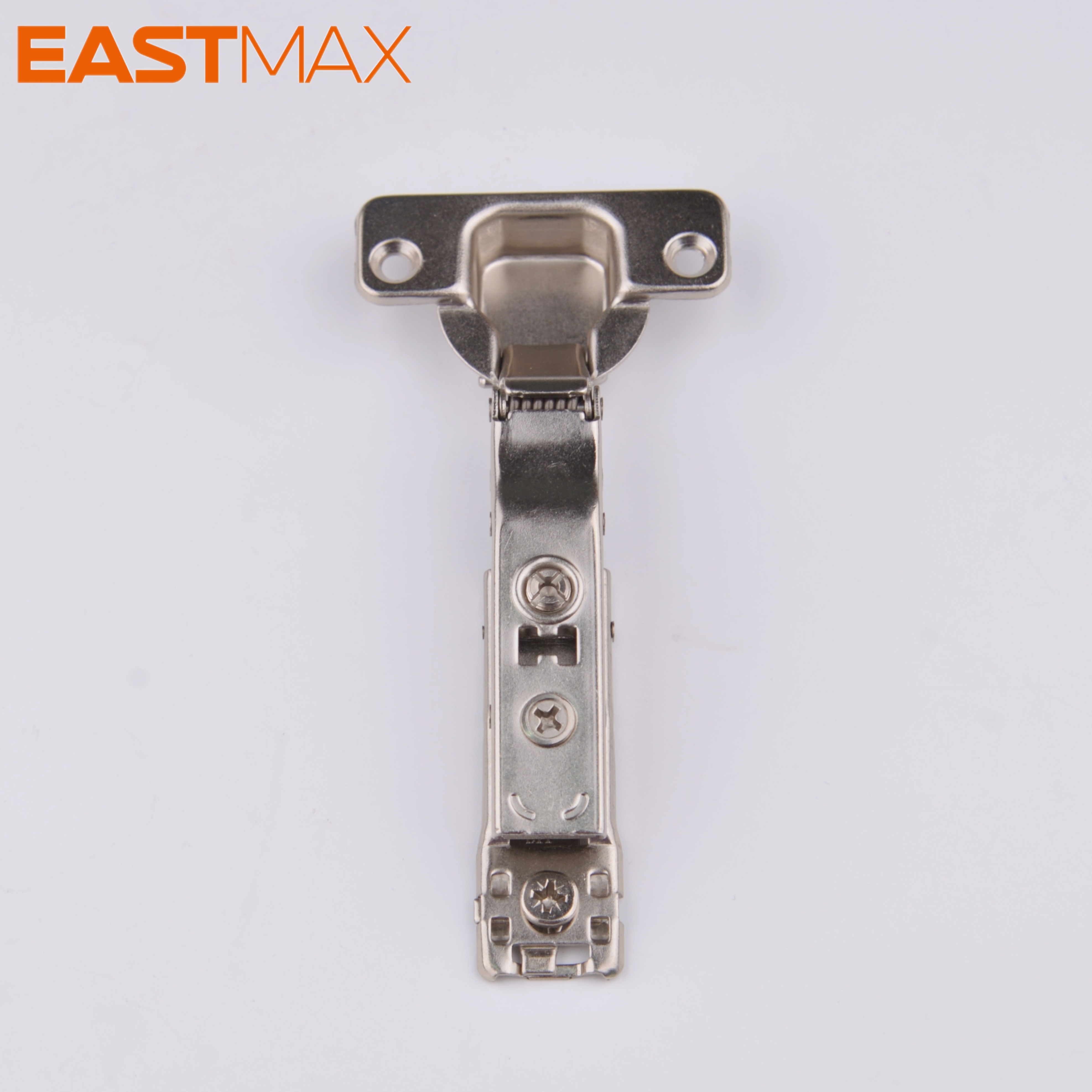

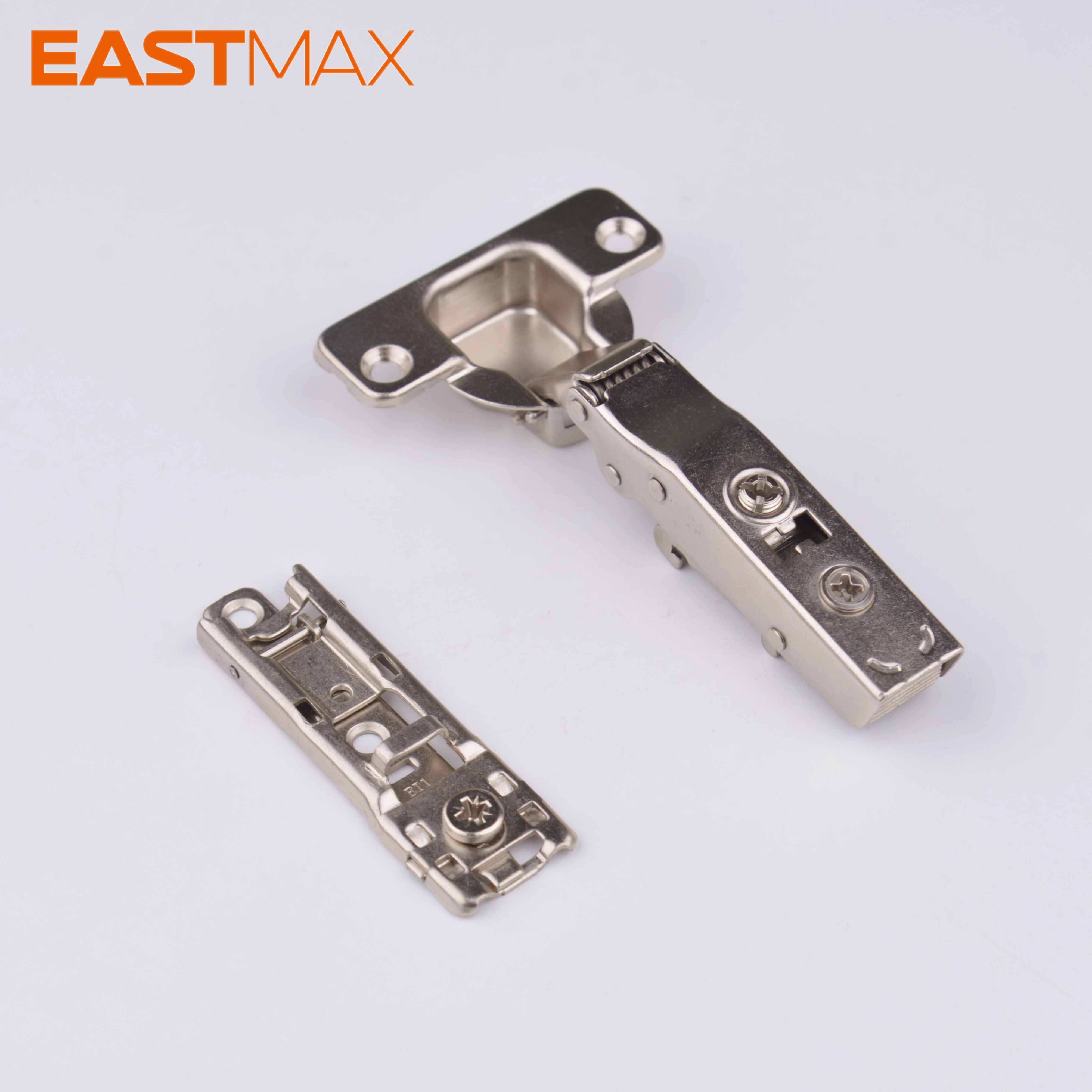

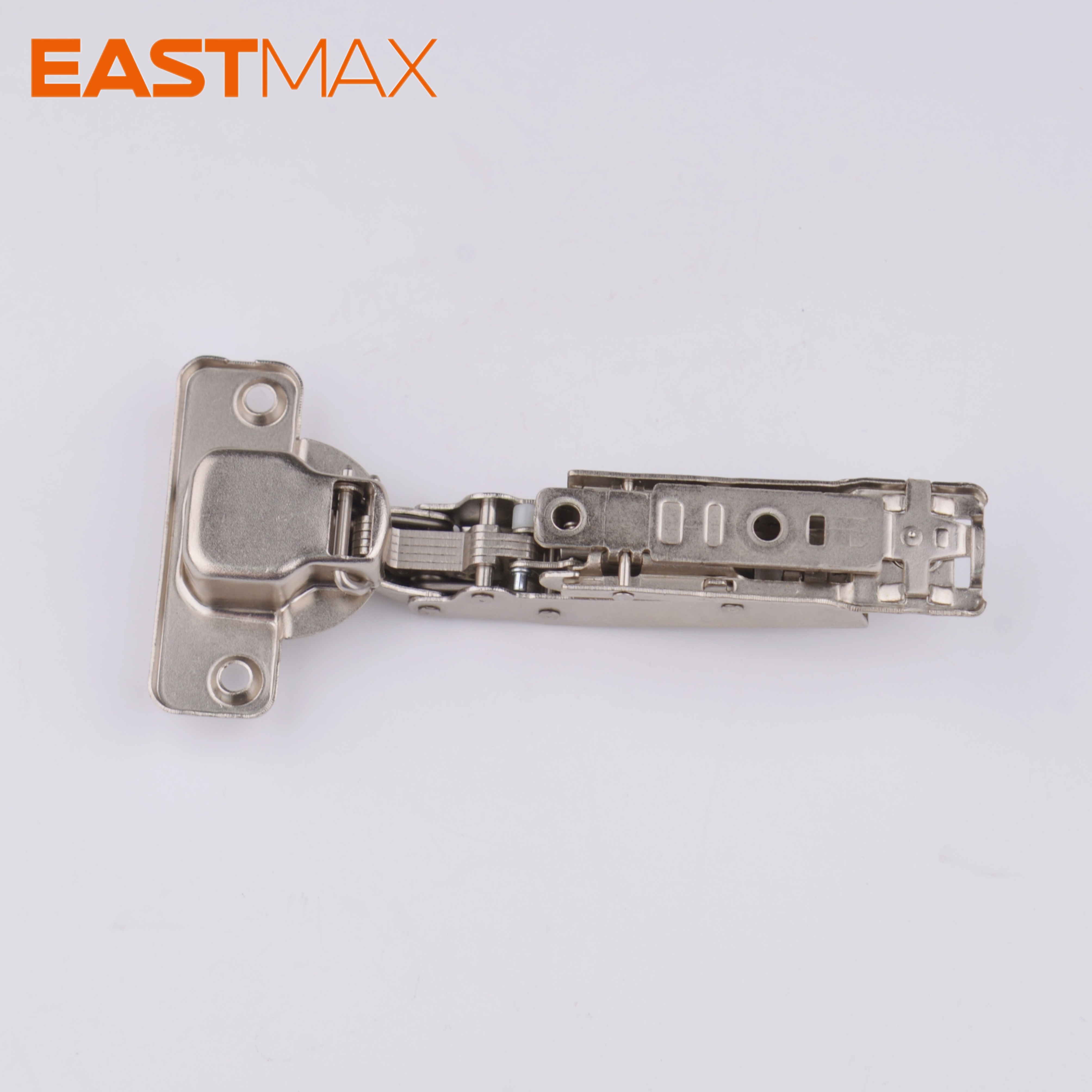

This liner hinge integrates a hydraulic damping system that regulates door movement during the final closing phase. The mechanism engages automatically when the door reaches approximately 30 degrees from the closed position, slowing the closing speed to prevent slamming. This feature reduces noise in residential and commercial furniture installations while minimizing impact damage to cabinet frames and door panels over extended use.
The cross hinge is available in three mounting configurations to accommodate different cabinet construction styles. Full overlay versions sit completely over the cabinet side panel, half overlay versions share the side panel with an adjacent door, and inset versions mount flush with the cabinet face frame. Each configuration maintains the same 105-degree opening angle and soft closing performance, allowing furniture manufacturers to standardize hinge specifications across multiple product lines.
Designed for door thicknesses ranging from 14mm to 26mm, this hinge supports a wide range of panel materials including MDF, particle board, plywood, and solid wood. The standard 35mm cup diameter matches industry-standard boring patterns, enabling compatibility with existing production equipment and assembly workflows. The K dimension adjustment range of 3-7mm provides installers with flexibility to compensate for minor manufacturing tolerances in cabinet construction.
The hinge body is manufactured from cold-rolled iron stamping, providing consistent structural strength for repeated opening and closing cycles. All components undergo precision stamping and forming processes to ensure dimensional uniformity across production batches, an important consideration for industrial applications requiring interchangeable parts.
The titanium-colored nickel plating provides a decorative finish while offering corrosion resistance for normal indoor furniture environments. The plating process follows standard electroplating procedures, creating a uniform surface layer that resists fingerprints and minor abrasions. This finish coordinates with most contemporary furniture hardware collections and maintains appearance consistency throughout the product lifecycle.
This soft closing liner hinge is suitable for various furniture types including kitchen cabinets, wardrobe doors, bathroom vanities, office storage cabinets, and residential furniture units. Its 105-degree opening angle provides sufficient access for most standard cabinet depths without interfering with adjacent doors or drawer fronts. The hinge works effectively in both face frame and frameless cabinet constructions.
Installation requires a standard 35mm Forstner bit to bore the hinge cup recess into the door panel. Mounting screws secure the hinge cup to the door and the mounting plate to the cabinet side panel. After initial installation, adjustability in the K dimension allows fine-tuning of door alignment for uniform gap appearance across cabinet runs. Furniture assemblers can complete installation using standard workshop tools without specialized equipment.
Eastmax provides OEM and ODM services for furniture hardware buyers requiring modified specifications or custom branding. Production capacity supports volume orders consistent with furniture manufacturing operations, with standard lead times of 25-45 days depending on order complexity and quantity. Both EXW and FOB trade terms are available to accommodate different logistics arrangements.
Each production batch undergoes standard quality inspection procedures including dimensional verification, cycle testing sampling, and plating adhesion checks. The 50,000-cycle durability rating represents tested performance under normal operating conditions, providing a reliable baseline for furniture product warranty planning and lifecycle cost calculations.
This hinge is compatible with most standard furniture panel materials including MDF, particleboard, plywood, and solid wood, provided the door thickness falls within the 14-26mm range. For thinner or thicker panels, alternative hinge models may be more appropriate.
The hydraulic damping system is factory-calibrated to a standard closing speed and does not include user adjustment. This fixed calibration ensures consistent performance across all units in a production batch, simplifying quality control for furniture manufacturing operations.
Yes, bulk packaging configurations can be arranged for volume orders to optimize shipping and inventory handling. Standard packaging options include individual poly bags within master cartons, with quantity configurations tailored to specific business operations requirements.
OEM branding requirements vary based on the specific customization requested. Standard production runs support private labeling and modified packaging, with minimum quantities determined by the scope of customization. Contact the sales team with specific project requirements for detailed MOQ and pricing information.
