The "Black Technology" in Hinges

A small hinge, seemingly simple, actually contains many sophisticated structural designs and engineering principles. It not only affects the experience of opening and closing cabinet doors but also directly impacts the safety and durability of home furnishings. Today, we will explore the "black technology" behind hinges from the perspectives of structure, materials, and performance testing, giving you a comprehensive understanding of this key component in home hardware.

1. Deconstructing Hinges: The Synergistic Working Principle of Core Components

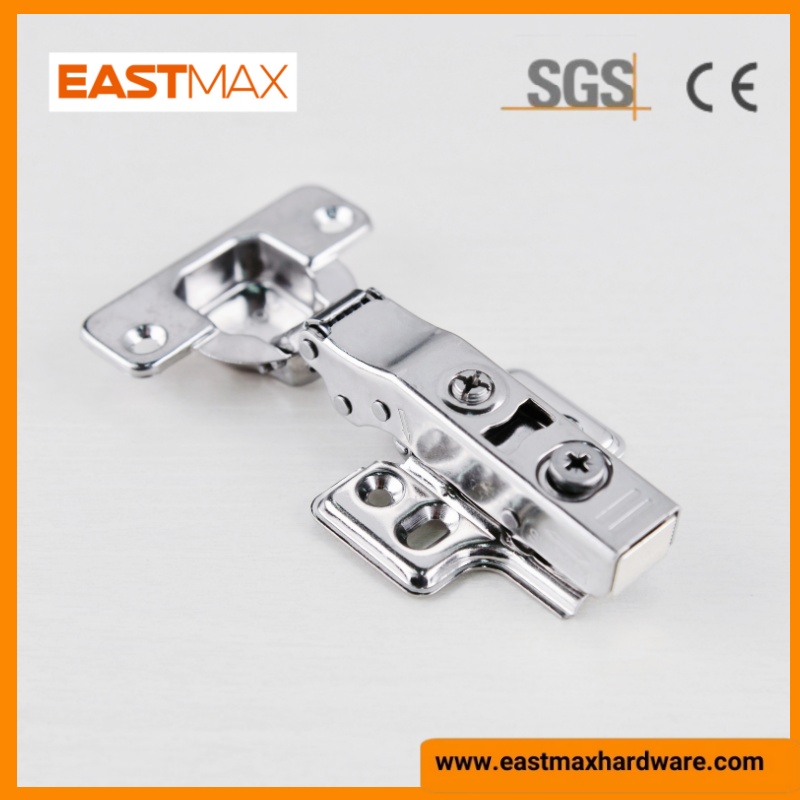

The core structure of a hinge mainly consists of a fixed arm, a movable arm, a pivot, and a buffering system. The fixed arm connects to the cabinet body, the movable arm attaches to the door, and the pivot serves as the rotation center linking the two—its machining precision directly determines the smoothness of the hinge’s rotation.

The buffering system is a key innovation in modern hinges. Common damping buffer structures use hydraulic oil or air pressure flowing in a closed space, leveraging fluid resistance to achieve slow door closing. When the door closes to a certain angle, the buffer system kicks in: a piston compresses the fluid, converting kinetic energy into heat for release, thus avoiding hard collisions between the door and the cabinet.

2. A Contest of Materials Science: How to Choose More Durable Hinge Materials

Material selection is the foundation of a hinge’s performance. Currently, mainstream hinge materials include cold-rolled steel, stainless steel, and aluminum alloy:

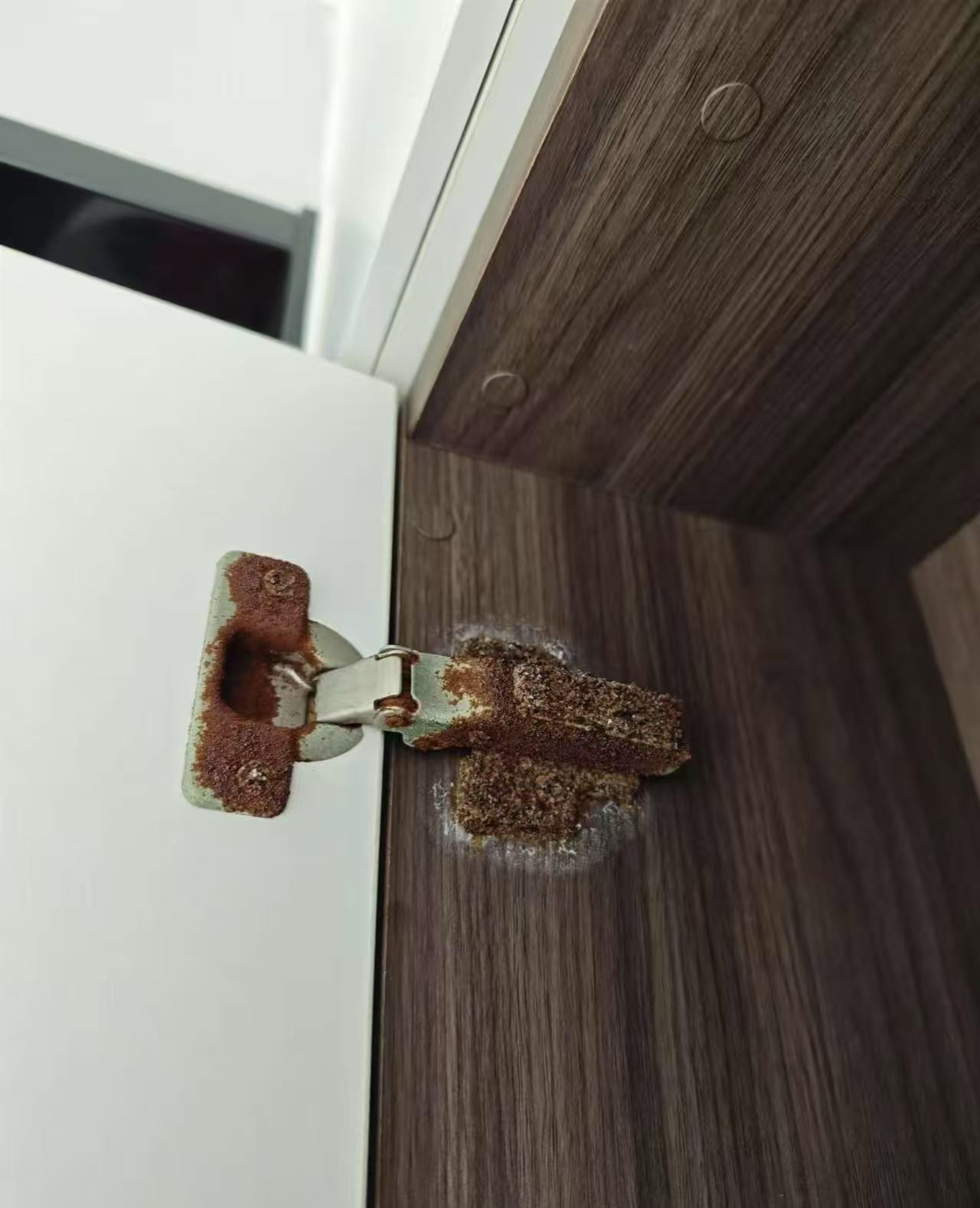

• Cold-rolled steel hinges offer high strength and moderate cost but have relatively weak rust resistance, making them suitable for dry indoor environments.

• Stainless steel hinges (especially 304 stainless steel) excel in rust and corrosion resistance, ideal for humid areas like kitchens and bathrooms, with a service life of over 10 years.

• Aluminum alloy hinges are lightweight and have good oxidation resistance but bear less weight, making them suitable for light cabinet doors.

In addition, surface treatment processes (such as nickel or chrome plating) are crucial—they effectively enhance rust resistance and surface hardness, reducing daily wear.

3. Key Performance Parameters: "Technical Indicators" to Check When Buying Hinges

Beyond intuitive feel and appearance, focus on these parameters when purchasing:

• Opening-closing cycles: High-quality hinges typically withstand over 50,000 cycles; rigorously tested ones can reach 100,000, equivalent to 15-20 years of normal household use.

• Load-bearing capacity: Choose hinges based on door weight—cabinet hinges usually bear 4-8kg, while wardrobe hinges can handle 8-15kg.

• Buffer angle: The angle at which the buffer system activates (common angles: 30°, 45°, 60°). A smaller angle means earlier buffer engagement and gentler closing.

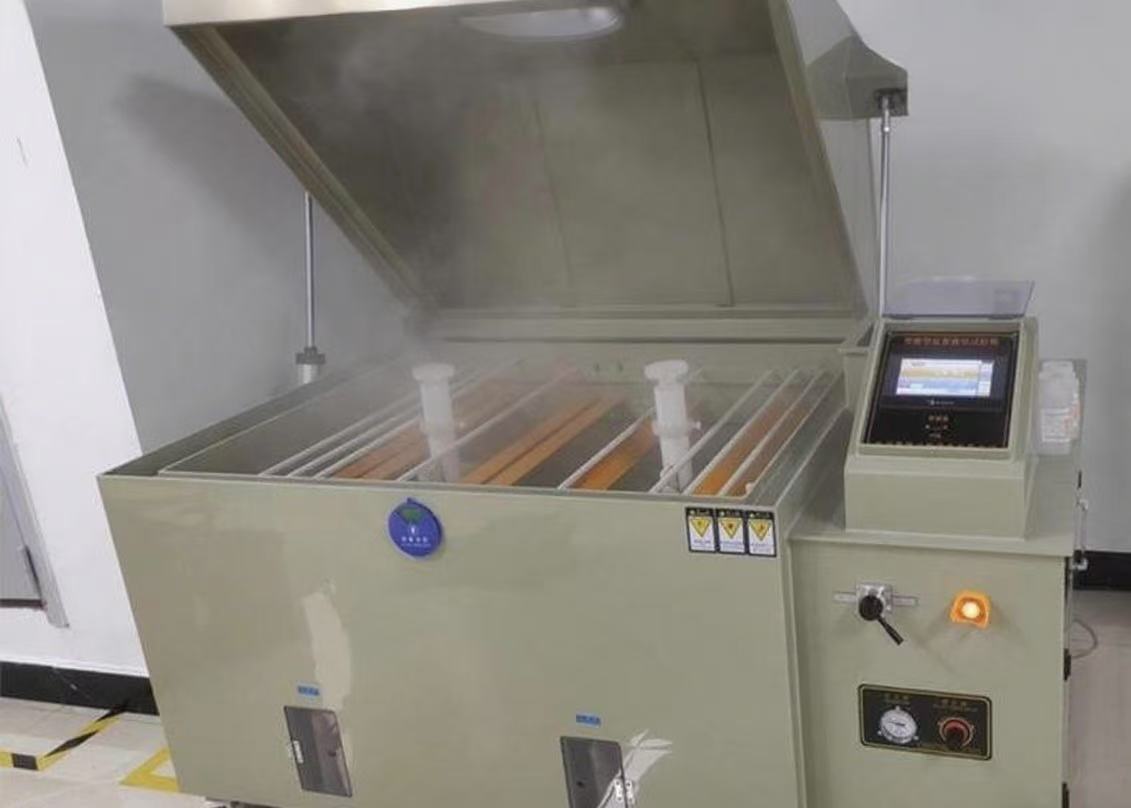

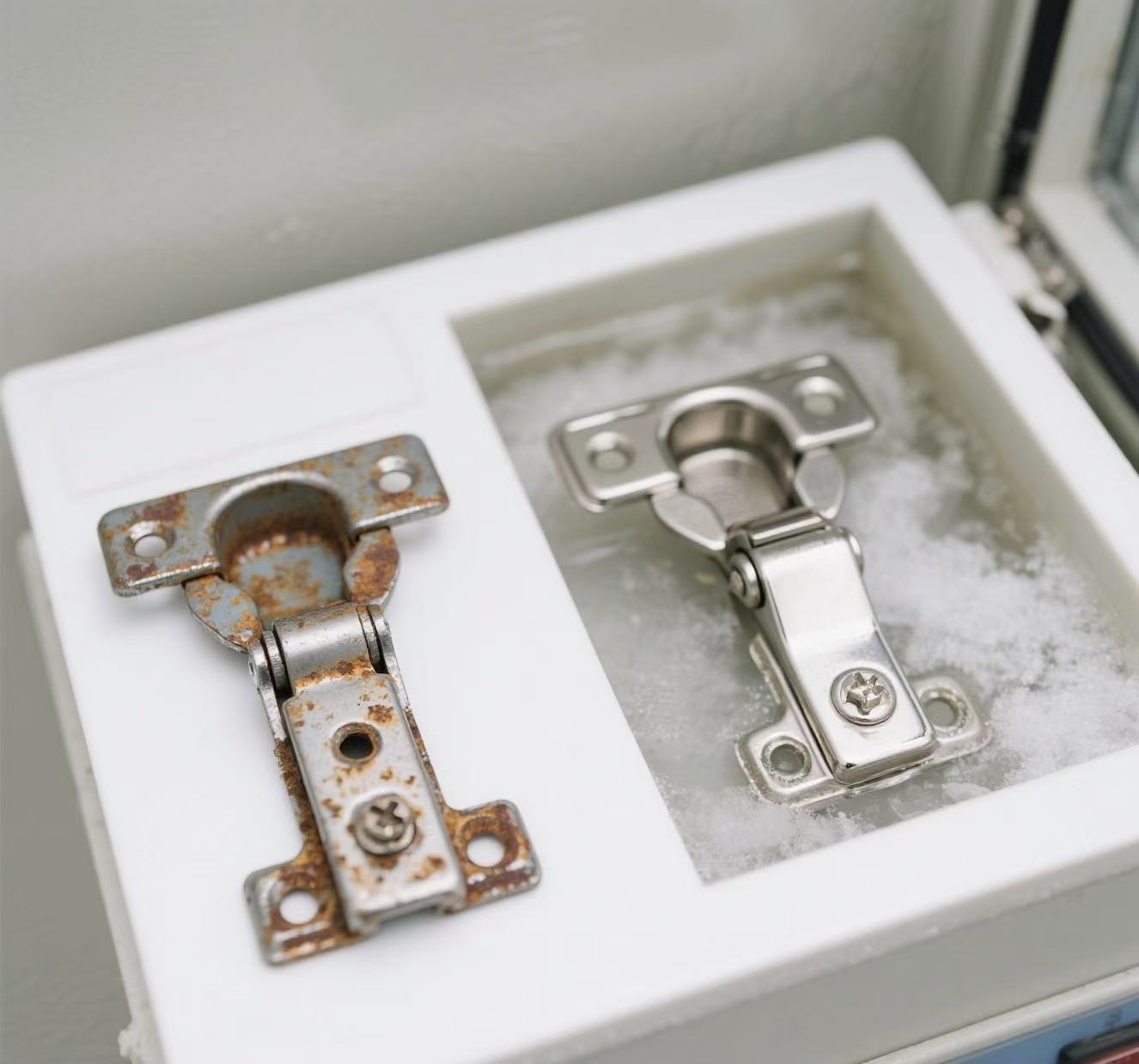

• Salt spray test duration: A key indicator of rust resistance. Hinges passing 48 hours of salt spray testing meet most indoor needs, while those with 72+ hours are suitable for high-humidity environments.

4. Future Trends: Intelligence and Customization, New Breakthroughs in Hinge Technology

With the development of smart homes, hinges are evolving toward intelligence and customization. Some high-end hinges now integrate angle positioning, allowing doors to hover at any angle for easy access to items at height. Touch-sensitive hinges enable automatic opening/closing with a light tap, enhancing convenience.

Meanwhile, customized hinges cater to diverse home styles and personal needs: ultra-thin hinges fit minimalist narrow-edged doors, and hidden hinges achieve seamless integration between doors and cabinets, further elevating overall home aesthetics. These technological innovations are transforming hinges from mere functional parts into key elements that enhance home quality and smart experiences.
