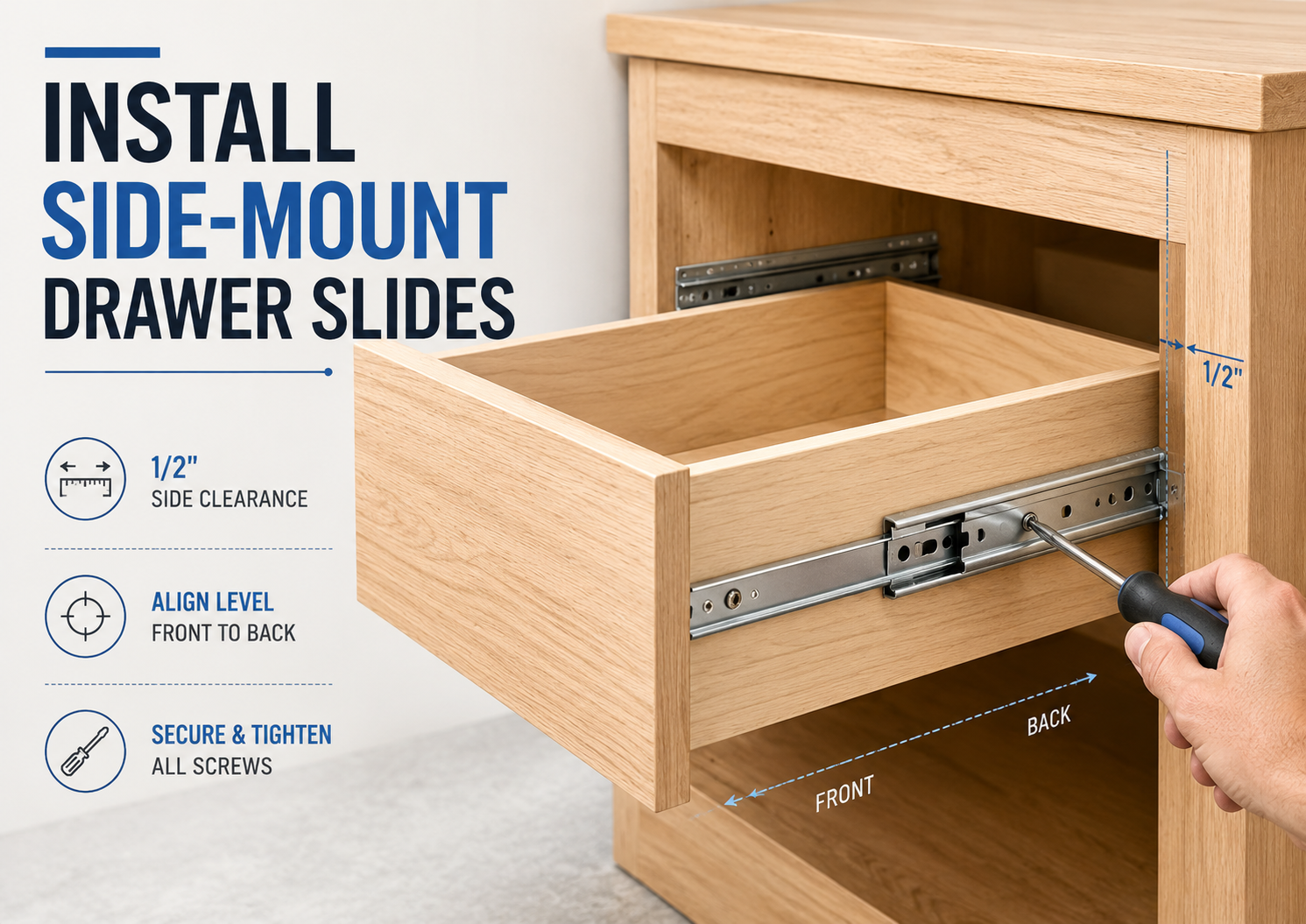

How to Install Side-Mount Drawer Slides

Have you ever struggled to open a drawer smoothly, only to find it catching midway? Misaligned drawer hardware inevitably leads to binding, sticking, and premature track failure. You end up fighting your own cabinetry instead of enjoying seamless functionality. Getting the clearances wrong by just a fraction of an inch guarantees frustration. We created this guide to eliminate that installation guesswork and protect your hardware investment. You will learn a foolproof, shop-tested method for installing a side-mount drawer slide with perfect clearance and flawless action. We bridge rigid manufacturer specifications with practical, on-the-ground cabinet shop techniques. You will discover time-saving tricks like the spacer block method and torque-reduction positioning. By following these steps, you can achieve professional-grade results on your very next project. If you encounter unique project challenges along the way, feel free to contact us for expert hardware guidance.

Key Takeaways

• Clearance Math: Cabinet openings must be precisely 1-1/16" wider than the drawer box.

• Strategic Mounting: Always use horizontal slotted holes for initial mounting to allow for micro-adjustments before locking with round holes.

• Placement Logic: While center-mounting is common, mounting slides 1" from the bottom of the drawer box provides better stability and easier standardization.

• Hardware Prep: Always pull ball bearing retainers fully forward before inserting the drawer to prevent track damage.

Sizing and Space Planning Requirements

Successful cabinet building relies entirely on accurate math. You cannot force a drawer box into an opening if the measurements are wrong. Careful space planning prevents installation nightmares later on. Let us break down the specific dimensions you need to succeed.

Calculating Width Clearances

Precision matters most when sizing your drawer boxes. Standard side-mount drawer slides require specific breathing room to function properly. You must calculate the total cabinet opening width and subtract exactly 1-1/16 inches. This formula allocates exactly 1/2 inch of space for the slide on each side. It also adds a crucial 1/32 inch of breathing room per side.

Wood expands and contracts naturally with humidity changes. That extra 1/32 inch absorbs seasonal wood movement. Without it, your drawers will bind tightly during humid summer months. Always trust the math rather than guessing the gap.

Overlay vs. Inset Door Configurations

Your drawer front design dictates exactly where the hardware mounts front-to-back. You generally choose between two primary styles. Each requires a different setback measurement.

• Overlay drawers: The drawer front rests outside the cabinet box. You mount the slides entirely flush with the front edge of the cabinet side panels. This approach is highly forgiving.

• Inset drawers: The drawer front sits flush inside the cabinet opening. You must set the slides back into the cabinet by the exact thickness of your drawer front. If your drawer front is 3/4 inch thick, push the slide exactly 3/4 inch back from the cabinet edge.

Face Frame vs. Frameless Cabinets

The internal structure of your cabinet determines how you attach the outer track. Frameless cabinets feature flat interior walls. You can mount the slide directly to the interior panel without extra blocking. This makes installation fast and straightforward.

Face frame cabinets present a structural challenge. The face frame creates a lip extending past the interior wall. You cannot mount a slide into thin air behind the frame. This design requires the use of interior spacer blocks. You must build out the inner wall using wood strips until it sits perfectly flush with the face frame opening. Only then can you mount the hardware.

Evaluating Where to Position the Slide on the Drawer Box

People often debate the best vertical position for drawer hardware. Manufacturers offer one guideline, while professional cabinet shops rely on another. Understanding these different approaches helps you choose the best method for your specific build.

The Manufacturer Standard

Hardware makers design their slides to carry weight evenly. They typically recommend mounting the hardware 1/3 to 2/3 up from the bottom of the drawer. This places the track slightly below the horizontal center line. It provides a balanced load distribution for average household items. While mathematically sound, finding dead-center on every single drawer wastes valuable shop time.

The Cabinet Shop Method (1-Inch Rule)

Professional woodworkers prioritize speed, repeatability, and strength. They usually discard the center-mount rule. Instead, they practice mounting the slide 3/4 inch to 1 inch from the bottom of the drawer box.

This strategy offers significant advantages. It creates a universal baseline for batch production. You never have to recalculate the center line for shallow or deep drawers. The measurement stays identical across the entire kitchen. Furthermore, mounting the hardware low actively drops the center of gravity. This lower position stabilizes heavy loads, preventing the drawer from racking side-to-side.

The Push-to-Open Exception

Specialty hardware requires a different set of rules. If you use push-to-open side-mount slides, you should mount them closer to the top of the box. Users naturally grab and push from the top edge of a drawer front. If you mount the track at the very bottom, pushing the top creates leverage. This twisting motion generates torquing forces. Over time, that torque damages the release mechanisms and causes premature track failure. High placement neutralizes this force.

Installation Approaches: Jigs vs. Spacer Blocks

You need a reliable way to hold the hardware perfectly level during installation. You can choose between buying commercial tools or making your own shop aids. Both methods work, but they cater to different workflows.

Commercial Drawer Slide Jigs

Many tool companies sell specialized installation jigs. These plastic and metal brackets clamp directly to your cabinet face. They offer magnetic holds to secure the metal track in place. Built-in indexing tabs help align the hardware perfectly square. Jigs are incredibly great for beginners learning the ropes. However, they can be bulky in tight cabinet spaces. They also require purchasing specialized tools you might only use once.

The Spacer Block Method (Pro Approach)

Professional shops rarely use commercial jigs. They rely on the spacer block method instead. This technique involves cutting scrap plywood to the exact required height of the slide placement. You simply rest the slide directly on the block during installation. This physical ledge ensures perfectly level, repeatable mounting without constant measuring.

You can cut blocks for the bottom drawer, rest the hardware on them, and drive your screws. Then, you cut longer blocks for the second drawer up. The physical block guarantees identical placement on both the left and right cabinet walls.

Pro Tip: Do not fight gravity. Laying the cabinet on its back or side allows gravity to assist your work. It keeps the slide perfectly flat against the spacer block while you drive the screws. This eliminates the awkward balancing act of holding hardware mid-air.

Step-by-Step Installation Guide

Precision execution turns good planning into a flawless product. Follow these five sequential steps to install your hardware correctly. Rushing through these phases usually results in crooked drawers.

Step 1: Separate the Slide Members

You cannot install the hardware as a single assembled unit. You must break it down into two manageable pieces. Fully extend the track until it stops. Look inside the channel for a small plastic trigger. Depress the disconnect lever to separate the inner drawer member from the intermediate/outer cabinet member. You will attach the wide outer track to the cabinet. You will attach the narrow inner track to the drawer box.

Step 2: Mount the Cabinet Member

Position the outer slide inside the cabinet using your spacer block or a drawn reference line. Pay close attention to your setback distance for overlay or inset doors.

• Crucial Action: Drive screws only into the horizontal slotted holes during this step.

• Do not use the round holes yet.

• The horizontal slots allow for forward and backward micro-adjustments later.

Cabinets are rarely perfectly square. Giving yourself room to slide the track slightly ensures the drawer front will sit flush against the cabinet frame.

Step 3: Mount the Drawer Member

Move your focus to the wooden drawer box. Align the narrow inner member on the side of the drawer box. Use a combination square or a small spacer block to ensure it runs parallel to the bottom edge.

Fasten the track using the vertical slotted holes first. These vertical slots let you nudge the drawer box slightly up or down if it rubs the cabinet frame. Utilize cam adjusters if your premium slides include them. These small rotational dials allow for incredibly precise vertical tuning without loosening any screws.

Step 4: Engage the Tracks Properly

Reassembling the drawer requires extreme care. Many people ruin their hardware during this exact step. The inner and outer tracks must mate perfectly.

• Risk Mitigation: Pull the ball bearing retainers on the cabinet member to the fully forward position.

If you leave the bearing carriage pushed to the back, the inner track will violently smash into it. Carefully align the inner tracks on both sides simultaneously. Push the drawer firmly closed. You should expect slight resistance midway through. This resistance happens as the disconnect levers safely engage the ball bearing retainers. Push it all the way shut.

Step 5: Test, Adjust, and Lock

Pull the drawer open and closed several times. Test the glide action to feel for catching. Look at the gaps around the drawer front. Use a screwdriver on the cam adjuster to fix any vertical rubbing.

If the drawer front sticks out further on the left than the right, loosen the horizontal slot screws on the cabinet member. Nudge the track back slightly and retighten. Once perfectly aligned, drive final screws into the permanent round holes. These round holes lock the hardware in place permanently. It will never shift over time.

Common Installation Risks and Troubleshooting

Even with perfect math, physical materials can behave unpredictably. Knowing how to identify and fix common errors saves you hours of frustration.

Wood Splitting

Hardwood materials like maple or oak have dense grain structures. Failing to pre-drill pilot holes in hardwood drawer boxes or cabinet walls guarantees splitting. When a screw acts like a wedge, it cracks the wood panel. A cracked side panel ruins the structural integrity of the box. Always use a self-centering drill bit to bore pilot holes before driving any screws.

Binding and Sticking

A drawer that feels tight usually suffers from clearance issues. This is usually caused by the drawer box being built too wide. If you have less than 1 inch of total clearance, the tracks compress inward. They cannot glide freely under pressure. The only fix is trimming the box down or routing a shallow channel into the drawer sides.

Binding also occurs from improper fasteners. If screws are not being driven perfectly flush, the protruding heads create roadblocks. The moving tracks scrape against the screw heads. Always use pan-head screws provided by the manufacturer. Never use bugle-head drywall screws for cabinet hardware.

Track Derailment

Ball bearing tracks contain dozens of tiny steel spheres. Forcing the drawer into the cabinet when the inner track is misaligned with the ball bearing carriage bends the metal retainers. Once bent, the bearings fall out. The track suffers permanent derailment. If you feel harsh metal-on-metal grinding during insertion, stop immediately. Pull the box out, reset the retainers forward, and try again gently.

Conclusion

Successful installation of a side-mount drawer slide relies 90% on accurate planning and 10% on execution. Calculating the exact 1-1/16 inch width clearance upfront eliminates nearly all binding issues later. Planning your vertical positioning strategy dictates how smoothly your workshop assembly will flow.

Keep these final action steps in mind for your next build:

1. Standardize a spacer-block workflow for multi-drawer projects to scale speed and consistency.

2. Always utilize horizontal and vertical slotted holes for the initial mounting phase.

3. Pre-drill every single hole to protect your wooden components from splitting.

4. Reset the ball bearing carriages to the forward position before mating the tracks.

Following these rules translates rigid engineering concepts into smooth, real-world functionality. Take your time during the setup phase, and the final assembly will glide perfectly into place.

FAQ

Q: How much clearance do I need for a side-mount drawer slide?

A: Standard slides require exactly 1/2-inch of space on each side, meaning your drawer box should be 1-1/16 inches narrower than the cabinet opening. The extra 1/16 inch provides necessary breathing room to accommodate natural wood expansion and prevent the tracks from binding together under pressure.

Q: Can I mount side-mount drawer slides at the bottom of the drawer?

A: Yes, mounting them 3/4" to 1" from the bottom is a common professional practice that provides excellent stability and makes leveling easier. This approach lowers the center of gravity, which helps support heavy loads without racking, and establishes a universal baseline for batch-producing cabinets.

Q: Why is my newly installed drawer slide sticking?

A: The most common causes are a drawer box that is slightly too wide, screw heads protruding and catching on the inner track, or the cabinet not being perfectly square. Verify you have the correct clearance, ensure all screw heads sit flush, and check the box for squareness.

Q: What is the difference between the slotted holes and round holes on a drawer slide?

A: Slotted holes are for initial installation, allowing you to slide the hardware slightly for adjustments. Horizontal slots provide front-to-back play, while vertical slots allow up-and-down movement. Round holes are used only at the end to permanently lock the slide in its final, adjusted position.
