In the world of furniture manufacturing and assembly, we often hear complaints like this: newly bought cabinet doors don’t close tightly, drawers shake when pulled out, or storage cabinets make strange noises after a short period of use. Is the reason behind this really just a product quality problem? The answer is often unexpected - many times, the crux is not the product itself, but the improper installation of furniture hardware accessories.
For B2B customers such as furniture manufacturers, designers and professional craftsmen, mastering professional hardware installation skills is crucial. This can not only greatly improve the performance and service life of furniture products, effectively avoid rework and customer complaints, but also significantly save costs, and ultimately improve the overall aesthetics and user experience of your furniture products.
This article aims to deeply explore the most common mistakes in the installation process of furniture hardware accessories (especially hinges, slides and horse drawers), and provide a set of systematic professional installation guides and tips to help you improve your work efficiency and ensure that every piece of furniture is flawless.
Even experienced craftsmen may "stumble" during the installation process. Understanding these typical problems is the first step towards a perfect installation.

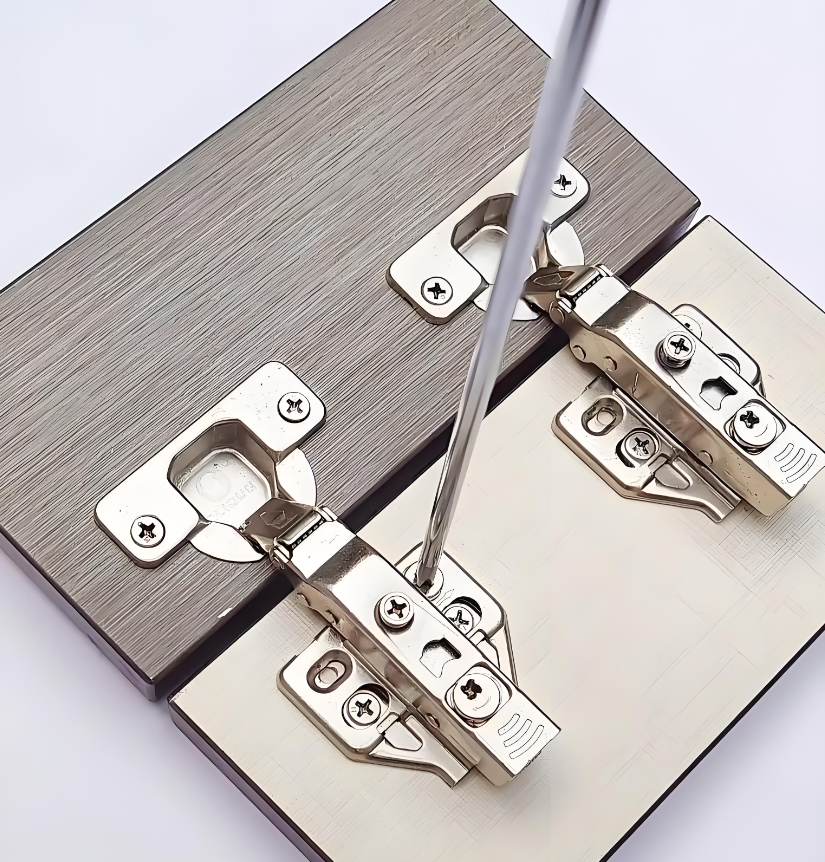

Hinges are important hubs connecting cabinet doors and cabinet bodies, and their installation accuracy directly affects the function and appearance of cabinet doors.
1️⃣Door panels are not aligned/door gaps are uneven: This is one of the most common problems. It is often due to drilling position deviation too large, or when selecting hinge models, they fail to match parameters such as door panel thickness and opening angle. The cabinet door is uneven, sways left and right, and cannot even be completely closed or closed tightly, which seriously affects the overall appearance.
2️⃣Loose hinges/fall off: Screws are not tightened, or wood material is too soft so that the screws cannot grab, or even pre-drilled holes are too large during repeated disassembly and assembly, which may cause the hinges to gradually loosen during daily use, eventually causing the door panel to sag or even fall off, making a harsh opening and closing noise, greatly shortening the service life.
3️⃣Door panel opening and closing is not smooth/noisy: This is usually due to insufficient hinge lubrication, or skewed during installation, causing friction between the hinge and the door frame or other parts. Each opening and closing is laborious, accompanied by a harsh friction sound, which greatly reduces the user experience.
4️⃣Poor damping effect or no damping: If a damping hinge is selected, but it is found that there is still a large impact or noise when the door panel is closed, it is likely that the damping hinge model is selected incorrectly, or the installation angle is problematic, causing the damper to fail to work properly.

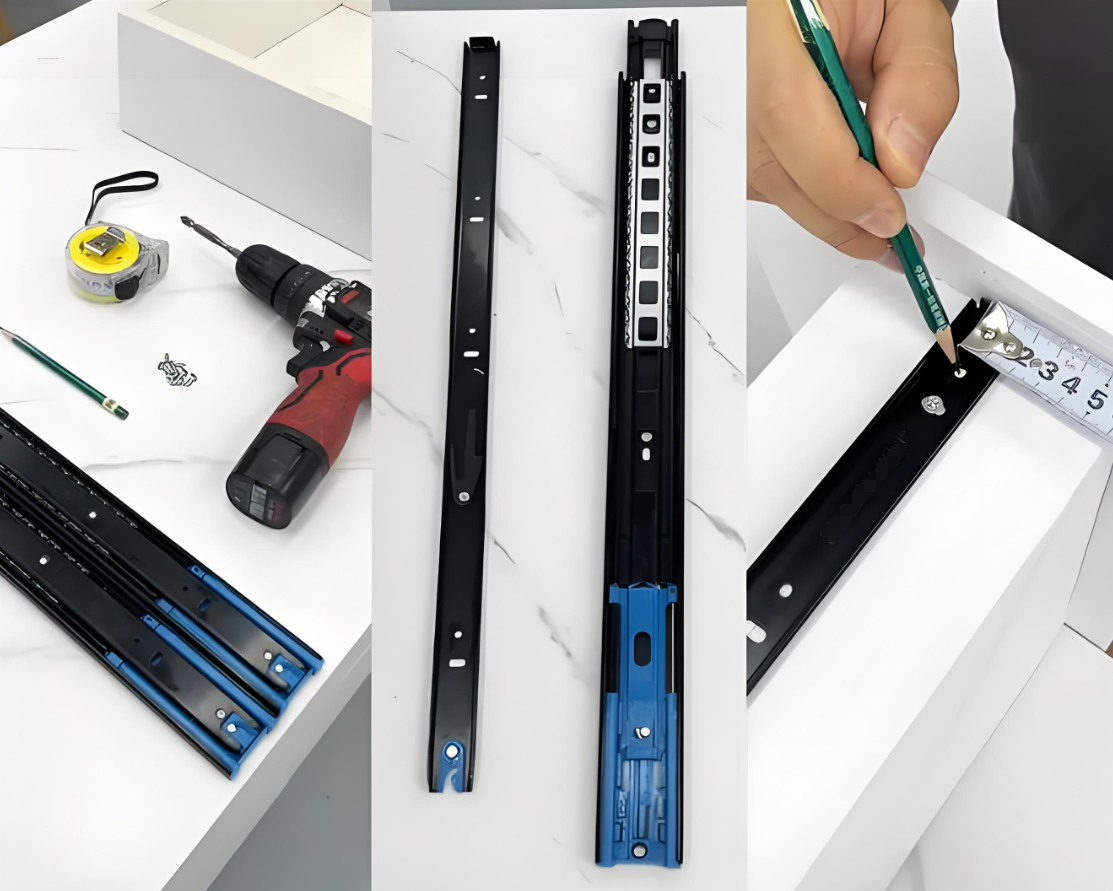

The slide rail carries the weight of the drawer, and its installation quality determines the smoothness and load-bearing capacity of the drawer.
1️⃣The drawer is not pulled smoothly/stuck: This is the root cause of almost all drawer installation problems. The most common reason is the slide rail is not installed in parallel, or the left and right heights are inconsistent. In addition, if the screws are not fully tightened, there are foreign objects or rust inside the slide rail, which may also cause the drawer to be difficult to pull out, make loud noises, and even shake during the pull-out process.
2️⃣The drawer is not closed tightly/protruding: This is usually due to improper selection of the slide rail length, or the installation position is too far forward or too far back, which makes the drawer unable to be fully retracted and always protrudes from the cabinet. This not only affects the appearance, but also reduces the dustproof effect.
3️⃣Drawer droop/reduced load-bearing capacity: If the drawer droops significantly after placing items, it is likely that the slide rail is not able to bear enough load (wrong selection), or the installation is not firm, and the number of screws is insufficient. If this continues for a long time, the bottom of the drawer will wear, the items will tilt, and even the slide rail will deform and damage.
4️⃣Poor mute effect: If you pursue a mute effect but find that the noise of pulling is loud, it may be that the ordinary slide rail is not damped, or the damping slide rail has problems during installation, and the damper cannot work properly.

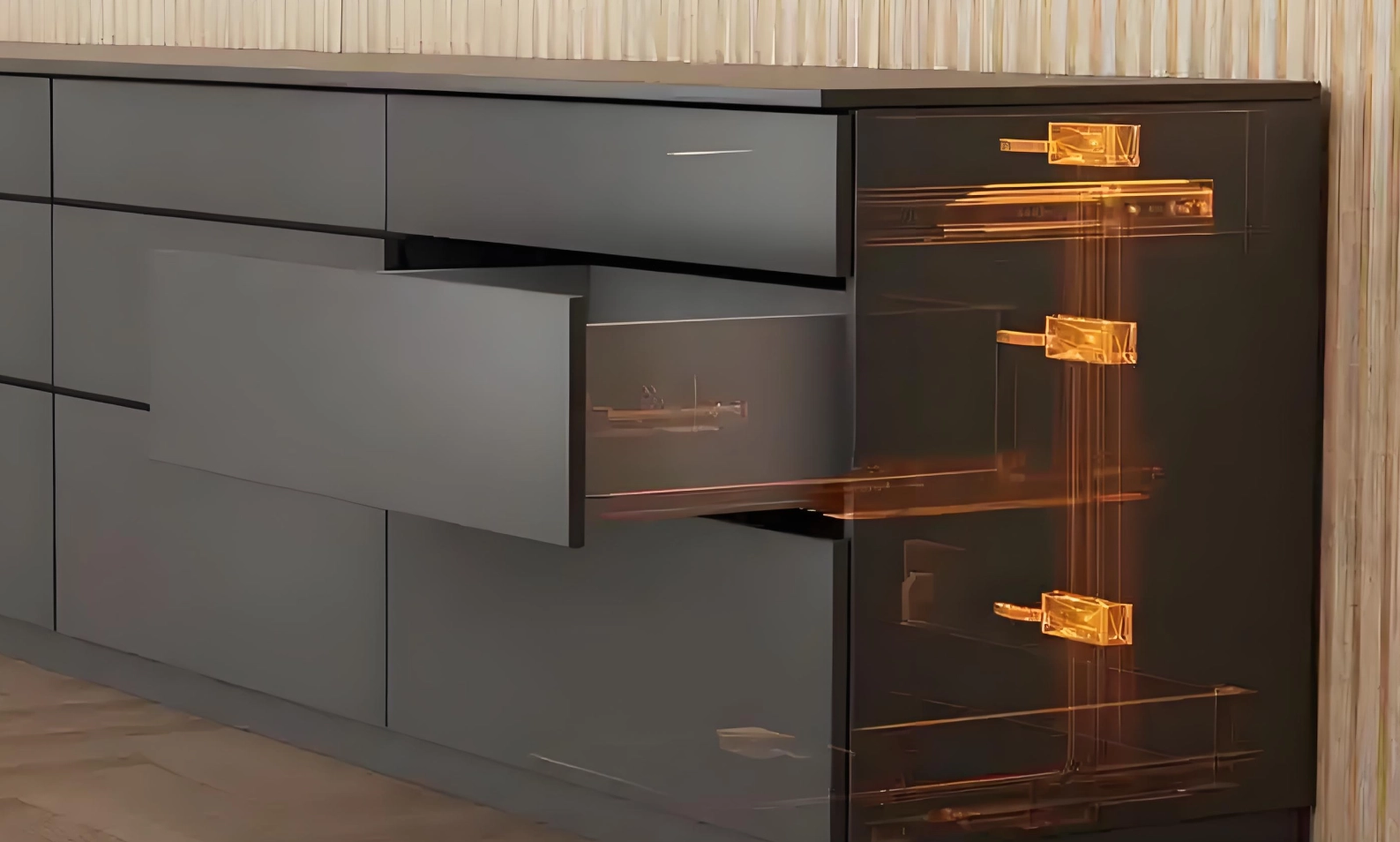

Drawer systems are favored for their simple design and excellent load-bearing and damping performance, but their installation is also unique.
1️⃣Unstable/shaky installation of drawer panel: The panel of the horse drawer is fixed to the drawer body by connectors. If the panel connector is not tightened, or the bottom plate is not installed firmly, and the panel fixing position is inaccurate, it may cause the panel to shake when pulling, affecting the appearance and use experience.
2️⃣The overall drawer is not stable/skewed: This is usually due to uneven installation of the bottom plate, loose connection between the side plate and the bottom plate, or the horse drawer is not installed vertically with the cabinet body. It manifests as the drawer tilting when pulling, or even colliding with the cabinet body.
3️⃣Poor damping effect: Similar to slide rails and hinges, if non-damped horse drawers are selected, or dampers are damaged/installed incorrectly, it may lead to a large impact force when closing, and lose the quiet advantage that horse drawers should have.
After understanding the problem, the next step is to solve it. Mastering professional installation skills and using the right tools are the key to avoiding these traps.
"If you want to do your job well, you must first sharpen your tools." Adequate preparation is the basis for successful installation.
1️⃣Read the product manual carefully: Hardware accessories of different brands and models may have different installation holes and adjustment methods. Be sure to read the manual carefully before installation and understand the instructions for each step.
2️⃣Check hardware accessories: Before starting work, be sure to check whether all hardware accessories are intact, deformed, and complete, to avoid discovering problems halfway through installation.
3️⃣Precise measurement and accurate marking: This is the core to avoid all "misalignment" problems.
4️⃣Precise measurement: Use high-precision tape measure, angle square and level to ensure the accuracy of all dimensions.
5️⃣Accurate marking: Use pencil or scribe to accurately mark the installation surface, and never drill directly based on experience. Especially for hinges and slides with multi-point positioning, marking positioning is crucial.
6️⃣The importance of pre-drilling:
①Choose appropriate drill bits according to the screw diameter and wood hardness.
②Use an electric drill to pre-drill and control the drilling depth to avoid drilling through the board or drilling too shallow to cause the screw to loosen. Pre-drilling can effectively prevent the wood from cracking when screwing in the screws, ensure that the screws are tightened, and greatly improve the installation efficiency and stability.
1️⃣Use of positioning template/punch: For cup hinges, it is recommended to use professional hinge punch or positioning template. They can ensure the accuracy of the drilling position, improve installation efficiency and accuracy, and effectively avoid misalignment of door panels.
2️⃣Balance adjustment of left and right door panels: Most hinges have three-dimensional adjustment screws (usually front and back, left and right, high and low). After the door panels are initially fixed, use these screws to make fine adjustments to ensure that the door gap is even and the door panels are flush.
3️⃣Screw selection and tightening: Select screws of appropriate length and material to ensure that they can penetrate the board and hold it firmly. When tightening the screws, tighten them step by step in multiple times to avoid screws slipping or wood damage caused by tightening them all at once.
4️⃣Multi-point fixing: For door panels with heavy loads or cabinet doors with high frequency of use, ensure that all fixing holes are screwed, and increase the number of screws if necessary to enhance the firmness of the hinge.
1️⃣Ensure parallelism and levelness: This is the top priority of slide rail installation. Use a level to repeatedly measure the installation lines on both sides of the cabinet to ensure that they are completely parallel and level. If the cabinet itself is not flat, you can use gasket for fine adjustment.
2️⃣Synchronous installation of left and right rails: Make sure that the height of the rails on both sides and the distance from the edge of the cabinet are exactly the same, which is the key to smooth drawer pulling. You can use clamps or auxiliary tools to fix it.
3️⃣Matching load-bearing capacity with rail model: When choosing rails, be sure to choose rail models with sufficient load-bearing capacity according to the weight of the items that may be placed in the drawer to avoid drawer sagging later.
4️⃣Evenly distributed and firm screws: Make sure that all fixing holes are screwed and apply force evenly to avoid deformation of the rails due to uneven local force.

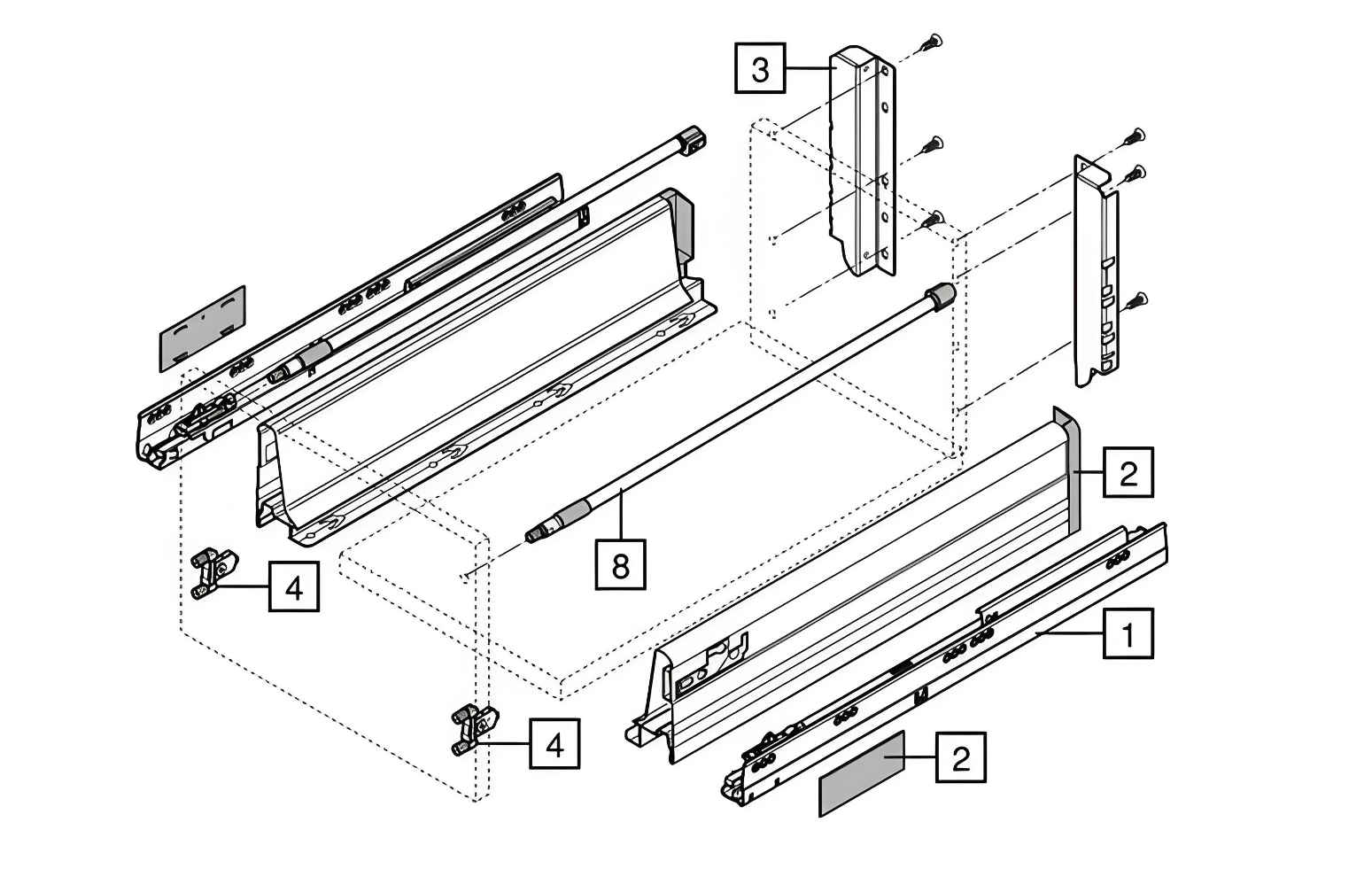

1️⃣Tight connection between the bottom plate and the side plate: The structural stability of the horse drawer depends on the tight connection between the bottom plate and the side plate. According to the instructions, make sure that each connection point is firm, especially the bottom connection screws.
2️⃣Precise alignment of the panel and the horse drawer: Horse drawers usually have panel adjustment functions, which can be fine-tuned up and down, left and right, and front and back. After the initial installation, use these adjustment functions to align the panel with the cabinet to ensure uniform gaps.
3️⃣Overall debugging: After installation, perform multiple pull-out tests to ensure that the drawer pulls out smoothly and smoothly, and closes quietly and smoothly. If problems are found, use the adjustment function to correct them in time.
Owning a set of professional tools can make installation more efficient:
1️⃣Measuring tools: Tape measure, angle ruler, level are essential.
2️⃣Marking tools: Pencil, scriber, center punch for precise marking.
3️⃣Drilling tools: Electric drill (preferably with torque adjustment function), a complete drill set (including woodworking drill, hole reamer), and professional hinge punch (if commonly used).
4️⃣Fastening tools: Screwdriver (cross, flat), electric screwdriver, to improve efficiency.
5️⃣Auxiliary tools: Clamp (fix the plate), Gasket (adjust unevenness), Vacuum cleaner (keep the work area clean).
In the furniture manufacturing and assembly industry, professional hardware installation is not only a technical job, but also a key link in determining product quality and user experience. It can effectively avoid common installation errors, enhance the overall value of furniture, and win market reputation for your B2B customers.
As a professional hardware accessories supplier, we are well aware of the importance of every detail. We not only provide you with high-quality furniture hardware products, but also strive to be your trusted partner and provide professional installation guidance and solutions. We believe that only the perfect combination of products and installation can truly create a high-quality piece of furniture.
If you encounter any problems during the installation of furniture hardware, or have any questions about our products, please feel free to contact our professional team! At the same time, browse our product catalog to learn more about high-quality furniture hardware accessories, let us work together to create more excellent furniture products for your customers!
