Views: 0 Author: Site Editor Publish Time: 2026-04-09 Origin: Site

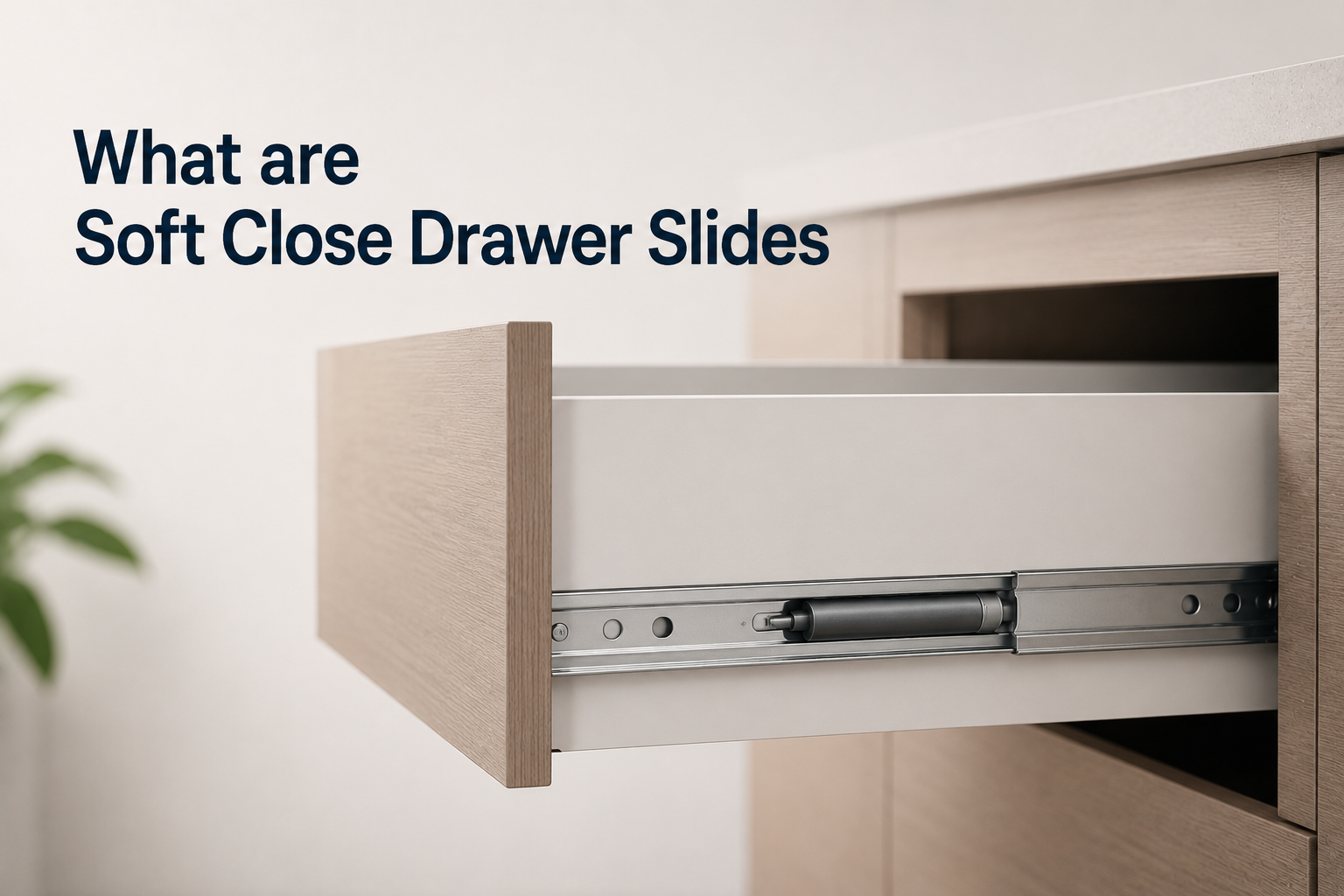

Upgrading cabinet hardware requires balancing tactile experience, longevity, and budget constraints. Constant slamming accelerates wear on cabinet boxes. It also disrupts quiet environments across homes and offices. A soft close drawer slide engineered with hydraulic dampening prevents impact damage. However, it requires precise clearance measurements and specific mounting conditions to function correctly. Many homeowners underestimate the physical constraints involved in retrofitting old drawers. This guide breaks down the underlying mechanics of these advanced hardware systems. We compare functional alternatives, including standard self-close and handle-less push-to-open designs. You will discover the exact specifications required to determine if soft close hardware fits your needs. We also cover physical cabinet constraints. Finally, we provide actionable advice to help you avoid common installation mistakes.
Core Mechanism: Relies on a hydraulic cylinder damper combined with a spring mechanism to catch and slowly pull the drawer shut over the last 2 inches of travel.
Key Alternatives: Not to be confused with "self-close" (spring-only, snaps shut, better for extreme temps/RVs) or "push-to-open" (handle-less design).
Sizing & Specs: Commercial-grade evaluations should look for ANSI/BHMA/BIFMA certifications and a minimum 100 lb. dynamic load rating.
Installation Reality: Side-mount and under-mount slides have fundamentally different width deduction rules; they cannot be swapped directly without rebuilding the drawer box.
Understanding the internal mechanics helps you appreciate the engineering behind silent cabinets. Standard roller slides rely entirely on user force. Soft close systems utilize a complex, automated process to manage kinetic energy.
Basic drawer hardware consists of metal tracks and ball bearings. Advanced soft close systems incorporate two additional critical components. First, they feature an integrated air-driven or fluid-driven hydraulic damper. This damper acts as a sophisticated shock absorber. Second, they include a tensioned spring mechanism. The spring provides the pulling force needed to complete the closing cycle.
When you push a drawer inward, these two components work simultaneously. They balance opposing forces to create a smooth, silent motion.
The magic happens at the very end of the drawer's travel path. The process follows a highly specific, repeatable sequence:
The user pushes the drawer toward the cabinet face.
The drawer travels freely until it reaches roughly 2 inches from closing.
An internal catch hook grabs the sliding track mechanism.
The hydraulic damper engages and instantly absorbs the kinetic energy.
The damper eliminates the blunt-force impact and prevents the "slam."
The spring mechanism gently pulls the drawer inward.
The drawer settles into a complete, flush position against the cabinet frame.
Many buyers view soft close functionality purely as a luxury feature. In reality, it delivers measurable structural benefits. The gentle closing action protects internal drawer contents. Fragile items like glassware and ceramics avoid shifting and breaking. More importantly, eliminating blunt-force impact significantly extends the lifespan of the cabinet joinery. Wood joints experience far less daily stress, preventing cracks and loose connections over time.
Hardware terminology often confuses buyers during cabinet renovations. Manufacturers use distinct terms to describe fundamentally different mechanisms. Choosing the wrong style compromises functionality. Review the comparison chart below to understand the core differences.
Feature | Soft Close | Self Close | Push-to-Open |
|---|---|---|---|
Primary Mechanism | Hydraulic damper + spring | Spring-only tension | Spring-loaded release latch |
Closing Action | Slow, silent, and controlled | Fast, abrupt, and audible | Manual push to close |
Engagement Point | Final 2 inches of travel | Final 1 inch of travel | Requires physical user press |
Best Environments | Kitchens, offices, nurseries | RVs, mobile carts, workshops | Ultra-modern, handle-less designs |
These models excel in environments requiring noise reduction. They are essential for modern kitchens, quiet nurseries, offices, and archive rooms. The controlled closing speed also provides a vital safety feature. It acts as an anti-pinch mechanism, protecting small fingers from injury.
You must consider a few trade-offs. These slides carry a higher initial cost. Additionally, models relying on fluid dynamics can stiffen slightly in extreme freezing temperatures. The hydraulic fluid thickens in unheated spaces like outdoor kitchens.
Buyers frequently confuse self close hardware with soft close models. They are entirely different. Self close slides lack a hydraulic damper. They rely exclusively on spring tension.
The mechanism engages when the drawer is 1 inch out. The spring snaps the drawer tightly shut. This action creates an audible bump. While noisy, this aggressive closing force proves highly beneficial in specific scenarios. They are perfect for RVs, mobile utility carts, and heavy appliances like refrigerators. The tight seal prevents drawers from flying open during transit. They are also highly resilient to extreme temperature fluctuations.
Modern architectural trends heavily favor push-to-open hardware. These slides support ultra-modern, handle-less cabinet designs. A simple press against the drawer face triggers a release spring. The drawer pops out slightly, allowing you to pull it open.
However, push-to-open systems introduce notable usability challenges. They are prone to accidental opening. Knees or hips can easily bump and trigger lower drawers in high-traffic kitchens. Furthermore, installation demands highly precise gap alignments. Premium hybrid models, known as "push-to-open soft-close," solve some issues but carry top-tier pricing.
Not all drawer tracks offer identical durability. You must evaluate load ratings and manufacturing standards before purchasing. Cheap hardware fails quickly under daily use.
Hardware manufacturers categorize slides by their maximum weight capacity. Standard residential slides handle between 50 and 75 lbs. This capacity suits bathroom vanities, clothing dressers, and light desk drawers.
Kitchen applications demand much higher structural integrity. Drawers holding heavy pots, cast-iron pans, or canned goods require robust support. Always specify slides carrying a minimum 100 lb. dynamic load rating. A dynamic rating guarantees the hardware supports 100 lbs while actively moving. A static load rating only guarantees the weight when stationary. Do not confuse the two.
Commercial-grade evaluations demand proof of durability. Look for compliance certificates from established testing bodies. ANSI, BHMA, and BIFMA represent the gold standards in hardware testing.
Certified products undergo rigorous cycle-testing procedures. Machines open and close the loaded drawer tens of thousands of times. This testing ensures the hydraulic seals will not rupture after a few years. It also verifies the spring tension remains consistent over a standard lifespan.
Metals matter when selecting cabinet hardware. Cold-rolled steel serves as the definitive industry standard. This manufacturing process produces dense, structurally sound metal tracks. Manufacturers then apply heavy zinc plating over the steel.
Zinc plating prevents oxidation. Kitchens and bathrooms generate significant humidity. Bare steel tracks rust quickly in these environments. Rusted tracks destroy the smooth ball-bearing glides, causing grinding noises and binding issues.
Upgrading your cabinets requires careful measurement. Buying premium hardware means nothing if it cannot fit inside your existing wooden boxes. Understanding clearance rules prevents costly installation disasters.
Side-mount soft close slides demand strict physical tolerances. They strictly require a 1/2-inch clearance on each side of the drawer box. This equals a 1-inch total deduction from the cabinet opening width.
Under-mount slides operate on entirely different mathematical rules. They require specific bottom recess depths to hide the mechanism. They also use different width deductions depending on the wood thickness. Never attempt to replace a side-mount track with an under-mount track. You cannot swap them directly without completely rebuilding the underlying drawer box.
Sometimes, replacing full slide tracks proves structurally impossible. Old custom cabinets often lack standard measurements. In these cases, aftermarket "soft close add-on" dampers provide a brilliant fallback solution. You can install these small devices onto existing wood or melamine drawers.
Before purchasing add-on dampers, you must perform a strict constraint check:
Minimum Depth: Your drawers must have at least a 9-inch depth to accommodate the damper housing.
Side Gap: You still need a standard 1/2-inch side clearance to mount the triggering mechanism.
Width Limits: Drawers wider than 23 inches require dual add-on mounts. You must install one on each side. A single damper on a wide drawer causes the box to twist off-track due to uneven spring tension.
Even premium hardware fails if installed improperly. Minor measurement deviations destroy hydraulic functionality. Awareness of common installation mistakes saves hours of frustration.
Retrofitting older cabinets frequently exposes irregular internal gaps. You might discover a 7/8-inch gap instead of the required 1/2-inch gap. If you attempt to force the installation, the slide will bow outward. A bowed slide binds immediately and destroys the ball bearings.
You must address the gap before mounting the hardware. Use dimensionally stable hardwood, like maple, to create exact filler shims. MDF also works well for this purpose. Rip the shims on a table saw to the exact required thickness. Block out the cabinet wall with these shims to achieve a perfect 1/2-inch gap. Only then should you mount the metal track.
Cabinet construction styles dictate your mounting strategy. Frameless cabinets feature flat, continuous interior walls. They allow direct side-wall mounting for the entire length of the hardware.
Face frame cabinets present a different challenge. The front frame protrudes past the internal side walls. You cannot mount the track directly to empty air. Face frame cabinets often require specialized rear mounting brackets. These brackets attach to the back cabinet wall. They support the rear end of the slide, keeping it perfectly level with the front frame.
Hydraulic catches exhibit zero tolerance for sloppy carpentry. They demand perfectly square drawer boxes. If the drawer box is racked out of square by even 1/16th of an inch, the system fails.
When a drawer racks, the left and right hardware tracks fall out of parallel alignment. One side's damper engages before the other. This uneven engagement forces the user to push harder to close the drawer. The excess force eventually ruptures the delicate hydraulic seals.
Soft close drawer slides represent the definitive industry standard for modern cabinet hardware. They actively extend cabinet life by eliminating structural impact damage. They also drastically improve the daily user experience by eliminating noise and ensuring safe operation.
Consider the following actionable steps before starting your renovation:
Assess your application: Use true soft close for homes and offices. Reserve spring-only self close hardware for RVs or heavy utility carts.
Measure meticulously: For retrofits, measure existing side clearances precisely. If you have exactly 1/2-inch per side, upgrade the full side-mount track.
Explore alternatives: If replacing the tracks proves unfeasible, evaluate aftermarket add-on damper components to achieve a similar effect.
Prioritize quality: Always specify a minimum 100 lb. dynamic load rating for kitchen projects. Ensure the hardware carries ANSI or BHMA certifications.
Planning your cabinet upgrade carefully prevents costly measurement errors. If you need customized guidance for a complex renovation or have questions about specific hardware tolerances, please contact us. Our team can help you identify the perfect hardware solution for your exact dimensions.
A: Yes, you can retrofit older cabinets. The success of the installation depends entirely on your existing measurements. The drawer box must allow for exactly 1/2-inch of side clearance on both sides. If the gap is too large, you must use hardwood shims. Alternatively, you can install retrofit add-on dampers on the existing tracks.
A: The initial pull requires overcoming the internal spring tension holding the drawer shut. A slight initial resistance is normal. However, if the drawer feels excessively stiff, your installation likely suffers from racking. The slides may be mounted out of parallel, causing the tracks to bind and pinch the ball bearings.
A: No. All soft-close slides technically self-close via an internal spring. However, a true "self-close" slide lacks the hydraulic damper. Without the damper to absorb the kinetic energy, a self-close drawer will snap shut aggressively and cause a loud slamming noise. They serve entirely different functional purposes.
