Unsecured heavy-duty drawers pose severe safety hazards in mobile environments. They risk catastrophic equipment damage in RVs, utility trucks, and industrial settings. Sudden movements turn heavy toolboxes into dangerous projectiles. We must move beyond basic hardware mechanics to solve this problem. You need to understand exactly how locking mechanisms engage. You also need to know when safety compliance makes them mandatory. We will explain how to evaluate these components for commercial, vehicular, or heavy DIY applications. Relying on standard hardware in dynamic spaces often leads to failure. Not all retaining systems are equal. You must distinguish between light-duty friction detents and true mechanical lock-in or lock-out systems. Recognizing this difference is absolutely critical for your project success. You will learn the mechanics, trade-offs, and troubleshooting steps needed to build secure storage.
Mechanical Engagement: Locking drawer slides utilize integrated lever or push-button latches that physically block the track, securing drawers in either fully closed (Lock-In) or fully extended (Lock-Out) positions.
Application Necessity: Essential for mobile applications (RVs, automotive) and heavy machinery where dynamic forces cause standard slides to drift open.
Selection Criteria: Procurement and design choices must balance load capacity (static vs. dynamic), mechanism type (lever vs. button), and spatial constraints.
Lifecycle Realities: Longevity depends heavily on precision installation; slight misalignments are the primary cause of locking failure and premature track wear.
Engineers design these systems for absolute reliability under stress. They replace gravity-dependent holding methods using physical barriers. We will break down the exact mechanical sequence occurring inside the track.

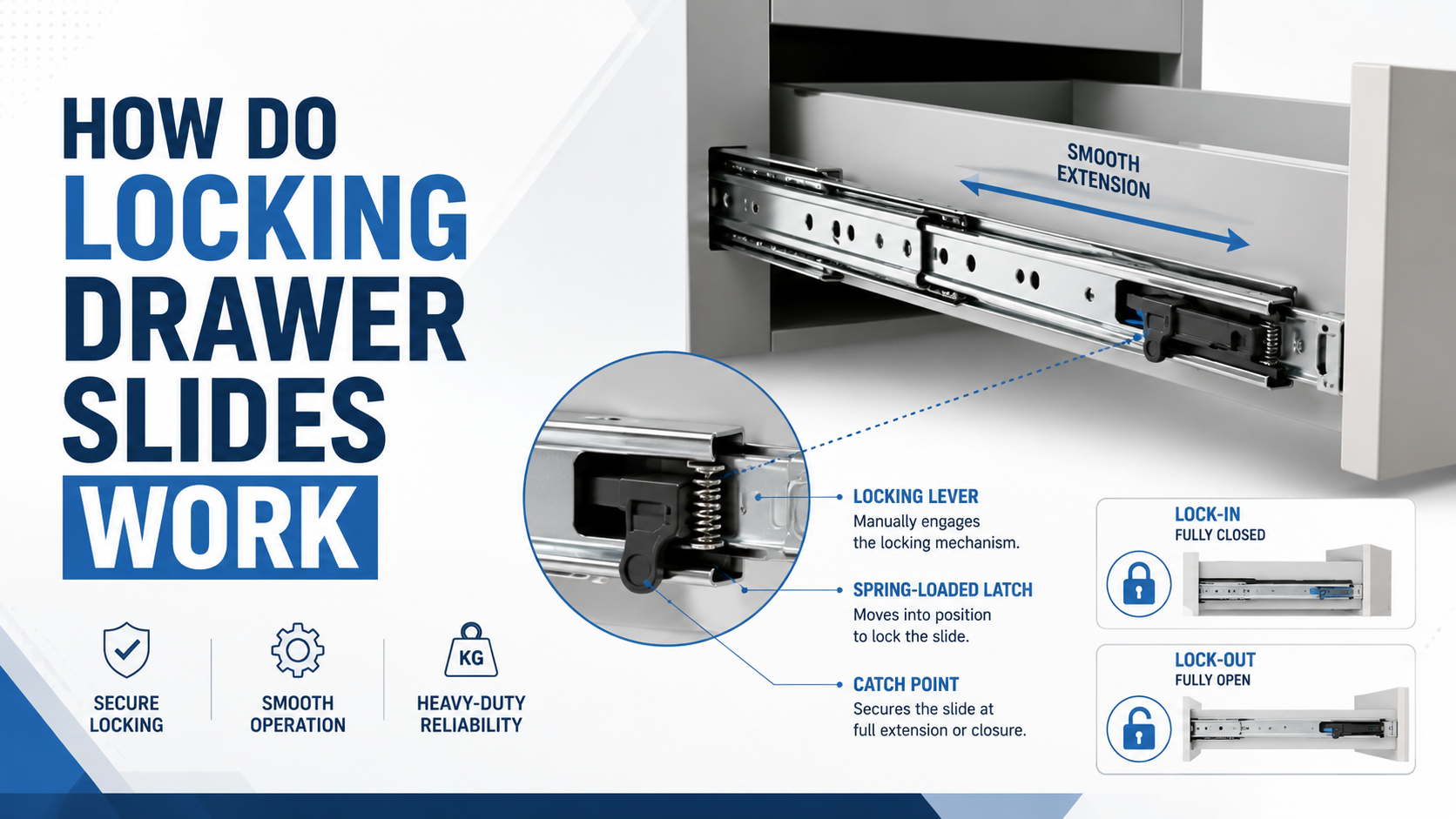

A spring-loaded trigger or lever sits inside the inner profile. We call this the core latching system. The drawer reaches the end of its designated travel path. At this exact moment, the latch drops into a precisely machined cutout. Manufacturers often use a heavy-duty catch block. This physical barrier completely prevents track movement. The heavy spring ensures the lever stays fully engaged. You must manually actuate the lever to clear the block. The mechanism operates entirely on physical obstruction. This design prevents vibrations from slowly shaking the drawer open. Thick steel tabs absorb the kinetic energy generated by moving loads.
Different projects require different structural holding strategies. We divide these essential functions into lock-in and lock-out categories.
Lock-In: This mechanism prevents the drawer from opening during transit. It keeps compartments secure on unlevel ground. Vehicle upfitting relies heavily on this specific feature to protect cargo.
Lock-Out: This secures the drawer in the fully open position. It provides a highly stable, non-retracting workspace. We see this often in keyboard trays. Pull-out workbenches and heavy tool storage also demand reliable lock-out functions.
Premium heavy-duty units often combine both functional features. We call these dual-locking systems. They require manual lever actuation to move the drawer in either direction. You press the trigger to pull the drawer open. You press it again to push the drawer closed. This guarantees absolute control over the moving mass. Dynamic forces cannot override a dual-locking mechanism. It requires deliberate human intervention every single time. Fleet managers highly value this bidirectional security.
Choosing between standard and secured hardware involves multiple variables. Project builders must evaluate safety, workflow speed, and structural tolerances.
Let us examine the severe safety risks involved. A 500 lb. capacity drawer rolling out unexpectedly is extremely dangerous. It crushes feet and traps workers against walls. A locking drawer slide provides controlled, predictable safety. It mitigates these massive injury risks immediately. Occupational safety regulations often mandate physical restraints for moving equipment. Vehicles simply cannot rely on gravity or slight track friction alone. The physical lock ensures compliance alongside operator safety.
Feature Category | Non-Locking Slides | Locking Slides |
|---|---|---|
Movement Control | Free rolling, relies on gravity | Physically restrained at endpoints |
Safety Risk | High risk of accidental opening | Eliminates accidental rollout |
Installation Tolerance | Forgiving of minor misalignments | Requires strict, perfectly square alignment |
Best Application | Residential desks, kitchen cabinets | Utility trucks, RVs, mobile workbenches |
These specialized components naturally have higher manufacturing costs. The complex latching components require precision engineering. Springs and machined catch blocks add significant material expenses. You must evaluate when the return on investment justifies the upgrade. The specialized hardware prevents damaged inventory during rough transit. It also aggressively reduces workplace liability claims. The extra upfront cost quickly justifies itself in commercial fleets.
Non-locking hardware offers higher tolerances for minor misalignments. Installers can easily compensate for slight cabinet bowing. Secured versions demand completely precise, square installation. The cabinet walls must sit perfectly parallel. Otherwise, the locking pins will fail to seat correctly. They will miss the catch blocks entirely. You need accurate measuring tools to ensure proper functional alignment.
Think carefully about the daily workflow impact. Stationary environments prioritize speed and effortless access. Constantly engaging a lock slows down frequent daily retrievals. Office workers rarely need extreme mechanical security. Dynamic environments change this operational equation entirely. The high security heavily outweighs the minor inconvenience. Taking an extra second to actuate the lever prevents major disasters. You must balance retrieval speed against potential risk.
Different industries favor specific activation styles based on user ergonomics. Understanding these variations helps you select the perfect hardware.
Heavy machinery and construction equipment use lever-release locks extensively. You actuate them via front-mounted colored triggers. They usually sit at the very end of the sliding track. They handle extreme high-load capacities exceeding 250 lbs. Utility truck beds and industrial toolboxes rely heavily on them. Operators wearing thick work gloves can easily operate the robust levers.
Automotive and marine sectors strongly prefer push-button locks. A central button integrates directly into the drawer handle. Sometimes it mounts flush on the drawer face itself. RV interiors use these mechanisms extensively for clean aesthetics. Automotive consoles require intuitive, highly responsive operation. Users want one-handed access while maintaining focus. Designers love their clean, unobtrusive visual profile.
We must clarify an important hardware industry distinction. You need to differentiate true mechanical locks from standard hold-in slides. Many people incorrectly call the latter detent slides. They only use rubber bumpers or slight track bends. These provide temporary, mild resistance against movement. They do not provide a solid physical lock. A heavy transit jolt will instantly defeat a friction detent. Only a true mechanical latch survives mobile shock loads.
Mechanism Type | Shock Load Resistance | Ergonomic Speed | Typical Cost Profile |
|---|---|---|---|
Lever-Release | Excellent | Moderate | High |
Push-Button | Good | Fast | Medium-High |
Friction/Detent | Poor | Very Fast | Low |
Purchasing the correct hardware requires careful calculation and environmental assessment. Follow a systematic approach to prevent costly specification errors.
Calculate True Operational Load: Determine the maximum weight the drawer will hold.
Apply Dynamic Multipliers: Adjust the static weight rating for mobile shock forces.
Measure Extension Length: Decide between partial, full, or over-travel extension.
Assess Environmental Hazards: Check for moisture, salt, or extreme dust exposure.
Select Actuation Style: Choose the lever or push-button based on operator ergonomics.
Mobile environments apply extremely harsh dynamic shock loads. You must fully understand hardware load ratings. A standard slide rated for 250 lbs static acts differently in motion. It may only support 150 lbs dynamically inside a moving vehicle. A bouncing RV amplifies gravity and momentum significantly. You need to calculate the actual dynamic forces applied during transit. Always over-specify the weight capacity for vehicular applications.
You must match the structural capability to the project needs exactly. Some jobs simply require standard full-extension capability. Others need specific over-travel distance. Over-travel helps clear deep overhanging countertops. It also allows for much deeper cleaning access. Workers can reach the very back of the storage bin easily. This prevents hazardous over-reaching when lifting heavy tools.
Assess the surrounding physical environment carefully before ordering. Zinc-plated cold-rolled steel serves as the reliable industry standard. It handles indoor climate control exceptionally well. Marine environments demand entirely different metallic materials. Exterior automotive applications absolutely require stainless steel. Heavy anti-corrosion treatments prevent destructive rust formation. Delicate locking springs fail quickly when rusted solid. You must protect the internal latch components from corrosive moisture.
Even premium hardware fails if you neglect proper maintenance. You must implement routine care to protect the internal latch mechanisms.
Sometimes the latch simply refuses to click into place. This is the most common operational failure reported. The primary cause is nearly always an out-of-square cabinet. The wooden drawer box might also be skewed slightly. You must verify perfect horizontal alignment first. Ensure the cabinet opening width matches the drawer width perfectly. Add the exact specified slide thickness to this final measurement. Tighter tolerances directly prevent mechanical alignment failures.
Dust easily jams the delicate spring-loaded catch block. Debris causes terrible grinding noises during extension. You need a strict protocol for clearing the tracks.
Blow out loose debris using compressed air monthly.
Wipe the internal ball-bearing tracks down using a clean rag.
Apply only manufacturer-approved slide lubricant carefully.
Avoid heavy automotive greases at all costs.
Thick grease acts like a powerful magnet for sawdust and dirt. It will eventually destroy the smooth latch operation.
We strongly advise against violently slamming drawers shut. Aggressive closing force bends the locking tabs over time. It permanently damages the internal tension spring mechanisms. Treat the hardware properly to extend its functional life. The locking mechanism is not a magic structural fix. It does not substitute for proper structural drawer design. Build a perfectly square, solid box first. Then attach the premium securing hardware.
Specifying these mechanisms is fundamentally about mitigating risk. Demanding environments require guaranteed physical security. We must summarize the critical evaluation funnel. First, identify the necessary locking direction for your specific build. Choose in, out, or both based on user needs. Next, accurately calculate the dynamic load requirements for mobile spaces. Finally, select the mechanism fitting your exact daily workflow. Choose between a rugged lever or an intuitive push-button. We encourage engineers and builders to review dimensional specs closely. Check the load-rating charts carefully before finalizing your purchase. Make sure the latching mechanism aligns perfectly within your cabinet tolerances. Feel free to contact us for expert specification assistance and sizing recommendations.
A: Generally no. True locking slides have integrated internal catches built into the steel track. Retrofitting usually requires mounting external hardware rather than modifying the slide itself. You would need barrel bolts or paddle latches mounted directly to the drawer face to achieve security.
A: You must use the secondary disconnect mechanism. Most units feature a separate disconnect lever located inside the track. You must press this inner lever simultaneously with the primary locking lever. This action completely separates the drawer member from the cabinet member safely.
A: Yes. They require significantly tighter tolerances. If you install the drawer even slightly out of parallel, the locking mechanism may bind. The latches will fail to engage simultaneously on both sides. You must ensure perfect squareness during the entire cabinet construction process.
