Standard drawer hardware consistently fails under dynamic loads or extreme weight. Bent rails, accidental deployments, and severe safety hazards frequently plague mobile or industrial environments. You face significant risks when storing heavy equipment on inadequate sliding mechanisms. For payloads exceeding 250 lbs, evaluating hardware transitions from basic utility to critical structural integrity becomes necessary. Upgrading your components prevents catastrophic failures and protects valuable assets during transit or heavy daily use.
You need absolute certainty when specifying hardware for massive weight classes. This guide breaks down the mechanical functions, exact specifications, and implementation realities of the 76mm heavy-duty slide with lock. We explore the critical differences between standard options and industrial-grade solutions. You will learn how to support confident procurement and make highly reliable design decisions for your toughest storage projects.
Load Capacity: Engineered for payloads up to 500 lbs (227 kg) using 2.5mm thick Q-235 cold-rolled steel.
Locking Mechanics: Features a mandatory mechanical latch for both lock-in (closed) and lock-out (fully extended) states, distinct from basic "hold-out" friction detents.
Installation Precision: Requires a strict side installation gap of 19.1mm to 19.6mm; improper clearances are the leading cause of installation failure.
Target Applications: Built specifically for RV/van conversions, utility vehicle toolboxes, and industrial storage where motion and vibration are constant.
The 76mm width serves as the definitive industry standard for the 500 lb (227 kg) weight class. Thinner variants simply lack the geometric strength to handle extreme downward forces. A 53mm slide safely manages up to 250 lbs under ideal conditions. A 51mm slide generally supports up to 150 lbs for lighter applications. You must utilize the 76mm profile to guarantee structural stability when dealing with maximum payloads. Narrower hardware will warp or collapse when pushed beyond its specific mechanical limits.
To understand the differences clearly, review the core specifications across standard sizes:
Slide Width | Max Load Capacity | Steel Thickness | Primary Application |
|---|---|---|---|
76mm | 500 lbs (227 kg) | 2.5mm x 2.5mm x 2.5mm | Industrial, RV, Overland |
53mm | 250 lbs (113 kg) | 2.0mm x 2.0mm x 2.0mm | Heavy Kitchen, Tool Chests |
51mm | 150 lbs (68 kg) | 1.5mm x 1.5mm x 1.5mm | Standard Home, Light Office |
This hardware relies on a massive three-section steel architecture. Each section features a robust 2.5mm thickness. Evaluators should actively verify the use of high-grade Q-235 cold-rolled steel rather than standard commercial alloys. Standard alloys flex too easily under sustained static loads. Q-235 steel provides the exact tensile strength needed to resist permanent deformation. The three-section design allows the inner rail to telescope fully outward while maintaining a rigid backbone.
The ball bearing system dictates the smoothness and longevity of the operation. This slide uses densely packed 6mm diameter solid steel ball bearings. They ensure a perfectly smooth, full-extension pull. Full extension means you get 100% pull-out access to the very back of the drawer. The high density of these massive bearings prevents vertical sagging even under maximum payload. They distribute the massive downward force evenly across the steel tracks.
Surface treatment protects the underlying steel from rapid environmental degradation. The metal features comprehensive rust-proof galvanizing. This specialized zinc coating withstands incredibly harsh environments effectively. It resists heavy moisture buildup inside overland vehicles and marine environments. It also repels accidental chemical exposure in industrial manufacturing settings, extending the hardware's lifespan significantly.

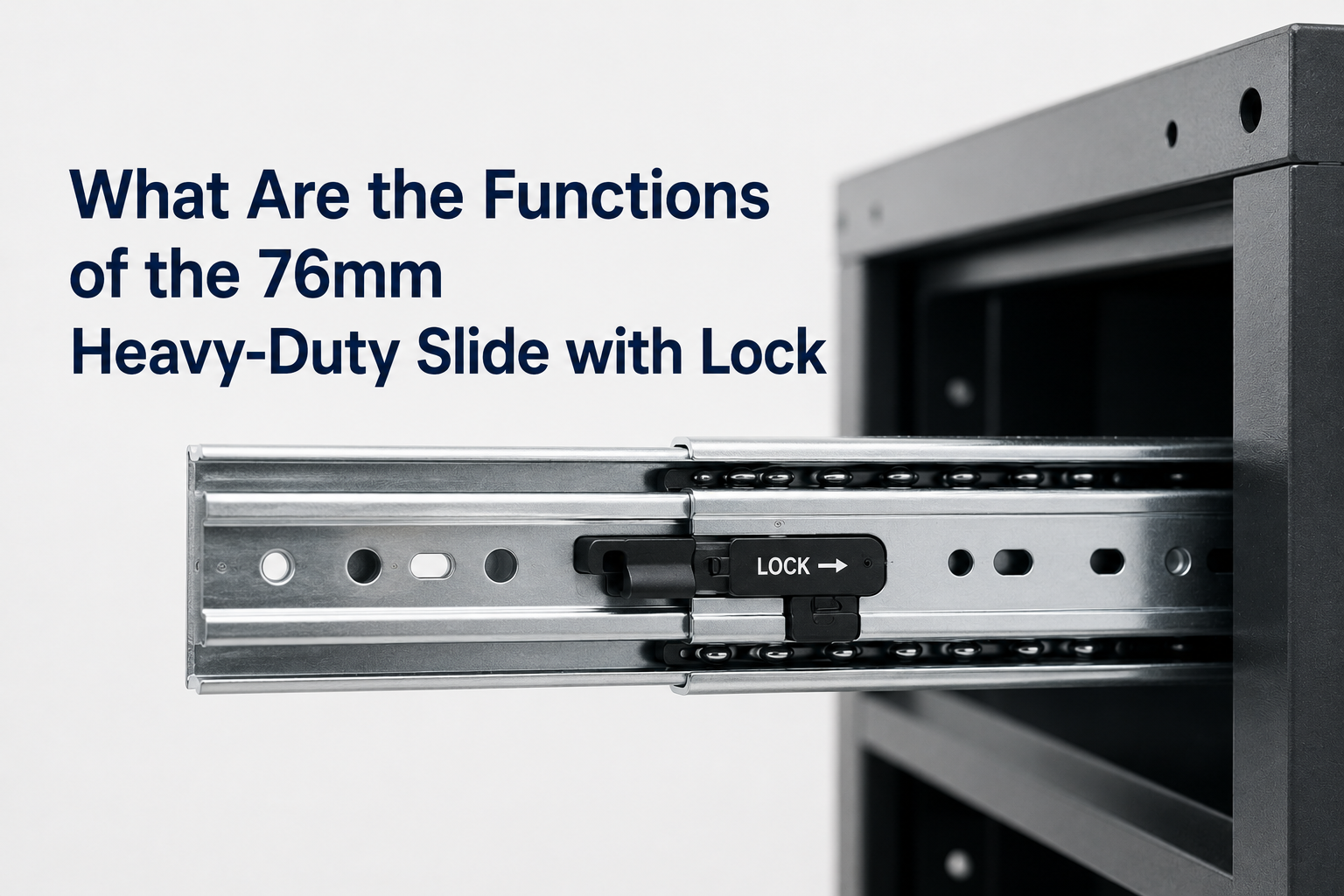

Defining the lock function requires examining the physical interface at the front of the unit. The lock is a physical, spring-loaded lever or latch. It integrates directly into the front chassis of the slide. You must manually depress this trigger to engage or disengage the locking mechanism. It utilizes a rigid metal pin dropping into a thick steel slot to immobilize the rails completely.
Lock-In provides essential transit safety for mobile applications. It secures the drawer tightly inside the cabinet chassis. You absolutely need this feature in dynamic environments. It prevents heavy drawers from acting as dangerous projectiles during sudden movements. Heavy gear will fly open during intense acceleration, hard braking, or sharp cornering without it. Lock-In handles these kinetic forces effortlessly.
Lock-Out guarantees operational stability when you deploy the platform. It anchors the drawer firmly in the 100% extended position. This function proves critical for mobile workstations, pull-out kitchens, or heavy tool maintenance platforms. You might park an overland vehicle on a steep gradient. The mechanical lock ensures the heavy platform does not unexpectedly retract and crush your hands while you work.
We must clarify a very common procurement error regarding locking terminology. Buyers often confuse a true lock with a "hold-out" or detent mechanism. A hold-out relies purely on rubber friction or slight indentations. You can push a hold-out closed simply by shoving it. A true locking slide requires a deliberate mechanical release of the lever. Never substitute a friction detent for a mechanical lock in a moving vehicle.
Different industries rely heavily on this precise hardware for their most demanding storage challenges. Standard hardware fails rapidly in these specific use cases.
Mobile & Special Vehicles: Overland SUV cargo sleds depend on them for deploying heavy refrigerators. Luxury RV under-bed storage units use them to access hidden compartments easily. Emergency response vehicle equipment trays require them for fast, reliable access to heavy extraction tools.
Industrial Workstations: Heavy-duty CNC tool cabinets hold dense, solid steel parts requiring extreme support. Mechanical maintenance carts carry hundreds of pounds of wrenches and sockets daily. Warehouse storage facilities use them for custom shelving where payloads consistently exceed 120 kg.
Financial & Lab Equipment: Secure housing for heavy battery banks demands non-sagging structural support. ATM internal mechanics use these slides for servicing incredibly heavy cash vault cassettes. Sensitive, heavy laboratory testing rigs rely on them to prevent jarring expensive equipment during access.
The side gap requirement acts as a critical failure point during installation. The 76mm heavy-duty slide with lock requires an uncompromising side clearance. Planning for a 19.1mm to 19.6mm gap per side is strictly mandatory. This translates to approximately 0.75 inches of space between the drawer box and the cabinet wall. Deviating from this precise measurement ruins the installation completely.
Tolerance rules dictate how you must handle spatial discrepancies in your cabinetry builds. Pre-allocating too little space makes installation impossible. The ball bearings will bind instantly, grinding the steel tracks and destroying the slide. Pre-allocating slightly too much space offers a workable solution. You can rectify excess space easily with solid metal shims behind the outer rail. Always err on the side of a larger gap, never smaller.
Fastener specifications matter just as much as the steel slides themselves. Standard wood screws are completely insufficient for these weight classes. Massive shear forces will snap typical screws under heavy dynamic loads. Best practices dictate a specific fastening approach:
Use high-tensile M6 machine screws or bolts for the outer rail attached to the cabinet side.
Use high-tensile M5 machine screws or bolts for the inner rail attached to the drawer side.
Utilize locking nuts and washers to prevent vibrational loosening over time.
Industrial grades include specific sound and impact mitigation features to protect the hardware. They feature ABS soundproof bumpers positioned at the rear of the slide track. These dense bumpers absorb the immense kinetic energy of a 500 lb drawer slamming shut. They prevent metal-on-metal crashing. This absorption protects the internal latch mechanism from developing micro-fractures over thousands of cycles.
OEM and ODM capabilities differentiate top-tier manufacturing suppliers from standard distributors. B2B buyers must assess if the manufacturer can modify dimensions easily. Standard manufacturing lengths range broadly from 12 to 80 inches. You should also check if they can adjust lock lever colors. Matching specific brand guidelines matters significantly for premium commercial builds and consumer-facing vehicle modifications.
Certifications prove a baseline of manufacturing excellence and material safety. Demand strict ISO and CE compliance from your shortlisted vendors. These recognized certifications mitigate your operational liability. They also reduce quality control risks significantly across large batches. This verification step remains non-negotiable for any international hardware deployments or commercial vehicle retrofits.
Source verification impacts your final product quality heavily. Direct-from-factory sourcing reduces standard wholesale markup effectively. However, it requires much stricter upfront specification checks. You cannot simply buy these components blindly like off-the-shelf consumer retail hardware. You must verify steel grades, bearing diameters, and galvanizing thickness directly with the manufacturer. If you need assistance verifying custom specifications for an upcoming build, contact us to discuss your technical requirements directly with our engineering team.
The 76mm heavy-duty slide with lock is not a general-purpose hardware piece. It serves as a highly specialized structural component engineered for extreme environments. You need this specific hardware exclusively for payloads exceeding 250 lbs where motion, vibration, and safety hazards are constant.
Before initiating a purchase, you must take several precise actions. First, finalize your cabinet dimensions to guarantee the uncompromising 19.1mm–19.6mm installation gap. Second, calculate the true maximum payload accurately, ensuring you include the weight of the actual drawer box itself. Finally, verify your absolute need for a mechanical lock versus a standard friction close to guarantee operator safety.
A: Exactly 19.1mm to 19.6mm per side. Deviating from this will cause the ball bearings to bind or the lock to misalign.
A: No. The locking latch is permanently integrated into the slide's front chassis. If a lock is not needed, you must purchase a non-locking 76mm variant.
A: Yes. A detent (or hold-out/hold-in) uses a rubber or friction catch that releases when pushed. A locking slide uses a rigid metal latch that will not move unless the trigger is manually pressed.
