Views: 0 Author: Site Editor Publish Time: 2026-04-30 Origin: Site
Selecting the wrong drawer slide introduces daily friction or genuine safety hazards. A standard slide in a mobile environment often leads to spilled cargo and damaged equipment. Conversely, over-engineering a stationary cabinet wastes budget. It also creates unnecessary operational hurdles, such as user fatigue from repeatedly pressing heavy-duty latches.
You need to match the mechanical mechanism directly to your specific environmental demands. Our goal is balancing load capacity, accessibility, and physical security. We want to achieve this without sacrificing daily usability. A well-designed storage unit should feel effortless yet remain entirely secure.
This guide breaks down the structural differences, application frameworks, and implementation realities between sliding mechanisms. You will learn how to evaluate static versus dynamic load limits. We will help you specify the exact hardware to ensure your project performs safely and reliably over its entire lifespan.

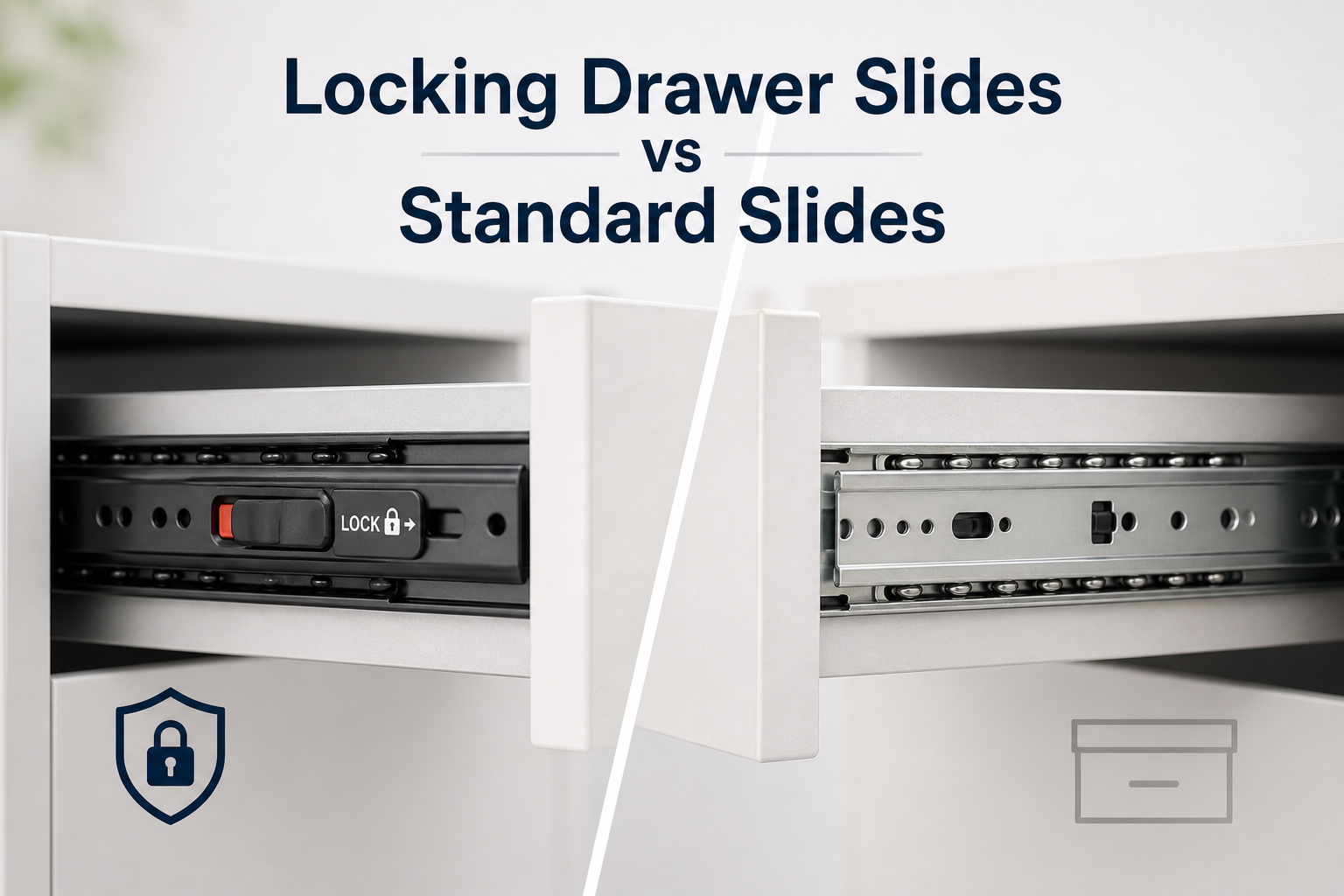

Mechanism matters: True locking drawer slides use a mechanical latch to physically secure the drawer, whereas standard slides rely on gravity or friction (detent) to stay closed.
Application dictates the hardware: Standard slides are optimal for stationary, high-frequency access points. Locking slides are non-negotiable for uneven surfaces, mobile setups (RVs/overlanding), and heavy-duty tool storage.
The "Soft-Close" middle ground: For light mobile applications, standard soft-close slides often provide enough closing resistance to prevent accidental opening, saving users from having to press a locking lever dozens of times a day.
Safety margins are critical: Always select a load capacity 10–20 lbs higher than your maximum anticipated weight to account for dynamic loads and daily abuse.
Every smooth-gliding storage drawer relies on linear motion. However, how a drawer stays put varies significantly based on its internal hardware. You must understand the difference between friction-based holding and physical latching to make an informed choice.
A standard slide utilizes ball bearings or nylon rollers to create smooth linear motion. They provide effortless operation for indoor furniture and office environments. Many standard models feature a simple "detent-in" system. This system relies on a rubber bumper or a tight groove located at the back of the track. When you push the drawer fully shut, the rail squeezes into this bumper. It creates slight friction. This resistance keeps the drawer closed on perfectly level surfaces. You can overcome this resistance simply by pulling the handle.
A locking drawer slide operates on a fundamentally different principle. It incorporates a physical, mechanical latch. You usually interact with this latch via a colored lever or trigger located at the front edge of the slide track. When engaged, this metal latch drops into a machined slot. It completely immobilizes the rail.
Mechanical locking mechanisms typically offer two distinct positional advantages. You can utilize one or both depending on the model you select:
Lock-in: This secures the drawer tightly when closed. It prevents the drawer from flying open during transit, heavy braking, or steep inclines.
Lock-out: This secures the drawer in the fully extended open position. It creates a highly stable, rigid surface. This function is ideal for pull-out workbenches, sliding RV kitchens, or heavy keyboard trays.
Do not confuse friction (detent) with a true locking mechanism. A detent only holds a drawer shut under static, level conditions. If your application involves gravity, uneven terrain, or momentum shifts, friction will eventually fail. When safety and absolute immobility are required, you must specify a mechanical latch.
Standard drawer slides dominate the residential and commercial furniture markets for good reason. They prioritize rapid access and effortless operation.
Standard slides offer zero-barrier access. You grasp the handle and pull. They generally carry a lower unit cost due to simplified manufacturing requirements. You will also find a vast array of sizing and mounting options, including side-mount, center-mount, and concealed undermount designs. Installation usually requires fewer specialized tools and lower precision tolerances.
You should specify standard slides when ease of use outweighs the need for extreme physical security.
Stationary Cabinetry: Kitchen cabinets, residential dressers, and fixed office desks.
High-Frequency Commercial Access: Pharmacy drawers or retail cash wraps. Unlocking a lever hundreds of times a day would severely reduce workflow efficiency in these settings.
Concealed Hardware Designs: High-end cabinetry requires invisible undermount slides to maintain a clean aesthetic. Mechanical triggers usually disrupt this clean look.
Building mobile spaces like RVs or camper vans introduces a unique dilemma. You need drawers to stay shut while driving. However, you want to avoid the annoyance of pressing a locking trigger 50 times a day for standard clothing or utensil drawers. Many experienced builders utilize standard soft-close slides as a viable alternative. Soft-close slides require hydraulic dampers to function. These fluid-filled cylinders add significant resting resistance. This passive resistance is often strong enough to keep light-to-medium drawers safely shut during normal driving conditions. It offers a convenient middle ground without needing a true mechanical lock.
Sometimes efficiency must take a backseat to raw holding power. Locking slides are engineered for harsh environments, heavy loads, and unpredictable motion.
The primary advantage is absolute physical security against unintended movement. A locked slide will not shift, regardless of vehicle tilt or aggressive vibration. They also prevent unauthorized access when paired with traditional key-locking cabinet faces. Furthermore, locking slides offer rigid stabilization of exceptionally heavy loads when fully extended.
These robust mechanisms belong in environments where movement creates danger.
Mobile & Off-Road: Overlanding vehicles, marine applications, and food trucks. Uneven terrain and vehicle inertia will forcefully open standard drawers. This creates dangerous projectiles.
Heavy Duty Storage: Utility trucks carrying high-mass items like portable generators, refrigerators, and heavy steel tools. A shifting 200-lb tool drawer could easily cause severe injury or vehicle damage.
Lock-Open Workspaces: Slide-out BBQs, mobile workbenches, and equipment inspection trays. These applications require a highly stable platform. The tray absolutely must not retract while a user is actively working on it.
Greater security results in slower accessibility. Every single opening and closing action requires intentional, manual interaction with the lever mechanism. Users must actively press the trigger to deploy the drawer. They must press it again to stow it away. This added step can frustrate users if deployed in the wrong application.
Selecting the right hardware requires balancing multiple technical variables. You should evaluate your project against these four essential criteria.
Manufacturers rate standard slides for static loads. A 100-lb rating assumes the cabinet sits motionless on a flat floor. Mobile applications change this math entirely. A 100-lb drawer exerts significantly more downward and lateral force when hitting a pothole at highway speeds.
Rule of Thumb: If using a sliding mechanism in a moving vehicle, over-specify the weight rating by at least 20-30%. This buffer accounts for aggressive dynamic forces and unexpected vibrations.
Different slides require distinct cabinet modifications. Standard side-mount slides typically require exactly 1/2-inch of clearance on each side of the drawer box. They are relatively forgiving during installation.
Heavy-duty models require more breathing room. They often demand 3/4-inch or more of side clearance. Furthermore, they feature bulkier front triggers. You must ensure these triggers clear the drawer face and cabinet frame. You must precisely calculate these dimensions before cutting any wood.
Map out a typical day in your workspace. How often will a user open this specific compartment?
If frequency is high, stick to a standard slide. Consider adding push-to-open or soft-close features for convenience. If frequency is low but the consequence of an accidental opening is high, you must specify a locking model.
Mechanical latches inherently drive up manufacturing complexity. Precision-stamped levers, durable springs, and reinforced steel tracks cost more to produce. Expect to pay a notable premium. This premium increases significantly for industrial-grade slides capable of bearing heavy loads exceeding 250 lbs.
Review the table below to quickly summarize how these two mechanisms compare across critical project dimensions.
Feature | Standard Slide | Locking Slide |
|---|---|---|
Primary Holding Mechanism | Friction (Detent bumper) | Mechanical Metal Latch |
Side Clearance Needed | Typically 1/2-inch | Typically 3/4-inch (or more) |
Vibration Resistance | Low to Medium | Exceptionally High |
Optimal Load Range | 50 lbs - 150 lbs | 100 lbs - 500+ lbs |
Lock-Out Capability | Rarely Available | Standard Feature |
Purchasing the correct hardware is only the first step. You must install it correctly and maintain it properly to achieve maximum longevity. High-capacity mechanisms present unique installation challenges.
Standard medium-duty slides often feature a convenient disconnect lever. This small plastic tab allows you to remove the drawer box entirely from the cabinet. It makes solo installation fast and highly manageable.
Conversely, high-capacity industrial slides rarely feature a disconnect function. A detachable rail inherently compromises structural integrity under massive loads. You cannot separate the inner and outer tracks. Therefore, you must support the full weight of the drawer box while perfectly aligning the tracks. Prepare for a much more challenging, two-person installation process. If you need specialized guidance for your build, feel free to contact us to discuss proper mounting techniques.
Steel bends under stress. Even the most robust heavy-duty slides experience slight downward deflection at full extension. A 40-inch drawer carrying 250 lbs might sag a quarter-inch at the front edge. You must ensure your cabinet design accounts for this natural sag. Leave adequate vertical clearance below the drawer face to prevent the bottom from scraping against lower cabinet doors.
Latched drawer mechanisms contain more moving parts than standard models. They rely on internal springs and pivot points. Dust and debris will eventually compromise these small components.
Avoid using oil-based lubricants like WD-40. Wet oils attract sawdust, metal grit, and dirt. This creates a thick sludge that ruins ball bearings. Instead, maintain smooth operation by applying a dry silicone spray. Wipe down the extended tracks with a clean rag. Spray a light coat of dry silicone directly onto the ball bearing retainers every 3-6 months.
Choosing between these two sliding mechanisms comes down to a battle between convenience and stability. A standard model keeps daily operations fast, fluid, and affordable. However, it offers little protection against gravity or severe vibration.
To finalize your hardware specification, map your specific physical environment. If the cabinet will ever move, tilt, or house heavy items that could cause a weight-shift hazard, invest the extra budget in a locking model. Prioritize safety over speed. Conversely, if your cabinet is strictly stationary and accessed constantly, focus your budget on high-quality standard tracks. Look for premium lifestyle features like soft-close dampers or push-to-open mechanics to elevate the user experience.
A: While you cannot seamlessly retrofit a slide-integrated trigger lock onto a standard rail, you can install external mechanical solutions. Consider mounting barrel bolts, child-safety latches, or RV push-button cabinet catches to the drawer face. These external additions keep standard drawers securely closed in mobile environments without changing the internal track.
A: Yes. They are typically heavier and require more precise side-clearance tolerances. They also often lack the convenient "disconnect" feature found on standard slides. This means you cannot separate the tracks during assembly. You must support the full weight of the drawer box during track alignment.
A: A detent uses friction, usually via a rubber bumper or a tight groove, to gently hold a drawer closed. You can overcome a detent simply by pulling the handle. A lock uses a physical metal latch that drops into a slot. It completely prevents linear movement until a lever or trigger is manually pressed.
