How to Measure Drawer Slide Length for Perfect Drawer Fit

To measure drawer slide length, first take out the drawer. Measure the drawer and the cabinet to get the right size. Pick the correct drawer slide type. Each style needs its own way to measure. Watch the details. Slides as long as the cabinet can stop the drawer from closing. If you forget about face frame overhangs or space, you may have problems. Many people do not plan well or use the wrong size. This can make drawers tilt, jam, or not open all the way. Always check the length and fit before you put in your drawer slides.

Key Takeaways

• Always take out and clean the drawer and cabinet first. This helps you measure right and keeps things safe.

• Measure the drawer box from the back to the front edge. Do not include the drawer front in this measurement. Match the slide type to the way you measure.

• Look at the cabinet depth closely. Pick slides that are a bit shorter than the cabinet space. This helps the drawer move smoothly.

• Choose drawer slides by looking at type, length, extension, and weight limit. Make sure they fit your drawer's size and how you will use it.

• Check all your measurements again. Use a level when you put in the slides. This stops problems like sticking, jamming, or noise.

Prepare for Measurement

Remove the Drawer

Start by taking out the drawer from the cabinet. You need to empty the drawer first. Remove all items, including dividers or organizers. This step keeps your workspace safe and clear. Next, check the drawer box for any cracks, splits, or warped wood. Fix any damage before you continue. Clean the inside of the drawer to get rid of dust or debris. This helps you see the edges and corners better when you measure drawer slides.

Tip: Wear thick safety gloves to protect your hands from sharp screws or splintered wood. Put on safety glasses to keep your eyes safe from flying bits if you use tools.

Now, look at the cabinet. Empty the space where the drawer sits. Clean the inside of the cabinet. This gives you a clutter-free area to work and helps the slides attach well. Test the old slides if they are still there. Make sure they move smoothly. If not, you may need to replace them.

Gather Tools

You need the right tools to measure drawer slides accurately. Gather these items before you start:

• Measuring tape: Use it to check the drawer box and cabinet size.

• Square or ruler: Make sure your lines stay straight.

• Pencil: Mark points on the drawer and cabinet for easy alignment.

• Notepad: Write down each measurement so you do not forget.

• Level: Check that the slides will sit even and flat.

• Screwdriver: Remove the drawer box if it has screws or old slides.

These tools help you get the correct measurement for your drawer slides. They also make the job easier and safer. When you have everything ready, you can measure drawer slides without missing any details. This step sets you up for a perfect fit and smooth drawer action.

Measure Drawer and Cabinet

Measure Drawer Length

You need to start by measuring the drawer box. This step helps you find the right drawer slide length for a perfect fit. Place the drawer on a flat surface. Use a tape measure to check the distance from the very back of the drawer box to the front edge, but do not include the drawer front. The drawer front only stops the drawer from sliding into the cabinet, so it does not count in your measurement.

Follow these steps for accurate drawer box measurements:

1. Remove the drawer and set it on a flat surface.

2. Place your tape measure at the back edge of the drawer box.

3. Pull the tape along the bottom edge to the front edge of the box, stopping before the drawer front.

4. Write down the measurement. For most drawer slides, round down to the nearest whole inch. For undermount slides, use the exact length.

Tip: Always double-check your measurement. A small mistake can lead to a poor fit or a drawer that will not close.

You must know the type of drawer slide you plan to use. Side-mount and center-mount slides need you to round down the measurement. Undermount slides require the drawer box depth to match the slide length exactly. Drawer slides come in standard sizes, usually in 2-inch or 3-inch steps. If your drawer box is 15.75 inches, round down to 15 inches for side-mount or center-mount slides. For undermount slides, use the exact length.

Measure Cabinet Depth

Now, measure the inside depth of your cabinet. This step ensures the slide length fits inside the cabinet and does not stick out. Remove the drawer if you have not done so already. Place the tape measure at the inside back wall of the cabinet. Pull it straight to the front edge of the cabinet frame. Write down this measurement and round it down to the nearest inch.

Here is a simple checklist for measuring cabinet depth:

• Start at the inside back wall of the cabinet.

• Extend the tape measure to the front frame.

• Record the measurement.

• Measure both sides of the cabinet to check for any differences.

• Make sure the slide length is at least 1 inch shorter than the cabinet depth for side-mount and center-mount slides.

Note: For custom cabinets, choose drawer slides about 3 inches shorter than the cabinet depth. This gives enough space for smooth movement.

Drawer Slide Measurement Rules

You must match the drawer slide type to the correct measurement method. Here is a quick reference table:

For side-mount and center-mount slides, measure from the front of the cabinet to the inside back and subtract 1 inch. This rule gives the clearance needed for the slides to work well. For undermount slides, the drawer box depth and slide length must match exactly. Do not round down for undermount slides.

Check for Obstacles and Drawer Style

Before you buy or install drawer slides, look inside the cabinet for any obstacles. Pipes, wires, or brackets can block the slide path. Measure around these objects if needed. Also, check the drawer style. Inset drawers sit flush inside the cabinet frame. Overlay drawers sit on top of the frame and cover the opening.

• Inset drawers need slides about 3/4 inch shorter than overlay drawers.

• Overlay drawers usually need slides that match the drawer box length, minus 1 inch for clearance.

• For inset drawers, subtract the drawer front thickness from the cabinet depth before you choose the slide length.

Tip: Always measure drawer size and cabinet dimensions twice. This step helps you avoid costly mistakes.

By following these steps, you can measure drawer slides with confidence. You will get the right fit for your drawer opening and avoid problems like jamming or sticking. Careful drawer slide measurements lead to smooth, reliable drawers every time.

Choose Drawer Slide

Slide Types

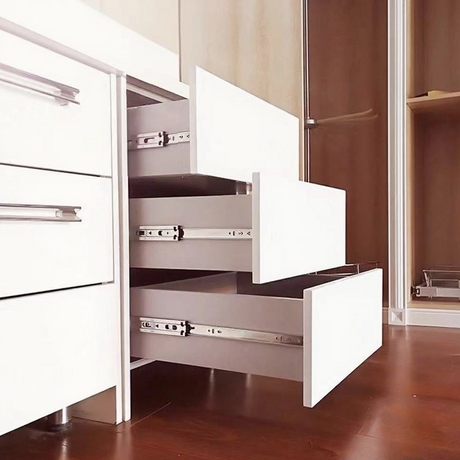

There are many choices when picking drawer slides. Each kind works best for certain drawers and cabinets. The main types are side-mount, undermount, center-mount, and special slides like soft-close or push-to-open. The table below shows what is good and bad about each type, and where to use them.

Some fine furniture uses wooden drawer glides. These look nice but do not let the drawer open all the way. They can also stick if it is humid. Side-mounted ball bearing slides let you pull the drawer out all the way and take it out easily. Undermount self-closing slides stay hidden and move quietly. They need the drawer box to be the right size and must be installed carefully.

Match Slide Length

The slide length must fit your drawer and cabinet. The right length helps your drawer move well and not get stuck. Here are steps to pick the right slide length:

1. For undermount slides, use a slide that is the same length as your drawer.

2. For side-mount and center-mount slides, measure from the cabinet front to the inside back wall.

3. Pick a slide that is the next size down from this measurement.

4. Make sure the slide length fits how you will use the drawer and how much it will hold.

5. Do not use slides that are too short or too long.

Tip: If your drawer or cabinet does not fit regular slides, look for custom or special slides. Some brands have slides in many sizes.

If your drawer box is not a normal size, round down to the closest slide length you can find. Always check that the slide fits inside the cabinet and does not stick out. For undermount slides, the drawer box depth and slide length must be the same.

Extension and Weight

Drawer glides come in two main extension types: full extension and partial extension. Full extension slides let you pull the drawer out all the way. Partial extension slides open about three-fourths of the way. The table below compares these two types.

You also need to think about weight. Drawer glides have weight ratings, like 75, 100, or 150 pounds. Some heavy-duty slides can hold over 500 pounds. Side-mount slides hold more weight because they support both sides of the drawer. Undermount slides work for medium weights. Center-mount slides only hold light things.

When you pick drawer slides, check how heavy your drawer is and what you will put inside. Choose a slide with a weight rating higher than your drawer's total weight. Steel slides are best for heavy drawers. Aluminum slides are good for medium loads. Plastic slides only work for light things. If you install slides the right way, they will hold the weight they are made for.

Note: If your drawer glides do not fit your drawer or cabinet, you can use shims or filler strips to help them fit. Some brands make custom lengths for hard-to-fit spaces.

By knowing about slide types, matching the slide length, and checking extension and weight, you can pick the best drawer glides for your project. This helps your drawers open smoothly and last a long time.

Install Drawer Slides

Double-Check Fit

Check all your measurements before you put in drawer slides. This step helps you avoid problems later. Use this checklist to make sure your drawer and cabinet sizes are right:

1. Measure the height, width, and depth of the drawer opening.

2. Take away at least 1/2 inch from the height. This gives space above and below the drawer.

3. Take away 1 inch from the width. This makes room for the drawer slides, which are 1/2 inch thick on each side.

4. Pick the longest drawer slide that fits the depth. Slides usually come in 2-inch steps from 10 to 28 inches.

5. For a false front, add 1 inch to both height and width. This lets it cover the opening by 1/2 inch on every side.

You also need to know which drawer slide type you will use. Take out any old slides and measure the inside length of the drawer box. Mark where you will put the slides on the drawer and cabinet sides. Use a level to keep everything straight. Attach the slides so they line up with the front edge of the drawer and cabinet. Test the drawer a few times to see if it moves smoothly. If it sticks, move the slides a little until it works better.

Tip: Wear gloves and eye protection when you install slides. This keeps your hands and eyes safe.

Common Mistakes

Many people make the same mistakes when putting in drawer slides. You can avoid these problems by following these tips:

1. Slides not lined up: Always use a level so slides stay even. If they are not straight, the drawer can stick or jam.

2. Wrong size: Check the drawer, cabinet, and opening size again. Look for anything inside the cabinet that could get in the way.

3. Loose screws: Use strong screws and tighten them well. This stops the slides from moving or shaking.

4. Too much weight: Check how much weight the slides can hold. If you put in too much, the slides can bend or break.

5. Not reading instructions: Follow the guide that comes with your drawer slides.

6. Cheap slides: Buy good quality slides. They last longer and work better.

7. Not checking level: Make sure the drawer is level before you finish.

8. Not asking for help: If you are not sure, ask someone who knows more.

9. Not cleaning: Clean and oil the slides often. Tighten any screws that get loose.

If things are tricky, measure everything twice. If your drawer is too wide, you might need to cut it down. Keep the slides clean and oiled so they move well. Change any broken or old parts as soon as you see a problem.

Check your slides often and make small fixes. This keeps your drawer slides working well for a long time.

Conclusion

To pick the right drawer slides, do these things: First, measure the drawer box from the back to the front. Next, look at the cabinet opening and make sure there is enough space for the slide. Then, use the right way to measure for the slide type you want. After that, pick slides that can hold the weight of your drawer and what you will put in it.

Using the right slide type and measuring the right way stops mistakes and helps your drawer open and close well.

FAQ

How do you know if your drawer slides are too long?

If the slide sticks out past the cabinet when you close the drawer, it is too long. You should pick a slide that fits inside the cabinet without blocking the drawer from closing.

Can you cut drawer slides to fit?

You should not cut metal drawer slides. Cutting can damage the slide and make it unsafe. Always buy the correct length. If you need a special size, look for custom slides.

What if your drawer box is shorter than standard slide sizes?

You can use a slide that is the same length or slightly shorter than your drawer box. If you cannot find a match, try a center-mount slide or add a spacer to fill the gap.

Why does your drawer not open smoothly after installing new slides?

Check if you lined up the slides straight. Dirt or loose screws can also cause problems. Make sure you use the right slide type and weight rating for your drawer.
