Ever wondered how much weight your drawer slides can hold? Drawer slides are essential for smooth drawer operation, but understanding their weight capacity is crucial for safety and functionality. Misjudging this can lead to damaged furniture or even injury. In this post, you'll learn about the importance of load ratings, different types of drawer slides, and factors affecting their weight capacity. We'll guide you in selecting the right slides for your needs and ensuring safe, efficient use.
A load rating is the maximum weight a drawer slide can safely support without failing. It’s a key number manufacturers provide to guide users when selecting drawer slides. This rating considers forces during use, including the weight of the drawer and its contents, plus the stress from opening and closing. Knowing the load rating helps prevent damage or accidents caused by overloading.
Load capacity and weight capacity are related but not the same. Load capacity refers to the maximum weight the slide can hold while fully extended — this includes dynamic forces from movement. Weight capacity usually means the static weight the slide supports when the drawer is closed or stationary. For example, a slide might have a load capacity of 150 lbs when extended but a higher static weight capacity when closed. Both matter for safety and smooth operation.
Ignoring load ratings can cause slides to fail prematurely, risking damage to furniture and injury. Exceeding the load rating stresses the slide’s components and mounting hardware, which may bend, break, or loosen. Proper load rating ensures:
Smooth drawer movement without sagging or sticking
Longevity of the slides and furniture
Safety for users by preventing unexpected failures
Load ratings also help you choose the right slide type. For instance, ball-bearing slides usually have higher load ratings than roller slides, making them better for heavy drawers.
Note: Always select drawer slides with a load rating higher than your drawer’s total weight to ensure durability and safety.
Roller slides are one of the more basic types of drawer slides. They feature a simple mechanism where each side has a roller, usually made from plastic or nylon, that fits into a groove. These rollers allow the drawer to slide in and out smoothly. Roller slides are generally less expensive and easier to install, making them popular for lightweight applications like small drawers or furniture that doesn't hold heavy items.
However, roller slides usually have lower load capacities, often supporting around 50 to 75 pounds. Because the rollers bear the weight and the sliding action, they tend to wear out faster under heavy loads. They also provide less stability, which can cause drawers to wobble or sag when carrying heavier items.
Ball-bearing slides use small metal balls housed between two rails to provide a smooth and quiet sliding action. These slides often come in two or three sections, allowing full extension of the drawer for better access to contents. The ball bearings reduce friction, enabling the drawer to glide effortlessly even under heavier loads.
Ball-bearing slides typically have much higher load capacities than roller slides. Depending on the model and size, they can support anywhere from 100 to 500 pounds or more. This makes them ideal for heavy-duty applications like tool chests, industrial cabinets, or kitchen drawers that hold heavy cookware.
They also offer better durability and stability, reducing drawer sag and ensuring smooth operation over time.
| Slide Type | Typical Load Capacity | Durability | Best Use Cases |
|---|---|---|---|
| Roller Slides | 50 - 75 lbs | Moderate | Light-duty furniture, small drawers |
| Ball-bearing Slides | 100 - 500+ lbs | High | Heavy-duty drawers, tool chests, industrial use |
The key difference boils down to load capacity and smoothness. Ball-bearing slides are the clear choice when you need to support heavier weights and want long-lasting, smooth drawer movement. Roller slides work well for lighter loads and budget-friendly projects but may not hold up well under heavy use.
Choosing between these types depends on your drawer’s intended load and how often you’ll use it. For example, a kitchen drawer holding pots and pans will benefit from ball-bearing slides, while a small desk drawer might do fine with roller slides.
Tip: When selecting drawer slides, always choose a load rating at least 20% higher than your drawer’s expected weight for added safety and durability.
The material and build quality of drawer slides greatly influence how much weight they can support. Slides made from heavy-gauge steel or reinforced aluminum tend to hold more weight than those made from lighter metals or plastic. Steel slides resist bending or warping under heavy loads, providing better durability.
Construction details matter too. Slides with thicker rails, reinforced brackets, and precision-engineered ball bearings offer greater strength and smooth operation. Poorly constructed slides may deform or wear out quickly when overloaded. For example, a high-quality ball-bearing slide can support several hundred pounds, while a basic roller slide might only hold 50 to 75 pounds.
How you install drawer slides affects their weight capacity and longevity. Proper mounting ensures even load distribution and prevents stress points that could cause failure. Use the recommended number and type of fasteners, and secure them tightly into solid wood or sturdy cabinet frames.
Side mounting is common and typically allows slides to carry their rated loads effectively. Bottom mounting is possible but may reduce load capacity because the slide structure alone supports the drawer weight without the help of ball bearings in compression. When mounting, follow manufacturer instructions closely to avoid weakening the slides’ performance.
Also, avoid using fewer fasteners than recommended. For heavy loads, multiple screws spaced along the slide length help share the weight and reduce shear stress on each fastener.
Slide length influences weight capacity. Longer slides distribute weight more evenly and provide better support, especially when fully extended. Shorter slides concentrate stress in smaller areas, increasing the risk of bending or failure under heavy loads.
Design features like reinforced rails, multiple ball-bearing rows, or heavy-duty intermediate members improve load handling. Some slides come with three sections for full extension, which can affect weight capacity differently than two-section slides.
Choosing a slide length slightly longer than your drawer depth can enhance stability. However, very long slides may require stronger mounting and cabinet support to maintain weight capacity.
Tip: Always follow the manufacturer’s installation guidelines and use the recommended fasteners to maximize your drawer slide’s weight capacity and prevent premature failure.
To pick the right drawer slides, you first need to know how much weight they must carry. Start by weighing your drawer and everything you plan to store inside. Add a little extra weight as a safety buffer—about 20% more than your estimated load is a good rule of thumb. This helps prevent overloading if you accidentally add heavier items later.
If your drawer has two slides, the total weight divides evenly between them. For example, if your drawer and contents weigh 200 lbs, each slide supports about 100 lbs. So, choose slides rated above 100 lbs each to be safe.

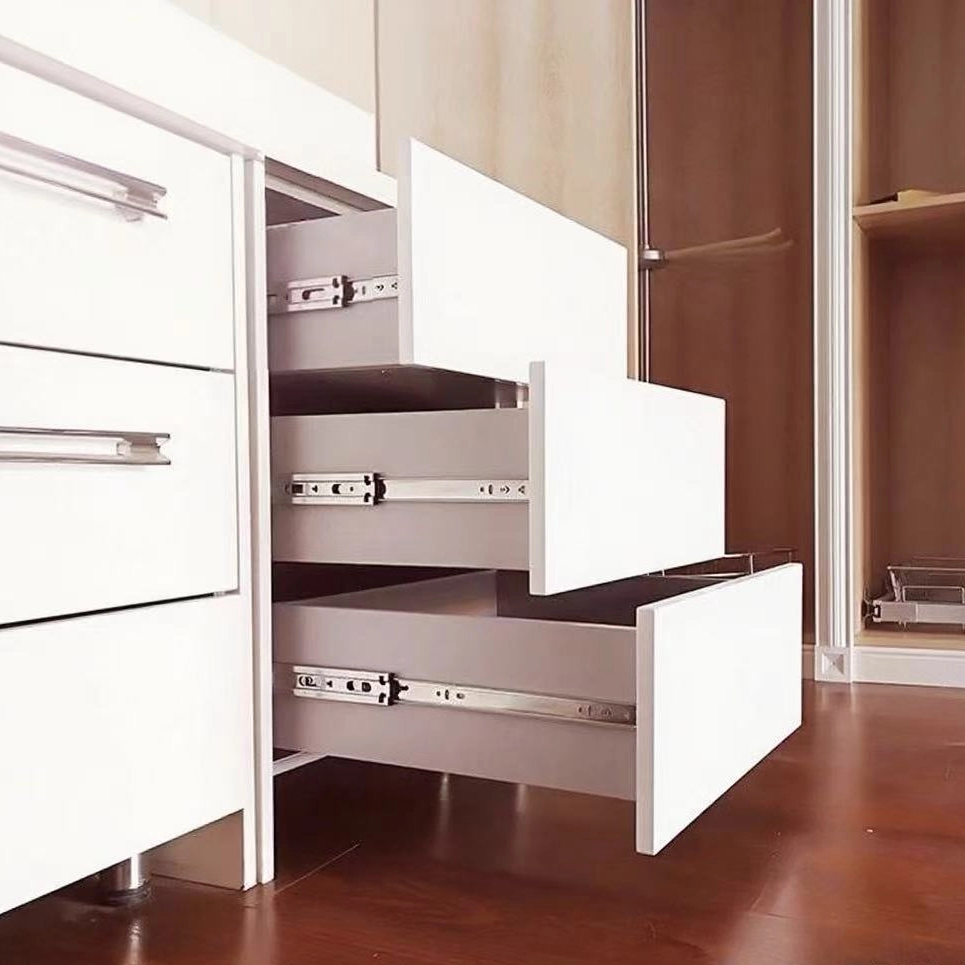

How you mount the slides affects their load capacity. Side mounting is the most common method. Here, slides attach to the drawer sides and cabinet frame. This setup lets the ball bearings carry most of the load, allowing slides to handle their full rated weight.
Bottom mounting means attaching slides under the drawer. This changes how forces act on the slides. Instead of ball bearings supporting the weight, the slide’s structure takes most of the load. This reduces the effective weight capacity, so bottom-mounted slides usually hold less weight than side-mounted ones.
If you need bottom mounting, pick heavy-duty ball-bearing slides designed for this use. Always check the manufacturer’s specs for load ratings in different mounting orientations.
Consider these factors when selecting slides:
Weight capacity: Pick slides rated above your calculated load per slide.
Mounting style: Side mounting supports more weight; bottom mounting requires stronger slides.
Slide length: Match or slightly exceed your drawer depth for stability.
Slide type: Ball-bearing slides handle heavier loads better than roller slides.
Frequency of use: Heavy-use drawers benefit from durable, smooth-operating slides.
For example, a kitchen drawer holding heavy pots should use ball-bearing side-mount slides rated for at least 150 lbs per slide. A small office drawer with light items might do fine with roller slides rated around 50 lbs.
Properly matching your drawer’s weight and mounting style to the right slides ensures smooth operation and long life.
Tip: Always add at least 20% extra to your estimated drawer weight when choosing slides to avoid overloading and ensure durability.
Heavy duty drawer slides offer several key benefits. First, they provide a much higher weight capacity compared to standard slides, often supporting loads from 150 lbs up to 500 lbs or more. This makes them ideal for applications where heavy items like tools, equipment, or large kitchenware need to be stored safely.
They also deliver enhanced stability. Their robust construction prevents drawer sagging or tilting, even under full load. This stability reduces wear and tear on both the slides and the furniture, extending their lifespan.
Smooth, controlled movement is another advantage. Heavy duty slides often use high-quality ball bearings or reinforced rollers, allowing drawers to glide effortlessly despite heavy weight. This feature improves user experience and reduces strain during frequent use.
Furthermore, these slides are built to last. Using strong materials like thick steel or reinforced aluminum, they resist bending and damage. Their durability makes them suitable for industrial, commercial, and heavy residential use.
Heavy duty drawer slides are widely used across various settings. In industrial environments, they support heavy tool chests, parts storage, and machinery drawers. Warehouses rely on them for durable storage cabinets and equipment racks.
In commercial kitchens, they handle heavy pots, pans, and utensils, ensuring smooth access and safety. Residential applications include garage storage, home workshops, and custom cabinetry designed for heavy loads.
They also find use in automotive shops, manufacturing plants, and medical facilities where reliable, heavy-duty storage solutions are essential. Anywhere heavy items require secure, smooth drawer access, heavy duty slides are a smart choice.
Choosing the right heavy duty drawer slides involves several considerations:
Load rating: Select slides with a load capacity exceeding your drawer’s total weight by at least 20%. This margin accounts for unexpected weight increases and ensures longevity.
Material and build: Opt for slides made from durable materials like steel or reinforced aluminum. Check for reinforced rails and high-quality ball bearings.
Slide length: Match or slightly exceed your drawer depth. Longer slides distribute weight better and improve stability.
Mounting style: Side mounting usually offers higher load capacity. If bottom mounting is needed, ensure the slides are rated for this orientation.
Extension type: Full-extension slides provide better access but may have different load ratings than three-quarter or partial-extension models.
Frequency of use: For heavy daily use, prioritize slides designed for high cycle counts and durability.
By considering these factors, you ensure your heavy duty drawer slides provide safe, smooth operation and stand up to the demands of your project.
Tip: Always choose heavy duty drawer slides with a load rating at least 20% higher than your drawer’s expected total weight to ensure safety and durability under heavy use.
Proper installation plays a huge role in how well drawer slides perform and how much weight they can safely hold. Even the strongest slides won’t work well if mounted incorrectly. Always follow the manufacturer’s instructions carefully. Use the recommended number of screws and make sure they go into solid wood or a sturdy frame. This helps spread the load evenly and reduces stress on any one part.
Side mounting is the most common and usually the strongest method. It allows the ball bearings inside the slides to carry the load properly. Bottom mounting is possible but often reduces load capacity because the slide structure alone supports the weight. If you choose bottom mounting, pick slides designed specifically for that style and check their load ratings.
Also, avoid shortcuts like using fewer screws than recommended. More fasteners spaced evenly along the slide length help share the weight and prevent fastener failure. Tighten screws firmly but don’t overtighten, which can strip holes or damage the slide.
Keeping your drawer slides clean and lubricated ensures smooth operation and extends their life. Dust, dirt, and debris can build up in the rails and bearings, increasing friction and wear. Regularly wipe slides with a dry cloth and remove any foreign material.
Lubricate sliding parts using a light machine oil or silicone-based lubricant designed for metal hardware. Avoid heavy grease, which can attract dirt and gum up the mechanism. Proper lubrication reduces friction, making it easier to open and close drawers, especially under heavy loads.
Check slides periodically for signs of damage, bending, or loose screws. Tighten fasteners as needed and replace worn parts promptly to avoid sudden failures.
Choose slides rated above your drawer’s weight by at least 20% to reduce strain.
Install slides according to manufacturer guidelines, using all recommended fasteners.
Keep slides clean and lubricated to prevent friction and wear.
Avoid slamming drawers, which can damage slides and mounting hardware.
Inspect slides regularly for damage or looseness, especially in heavy-use areas.
Replace damaged or worn slides promptly to maintain smooth operation and safety.
By following these simple steps, you’ll ensure your drawer slides last longer, operate smoothly, and safely support your loads.
Tip: Always use the full set of recommended fasteners and follow installation instructions precisely to maximize drawer slide weight capacity and durability.
Understanding drawer slide weight capacity is crucial for safety and durability. Load and weight capacity differ, impacting slide choice. Proper installation and regular maintenance maximize lifespan. Selecting slides involves considering mounting style, material, and usage frequency. Consider weight capacity in projects to ensure smooth operation and longevity. EASTMAX offers high-quality drawer slides, providing superior load support and durability. Their products enhance furniture safety and performance, making them an excellent choice for heavy-duty applications.
A: A drawer slide load rating is the maximum weight the slide can safely support without failing, including forces from opening and closing.
A: Roller slides typically support 50-75 lbs, while ball-bearing slides can handle 100-500 lbs or more, making them ideal for heavier drawers.
A: Proper installation ensures even load distribution and prevents stress points, maximizing the drawer slide's weight capacity and longevity.
A: Regular cleaning and lubrication with light machine oil or silicone-based lubricant reduce friction, ensuring smooth operation and extending lifespan.
