Hinge Cycle Testing: How To Evaluate Product Lifespan?

Introduction

Hinges are critical components in furniture, cabinets, doors, and windows, with their durability directly impacting product longevity and user experience. Whether for frequently opened kitchen cabinets or heavy-duty industrial enclosures, hinge reliability is paramount. So, how can we scientifically assess hinge lifespan? Cycle testing is one of the most crucial metrics. This article delves into hinge cycle testing methods, standards, and optimization strategies to help you select more durable products.

1. The Importance of Hinge Cycle Testing

Hinge lifespan is influenced by multiple factors, including material, structural design, load capacity, and operating environment. For example, kitchen cabinet hinges exposed to humidity may wear faster if corrosion resistance is insufficient, while industrial hinges with inadequate load-bearing capacity may deform or break after repeated use.

Industry requirements vary by application:

- Standard furniture hinges (e.g., household cabinets) typically require 50,000-100,000 cycles.

- Premium commercial hinges (e.g., office furniture, hotel cabinets) demand 100,000-200,000 cycles.

- Industrial heavy-duty hinges (e.g., equipment enclosures, medical devices) may need 200,000+ cycles under rigorous testing.

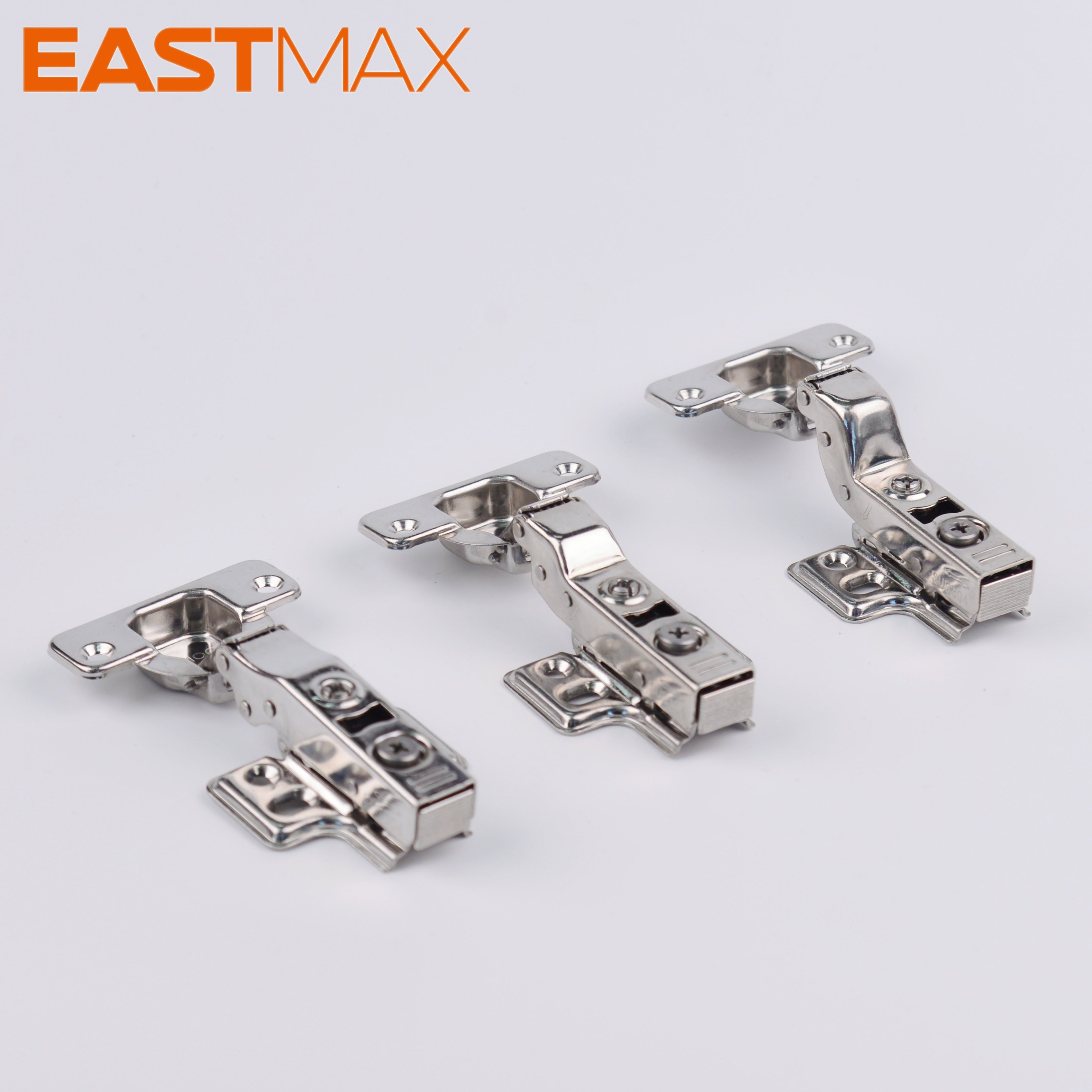

For quality-conscious buyers, we recommend premium brands like Hettich, Blum, EastMax, and Hafele. These brands implement strict testing protocols and quality control systems, ensuring long-lasting performance with silent, smooth operation even after years of use. For instance, EastMax’s 304 stainless steel hinge series passes 96-hour salt spray tests, offers excellent waterproofing and corrosion resistance, and achieves 60,000 cycles—making it ideal for high-end furniture or kitchen/bathroom cabinets.

Scientific cycle testing helps manufacturers refine designs while enabling consumers to make informed purchasing decisions.

2. Common Hinge Cycle Testing Methods

(1) Manual vs. Machine Testing

- Manual testing: Suitable for small-scale verification but lacks efficiency and precision.

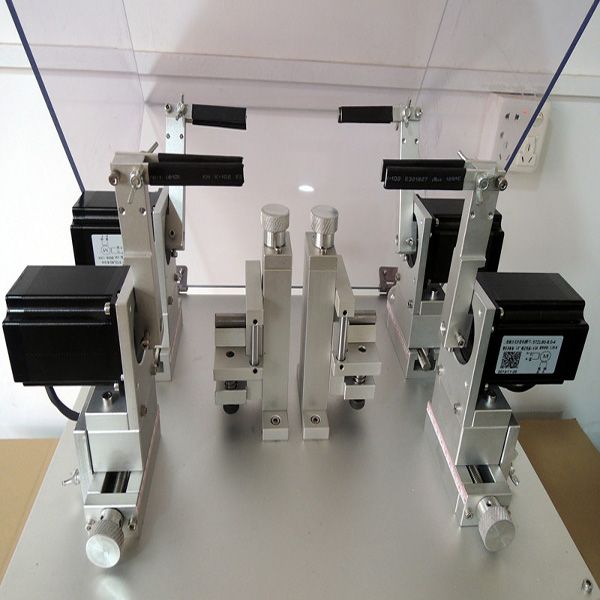

- Machine testing (automated equipment): Simulates high-frequency cycling (e.g., 30–50 cycles/minute), recording wear, loosening, and damping failure data for reliable results.

(2) Testing Standards

International standards provide benchmarks:

- EN 15570 (European furniture hinge standard): Requires ≥50,000 cycles without failure.

- ANSI/BHMA (U.S. standard): Specifies cycle requirements by hinge grade.

- Salt spray testing (e.g., ASTM B117): Evaluates corrosion resistance in humid environments.

(3) Real-World Simulation

Testing mimics actual conditions:

- Load testing: Applies rated weight (e.g., 10kg/20kg) to observe performance under stress.

- Temperature/humidity testing: Accelerates oxidation and assesses damping stability.

3. Interpreting Test Results

(1) Compliance Standards

- Standard hinges: No breakage or functional failure after 50,000 cycles.

- Premium hinges: Stable damping performance beyond 100,000 cycles.

- Industrial hinges: No structural deformation or load-capacity loss after 200,000 cycles.

(2) Common Failure Modes

- Wear: Loose pivots or noisy operation due to friction.

- Fracture: Caused by material weakness or design flaws.

- Damping failure: Loss of soft-closing functionality over time.

(3) Data-Driven Design Improvements

Manufacturers optimize via:

- Material upgrades: e.g., stainless steel pivots replacing carbon steel.

- Structural refinements: Additional bearings to reduce friction.

- Process enhancements: Improved electroplating for rust prevention.

4. Key Factors for Extending Hinge Lifespan

(1) Material Selection

- Stainless steel: Superior corrosion resistance for humid areas (kitchens/bathrooms).

- Zinc alloy: Cost-effective for dry environments.

- Nylon composites: Lightweight, often paired with slides.

(2) Structural Optimization

- Multi-bearing designs: Minimize friction (e.g., Blum’s "integrated damping technology").

- Reinforced hinge cups: Prevent door sagging over time.

(3) Surface Treatments

- Nickel/chrome plating: Boosts rust resistance.

- Powder coating: Ideal for outdoor hinges.

Conclusion

Cycle testing is the gold standard for hinge durability. By adhering to certifications like EN 15570 and simulating real-world conditions (load, humidity), manufacturers and buyers can objectively evaluate performance. For optimal results, choose tested, brand-name hinges (e.g., Hettich, Blum, EastMax) that combine rigorous validation with silent, long-term reliability—reducing maintenance costs and ensuring satisfaction across residential, commercial, and industrial applications.
