6D Adjustment: Marketing Gimmick Vs. Technical Reality in Furniture Hinges

In the furniture hardware industry, the concept of "6D adjustment" has been heavily promoted by certain hinge manufacturers in recent years, making it seem like a hallmark of premium products. However, when we strip away the marketing hype and examine the technical essence, we find that this is merely a repackaging of basic functionalities. This article will analyze the true dimensions of hinge adjustment from a professional perspective, debunk the myth of "6D adjustment," and detail the various adjustment technologies available.

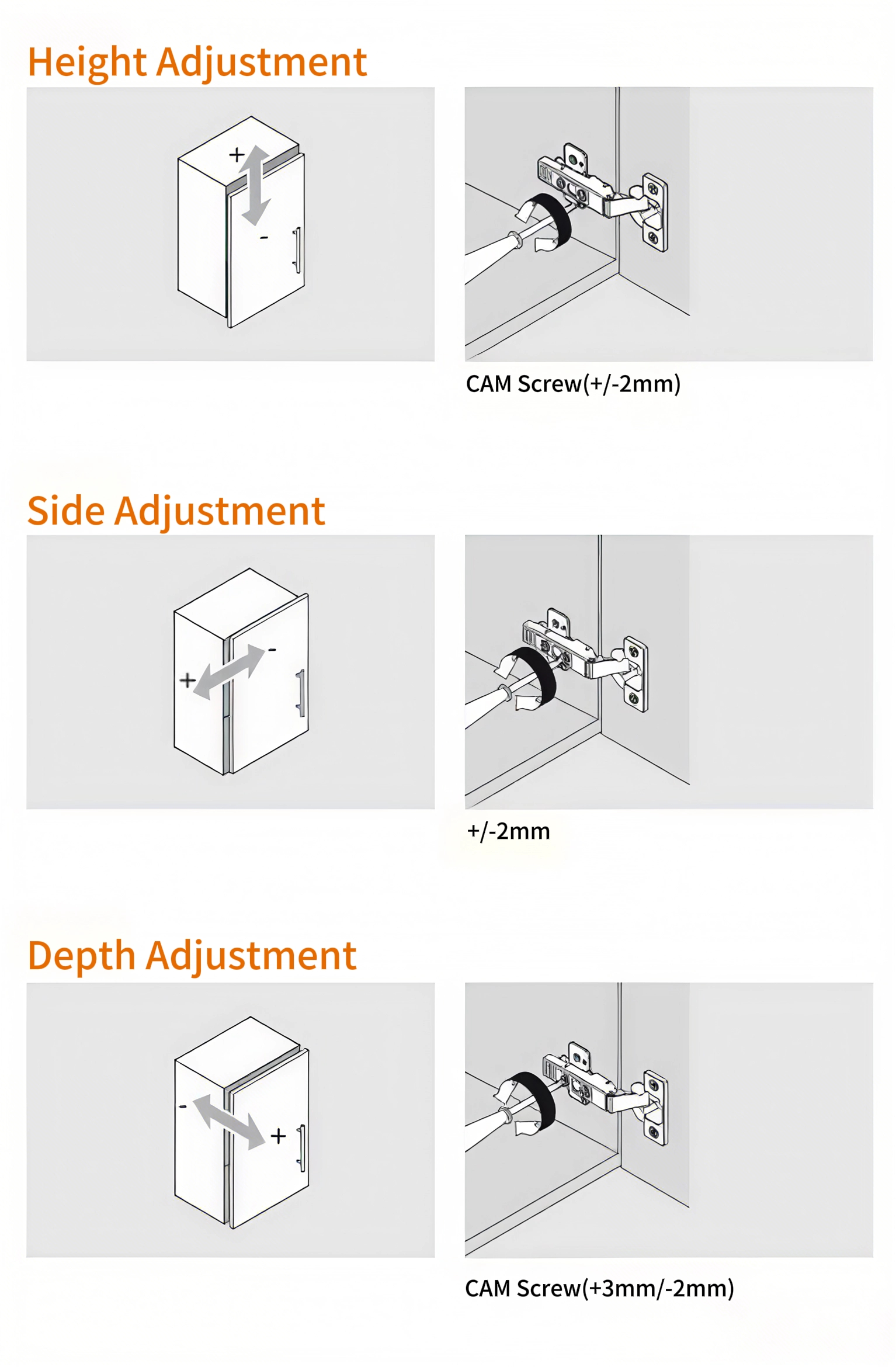

1. The Three Fundamental Dimensions of Hinge Adjustment

Any experienced installer knows that after mounting a door panel, fine-tuning is required in three dimensions to ensure even gaps, smooth operation, and proper functionality:

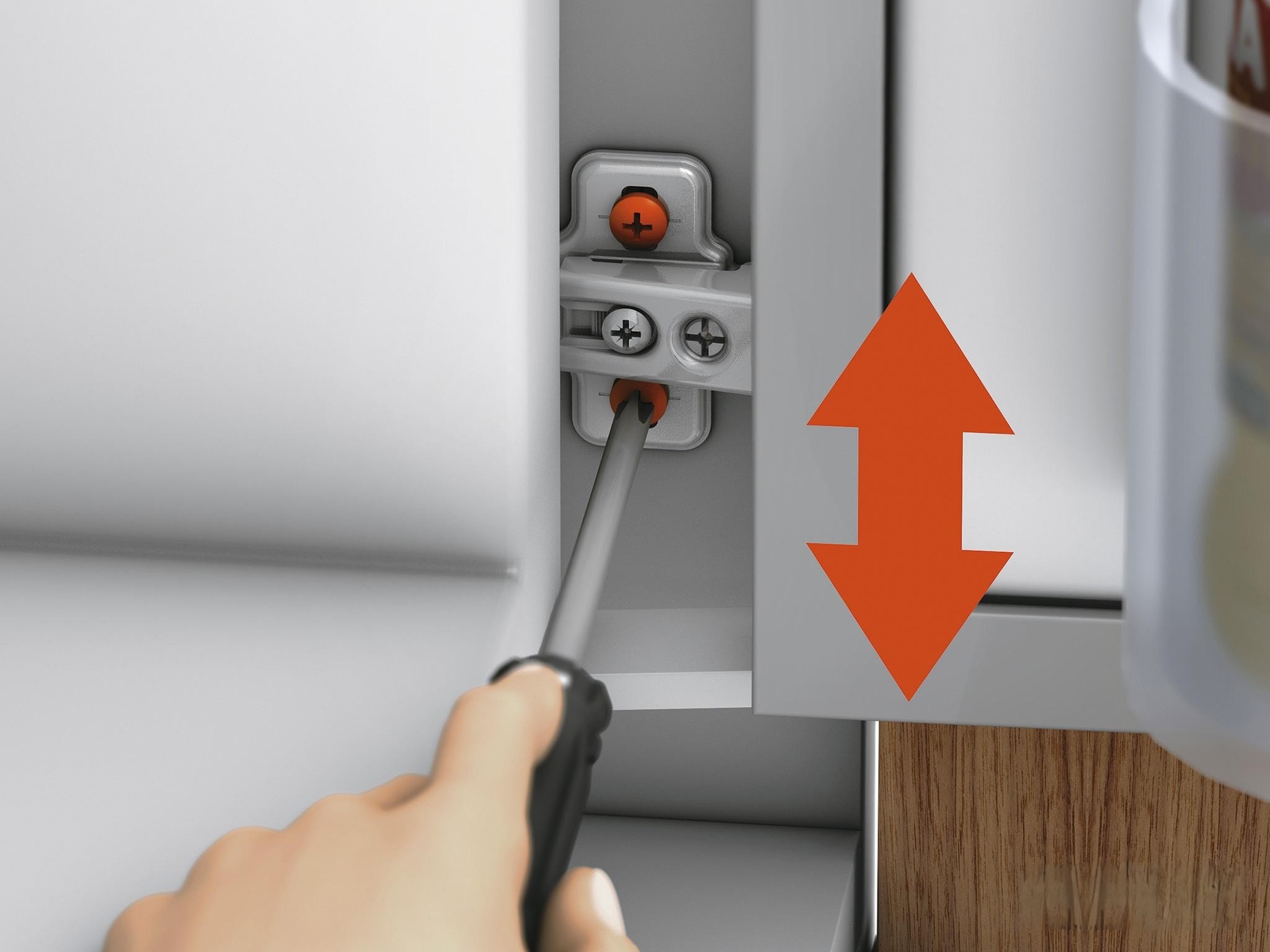

1. Vertical Adjustment (Up/Down) - Controls the height of the door panel to align it horizontally with adjacent doors or cabinet frames. The standard adjustment range is typically around ±2 mm.

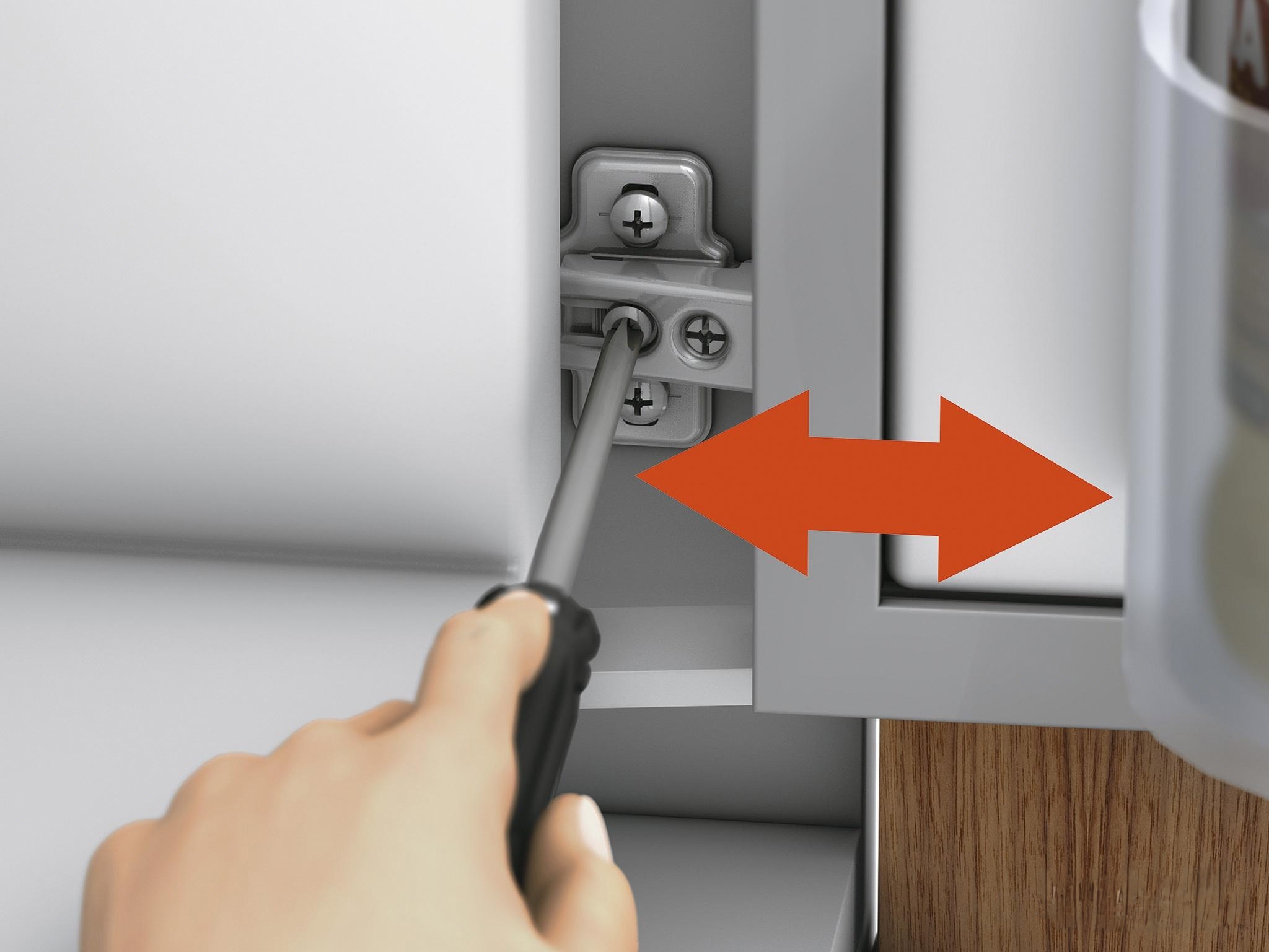

2. Horizontal Adjustment (Left/Right) - Adjusts the side gap between the door and cabinet to ensure uniform spacing when multiple doors are installed side by side.

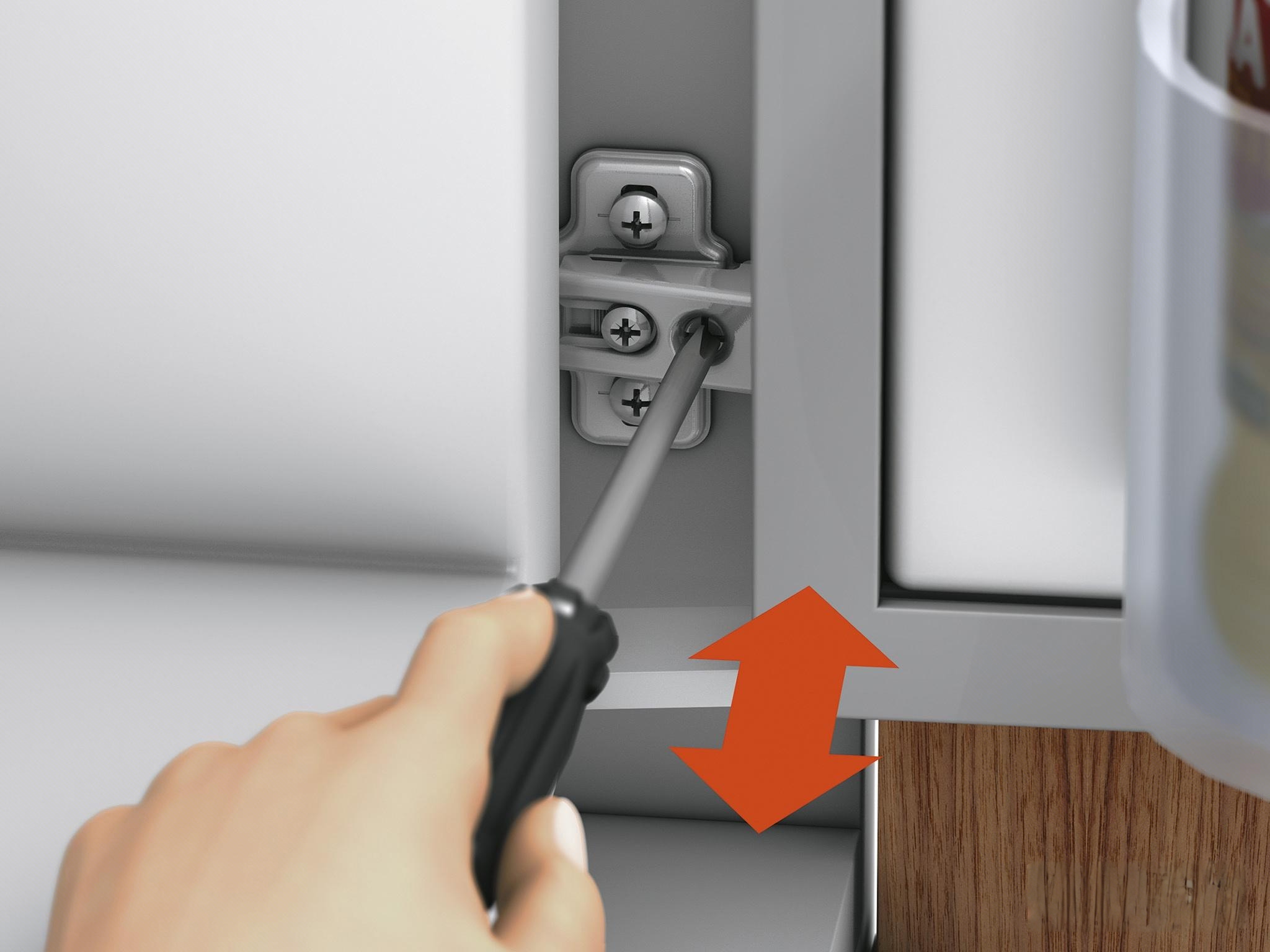

3. Depth Adjustment (In/Out) - Determines how flush the door sits against the cabinet surface, affecting sealing and appearance when closed.

These three basic dimensions cover all necessary linear adjustments for proper door installation. Professional hinge designs incorporate precise micro-adjustment mechanisms, implemented through various technologies:

(1) Traditional Adjustment Method

The most basic hinges require loosening the mounting screws, manually shifting the door into position, and then retightening. While straightforward, this method lacks precision and efficiency, often requiring repeated trial-and-error adjustments.

(2) CAM Adjustment Technology

Modern hinges increasingly use CAM (cam-actuated) adjustment mechanisms, which allow precise control via a simple screw turn. For depth adjustment, rotating the CAM screw moves the hinge arm forward or backward without loosening mounting screws, enabling fine-tuned positioning.

(3) 3D Adjustable Base

High-end hinges feature three-dimensional adjustable bases, integrating multiple adjustment mechanisms:

•  Vertical adjustment via height-adjustment screws

•  Horizontal adjustment through sliding rails or eccentric cams

•  Depth adjustment via front-back displacement mechanisms

Each dimension has an independent screw, allowing isolated adjustments without interference. Some models even include calibrated markings for precise control.

2. The Marketing Trick Behind "6D Adjustment"

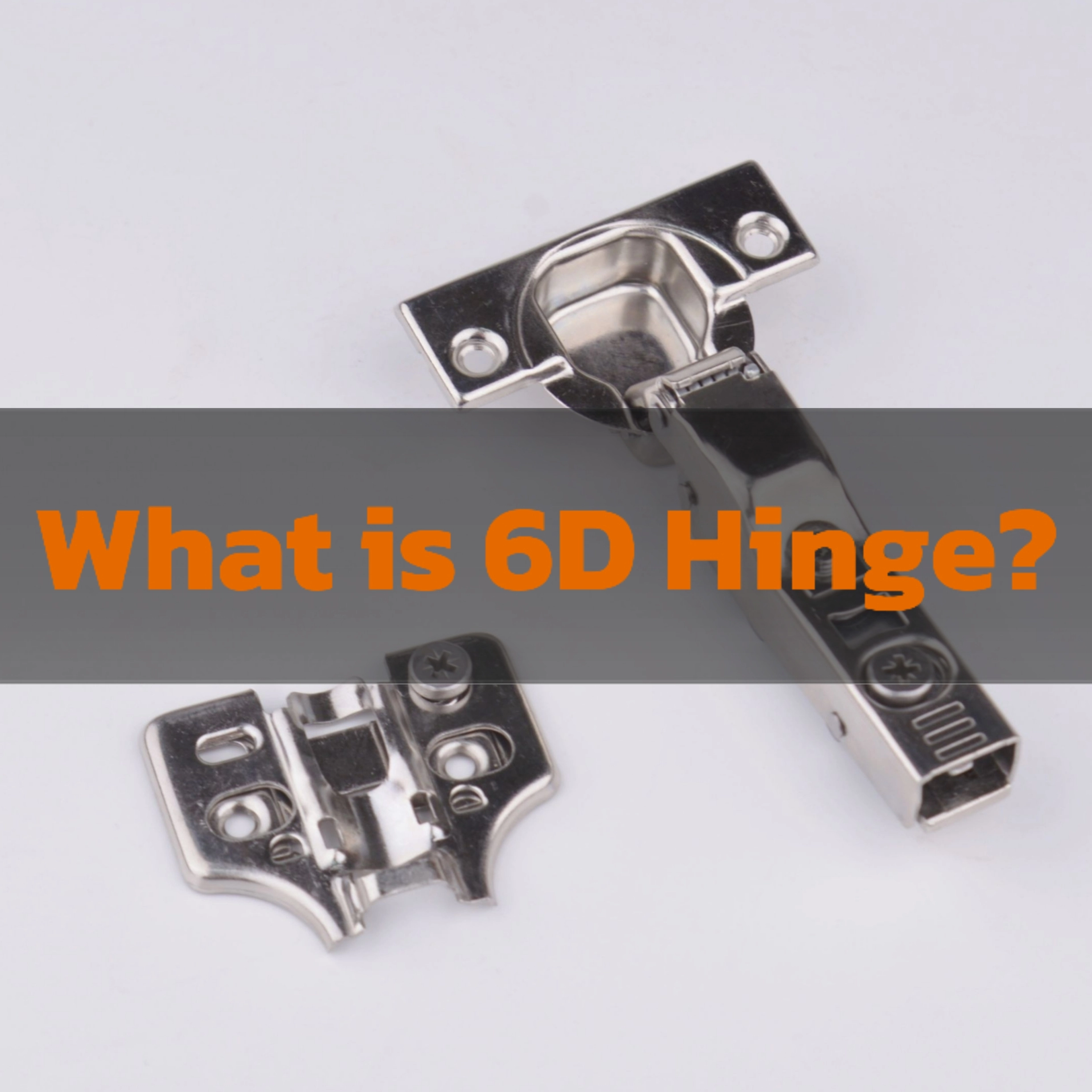

Some manufacturers claim their hinges offer "6D adjustment" by splitting the three fundamental dimensions into two directions each:

1. Up/Down → Up adjustment + Down adjustment

2. Left/Right → Left adjustment + Right adjustment

3. In/Out → In adjustment + Out adjustment

Mathematically, this yields 3×2=6, but in engineering terms, it’s a meaningless distinction. All linear adjustments inherently include bidirectional movement—splitting them into separate "dimensions" is like counting "heating" and "cooling" as two separate thermostat functions.

From a technical standpoint, whether using traditional manual adjustment, CAM mechanisms, or 3D bases, hinges still operate within three spatial dimensions. Advanced technologies simply make adjustments more precise and convenient, not more numerous.

3. True Multi-Dimensional Adjustment Beyond a Single Hinge

While a single hinge only adjusts in three dimensions, multi-hinge systems introduce more complex alignment possibilities:

1. Tilt Adjustment - By differentially adjusting two hinges, installers can control the door’s angular tilt, compensating for uneven walls or cabinet deformations.

2. Composite Adjustments - With three or more hinges, installers can correct door warping or twisting, though this requires skill and spatial reasoning.

Theoretically, *n* hinges provide *3n* degrees of freedom, but in practice, these adjustments are interdependent. Professional installers focus on practical solutions, not arbitrary "dimension" counts.

4. Practical Advice for Choosing Hinges

Amid exaggerated "6D" claims, consumers should prioritize:

1. Substance Over Buzzwords - Look for smooth adjustment feel, clear calibration marks, and secure locking mechanisms--not inflated dimension counts.

2. Match Needs to Features - Standard cabinets only need three-way adjustment. Over-engineering complicates installation unnecessarily.

3. Check Accessory Systems - Shims, extenders, and reinforcement plates offer real-world flexibility, unlike marketing gimmicks.

4. Trust Established Brands - Reputable manufacturers focus on durability and precision, not hollow claims.

5. The Need for Technical Integrity in the Industry

While innovations like CAM adjustment and 3D bases are genuine improvements, rebranding basic functions as "6D breakthroughs" misleads consumers and harms industry credibility. We advocate:

•  Manufacturers should emphasize real performance metrics (load capacity, longevity, smoothness) over artificial "dimensions."

•  Industry Groups must standardize terminology to prevent misleading claims.

•  Media & Influencers should educate consumers on actual hinge mechanics, not hype.

Conclusion

A hinge’s true value lies in its mechanical reliability and precision--not imaginary "dimensions." Technologies like CAM adjustment and 3D bases represent real progress, making installations easier and more accurate. However, when faced with "6D adjustment" claims, consumers should remain skeptical and focus on tangible performance.

After all, quality hardware works silently--it doesn’t need inflated marketing to prove its worth.
