Hinges are the crucial connectors between cabinet doors and frames, providing essential support and movement. The smoothness of your cabinet door’s swing? That’s all thanks to them. Hinges are highly versatile—no matter what kind of door movement you envision, there’s a hinge designed for it. So, to truly understand hinges, you first need to grasp how doors and cabinets interact and how doors open and close.

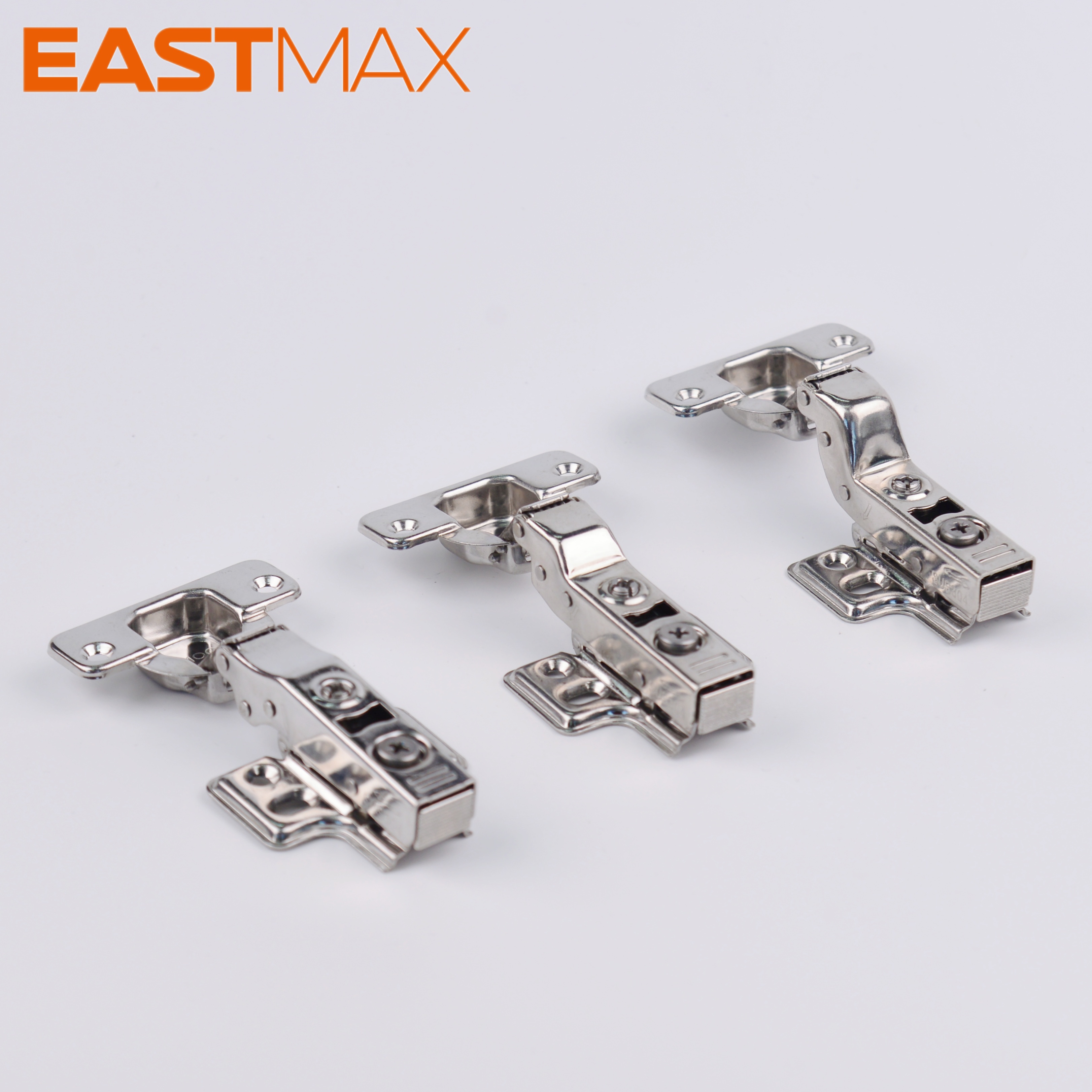

A hinge consists of three main parts: the hinge cup (mounting plate), the body (connecting arm), and the base.

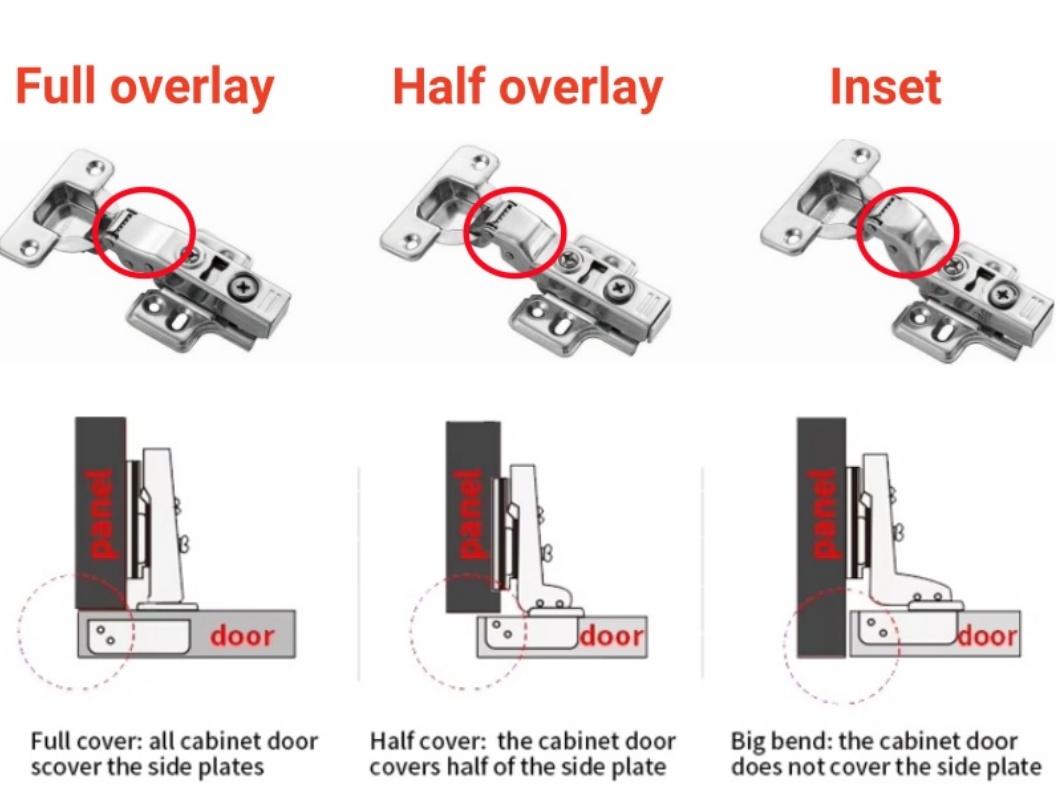

When it comes to door installation, there are three common types:
Full Overlay – The door fully covers the cabinet side panel.
Half Overlay – The door partially covers the side panel.
Inset (No Overlay) – The door sits flush inside the cabinet frame.
The logic is simple: the more the door needs to "wrap around" the side panel when opening, the more the hinge arm must bend. The length of the arm also matters—short-arm hinges work well for narrow side panels, while long-arm hinges provide extra reach.
But things get tricky with unconventional installations. For example, a parallel-mounted door might use a straight-arm hinge, but it’s technically called a parallel hinge (or +90° hinge—more on angles later).

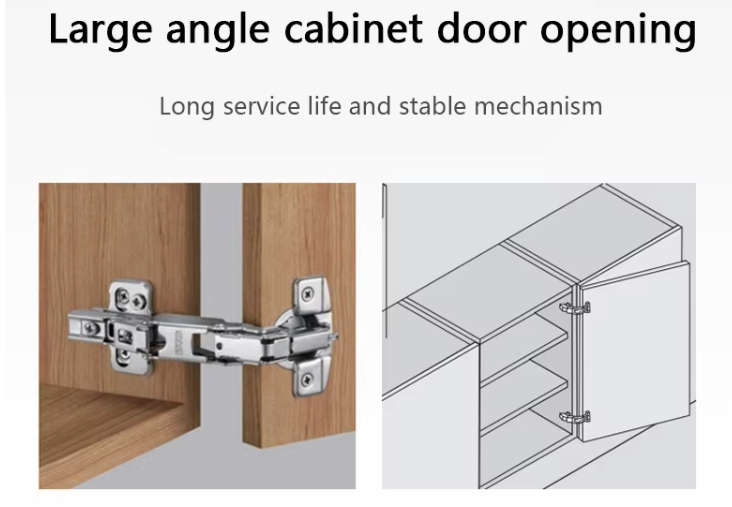

Hinges are also classified by their closing angle and opening angle.
To visualize this:
Imagine the side with the hinge as the inner side.
When the door is closed, the inner surface acts as the reference plane (0°).
The angle formed between the door and this plane determines the hinge type.
Angles are labeled as positive (outward tilt) or negative (inward tilt). For example:
A parallel hinge is a +90° hinge.
A -45° hinge means the door tilts inward at 45°.
Understanding these angles helps predict how a door will behave—like whether it swings out or folds in.
Beyond basic movement, hinges offer extra features like damping, soft-close, and multi-stage resistance.
Non-Damped (Basic) Hinges – Provide no resistance; doors rely entirely on external force. These are often used with push-to-open mechanisms for handle-free designs.
Damped Hinges – Include a hydraulic or pneumatic damper for smooth, quiet closing.
Single-Stage vs. Dual-Stage Resistance
Single-Stage – Holds the door at one fixed angle (otherwise, it snaps shut or fully opens).
Dual-Stage – Allows free positioning within a range (e.g., 45°–110°).
Some high-end models even offer micro-angle buffering (called "triple-stage" or "full damping").
Push-to-Open Hinges – No self-closing function; must be paired with a push latch.
A good hinge is a precision-engineered component. High-end models pack in features like:
Adjustable damping (customizable closing speed).
Micro-angle buffering (smooth closing even at tiny angles).
Tension control (adjusting how much force is needed to open).

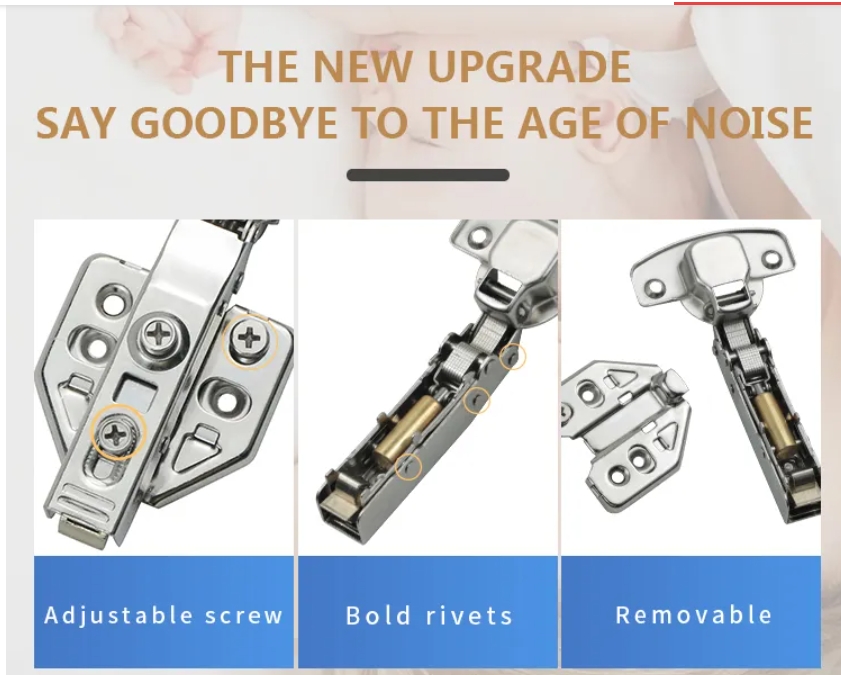

Multi-dimensional adjustability (fine-tuning alignment).
The more advanced the hinge, the better it balances functionality, durability, and silent operation. So next time you open a cabinet door smoothly, remember—there’s some serious engineering behind it!
